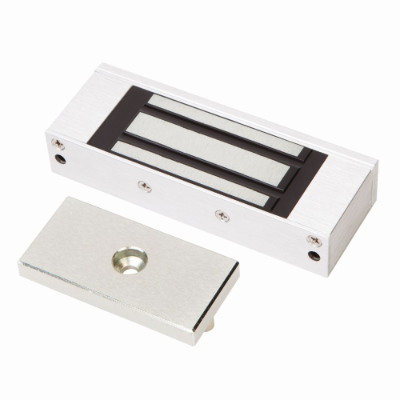

LOX CCW15S Single Electro Magnetic Micro Lock – Non Monitored, 75kg Holding Force, Compact Cabinet & Locker Security

LOX CCW15S Single Electro Magnetic Micro Lock – Non Monitored, 75kg Holding Force, Compact Cabinet & Locker Security

$121.38 AUD
$193.80 AUD $121.38 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The LOX CCW15S is a compact, high-performance electromagnetic micro lock specifically engineered for securing hinged doors on lockers, cabinets, and similar enclosures. With a holding force of up to 75kg, it delivers dependable locking in a small form factor, making it ideal for space-constrained installations.

Designed for reliability, the CCW15S features dual voltage support (12VDC and 24VDC) and low current draw, ensuring efficient integration with access control systems. Built to withstand demanding use, it carries CE & C-Tick approvals and operates across a wide temperature range, making it suitable for both indoor and light commercial environments.LOX Electro Mini Mag Lock, 75kg, Non Monitored, Surface Mount, 12/24V DC

What's Included in the Box

  • 1 × LOX CCW15S Single Electro Magnetic Micro Lock (Non Monitored)

  • Mounting hardware (screws and fixings)

  • Installation instructions

Main Features

  • Compact design ideal for cabinets, lockers, and small enclosures

  • Holding force up to 75kg

  • Dual voltage operation (12VDC / 24VDC)

  • Low current consumption for energy efficiency

  • CE & C-Tick approved

  • Wide operating temperature range (-20°C to +60°C)

Detailed Specifications

Specification Details
Model Number CCW15S
Lock Type Single Electro Magnetic Micro Lock – Non Monitored
Holding Force Up to 75kg
Voltage / Current 12VDC = 240mA, 24VDC = 120mA
Voltage Range Dual voltage 12VDC / 24VDC
Monitoring None
Environmental Operational temperature -20°C to +60°C
Warranty Manufacturer’s Warranty Applied
Approvals CE & C-Tick

Warranty Information

Manufacturer’s Warranty Applied

Brand Description

LOX Locking Pty Ltd is an Australian leader in high-quality electromagnetic locking solutions, delivering durable and reliable products for a wide range of security applications.

SKU

CCW15S

Practical Use Scenarios

  • Locker security in schools, gyms, or workplaces

  • Cabinet locking in offices, hospitals, and retail stores

  • Securing tool storage in industrial environments

  • Controlled-access compartments in commercial facilities

Datasheets / Downloadable Resources

FAQs

Q: What is the holding force of the LOX CCW15S?
A: It delivers up to 75kg holding force in a compact form factor. (SKU: CCW15S)

Q: Does the CCW15S have monitoring?
A: No, it is a non-monitored model. (SKU: CCW15S)

Q: What voltage does the CCW15S support?
A: It operates on both 12VDC and 24VDC inputs. (SKU: CCW15S)

Q: Is the CCW15S suitable for outdoor use?
A: It is primarily designed for indoor and light commercial environments. (SKU: CCW15S)
