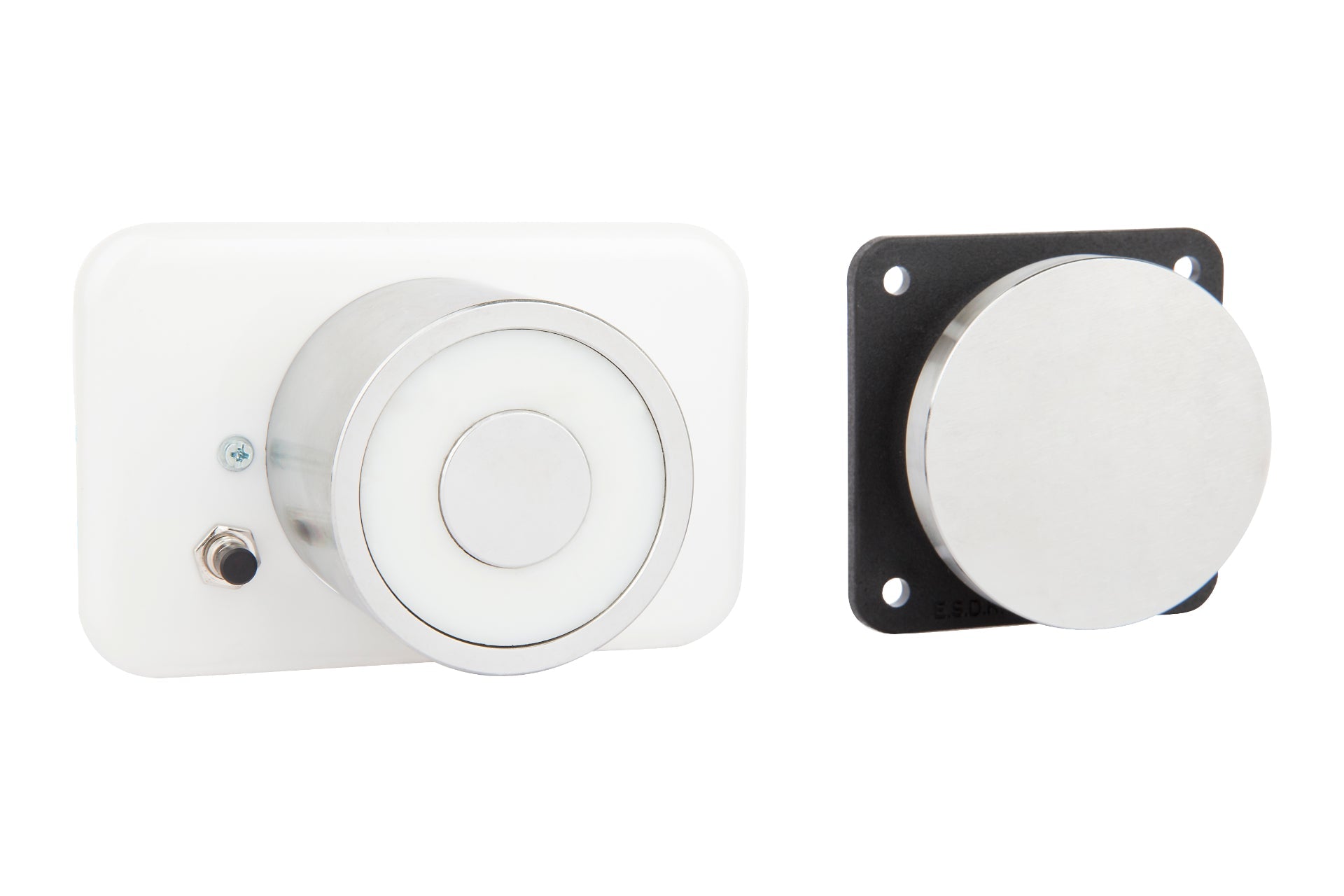

LOX 35770 | Heavy Duty 12VDC Wall-Mounted Magnetic Door Holder – 50 kg Holding Force

The LOX 35770 Heavy Duty Magnetic Door Holder is engineered for reliable performance in commercial, healthcare, and industrial environments. With 50 kg of holding force and a robust titanium alloy surface finish, it combines strength with an elegant design. Operating on a fail-safe principle, the door holder releases immediately when power is cut, ensuring compliance with fire and safety regulations. This model is 12 VDC wall-mounted, making it an ideal choice for fixed, high-strength installations where floor mounting is not required.

What’s Included in the Box

• LOX 35770 Heavy Duty Wall-Mounted Magnetic Door Holder

• Manufacturer’s Warranty Applied

Main Features

• Heavy duty 50 kg holding force

• 12 VDC operation at 100 mA current consumption

• Wall-mounted design for fixed installations

• Titanium alloy surface finish with modern appearance

• Fail-safe operation – releases when power is removed

• Operational temperature range: -20°C to 60°C

Detailed Specifications

Warranty Information

Manufacturer’s Warranty Applied – covers manufacturing defects and operational reliability, with service support through authorized LOX representatives.

Brand Description

LOX Locking is a leading provider of high-quality electromagnetic locking and door-holding systems, designed for safety, durability, and compliance with Australian and New Zealand building codes.

Practical Use Scenarios

• Office Buildings: Keeps doors open during work hours, releasing when triggered by an alarm.

• Hospitals: Maintains clear pathways for staff and patients while meeting fire safety standards.

• Schools & Universities: Improves pedestrian flow in hallways with automatic emergency release.

• Industrial Facilities: Secures heavy fire doors in open positions until required to close.

Excellence for the Australian and New Zealand Market

Designed to meet Australian fire-safety standards, the LOX 35770 ensures compliance and long-term reliability. Each unit is sourced exclusively from authorized representatives, with warranty claims handled directly through LOX for efficient and trustworthy service.

FAQs (Product Code: 35770)

1. What is the holding strength of the 35770?
   The 35770 provides up to 50 kg of magnetic holding force.

2. What is the voltage and current draw for the 35770?
   It operates at 12 VDC and draws 100 mA.

3. Is the 35770 suitable for fire-rated doors?
   Yes, it is designed for use with fire and smoke doors, operating in fail-safe mode.

4. What is the operational temperature range of the 35770?
   It operates between -20°C and 60°C.

5. What warranty does the 35770 come with?
   The product is covered by a Manufacturer’s Warranty Applied.
