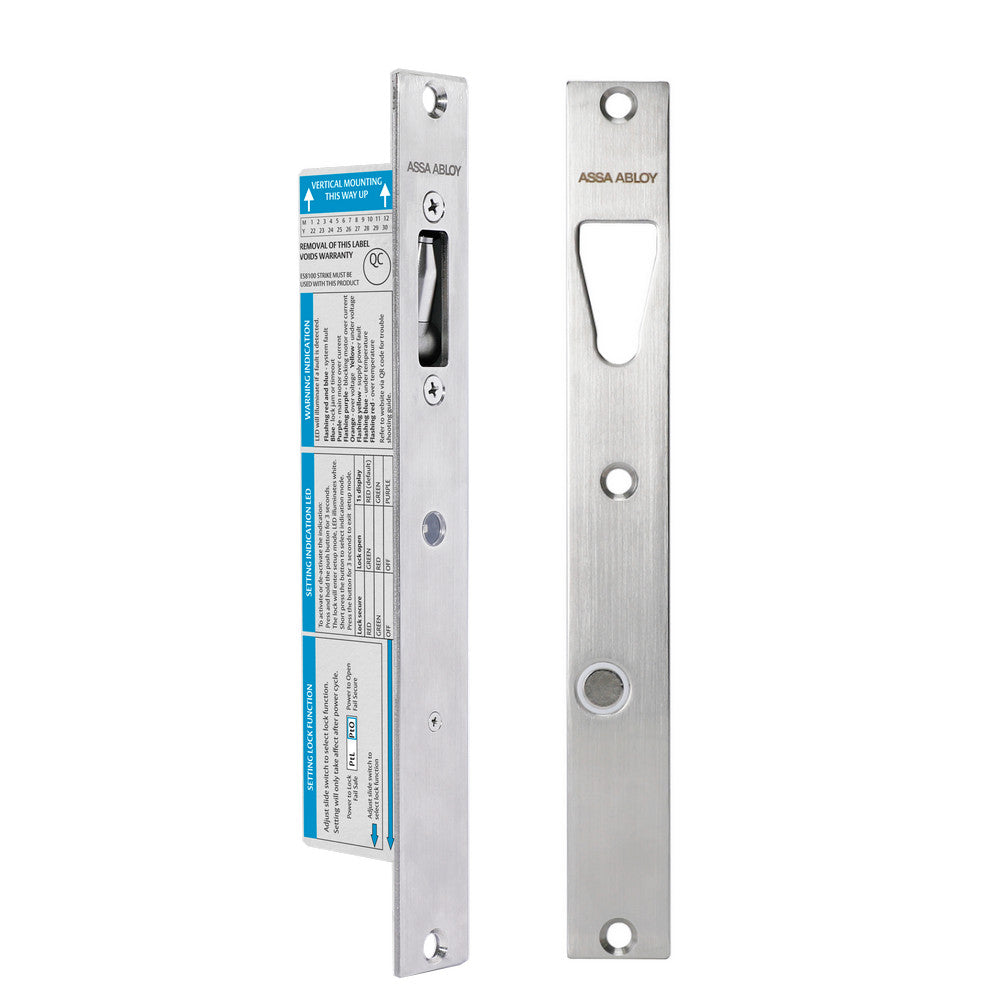

Lockwood ES8100 V-LOCK, PTO/PTL, 11.4-28VDC, FULLY MONITORED – High-Security Electric Lock

The Lockwood ES8100 V-Lock is a state-of-the-art electric locking solution, designed and assembled in Australia. As an advanced upgrade to the ES8000, this model offers a higher pre-load rating of 100kg, door position monitoring, integrated LED status indication, and improved door misalignment compensation of up to 12mm. With an IP53 rating, the ES8100 is ideal for external door applications and ensures seamless security integration.

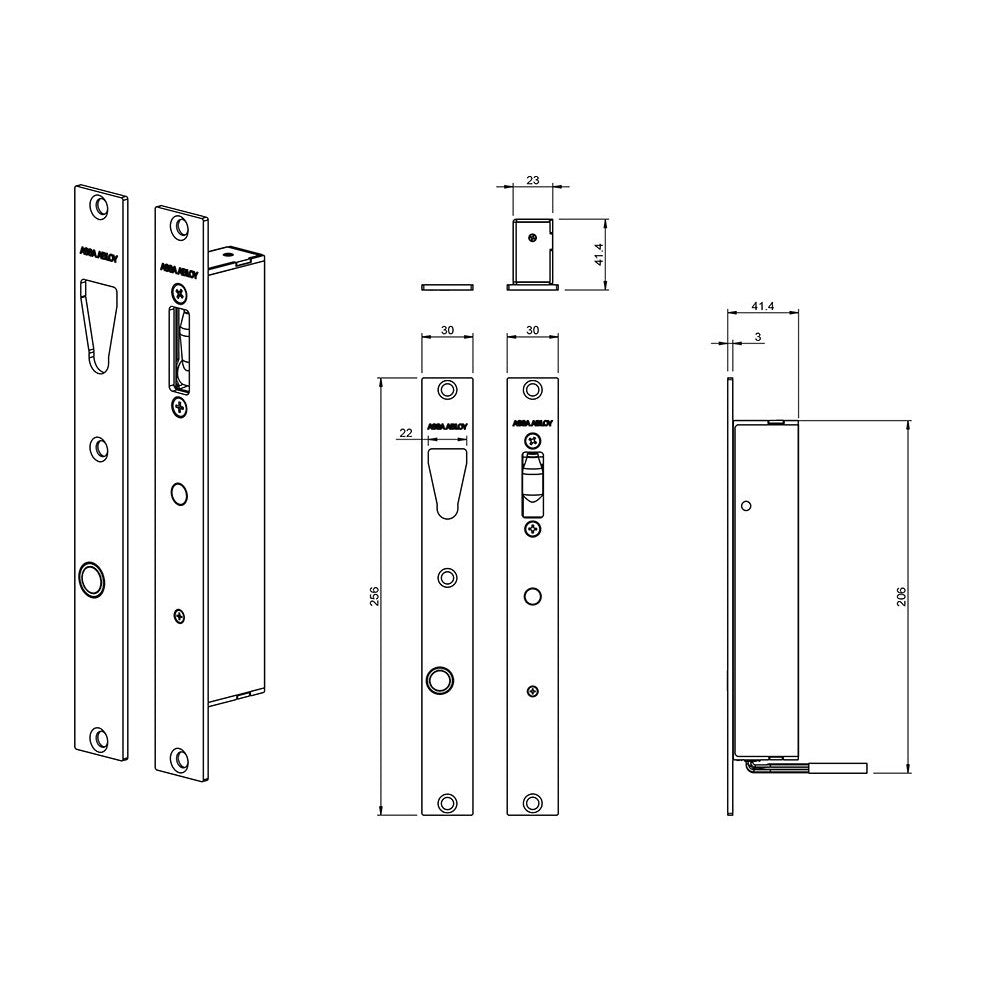

Engineered for easy installation, the ES8100 maintains the same footprint as its predecessor, allowing for a direct retrofit to the original ES8000. Its strike plate retains the original fixing locations but is 3mm wider, further enhancing misalignment tolerance.

Key Features

• Unlocks under Pre-Load: Up to 100kg in 3-wire mode, 15kg in 2-wire mode

• Locks under Pre-Load: 20kg (12W) and 35kg (24W)

• High Holding Force: 1000kg ensures superior security

• IP53 Rated: Suitable for external doors

• Monitoring Capabilities: Door position and lock status monitoring

• LED Status Indication: On-board lock status and diagnostics visual display

• Simple PTO/PTL Configuration: One-step fail-safe (PTL) and fail-secure (PTO) selection

• Versatile Mounting Options: Vertical or horizontal mounting (except floor installation)

• Enhanced Misalignment Compensation: Supports up to 12mm door misalignment (+/-6mm)

• Operating Voltage: Multi-voltage support 11.4VDC - 26VDC

• Durability Tested: Rated for 500,000 cycles (120N unlocking, 50N locking)

• Optional Accessories: Surface/glass mount kit available for added flexibility

Applications

• Single and Double Swing Hinge Doors

• Doors Subject to Side Load (Pre-Load)

• Misaligned Doors

• Glass Doors

• Compatible with Access Control, Intercom, Keypad, and Card Reader Systems

• Ideal for Doors Requiring Door Position Monitoring

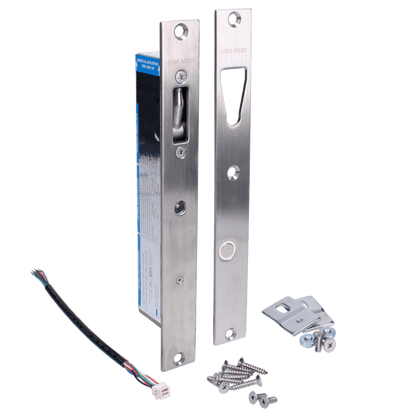

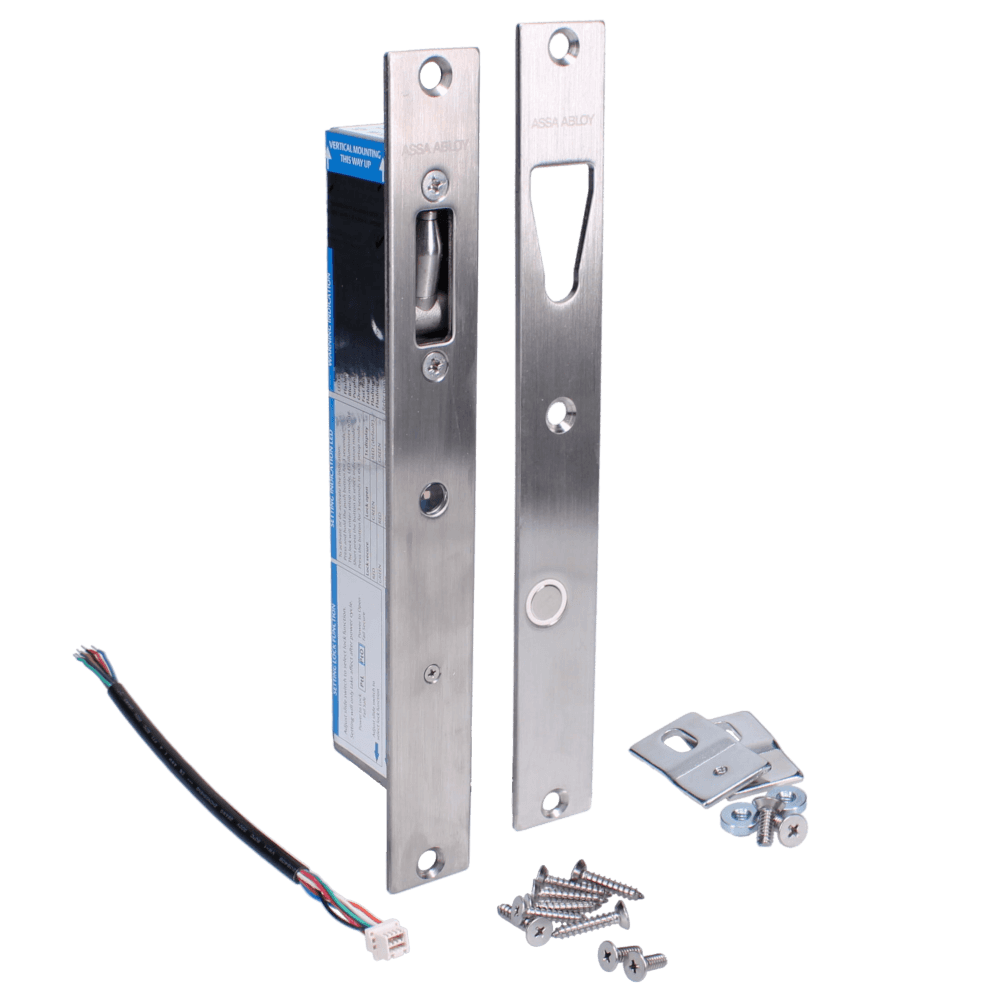

What’s Included in the Box?

• 1x Lockwood ES8100 V-Lock

• 1x 100 V-Lock Strike Plate with Magnet (Part No. 208100-003)

• Mounting Accessories

• Installation Guide

Technical Specifications

Excellence for the Australian and New Zealand Market

The Lockwood ES8100 V-Lock is specifically designed and assembled in Australia to meet the rigorous security standards of the Australian and New Zealand markets. Engineered for high durability and reliability, this product is sourced exclusively from authorized brand representatives to ensure authenticity and optimal performance. Customers benefit from direct warranty handling with the brand, guaranteeing seamless after-sales support.

FAQs

1. Can the Lockwood ES8100 V-Lock be installed on glass doors?
Yes, the ES8100 is compatible with glass doors when used with the Glass Door Housing Kit (Part No. 208000-000).

2. Is the ES8100 V-Lock weather-resistant?
Yes, it has an IP53 rating, making it suitable for external door applications.

3. Can I configure the ES8100 for Fail-Safe (PTL) or Fail-Secure (PTO) operation?
Yes, the ES8100 allows for a simple one-step PTO/PTL selection on-site.

4. What is the maximum holding force of the ES8100?
The lock provides a 1000kg holding force for superior security.

5. Does the ES8100 support access control systems?
Yes, it is fully compatible with access control, intercom, keypad, and card reader systems.

For more details, download the datasheet or contact us for expert assistance.
