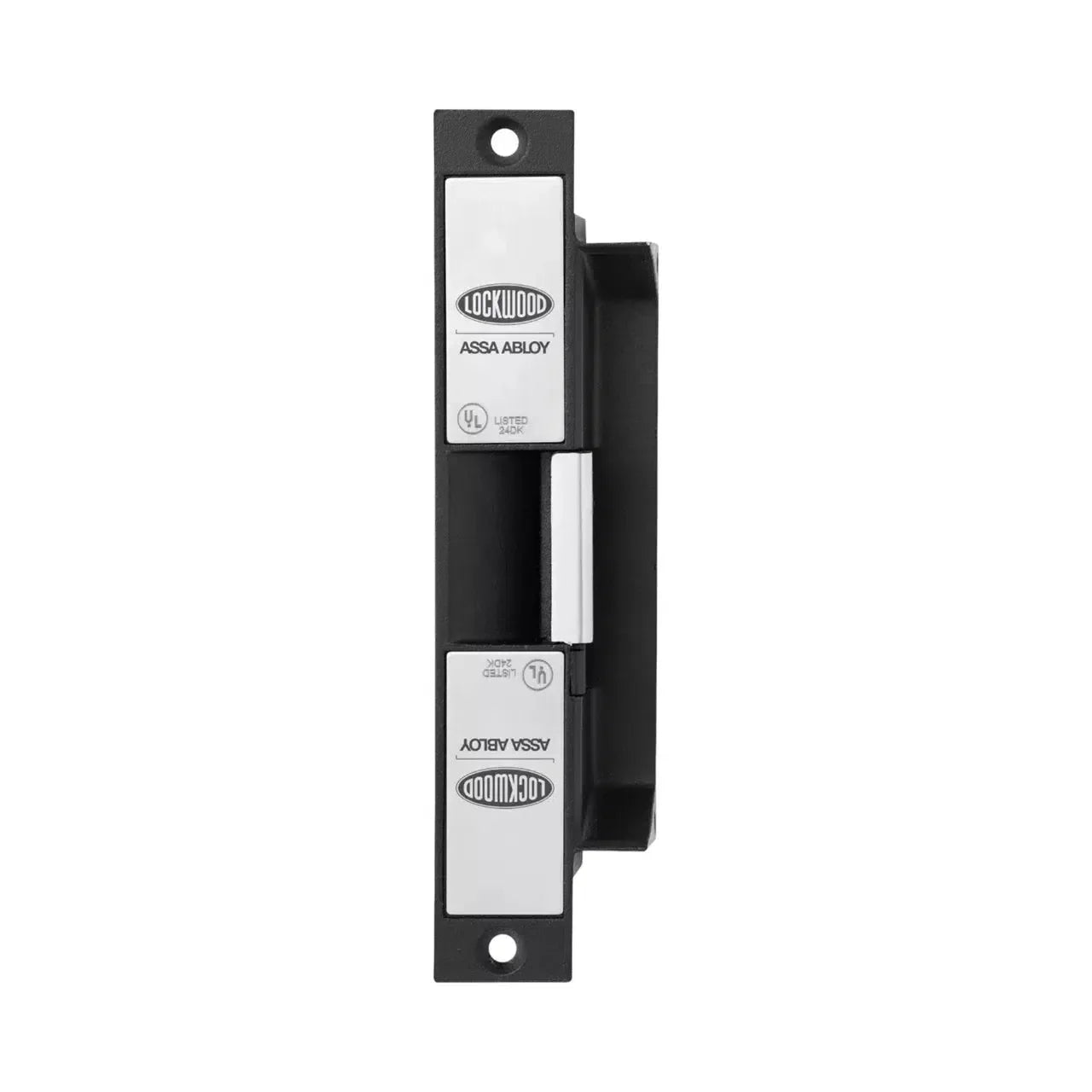

Lockwood ES2100 Electric Strike, 1000kg, Monitored, PTL/PTO, MRS, 10-30V DC (SCEC)

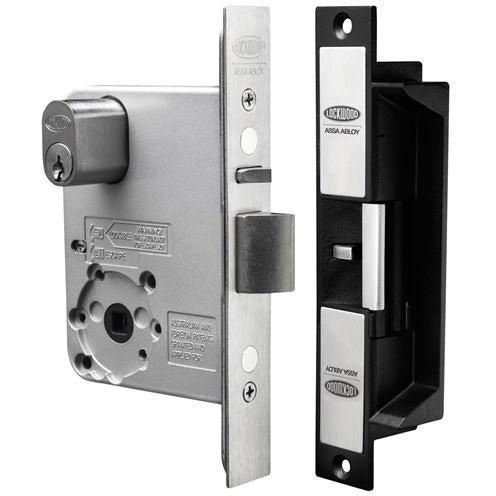

The Lockwood ES2100 is a high-performance electric strike designed to secure doors in high-security environments. Featuring a holding force of 1000kg and a 4-hour fire rating, this strike is ideal for applications requiring robust security and reliable door monitoring. With its patented field-selectable fail-safe/fail-secure mode change, the ES2100 offers flexibility for varying operational needs. This model is equipped with a door position reed switch, allowing for precise door status monitoring when used with compatible Lockwood mortice locks.

Key Specifications:

• Holding Force: 1000kg
• Operating Voltage: 10-30V DC (multi-voltage)
• Monitoring Features:
  • Integrated door position (reed) switch
  • Solenoid/Locked status
  • Latch position monitoring
• Fire Rating: 4 hours
• Weather Resistance: IP54 rating (suitable for outdoor use)
• Warranty: 5-year Tricare Warranty (Padde Series)

Features:

• Fail-Safe/Fail-Secure Mode: The patented field-selectable feature allows you to easily switch between fail-safe (power to lock) and fail-secure (power to open) modes as required.
• Fully Monitored: Built-in reed switch for door position monitoring and sensors for latch and locking status, enhancing security monitoring.
• High Holding Force: With a 1000kg holding capacity, this strike is ideal for use in high-security environments like commercial buildings or critical infrastructure.
• Weather Resistant: Rated IP54, the ES2100 is suitable for outdoor use in various weather conditions.
• Integrated Protection Diode: Provides additional protection for electronic components from power surges.
• Mounting Tabs: Supplied with standard mounting tabs for ease of installation.
• Multi-Voltage Operation: The ability to operate between 10-30V DC ensures compatibility with a wide range of power sources.

Common Uses:

• Commercial buildings
• High-security facilities
• Fire-rated doors
• Outdoor door security in weather-exposed areas

What's Included:

• 1 x Lockwood ES2100 Electric Strike
• 1 x Standard door magnet (for use with cylindrical latches)

Warranty:

• Backed by a 5-year Tricare Warranty from Lockwood’s Padde Series, ensuring long-term reliability and support.

The Lockwood ES2100 combines high strength, advanced monitoring features, and flexibility in operation, making it a top choice for securing high-risk areas.
