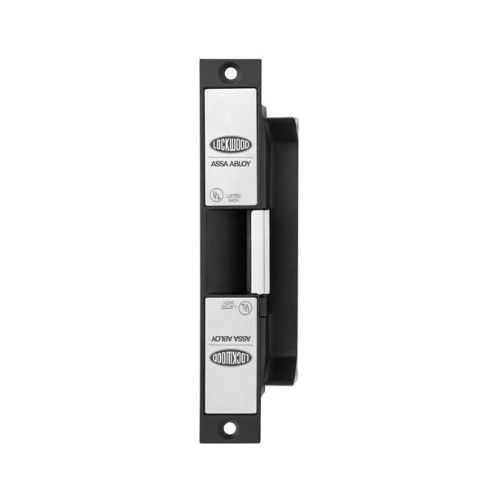

Lockwood ES200-3 E/STRIKE 12VDC Fail Safe Non Monitored

• The ES200 series electric strikes are high security products manufactured from stainless steel and designed for use with all access control systems.

• The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

• These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 24Vdc.

• They offer a strong, dependable and long-lasting electric strike solution.

Features

• Fail safe/fail secure changeable on site
• High security
• 4 Hour fire rating
• 850kg holding force
• 1 million cycles endurance rating
• Cast stainless steel body
• Stainless steel locking pins
• Low Current consumption - Max 175mA @12Vdc
• Mounting kit supplied as standard
• TRICARE® 5 Year Warranty

Applications

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Standards and Compliance

• S3 (Security) Australian Lock Standard (AS4145.2.1993)
• D3 (Durability) Australian Lock Standard (AS4145.2.1993)
• BS 5872 Approved
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• Approved to UL1034 (highest level)
• CE Approved
• C-Tick Certified

Surface or rim mounted applications

• Suitable for use with all access control systems
• Exposed areas

Standards and Compliance

• CE Approved
• C-Tick Certified
• IP56 Rated
