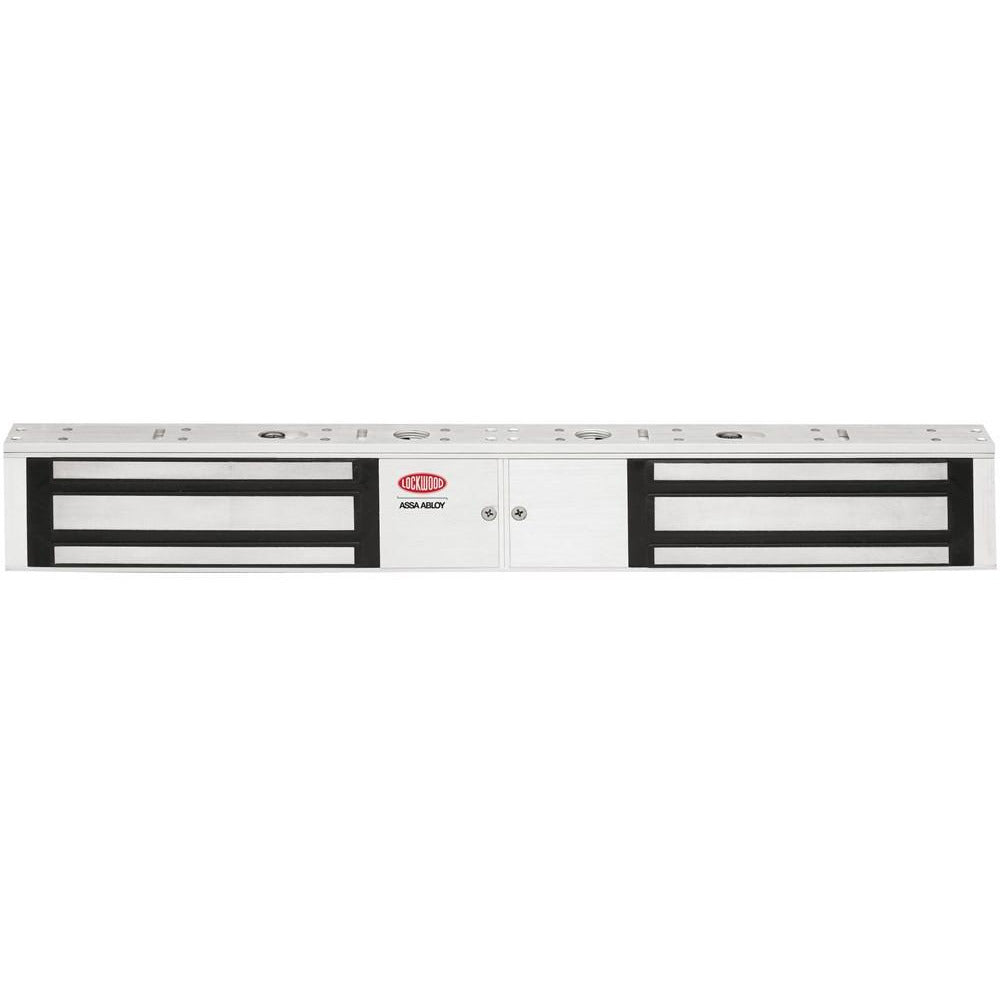

Lockwood EMZ4 Electromagnetic 12/24VDC Double Monitored Lock

The Lockwood EMZ4 E/Magnet is a state-of-the-art double monitored electromagnetic lock designed to provide robust security for a variety of applications. Operating at dual voltage options of 12 or 24 VDC, this high-performance lock features impressive holding forces ranging from 500kg to 1160kg, making it ideal for everything from access points to high-traffic commercial swing doors. The EMZ4 E/Magnet is compatible with various materials, including wood, aluminium, steel, and glass doors, making it a versatile solution for most electromagnetic locking needs.

What's Included:

• 1 x Lockwood EMZ4 E/Magnet (12/24VDC Double Monitored)
• Comprehensive installation hardware
• User manual with detailed installation and operational instructions

Key Features:

• Fail-Safe Operation: The lock automatically unlocks when power is removed, ensuring safety in emergencies.

• Easy Installation: Suitable for both new installations and retrofitting, allowing for a hassle-free setup.

• High Holding Force: With a holding force ranging from 500kg to 1160kg, it provides exceptional security for a variety of door types.

• Self-Alignment: The armature plate pivots to accommodate door drop, ensuring reliable operation even with minor misalignments.

• Silent Operation: Features no humming or buzzing, providing a discreet locking solution.

• Dual Voltage: Site-selectable for 12 or 24 VDC, offering flexibility for various installation environments.

• Monitoring Capabilities: Equipped with Hall-Effect and Reed Switch monitoring on all models for enhanced security.

• Instantaneous Release: Smart electronics eliminate residual magnetism, allowing for quick and effective release.

Applications:

• Aluminium Doors: Perfect for high-use aluminium doors in commercial settings.
• Double Swing Doors: Ideal for areas requiring simultaneous access from both sides.
• Access Control: Seamlessly integrates with existing access control systems.
• Surface Mounting: Can be mounted on both inswing and outswing doors, offering versatility in installation.

Monitoring Options:

• Hall / Bond Monitoring: Indicates when the lock is powered and the armature plate is correctly positioned and magnetically bonded.
• Reed Switch Monitoring: An integrated reed switch monitors the door position separately, ensuring comprehensive status checks.

Standards and Compliance:

• Fire Rated: Successfully fire rated for up to 4 hours on fire door assemblies in accordance with AS1905.1:2005 (Part 1: Fire Resistant Door Sets).
• Certifications: CE Approved and C-Tick Certified, ensuring compliance with international standards.

Specifications:

• Holding Force: 500kg – 560kg
• Dimensions: (L) 476 x (H) 48 x (D) 27 mm
• Voltage: 12VDC/24VDC ±10%
• Current Consumption: 900mA @ 12VDC, 450mA @ 24VDC
• Monitoring Types: Hall-Effect/Bond sensing and Reed Switch
• Operating Temperature: -10 to 55 Degrees Celsius
• Operating Humidity: 0 – 95%

Warranty:

The Lockwood EMZ4 E/Magnet comes with a comprehensive 5 year warranty, providing assurance and support for your investment. For detailed warranty information, please refer to the user manual included with the product.

Enhance your security infrastructure with the Lockwood EMZ4 E/Magnet, where innovative design meets unmatched performance, catering to the diverse locking needs of Australian businesses.
