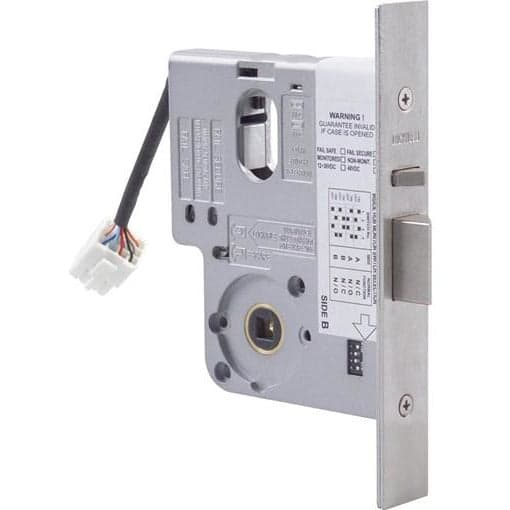

Lockwood 4579ELM0SC 89mm Secure Electric Mortice Lock (Monitored)

The Lockwood 4579ELM0SC 89mm Secure Electric Mortice Lock is engineered with flexibility and advanced security features, making it a superior choice for commercial applications. Designed to be easily configurable on-site, this monitored lock offers robust protection against unauthorized access while allowing for convenient access control.

What's Included:

• 1 x Lockwood 4579ELM0SC Electric Mortice Lock (Monitored)
• Stainless steel latch and faceplate
• Installation hardware
• Comprehensive user manual

Key Features:

• Durable Construction: The lock features a stainless steel latch and encapsulated stainless steel plates to protect the body from vandalism, ensuring durability and reliability in high-traffic environments.

• Monitored Functionality:

  • Dead latched and locked monitoring.
  • Door position monitoring with a reed switch.
  • Dual key override monitoring for added security.
  • Request to exit (REX) functionality with LED indication.

• Field Changeable Settings:

  • Fail safe/fail secure configuration allows for customized security setups.
  • Multi-voltage compatibility (12-24 Vdc) supports various systems.
  • Handing options for both left-hand and right-hand doors.
  • Selection of free lever or locked lever on both sides of the door.
  • Monitoring contacts available in normally closed and normally open configurations for key override and request to exit only.

• Operational Notes:

  • This lock is designed to operate in conjunction with an electric strike and cannot be unlocked electrically from the external side.
  • In an emergency situation, the lock ensures internal emergency egress while remaining secure externally, even during power outages.

Specifications:

• Voltage and Current: Operates between 12-24 Vdc with a current consumption of no more than 80mA (holding) at 12Vdc and 50mA (holding) at 24Vdc.
• Monitoring Functions: Key override, door position/reed switch, selectable hub/request to exit, and locking bar status. All monitoring outputs can be wired independently.
• Field Configurable Settings: All configurations, including fail safe/fail secure, handing, and hub selection, can be adjusted on-site.

Lock Functions:

Designed specifically for internal emergency egress, the Lockwood 4579ELM0SC ensures that doors remain secure on the outside during fire alarms or break glass events.

• Typical Door Setup:
  • Proximity readers installed on both sides for easy access.
  • Electric mortice lock set to fail safe on the inside, ensuring internal egress without compromising external security.
  • Electric strike set to fail secure for added security measures.
  • Connection to a break glass or fire panel directly linked to the mortice lock.

In case of an emergency, power is cut to the electric mortice lock, activating the fail-safe mode on the internal side while keeping it secure externally.

Uses:

The Lockwood 4579ELM0SC is ideal for a variety of commercial applications, including offices, retail spaces, and public buildings, where a balance of security and ease of access is paramount. Its durable construction and advanced monitoring capabilities make it a trusted choice for maintaining safety and security.

Warranty:

The Lockwood 4579ELM0SC comes with a comprehensive 5 year warranty, offering peace of mind for your investment. Detailed warranty information can be found in the user manual.

Choose the Lockwood 4579ELM0SC Electric Mortice Lock for a combination of quality, security, and functionality, tailored to meet the demands of Australian businesses.
