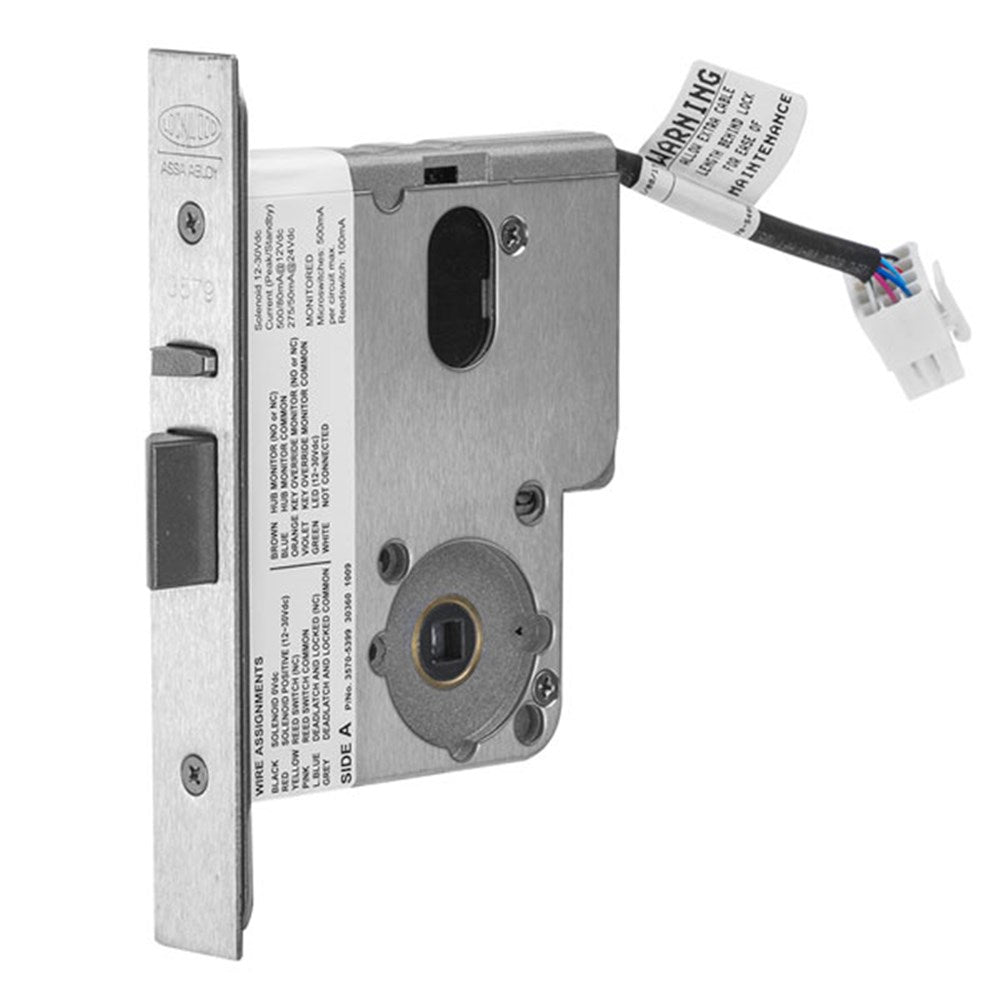

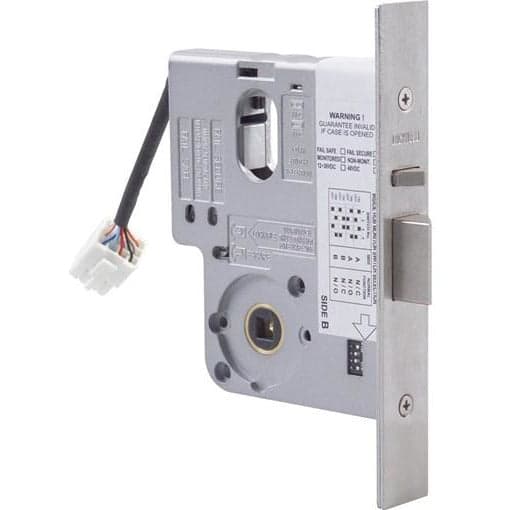

LOCKWOOD 3579HSELM0SC High-Security Electric Mortice Lock (SCEC Endorsed)

The Lockwood 3579HSELM0SC is a high-security electric mortice lock, designed and manufactured in Australia for commercial and government applications where robust security and flexibility are paramount. This lock is SCEC-endorsed for use in SL3 Medium Threat Level Areas, making it ideal for installations requiring high-level security. It offers fail-safe functionality internally with fail-secure functionality externally, ensuring controlled access and emergency egress under critical conditions. Constructed from high-grade materials, it is designed to resist tampering and vandalism.

Key Specifications:

• Backset: 60mm (standard); 89mm and 127mm backsets also available
• Voltage: Operates on 12VDC - 24VDC with:
  • Max current: 500mA @12VDC, 275mA @24VDC
  • Holding current: 80mA @12VDC, 50mA @24VDC
  • Add 15mA for LED functionality
• Materials: High-purity zinc alloy body with stainless steel plates and latch for enhanced durability and vandal resistance
• Monitoring:
  • Dual Key Override Monitoring: Both sides of the door
  • Deadlatch Monitoring
  • Locked Status Monitoring
  • Door Position Monitoring (Reed Switch)
  • Request to Exit (REX)
  • LED indication
• Fire Rating: Fire-rated up to 4 hours on fire door assemblies (AS1905.1-2005)
• Certifications:
  • SL8 Security rating under the Australian Lock Standard AS4145.2.2008
  • D8 Durability rating under AS4145.2.2008
  • RCM Certified
  • SCEC Endorsed for SL3 Medium Threat Level Areas

Key Features:

• Monitored Version Only: Provides full monitoring capabilities, including deadlatch, locked status, door position, and key override monitoring.
• Stainless Steel Construction: Features a stainless steel latch and faceplate, with stainless steel plates encapsulating the lock body to protect against tampering and vandalism.
• Fail-Safe and Fail-Secure Options:
  • Fail-safe on the inside for emergency egress (door unlocks in case of power failure).
  • Fail-secure externally, meaning the door remains locked from the outside during a power outage.
• Field Configurable:
  • Fail-safe / Fail-secure modes can be easily adjusted on-site.
  • Can be handed for both left-hand and right-hand doors.
  • Free lever or locked lever options on both sides of the door.
• Dual-Operation with Electric Strike: Works in conjunction with an electric strike for external access control, ensuring the lock remains secure from the outside even during power loss.
• Reversible Latch Bolt: Stainless steel latch bolt is fully reversible for easy installation on various door types.

Compliance & Standards:

• Security Rating: SL8 under Australian Lock Standard AS4145.2.2008 (when used with a high-security keying system).
• Durability Rating: D8 (same standard).
• Fire-Rated: Certified to withstand up to 4 hours of fire exposure on compliant fire door assemblies.
• SCEC Endorsement: Suitable for installation in SL3 Medium Threat Level Areas, meeting stringent security standards.

Environmental & Durability Features:

• Temperature Range: Operates in temperatures between -20°C to +60°C, ensuring reliability in extreme conditions.
• Cabling: Includes a 1.6-meter cable with a 12-pin socket; recommended cable: 18AWG (supports runs up to 30 meters).

In the Box:

• 1x Lockwood 3579HSELM0SC High-Security Electric Mortice Lock
• 1x Stainless Steel Faceplate
• 1.6m cable with 12-pin socket
• Necessary installation hardware
• Installation manual

Applications:

This lock is ideal for high-security environments, such as:

• Government facilities
• Military or defense sites
• Financial institutions
• Data centers
• Critical infrastructure locations

Warranty:

Lockwood offers a 5-year limited warranty on this product, ensuring confidence in its durability and performance.

Summary:

The Lockwood 3579HSELM0SC is a high-performance electric mortice lock designed for medium-threat environments where internal emergency egress and external security are required. With advanced monitoring, configurable settings, and robust construction, it provides a reliable solution for any high-security installation.
