Lockwood 3570HRGKIT Hi-O 2 Door Room Guard Kit (Excluding Furniture)

The Lockwood 3570HRGKIT Hi-O 2 Door Room Guard Kit is a state-of-the-art electronic locking system based on Hi-O (Highly Intelligent Operation) technology, designed to provide seamless privacy control for rooms with multiple doors. Ideal for shared spaces such as hospital bathrooms or conference rooms, this system integrates intelligent components directly into the locking devices, offering a "plug and play" setup that eliminates the need for an external door controller. This greatly simplifies installation, making it a cost-effective and user-friendly solution.

Key Features:

• Hi-O Technology Platform: Each component is equipped with embedded intelligence, enabling direct communication between devices for a fast and efficient setup.
• One-Touch Privacy: Easily lock both doors simultaneously from inside by activating the internal turn knob, ensuring privacy without complex controls.
• Plug and Play Connectivity: All components are pre-configured for easy installation, reducing the time and cost required to deploy the system.
• No External Door Controller Required: The system operates independently without the need for a separate electronic access control (EAC) system, streamlining setup and reducing wiring complexity.
• Emergency Override: In the event of an emergency, the system can be unlocked from the outside using emergency override switches, ensuring safety and compliance.

Applications:

• Shared Bathrooms: Perfect for bathrooms with dual entries in hospitals, hotels, or other shared spaces.
• Conference Rooms: Ideal for meeting rooms with multiple access points, ensuring privacy during meetings or events.
• Laboratories: Suitable for secure rooms requiring controlled access and easy privacy.

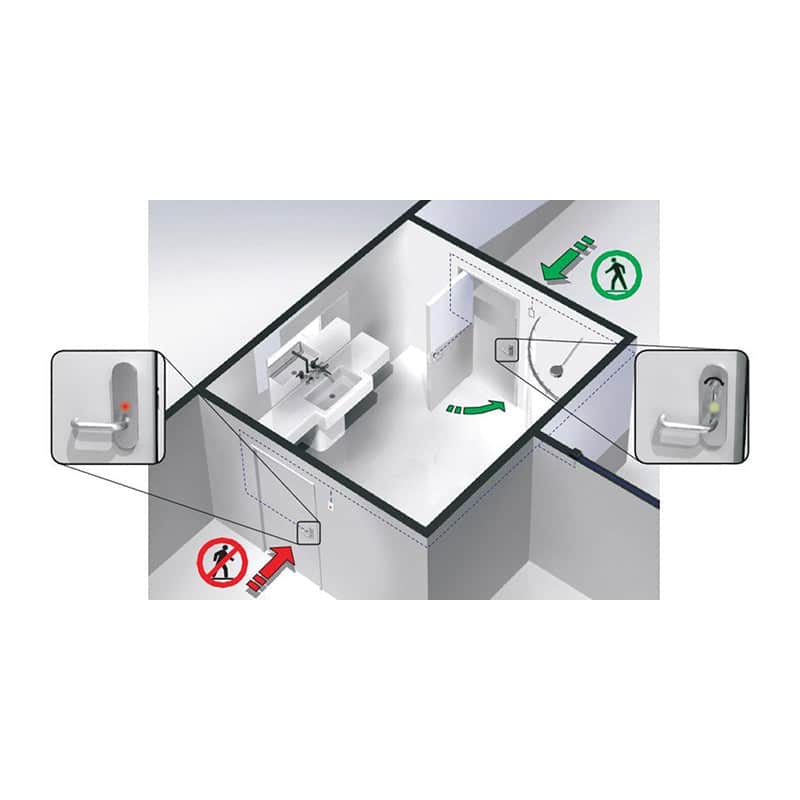

Functionality:

1. Locking the Door:
   • Enter either door and close it.
   • Activate the internal turn knob.
   • Both doors automatically lock, and external handles display a red indicator (locked).
2. Unlocking the Door:
   • Activate the internal lever on either door.
   • Both doors automatically unlock, and external handles display a green indicator (unlocked).
   Emergency Override: In emergencies, the doors can be unlocked externally via emergency override switches (if installed).

Standards and Compliance:

• Fire-rated for up to 4 hours on fire door assemblies, conforming to AS1905.1.2007 standards for fire-resistant door sets.

Specifications:

• Power Supply: 24V DC.
• Installation Overview: No external door controller is needed. The locks are simply connected, along with optional emergency override switches, directly to the power supply. The straightforward wiring makes the system easy to install and manage.

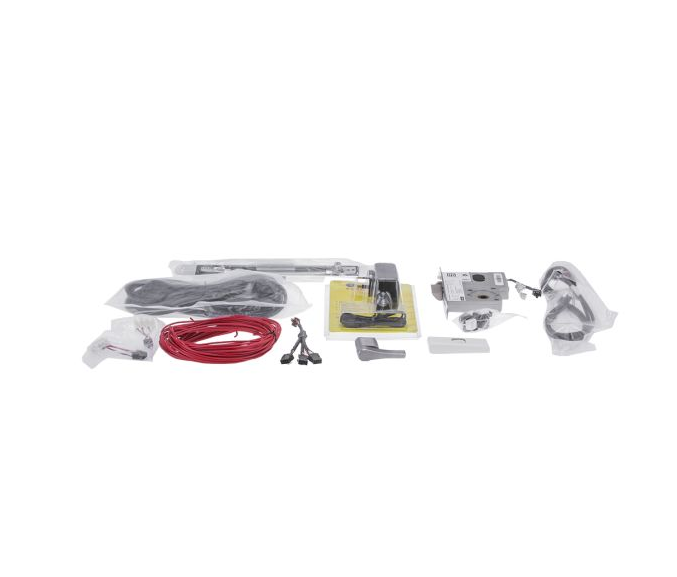

Room Guard Kit Contents:

1. Hi-O Room Guard Mortice Lock (x2): The core locking devices providing smart, integrated operation.
2. Power Transfer (x2): Facilitates seamless power and data transfer between door components.
3. Room Guard Turn Knob Assembly (x2): For internal door locking and unlocking.
4. 24V DC Power Supply Unit (x1): Powers the entire system.
5. 4-Way Adaptor (x1): Connects multiple components together.
6. Override Switch Wire – 15M (x2): For connecting the emergency override switches.
7. 8M Extension Cable (x2): Provides flexibility in installation by extending the reach of wiring.
8. Terminal Strip Adaptor (PAIR) (x1): Assists in organizing and connecting wiring.
9. Hi-O Termination Socket (x1): Ensures proper termination of Hi-O communication lines.
10. Emergency Switch (x2): For emergency door unlocking from the outside.
11. Faceplate for Emergency Switch (x2): Provides a neat and professional finish for the emergency switches.

Warranty:

• The Room Guard Kit comes with a manufacturer's warranty of upto 5 Years, ensuring dependable performance and peace of mind.

This system is a cutting-edge solution for rooms with dual entry points, offering ease of use, enhanced privacy, and a simplified installation process, making it an ideal choice for hospitals, conference centers, and other commercial environments.
