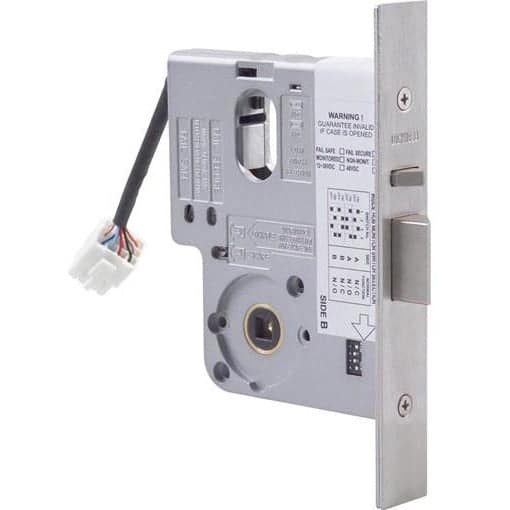

Lockwood 3570ELN0SC 60MM Electric Mortice Primary Lock (Non-Monitored)

The Lockwood 3570ELN0SC 60MM Electric Mortice Lock is a high-performance security solution designed for commercial applications. Manufactured in Australia, this lock offers superior durability and security features. Constructed from high-grade zinc alloy with a stainless-steel latch bolt and faceplate, it is ideal for environments where enhanced access control is required. Compatible with electronic access systems, it can be operated via push buttons, intercom systems, key switches, or integrated with higher-security devices such as keypads and card readers.

Key Features:

• High-Grade Construction: Made from high-purity zinc alloy, with a reversible stainless-steel latch bolt for long-lasting durability.
• Flexible Operation: Can be used with push buttons, key switches, intercoms, and electronic access control systems, such as keypads or card readers.
• Versatile Configuration: Field-changeable fail-safe/fail-secure settings, free or locked lever selection on either side of the door, and easy handing for left- or right-hand doors.
• Monitoring Options: Available in monitored and non-monitored versions. Monitoring options include deadlatch and lock status, door position via reed switch, dual key override, and request-to-exit (REX) functionality.
• Compliance: Conforms to Australian Lock Standards for security (S8) and durability (D8), fire-rated up to 4 hours in accordance with AS1905.1-2005 for fire-resistant doors.

Specifications:

• Voltage: 12VDC to 24VDC operating voltage.
• Current:
  • Max 500mA (80mA holding @ 12VDC)
  • Max 275mA (50mA holding @ 24VDC)
  • LED adds 15mA (max) to current draw when fitted.
• Microswitches: 500mA (max) @ 30VDC per circuit.
• Reed Switch: 100mA (max) @ 30VDC.
• Backset: 60mm standard (89mm and 127mm available).
• Latch Bolt: Reversible with stainless steel construction.
• Door Clearance: 3 - 6.5mm.
• Door Thickness: Standard applications support 32 to 50mm.
• Cylinder Compatibility: Standard Lockwood oval-shaped cylinders.
• Cabling: Supplied with a 1.6-meter cable and 12-pin socket, recommended cable: 18AWG (0.82mm²) for runs up to 30m.
• Finishes: Satin Chrome (SC) standard.
• Operational Temperature: -20°C to +60°C.

Standards and Compliance:

• S8 (Security): Australian Lock Standard AS4145.2.2008 when used with an equivalent security keying system.
• D8 (Durability): Meets Australian Lock Standard AS4145.2.2008.
• Fire Rating: Successfully fire-rated for up to 4 hours on fire door assemblies in accordance with AS1905.1-2005.
• Certifications: RCM Certified and SSCEC Endorsed for SL3 Medium Threat Level areas.

Box Contents:

• 1x Lockwood 3570ELN0SC Electric Mortice Lock.
• 1x 1.6-meter cable with 12-pin socket.
• Installation guide and mounting hardware.

Warranty:

• The Lockwood 3570ELN0SC Electric Mortice Lock comes with a 5-year limited manufacturer's warranty, ensuring reliability and peace of mind in commercial settings.

This lock is a versatile and secure solution for businesses looking to integrate reliable electronic access control into their security system
