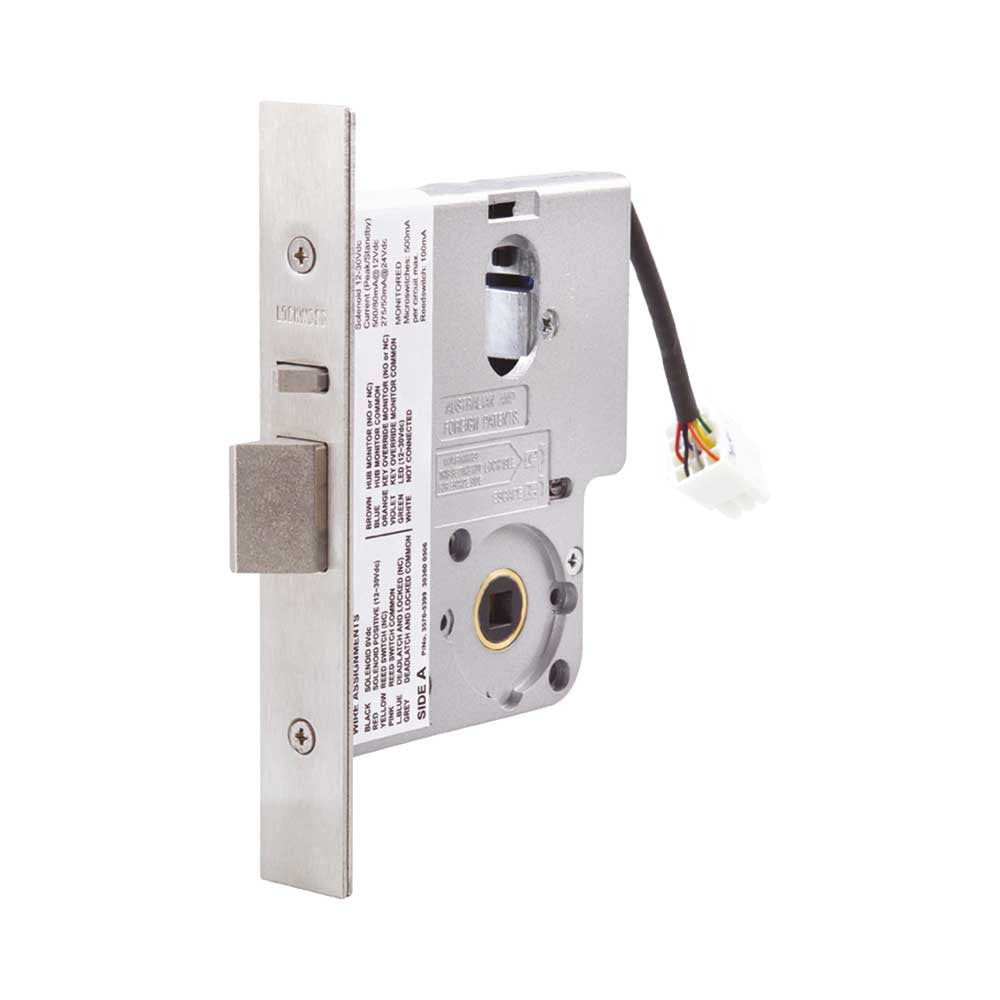

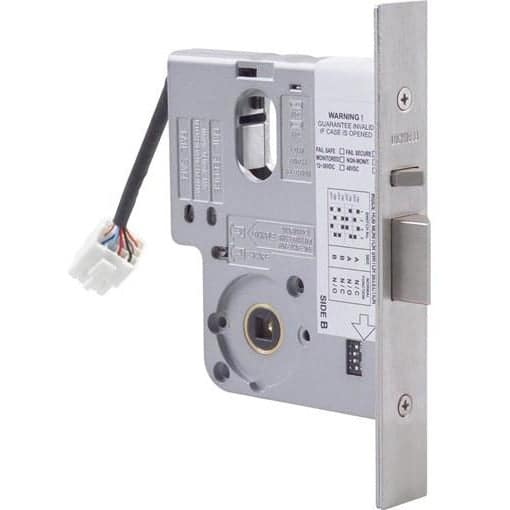

LOCKWOOD 3570ELM1SC Electric Mortice Primary Lock (Monitored, 1 Cylinder)

The Lockwood 3570ELM1SC Electric Mortice Primary Lock is a high-performance, monitored locking solution designed for commercial-grade security. Manufactured in Australia, this lock is part of the versatile Lockwood 3570 Series and is built using high-grade materials such as zinc alloy for the body and stainless steel for the latch bolt and faceplate. This lock is compatible with electronic access control systems and can be operated using push buttons, intercom systems, or key switches, making it ideal for modern commercial applications.

Key Specifications:

• Lock Type: Electric Mortice Lock (Monitored, 1 Cylinder)
• Material: High-grade zinc alloy with stainless steel latch bolt and faceplate for enhanced durability and corrosion resistance.
• Backset: 60mm
• Voltage: Multi-voltage capability (12VDC – 24VDC)
• Current Draw:
  • Max current: 500mA @12VDC, 275mA @24VDC
  • Holding current: 80mA @12VDC, 50mA @24VDC
• Monitoring:
  • Dead latch and locked status monitoring
  • Door position monitoring (reed switch)
  • Dual key override monitoring for both sides
  • Request to Exit (REX) feature
  • LED indicators for lock status
• Field Configurable Settings:
  • Fail-safe / fail-secure modes are easily changeable on site.
  • Can be handed for both left-hand and right-hand doors.
  • Selection of free lever or locked lever operation on both sides of the door.

Key Features:

• Advanced Monitoring: Provides full lock status monitoring, including dead latch, door position, and key override monitoring on both sides of the door. It also supports REX (Request to Exit) functionality and LED indicators for visual status.

• Multi-Voltage Compatibility: Supports 12VDC and 24VDC systems, ensuring flexible installation options for various power environments.

• Field Changeable: The lock can be quickly adjusted for fail-safe or fail-secure operation, and it is suitable for both left-hand and right-hand door setups. The reversible latch bolt provides easy adaptability during installation.

• Robust Construction: Built from high-grade materials, including a stainless steel latch bolt and faceplate, providing resilience against wear and tampering. Stainless steel components also enhance its resistance to vandalism and environmental conditions.

• Access Control Integration: This lock can be connected to a range of access control systems, such as keypads, card readers, push buttons, and intercom systems, making it ideal for high-security environments that require controlled access.

Compliance & Certifications:

• Fire Rating: Successfully rated for up to 4 hours on fire door assemblies in compliance with AS1905.1-2005 (Part 1: Fire Resistant Door Sets).
• Security Rating: S3 under the Australian Lock Standard (AS4145.2.1993) when used with a corresponding high-security keying system.
• Durability Rating: D3 under the Australian Lock Standard (AS4145.2.1993) for commercial-grade durability.
• C-Tick Certified: Ensures compliance with Australian and international safety standards.
• SCEC Endorsed: Suitable for use in intruder-resistant areas for government and high-security applications.

In the Box:

• 1x Lockwood 3570ELM1SC Electric Mortice Primary Lock (Monitored, 1 Cylinder)
• 1x Stainless Steel Faceplate
• Required installation hardware
• 1.6-meter cable with 12-pin socket
• Instruction manual for configuration and installation

Applications:

This lock is ideal for a wide range of commercial environments, including:

• Corporate offices
• Hospitals
• Educational institutions
• Government facilities
• Industrial buildings

Warranty:

Lockwood provides a 5-year limited warranty on this product, ensuring long-term reliability and performance.

Summary:

The Lockwood 3570ELM1SC Electric Mortice Primary Lock is a robust, flexible, and monitored locking solution built for high-security commercial applications. Its advanced monitoring features, compatibility with access control systems, and configurable fail-safe/fail-secure settings make it a versatile option for any environment requiring enhanced security and convenience.
