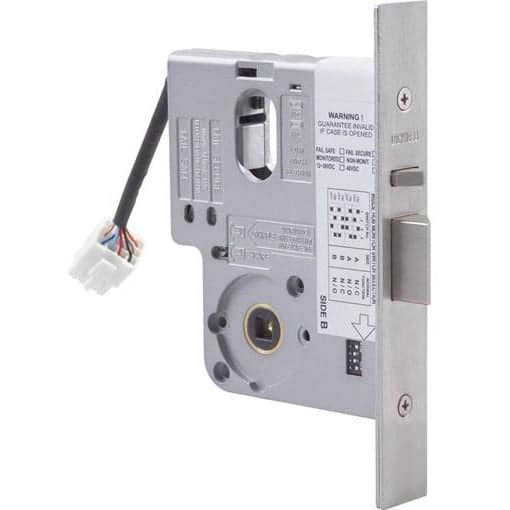

LOCKWOOD 3570ELM0SC 60MM Electric Mortice Primary Lock (Monitored)

The Lockwood 3570ELM0SC Electric Mortice Lock is a high-performance, Australian-made locking solution designed for superior security and commercial durability. Built with high-grade zinc alloy and a stainless steel latch bolt and faceplate, it is ideal for use in demanding commercial environments. This lock can be controlled via push buttons, intercom systems, key switches, or integrated with electronic access control systems such as keypads or card readers, providing enhanced flexibility and control over access.

Key Specifications:

• Lock Type: Electric Mortice Lock (Monitored)
• Backset: 60mm
• Material: High-grade zinc alloy body with a stainless steel latch bolt and faceplate
• Power Requirements: Multi-voltage, supports 12/24 VDC systems
• Fire Rating: Successfully fire-rated for up to 4 hours on fire door assemblies as per AS1905.1-2005 (Part 1: Fire-resistant door sets)
• Certifications:
  • S3 Security Rating: Australian Lock Standard AS4145.2.1993 (when used with an equivalent security keying system)
  • D3 Durability Rating: Australian Lock Standard AS4145.2.1993
  • SCEC Endorsement: Suitable for intruder-resistant and secure areas
  • C-Tick Certified

Key Features:

• Monitored Version: Provides advanced monitoring capabilities, including:

  • Dead Latch and Locked Status Monitoring
  • Door Position Monitoring (Reed Switch)
  • Dual Key Override Monitoring: Allows for monitoring of key override status on both sides of the door.
  • Request to Exit (REX): Facilitates controlled exits.
  • LED Indicators: Provides visual confirmation of lock status.

• Field-Configurable Settings:

  • Fail-Safe / Fail-Secure Configuration: Can be easily switched between fail-safe (unlocked during power failure) or fail-secure (remains locked during power failure) based on site requirements.
  • Handing: Suitable for both left-hand and right-hand doors.
  • Free or Locked Lever Selection: Can be configured for free or locked lever operation on both sides of the door.

• Electronic Integration:

  • Compatible with a wide range of access control devices such as keypads, card readers, and more, enabling high-security access solutions.
  • Push Button, Intercom, and Key Switch Operation: Allows versatile control options for different commercial settings.

• Monitoring Contacts: Offers normally closed (NC) and normally open (NO) contacts, enhancing integration with alarm and security systems.

Standards and Compliance:

• Security: S3 rating under Australian Lock Standard (AS4145.2.1993) for secure installations.
• Durability: D3 rating ensures long-lasting performance even in high-traffic environments.
• Fire Rating: Certified to withstand up to 4 hours of fire exposure on compliant fire doors.
• SCEC Endorsement: Endorsed for use in intruder-resistant areas in the 3570 Series, with the 3579 Series endorsed for secure areas.

In the Box:

• 1x Lockwood 3570ELM0SC Electric Mortice Lock (Monitored Version)
• 1x Stainless Steel Faceplate
• Installation hardware and components
• Detailed installation and configuration guide

Warranty:

Lockwood provides a 5-year limited warranty, ensuring reliability and peace of mind with every installation.

Applications:

The Lockwood 3570ELM0SC Electric Mortice Lock is ideal for high-security commercial applications, including:

• Offices
• Industrial complexes
• Government buildings
• Hospitals
• Educational institutions

Its versatile design makes it a perfect fit for any scenario requiring robust, configurable, and reliable locking solutions.
