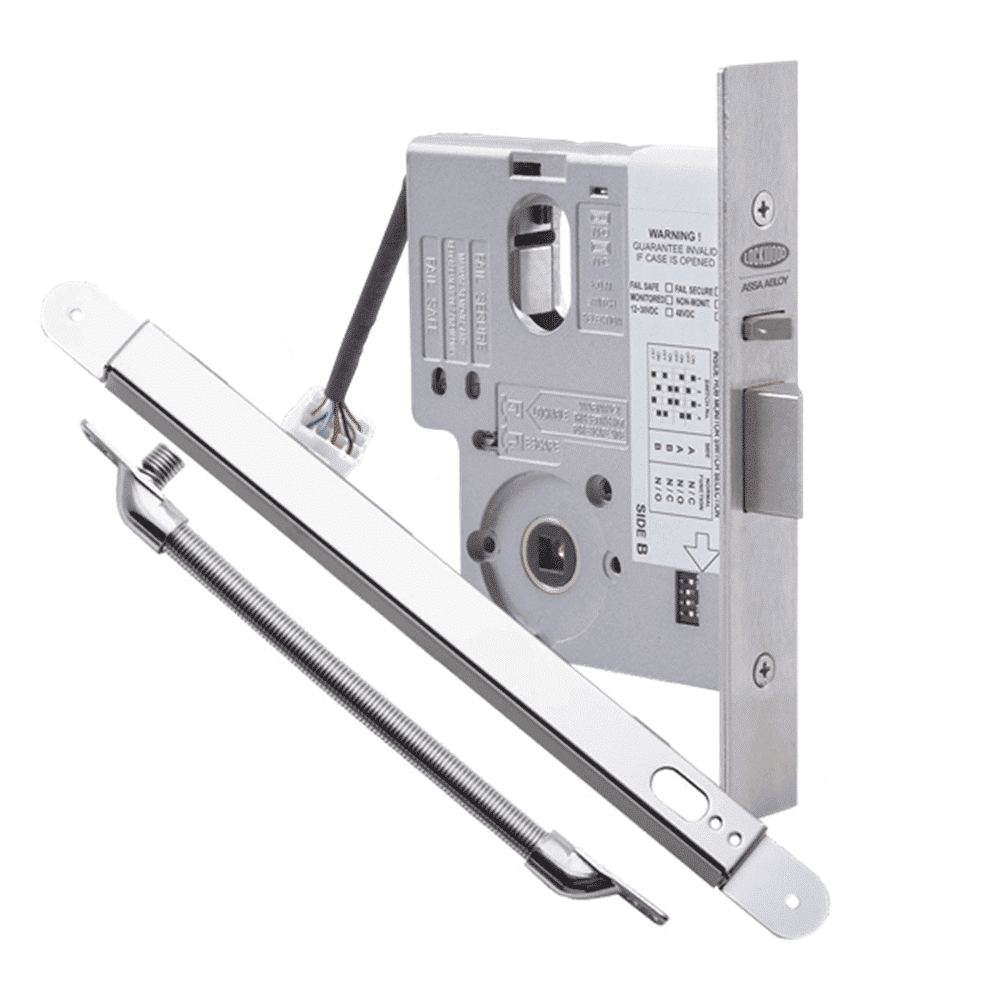

LOCKWOOD 3570ELM0SC 60MM Electric Mortice Lock

The LOCKWOOD 3570ELM0SC is a high-performance, electric mortice lock from Lockwood's 3570 Series, designed for commercial-grade security applications. This lock, proudly designed and manufactured in Australia, offers a blend of durability, flexibility, and advanced features. Built with high-grade zinc alloy and a stainless steel latch bolt and faceplate, it ensures lasting performance, even in demanding environments.

Key Specifications:

• Backset: 60mm
• Lock Type: Electric Mortice
• Monitoring Options: Available in both monitored and non-monitored versions
• Power: 12/24 VDC, multi-voltage compatibility
• Material: High-grade zinc alloy with a stainless steel latch bolt and faceplate
• Fire Rating: Successfully rated for up to 4 hours on fire door assemblies
• Certification:
  • C-Tick Certified
  • Australian Lock Standard (AS4145.2.1993)
  • Fire Rated in accordance with AS1905.1.2005
  • SCEC Endorsed for both intruder-resistant and secure areas

Key Features:

• Field Changeable Settings:
  • Fail-Safe / Fail-Secure modes can be easily configured on-site to suit your requirements.
  • Can be adjusted for left-hand or right-hand doors.
  • Option to choose between free lever or locked lever operation on both sides of the door.
• Monitoring and Indicators:
  • Door Position Monitoring: Includes reed switch to monitor the position of the door.
  • Dual Key Override Monitoring: Monitors key override status on both sides.
  • Request to Exit (REX): Monitoring feature for ease of exit.
  • LED Indicators: Provide clear visual feedback for door status.
• Compatibility:
  • Can be integrated with push buttons, intercom systems, key switches, and electronic access control devices like keypads or card readers.

Standards & Compliance:

• Security: Certified under S3 (Security) according to Australian Lock Standard AS4145.2.1993 when used with equivalent security keying systems.
• Durability: Rated D3 (Durability) under the same standard.
• Fire Rating: Successfully fire-rated for up to 4 hours in compliance with AS1905.1 (Part 1: Fire Resistant Door Sets).
• SCEC Endorsement:
  • 3570 Series is SCEC-endorsed for intruder-resistant areas.
  • 3579 Series is SCEC-endorsed for secure areas.

In the Box:

• 1x Lockwood 3570ELM0SC Electric Mortice Lock
• 1x Stainless Steel Faceplate
• Necessary fixing hardware for installation
• Instruction manual for easy configuration and installation

Warranty:

Lockwood offers a 5-year limited warranty, ensuring peace of mind with product quality and durability.

The Lockwood 3570 Series is ideal for high-security commercial environments such as offices, schools, hospitals, and industrial facilities where robust and flexible locking systems are essential.
