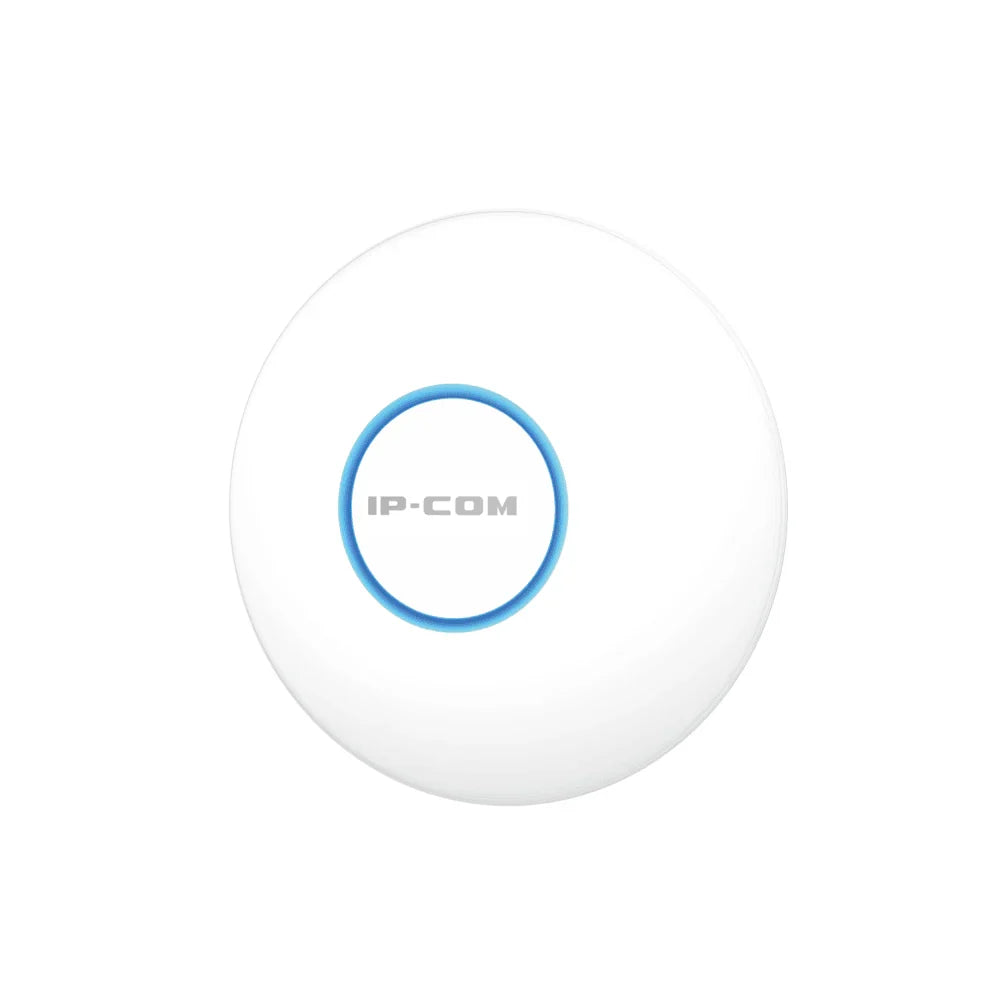

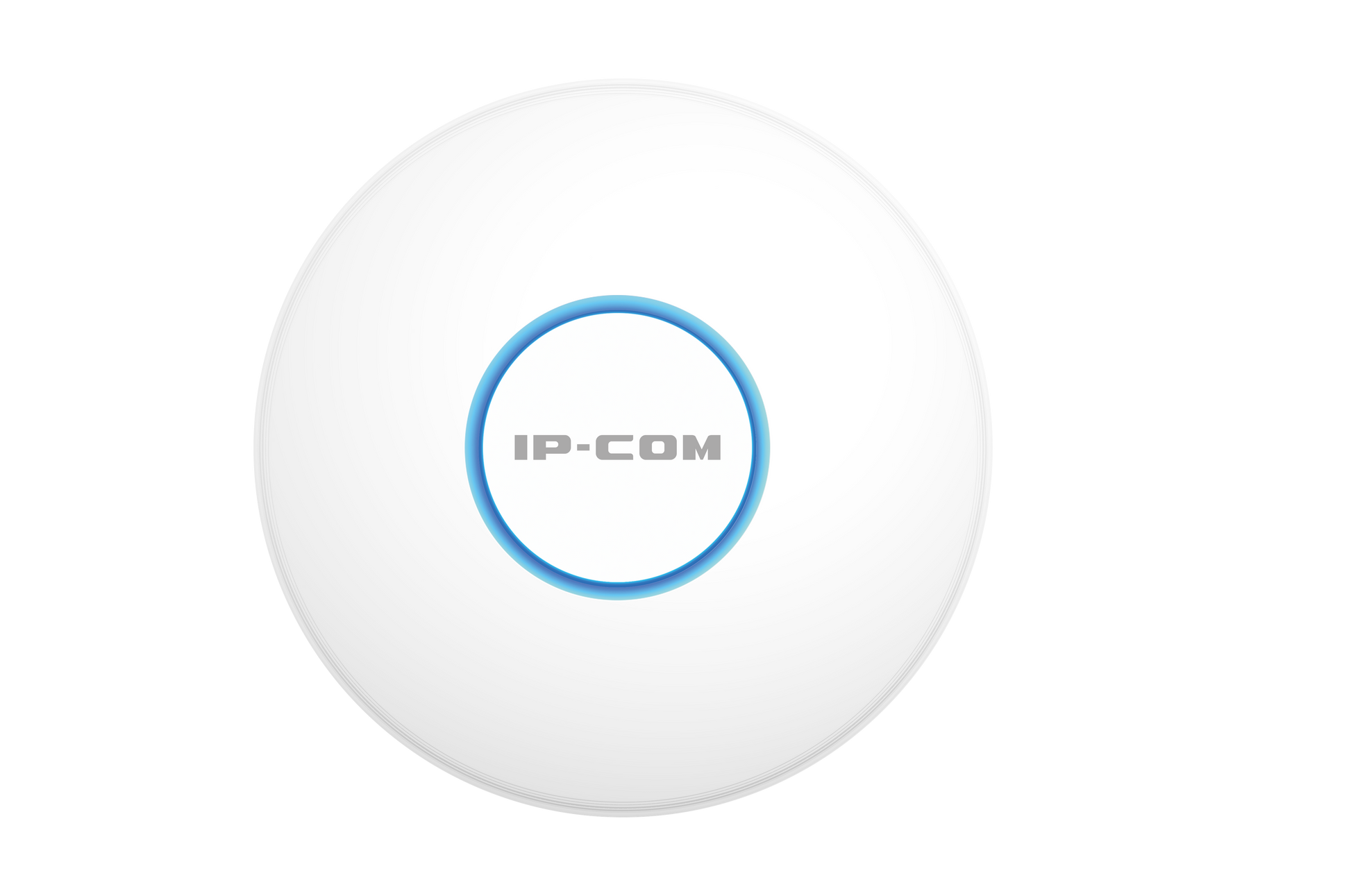

IP-COM iUAP-AC-LITE AC1200 Dual Band WiFi Access Point Ceiling Mount 1167Mbps Gigabit PoE

The IP-COM iUAP-AC-LITE AC1200 Dual Band WiFi Access Point delivers high-speed wireless connectivity with up to 1167Mbps combined throughput across 2.4GHz and 5GHz bands. Designed for ceiling-mounted deployments, this enterprise-grade access point features MU-MIMO technology, Gigabit Ethernet, and PoE support, making it ideal for offices, retail spaces, and hospitality environments requiring stable, high-density wireless coverage.

What’s Included in the Box

• 1 × IP-COM iUAP-AC-LITE WiFi Access Point
• Ceiling mounting kit
• Installation guide

Main Features

• Dual-band WiFi: 2.4GHz (300Mbps) + 5GHz (867Mbps)
• Total wireless speed up to 1167Mbps (AC1200)
• MU-MIMO technology for multiple simultaneous users

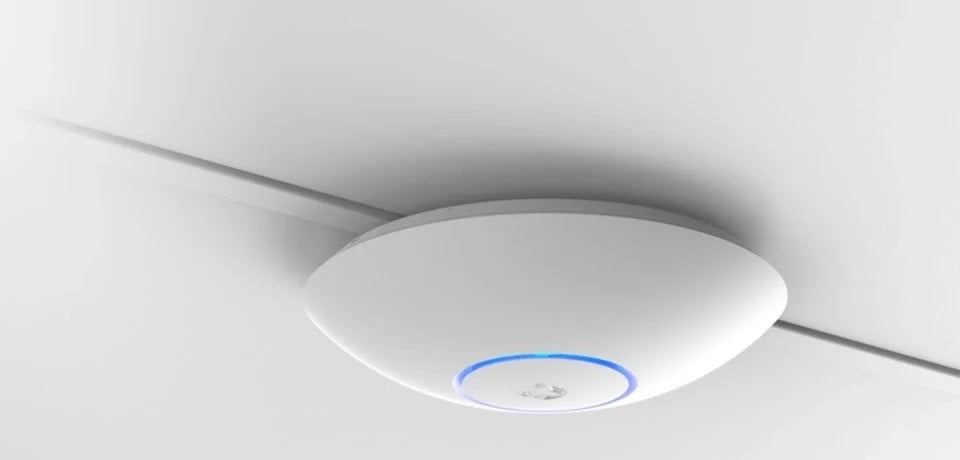

• Ceiling-mounted design for optimal coverage
• 1 × Gigabit Ethernet port for high-speed connectivity
• Supports 24V Passive PoE and IEEE 802.3af/at PoE
• Built-in omni-directional antennas for wide coverage
• VLAN tagging for SSID and enhanced network security
• Centralised cloud and controller-based management

Detailed Specifications

Wireless

• Standards: IEEE 802.11a/b/g/n/ac (Wave 2)
• Frequency Bands: 2.4 GHz & 5 GHz
• Speed:
  • 2.4 GHz: Up to 300 Mbps
  • 5 GHz: Up to 867 Mbps
• Max Throughput: 1167 Mbps

Hardware

• Ethernet Port: 1 × 10/100/1000 Mbps (Gigabit)
• Antenna: Built-in omni-directional (2 × 4 dBi)
• Max Clients: Up to 128 per band
• Power Supply:
  • 24V Passive PoE
  • IEEE 802.3af/at PoE
• Power Consumption: Max. 11.5W

Performance & Features

• MU-MIMO for improved throughput
• RF optimisation for interference reduction
• Multiple SSIDs with VLAN tagging
• Adjustable transmit power
• AP isolation and client control
• Remote cloud management via controller

Physical & Environmental

• Colour: White
• Mounting: Ceiling mount
• Dimensions: 176 × 176 × 43.5 mm
• Operating Temperature: -10°C to 45°C
• Humidity: 10%–90% non-condensing

Warranty Information

• 60 Months Manufacturer Warranty
• Supported through authorised distributors
• Long-term reliability for business deployments

About the Brand – IP-COM

IP-COM is a professional networking brand specialising in enterprise-grade wireless and wired solutions, offering reliable, cost-effective products designed for business, hospitality, and large-scale deployments.

SKU

iUAP-AC-LITE

Practical Use Scenarios

• Office wireless network deployments
• Hotels and hospitality WiFi coverage
• Retail stores with multiple connected devices
• Schools and educational institutions
• Conference rooms and business centres
• Ceiling-mounted enterprise WiFi solutions

Datasheets / Downloads

• Full Datasheet

Excellence for the Australian and New Zealand Market

This IP-COM access point is sourced through authorised channels and optimised for Australian and New Zealand network environments. It supports local compliance requirements and delivers stable, high-performance wireless connectivity. With a 5-year warranty and reliable distributor support, it is ideal for professional installations across commercial and enterprise sectors.

FAQs

Q1: What is the maximum speed of the iUAP-AC-LITE?
The iUAP-AC-LITE supports up to 1167Mbps combined wireless speed across dual bands.

Q2: Does the iUAP-AC-LITE support PoE?
Yes, the iUAP-AC-LITE supports both 24V passive PoE and IEEE 802.3af/at PoE.

Q3: Is the iUAP-AC-LITE suitable for ceiling installation?
Yes, the iUAP-AC-LITE is specifically designed for ceiling-mounted deployments.

Q4: How many devices can connect to the iUAP-AC-LITE?
The iUAP-AC-LITE supports up to 128 clients per band.

Q5: Does the iUAP-AC-LITE support VLANs?
Yes, the iUAP-AC-LITE supports VLAN tagging for SSIDs to enhance network security.

Q6: Is the iUAP-AC-LITE suitable for business use?
Yes, the iUAP-AC-LITE is ideal for offices, hotels, and enterprise environments.

Q7: What warranty is included with the iUAP-AC-LITE?
The iUAP-AC-LITE comes with a 60-month manufacturer warranty.
