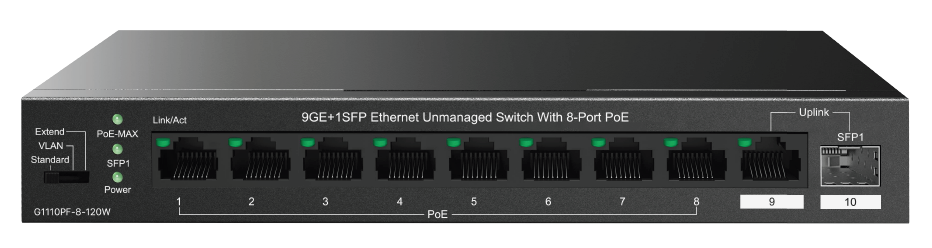

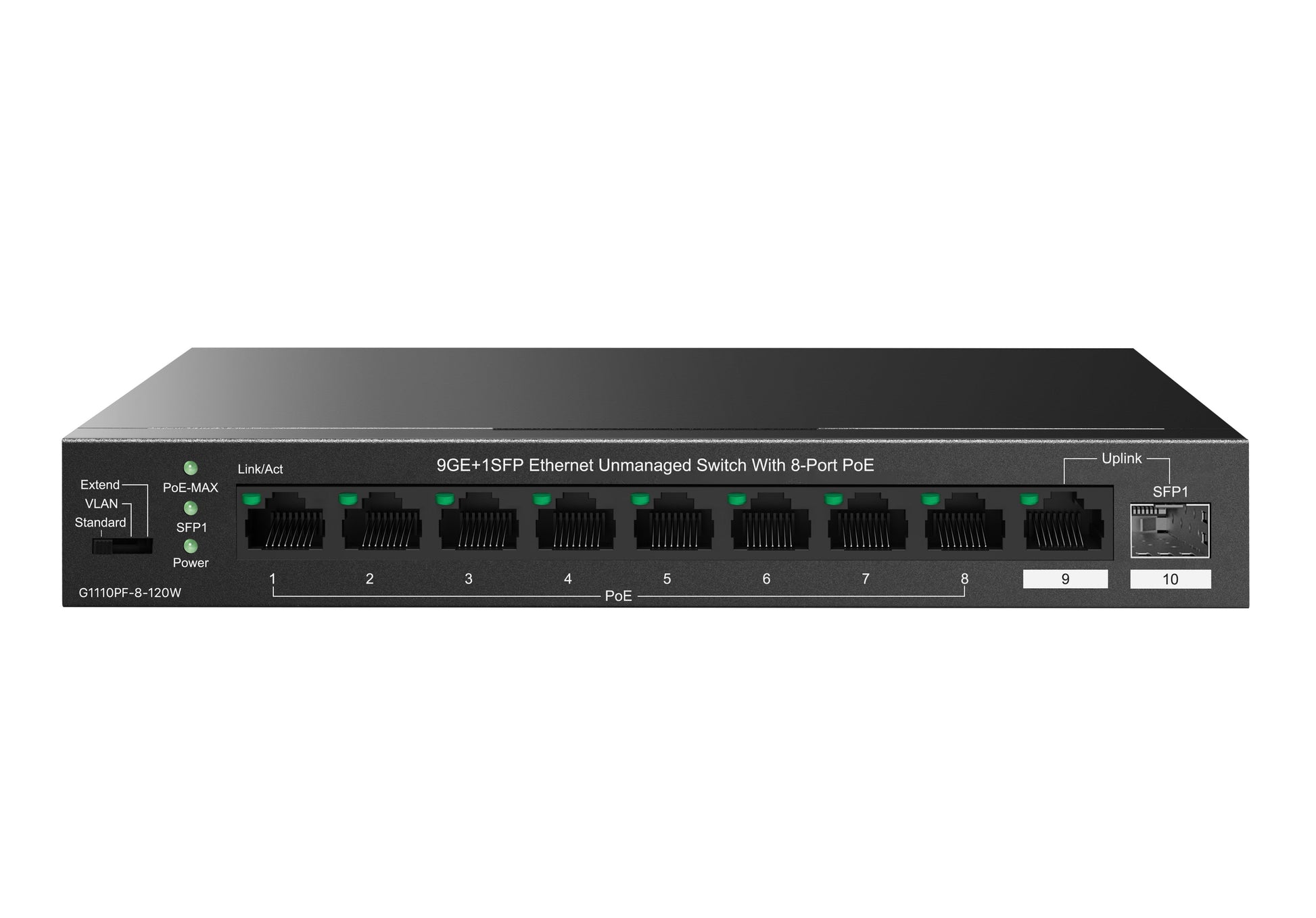

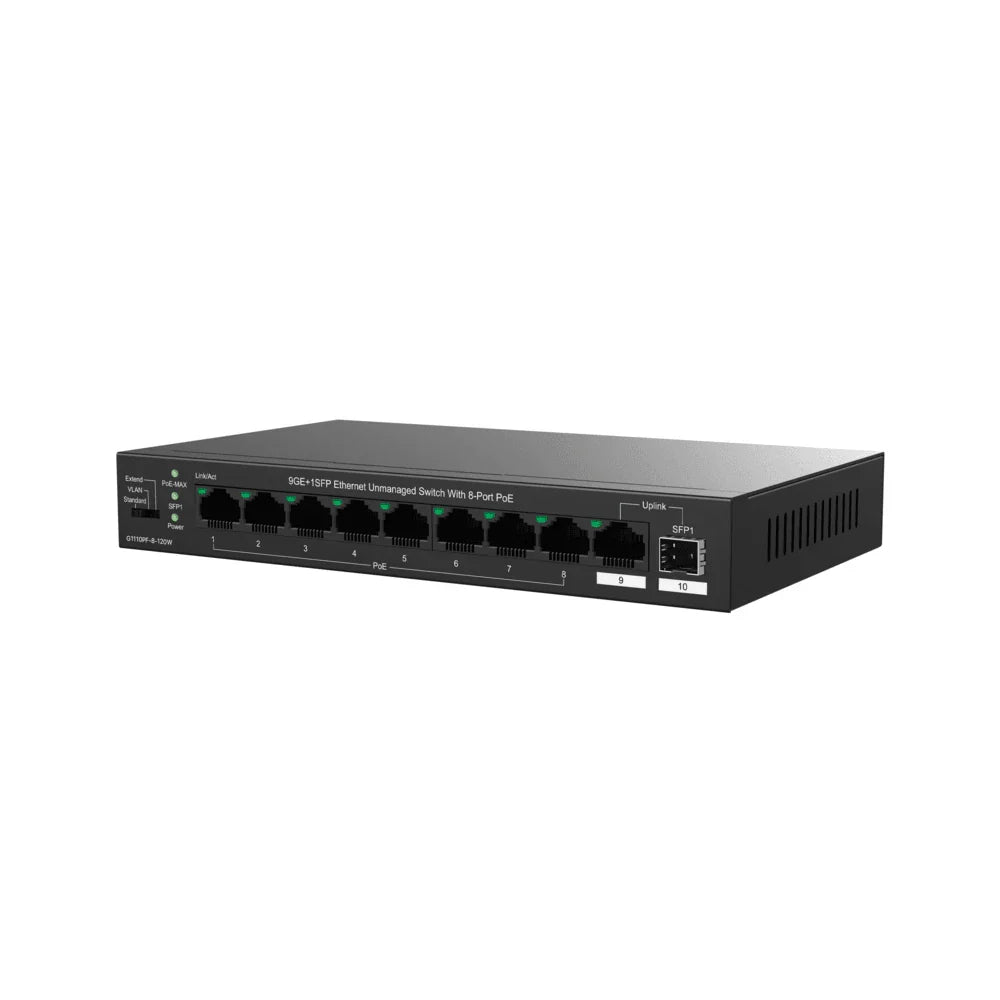

IP-COM G1110PF-8-120W 8-Port Gigabit PoE+ Switch 120W with 1x SFP Combo Uplink Unmanaged L2

The IP-COM G1110PF-8-120W 8-Port Gigabit PoE+ Switch is a powerful and reliable networking solution designed for high-performance surveillance and enterprise deployments. Featuring 8 PoE+ ports with a total power budget of 120W, along with a Gigabit combo uplink (RJ45/SFP), this unmanaged Layer 2 switch delivers seamless data and power transmission. Built with a durable metal housing and advanced protection features, it is ideal for powering IP cameras, access points, and network devices in demanding environments.

What’s Included in the Box

• 1 × IP-COM G1110PF-8-120W PoE+ Switch
• Power cable (240VAC)
• Quick installation guide

Main Features

• 8 × Gigabit PoE+ ports (IEEE 802.3af/at)
• 1 × Gigabit RJ45 uplink / 1 × SFP fibre combo port
• Total PoE budget: 120W (up to 30W per port)
• 20Gbps switching capacity for high-speed data transfer
• Unmanaged Layer 2 plug-and-play operation
• Three working modes: Standard / VLAN / Extend
• Long-distance transmission up to 250m (Extend mode)
• 6kV lightning protection for enhanced reliability
• Durable metal housing with fanless design

Detailed Specifications

Network & Performance

• Total Ports: 8 × PoE + 1 × RJ45 uplink + 1 × SFP (combo)
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.9 Mpps
• MAC Address Table: 8K
• Forwarding Mode: Store-and-forward

PoE

• PoE Standard: IEEE 802.3af/at (PoE+)
• PoE Ports: 8 × PoE+
• Max Power per Port: 30W
• Total PoE Budget: 120W

Uplink & Fibre

• Copper Uplink: 1 × Gigabit RJ45
• SFP Port: 1 × 1G SFP
• Combo Port: Yes (RJ45/SFP shared)

Hardware

• Material: Metal
• Colour: Black
• Installation: Desktop / Wall mount
• Cooling: Fanless

Power

• Input Voltage: 100–240VAC, 50/60Hz
• Power Consumption: <120W

Environmental

• Operating Temperature: 0°C to +45°C
• Humidity: 10%–90% non-condensing

Advanced Features

• VLAN Mode: Isolates ports to reduce broadcast storms
• Extend Mode: Extends PoE transmission up to 250m
• Lightning Protection: 6kV surge protection
• Smart PoE Management: Automatic power allocation

Warranty Information

• 60 Months Manufacturer Warranty
• Supported by authorised IP-COM distributors
• Designed for long-term professional use

About the Brand – IP-COM

IP-COM delivers high-performance networking solutions tailored for business, surveillance, and enterprise applications, combining reliability, affordability, and advanced features.

SKU

G1110PF-8-120W

Practical Use Scenarios

• CCTV systems with multiple PoE cameras
• Office and enterprise network deployments
• Hotels, schools, and retail environments
• Wireless access point installations
• Industrial and warehouse networking

Datasheets / Downloads

• Full Datasheet

Excellence for the Australian and New Zealand Market

This IP-COM PoE+ switch is sourced from authorised distributors and tailored for Australian and New Zealand networking environments. It meets local compliance expectations and is ideal for professional installations requiring reliable power and data delivery. Backed by a 5-year warranty and strong support network, it ensures dependable performance in commercial deployments.

FAQs

Q1: What is the total PoE budget of the G1110PF-8-120W?
The G1110PF-8-120W provides a total PoE budget of 120W.

Q2: How many PoE+ ports does the G1110PF-8-120W have?
The G1110PF-8-120W includes 8 PoE+ (802.3at) ports.

Q3: Does the G1110PF-8-120W support fibre connections?
Yes, the G1110PF-8-120W includes a 1G SFP fibre port with combo uplink functionality.

Q4: Is the G1110PF-8-120W a managed switch?
No, the G1110PF-8-120W is an unmanaged Layer 2 switch with plug-and-play setup.

Q5: What is the switching capacity of the G1110PF-8-120W?
The G1110PF-8-120W has a switching capacity of 20Gbps.

Q6: Can the G1110PF-8-120W extend PoE distance?
Yes, in Extend mode the G1110PF-8-120W can support transmission up to 250 metres.

Q7: What power input does the G1110PF-8-120W require?
The G1110PF-8-120W operates on 100–240VAC power input.
