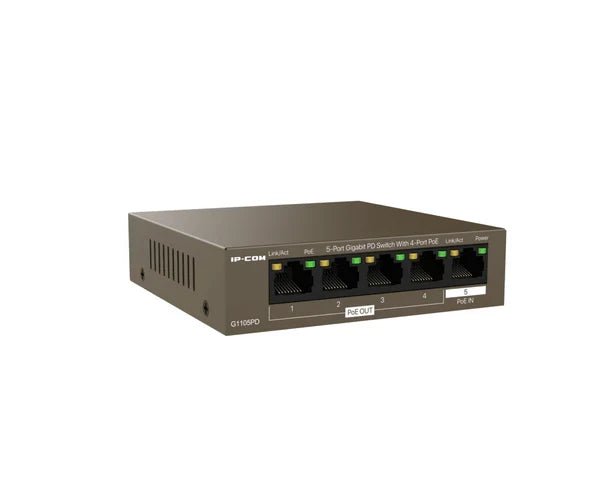

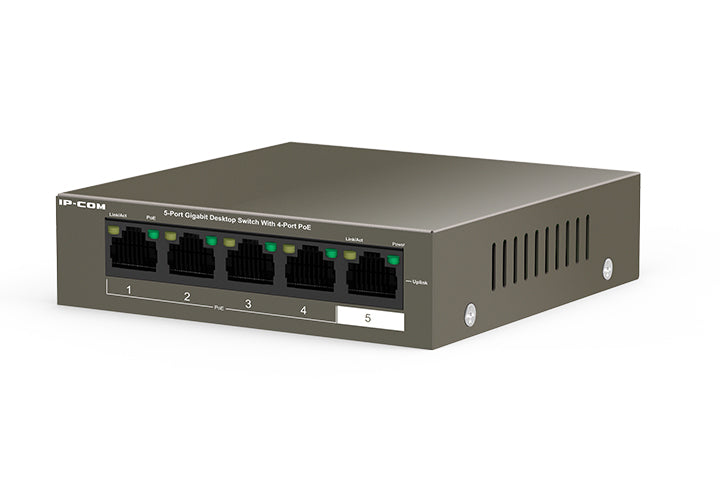

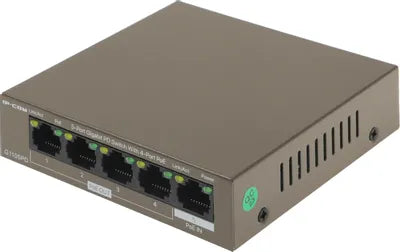

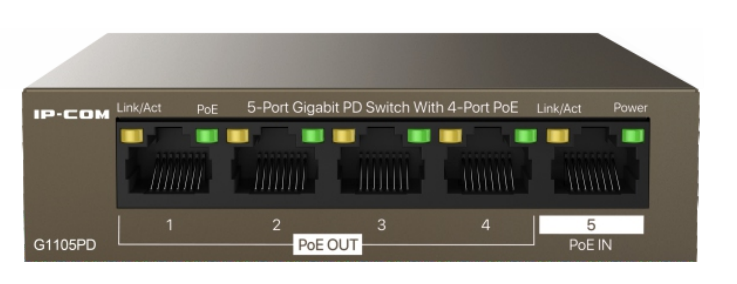

IP-COM G1105PD 5-Port Gigabit PD PoE Switch 22W 4-Port PoE Unmanaged L2 Metal

The IP-COM G1105PD 5-Port Gigabit PD PoE Switch is a compact, high-performance networking solution designed for surveillance and small network deployments. Featuring 4 PoE output ports and a total PoE budget of 22W, this unmanaged Layer 2 switch supports plug-and-play operation with Gigabit speeds and PoE-in capability. Its durable metal housing and PoE-powered design make it ideal for flexible installations in security systems and remote network extensions.

What’s Included in the Box

• 1 × IP-COM G1105PD 5-Port Gigabit PD PoE Switch
• Quick installation guide

Main Features

• 5 × Gigabit RJ45 ports (10/100/1000 Mbps)
• 4 × PoE output ports (IEEE 802.3af)
• 1 × PoE input port (IEEE 802.3af/at)
• Total PoE budget: 22W
• Plug-and-play unmanaged Layer 2 switch
• Compact metal design for durability
• PoE relay function for extended transmission (up to 325m)
• 6kV lightning protection for enhanced reliability
• Fanless design for silent operation

Detailed Specifications

Network & Performance

• Total Ports: 5-Port Gigabit
• PoE Ports: 4 × PoE Out + 1 × PoE In
• Switching Capacity: 10 Gbps
• Forwarding Mode: Store-and-forward
• MAC Address Table: 2K
• Jumbo Frame: 9K

PoE

• PoE Standard (Out): IEEE 802.3af
• PoE Standard (In): IEEE 802.3af/at
• Total PoE Budget: 22W
• Max per Port: 15.4W

Hardware

• Material: Metal
• Colour: Brown
• Ethernet Ports: 5 × Auto-negotiation RJ45
• LED Indicators: Power, Link/Act, PoE status
• Installation: Desktop

Power

• Power Input: PoE-powered (PD switch)
• Voltage: 50–57V DC

Environmental

• Operating Temperature: 0°C to +45°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10%–90% non-condensing

Warranty Information

• 60 Months Manufacturer Warranty
• Backed by authorised IP-COM distribution
• Reliable for long-term surveillance and network deployments

About the Brand – IP-COM

IP-COM is a trusted provider of enterprise networking solutions, delivering cost-effective and reliable products tailored for business, security, and large-scale connectivity environments.

SKU

G1105PD

Practical Use Scenarios

• CCTV surveillance systems with PoE cameras
• Extending PoE networks in large facilities
• Small office or retail network deployments
• Remote installations powered via PoE
• Warehouses, schools, and industrial monitoring setups

Datasheets / Downloads

• Full Datasheet


Excellence for the Australian and New Zealand Market

This IP-COM PoE switch is sourced from authorised distributors and is well-suited for Australian and New Zealand installations. It complies with relevant standards and is ideal for professional surveillance and networking deployments. With a 5-year warranty and reliable support channels, it ensures dependable long-term performance.

FAQs

Q1: What is the PoE budget of the G1105PD?
The G1105PD provides a total PoE budget of 22W.

Q2: How many PoE devices can the G1105PD support?
The G1105PD supports up to 4 PoE devices via its PoE output ports.

Q3: Does the G1105PD require a power adapter?
No, the G1105PD is a PD switch powered via PoE input (IEEE 802.3af/at).

Q4: Is the G1105PD a managed switch?
No, the G1105PD is an unmanaged Layer 2 switch with plug-and-play functionality.

Q5: What is the switching capacity of the G1105PD?
The G1105PD has a switching capacity of 10Gbps.

Q6: Can the G1105PD be used for CCTV systems?
Yes, the G1105PD is ideal for IP camera and surveillance deployments.

Q7: What environment is the G1105PD suitable for?
The G1105PD operates in temperatures from 0°C to 45°C, suitable for most indoor installations.
