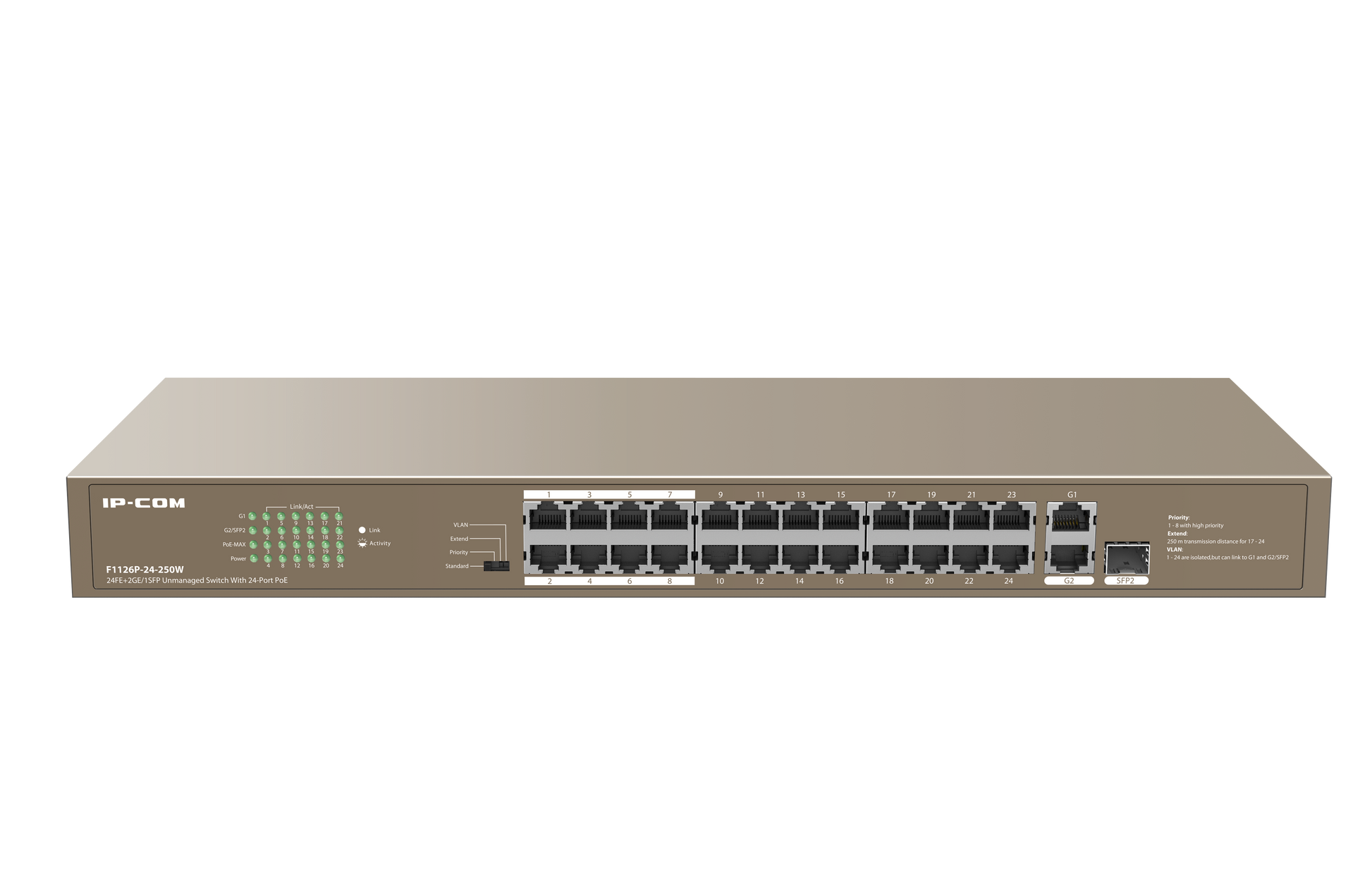

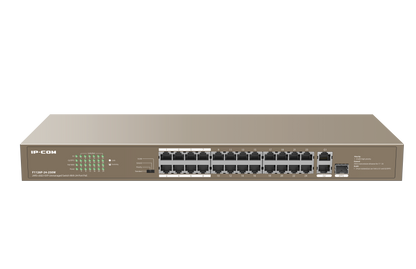

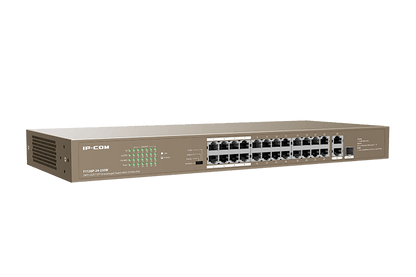

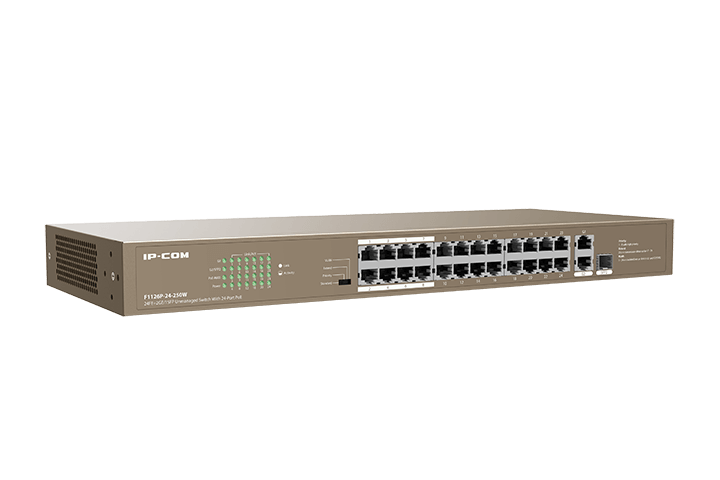

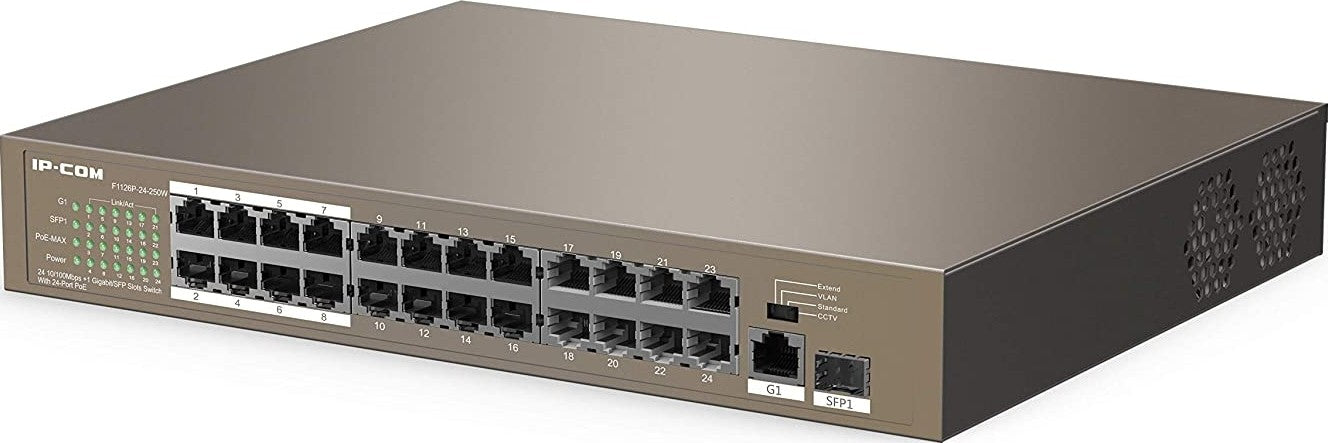

IP-COM F1126P-24-250W 24-Port PoE+ Unmanaged Switch with 230W Power Budget

The IP-COM F1126P-24-250W is a high-performance, 24-port PoE+ unmanaged switch designed for seamless data transmission and power supply to network devices such as APs, IP cameras, and IP phones. Featuring 24 x 10/100 Mbps RJ45 PoE+ ports, 2 x 10/100/1000 Mbps RJ45 uplink ports, and 1 x 1G SFP fiber combo port, this switch is ideal for small to medium-sized businesses (SMBs), hotels, schools, and factories with video surveillance and wireless networking needs.

Compliant with IEEE 802.3af/at standards, the switch supports a total PoE budget of 230W, with up to 30W per port, ensuring stable and efficient power delivery. The 4 operational modes (Standard, Priority, Extend, and VLAN) make networking straightforward, while 6 kV lightning protection enhances reliability in diverse environments.

Key Features:

• 24 x 10/100 Mbps PoE+ ports for power and data transmission

• 2 x 10/100/1000 Mbps RJ45 uplink ports for high-speed connectivity

• 1 x 1G SFP fiber combo port for extended network reach

• PoE power budget of 230W with up to 30W per port

• 8.8 Gbps switching capacity ensures smooth data flow

• 4 operational modes: Standard, Priority, Extend, VLAN

• 6 kV lightning protection for enhanced network safety

• Rack-mountable design for easy installation

• Unmanaged Layer 2 switch for plug-and-play operation

• Compact and durable brown metal casing

Specifications:

• Brand: IP-COM

• Model: F1126P-24-250W

• Total Ports: 24 (26P including uplink and SFP)

• PoE Type: IEEE 802.3af/at (PoE+)

• Uplink Ports: 2 x 1G RJ45 + 1 x 1G SFP

• PoE Power Budget: 230W (Max 30W per port)

• Switching Capacity: 8.8 Gbps

• MAC Address Table: 16K

• Lightning Protection: 6 kV

• Management: Unmanaged (Layer 2)

• Operating Temperature: 0 ~ 45°C

• Mounting: Rack-mountable

• Power Input: 50-56VDC / POE++

• Dimensions (WxDxH): 440mm x 178.8mm x 44mm

• Warranty: 60 months

What's in the Box?

• 1 x IP-COM F1126P-24-250W PoE+ Switch

• 1 x Power Cord

• 1 x Rack Mount Kit

• 1 x Quick Installation Guide

Practical Use Scenarios:

• SMB Networks: Ideal for small to medium-sized businesses needing reliable network infrastructure.

• Hotels & Hospitality: Supports IP-based security cameras and wireless access points for guest internet services.

• Educational Institutions: Powers digital learning tools, APs, and VoIP systems.

• Factory & Industrial Settings: Ensures stable connectivity for surveillance and IoT applications.

Datasheets

Excellence for the Australian and New Zealand Market:

• Certified for Australian quality standards, ensuring compliance with local regulations.

• Optimized for ANZ networking infrastructure, providing seamless integration with existing systems.

• Sourced exclusively from authorized distributors, guaranteeing genuine products with full manufacturer support.

• Comprehensive warranty coverage with direct communication for hassle-free service.

FAQs:

1. Does this switch support VLAN segmentation?

• Yes, the IP-COM F1126P-24-250W supports VLAN mode to isolate ports and enhance network security.

2. What is the maximum power output per PoE port?

• Each PoE port can deliver up to 30W, suitable for high-power devices such as IP cameras and APs.

3. Can this switch be used for long-distance data transmission?

• Yes, in Extend Mode, ports 17-24 support up to 250m transmission distance at 10 Mbps.

4. Does this switch require any software configuration?

• No, it is an unmanaged switch, meaning it operates plug-and-play without software setup.

5. What protections are included in this switch?

• It features 6 kV lightning protection, short-circuit protection, PoE overload protection, and surge protection.
