IDIS DC‑D4532WERA 5MP AI IR Turret Camera | H.265, NDAA Compliant, DirectIP, Motorised Zoom
IDIS DC‑D4532WERA 5MP AI IR Turret Camera | H.265, NDAA Compliant, DirectIP, Motorised Zoom
Regular price
$608.94 AUD
Regular price
$725.22 AUD
Sale price
$608.94 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

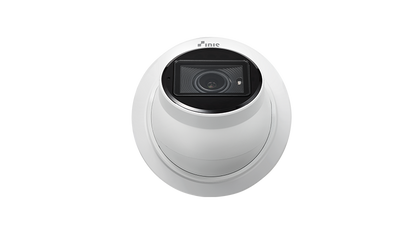

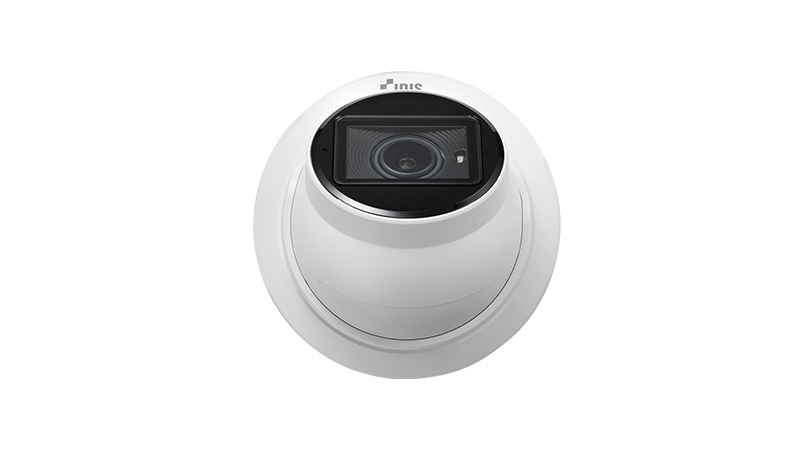

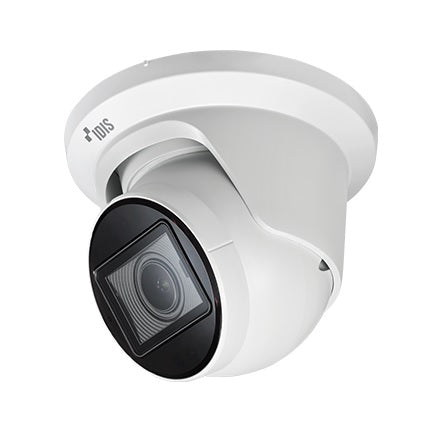

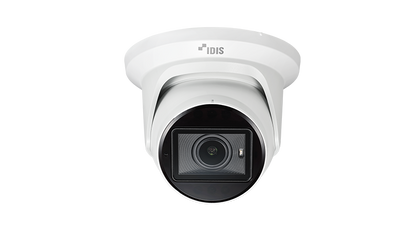

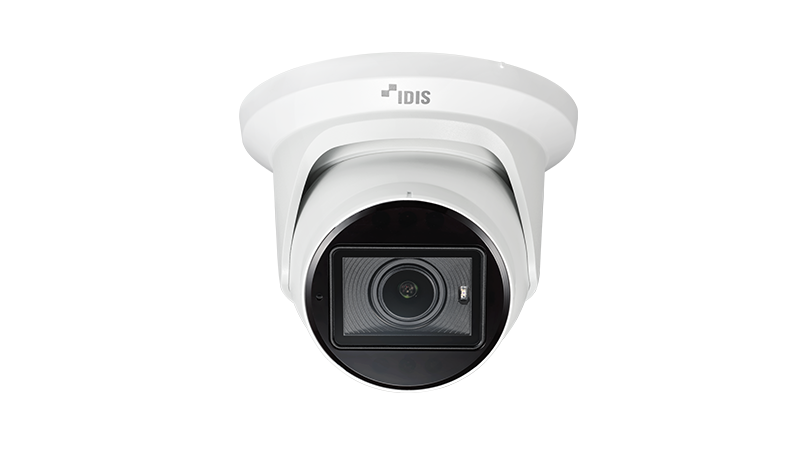

The IDIS DC‑D4532WERA is a high-performance 5 MP AI-enabled turret camera engineered for both indoor and outdoor surveillance applications. With support for H.265 video encoding, advanced IDIS Deep‑Learning Analytics (IDLA), and powerful IR illumination up to 50 m, it delivers crisp imagery and intelligent event detection even in challenging lighting conditions. Its motorized zoom and focus, coupled with rugged construction (IP67, IK10), ensure flexible deployment and long-term reliability.
This model is NDAA-compliant, making it suitable for government and enterprise projects requiring secure supply chain credentials. It integrates seamlessly with IDIS DirectIP NVR systems for plug-and-play installation and robust performance.
What’s Included in the Box
-
1 × IDIS DC‑D4532WERA 5 MP AI IR Turret Camera
-
Mounting bracket and screws
-
Quick start guide / Installation manual
-
Waterproof gaskets and cable glands
-
Warranty card
-
Template sticker for drilling
Main Features
| Feature | Benefit |
|---|---|
| 5 MP Resolution (2592 × 1944) | Provides crisp and detailed images enabling better identification |
| H.265 + Intelligent Codec | Reduced bandwidth and storage usage without sacrificing video quality |
| Motorized Vari-focal Zoom (3.2 → 10.5 mm) | Flexible field of view adjustments remotely, no manual lens swap |
| IR Illumination (50 m) | Reliable night surveillance even in total darkness |
| IDIS Deep‑Learning Analytics (IDLA) | Advanced detection: human, vehicle, intrusion, loitering, line crossing, face detection |
| True WDR 120 dB | Handles high contrast scenes with balanced exposure |
| Rugged Build (IP67, IK10) | Weather- and vandal-resistant for outdoor deployment |
| PoE (IEEE 802.3af, Class 3) | Simplifies wiring using a single Ethernet cable for power & data |
| NDAA Compliance | Suitable for high-security / government procurement projects |
| DirectIP 2.0, ONVIF S/T | Supports seamless integration with IDIS NVRs and third-party systems |
Detailed Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1⁄2.8″ CMOS |
| Lens / Aperture | Motorized vari‑focal 3.2 – 10.5 mm, F1.6 – 3.3 |
| Field of View | 98.9° (H) × 71.1° (V) at wide, 28.2° (H) × 21.2° (V) at tele (4:3 mode) |
| Minimum Illumination | Color: 0.13 lux (F1.6); Black & White: 0 lux (IR on) |
| Dynamic Range | 120 dB (True WDR) |
| Shutter | Auto / Manual 1/30 to 1/10,000; Anti-flicker; Slow shutter options |
| Day / Night | IR cut filter (ICR) |
| IR LEDs | 6 × LEDs, effective up to 50 m |
| Compression | H.265, H.264(MP), MJPEG |
| Streams | Up to 4 concurrent video streams |
| Max Frame Rate | 30 ips at 2592 × 1944 (WDR) |
| Protocols | DirectIP 2.0, ONVIF Profile S/T, IPv4/IPv6, RTSP/RTP/HTTP/FTP, etc. |
| Security | SSL, HTTPS, Digest auth, 802.1x EAP-TLS, IP filtering, etc. |
| Edge Storage | microSD / SDHC / SDXC (up to 512 GB) with Smart Failover |
| Audio / Alarm | Built-in MIC, 1 audio-in, 1 audio-out, 1 alarm-in, 1 alarm-out |
| Environment | Operating temp: –40 °C to +55 °C; Humidity up to 90% |
| Ingress / Vandal | IP67, IK10 |
| Power | 12 V DC or PoE (IEEE 802.3af, Class 3) |
| Power Consumption | 13.2 W (12 V DC), ~11.5 W via PoE |

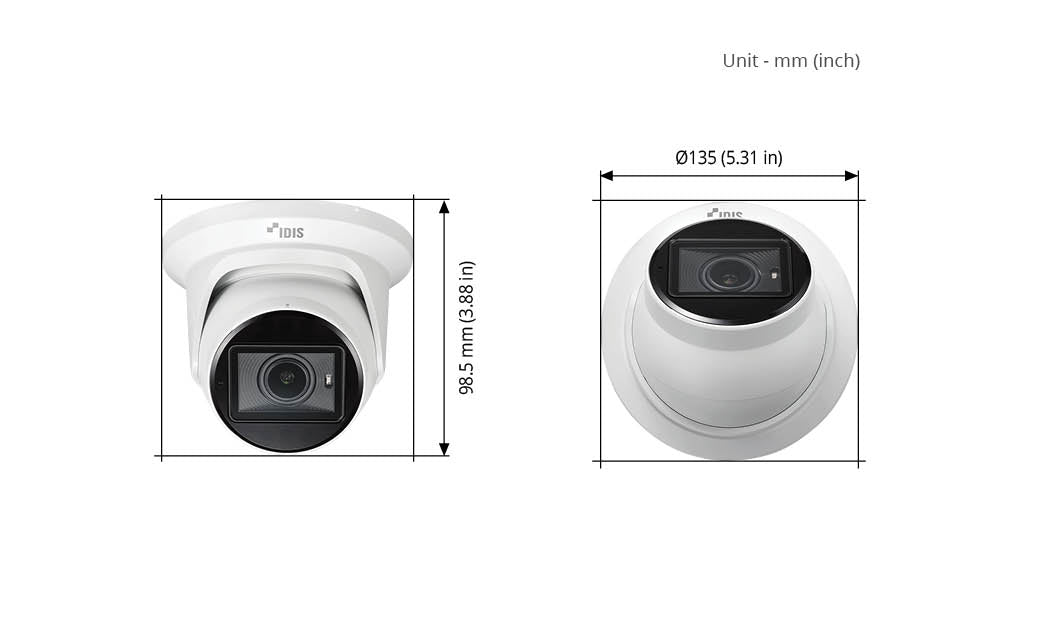

| Dimensions / Weight | Ø 135 × 98.5 mm; 830 g |
Warranty Information
Standard manufacturer warranty of 5 years when purchased via authorized distributors. (Check with your reseller for registration and warranty terms.)
Brand Description
IDIS is a global leader in video surveillance solutions, known for innovation, reliability, and performance. Their DirectIP platform and analytics suites are trusted by enterprises, municipalities, and security professionals worldwide.
Practical Use Scenarios
-
Perimeter Security
Monitor fences, gates, and boundary lines with real-time intrusion or loitering alerts. -
Parking Lots / Outdoor Areas
Capture detailed license plates and detect vehicle movements even at night. -
Retail / Storefront Exteriors
Use face detection and line crossing in high-traffic commercial zones. -
Critical Infrastructure / Government Facilities
With NDAA compliance and rugged protection, suitable for secure installations.
Datasheets & Downloads
-
A&E SPECIFICATIONDC-D4532WERA_AnE_Spec_v1.1.docx Download MANUALDC-D4532WERA Installation Manual v1.0.pdf Download MANUALDC-D4532WERA Operation Manual v1.0.pdf Download MANUALDC-D4532WERA Quick Guide v1.0.pdf Download SOFTWAREDCD4532WERA-idis-mle-140-1406.rui Download SOFTWAREDCD4532WERA-idis-jpn-140-1406.rui Download BrochureDC-D4532WERA | Automatically Generate Datasheet Download
Excellence for the Australian and New Zealand Market
This product is ideally suited for the Australian and New Zealand markets: it meets relevant international standards (FCC, CE, KC), and through authorized distribution channels ensures warranty support locally. The NDAA-compliance further positions it for procurement in government and critical infrastructure projects in ANZ. Your purchase is backed by genuine parts and direct manufacturer support via the authorized network.
FAQs
Q: What is the difference between the IDIS DC‑D4532WERA and other 5MP cameras?
A: The DC‑D4532WERA combines motorised zoom, IDIS Deep Learning Analytics, H.265/Intelligent Codec, and rugged IP67/IK10 housing—features often absent in standard 5MP models.
Q: How far can the IR LEDs reach in the DC‑D4532WERA?
A: The DC‑D4532WERA includes 6 IR LEDs with a night-vision effective range of up to 50 m (164 ft).
Q: Is the IDIS DC‑D4532WERA compliant with NDAA?
A: Yes — the DC‑D4532WERA is NDAA compliant, making it suitable for secure, government-grade deployments.
Q: What power options does the DC‑D4532WERA support?
A: The DC‑D4532WERA supports 12 V DC and IEEE 802.3af Class 3 PoE, allowing for flexible installations using a single Ethernet cable.
Q: Can the DC‑D4532WERA work in extreme weather conditions?
A: Absolutely — the DC‑D4532WERA operates between –40 °C to +55 °C, with IP67 ingress and IK10 impact protection.
Q: Does the DC‑D4532WERA support on‑camera analytics?
A: Yes — the DC‑D4532WERA integrates IDIS Deep Learning Analytics (IDLA) for features like human/vehicle detection, intrusion, loitering, line crossing, and face detection.
