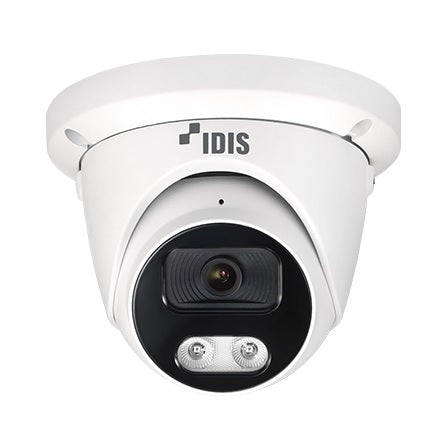

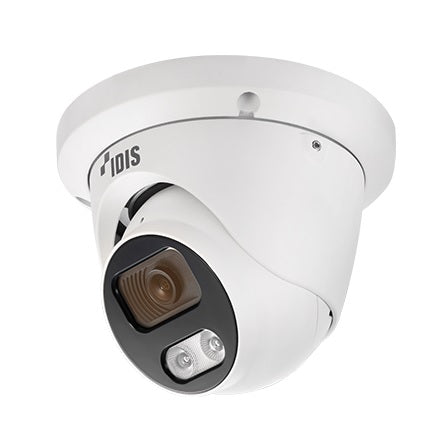

IDIS DC‑D2511WER 5MP IR Dome Camera / NDAA Compliant — IDIS Lite Series

The IDIS DC‑D2511WER is a high-performance 5 megapixel IR dome (turret) camera engineered for demanding security environments. Equipped with a 1/2.8″ Sony IMX 335 STARVIS CMOS sensor and a wide‑angle 2.8 mm (F1.6) fixed lens, it delivers sharp, high-resolution images across a broad field of view. Triple streaming with support for H.265, H.264, and MJPEG ensures efficient bandwidth use while maintaining multiple video formats for compatibility.

Built with rugged durability in mind, the DC‑D2511WER features a non-reflection internal structure and enhanced heat-radiation design, as well as IK10 vandal resistance and IP67-rated weatherproofing for outdoor use. Onboard micro SD card support enables edge recording, while PoE (IEEE 802.3af) simplifies installation. NDAA compliance makes it suitable for sensitive or government-related deployments.

What’s in the Box

• 1 × IDIS DC‑D2511WER 5MP IR Dome Camera

• Mounting template & screws

• Quick Guide / Installation Instructions

• Warranty card

Main Features

Detailed Specifications

Video / Imaging

• Image Sensor: 1/2.8″ Sony IMX 335 STARVIS CMOS

• Max Resolution: 2592 × 1944 (5 MP)

• Scanning Mode: Progressive

• Lens: Fixed 2.8 mm, F1.6

• Field of View: 106.9° (H) / 56.9° (V) / 127.9° (D)

• Min Illumination: 0.001 Lux (color), 0 Lux (IR on)

• IR Distance: Up to 20 m / ~65.6 ft

• WDR / BLC / De-fog / 8 privacy masks

• Auto white balance, image adjustments (contrast, sharpness, etc.)

Video / Network

• Compression: H.265 (Main), H.264 (High/Main/Base), MJPEG

• Streaming: Triple streaming (e.g. H.265 + MJPEG or H.264 + MJPEG)

• Frame Rate: Up to 30 fps at full 5MP resolution

• Protocols: TCP/IP, UDP, IPv4/v6, HTTP/HTTPS, FTP, RTSP, RTP, RTCP, DHCP, ARP, Zeroconf

• ONVIF Profile S/T, API support

• Security: HTTPS, multi-user with role-based access, IP filtering

• Edge storage: micro SDHC / SDXC

Alarm / Analytics

• Events: Motion detection, tamper detection

• Notification: Email, FTP

Environmental & Mechanical

• Vandal Proof Rating: IK10

• Weather Rating: IP67 (dust-tight, waterproof)

• Operating Temp: –10 °C to +50 °C

• Humidity: 0% to 95% (non-condensing)

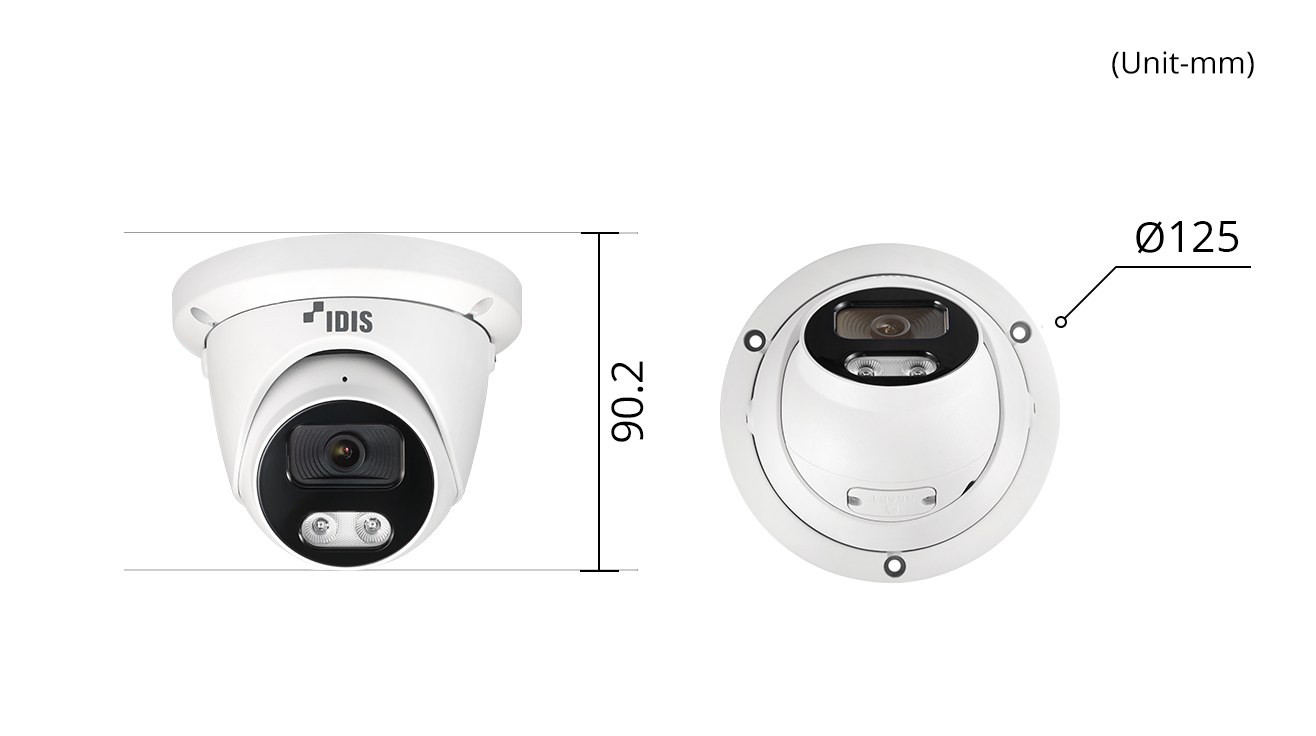

• Dimensions: Ø 125.0 mm × 90.2 mm (H)

• Weight: ~0.504 kg

Electrical

• Power: 12 VDC or PoE (IEEE 802.3af Class 2)

• Power Consumption: ~3.82 W

• Certifications / Approvals: KC, CE, FCC; NDAA compliant

Warranty & Support

• Manufacturer’s warranty (typical 3‑year warranty where sold by authorized distributors — check with local supplier)

• Support via IDIS’s global network and regional distributors

• Firmware updates available via IDIS support portal

Brand Overview

IDIS is a globally respected provider of advanced video surveillance and security solutions. Their Lite Series offers a robust balance of performance, reliability, and affordability—ideal for commercial, industrial, and specialized installations.

Practical Use Scenarios

• Commercial & Retail Stores — Wide-angle coverage of sales floor, emergency exit monitoring

• Offices & Entrances — Imaging at doors, hallways, reception zones

• Parking Lots & Perimeters — Day-night performance, robust weather/vandal protection

• Sensitive Facilities — NDAA compliance meets regulatory security requirements

• Standalone Units or Networked Systems — Edge recording via micro SD plus network integration

Data Sheets & Downloads

• A&E SPECIFICATIONDC-D2511WER_AnE_Spec_v1.0.docx	Download
  MANUALDC-D2511WER Quick Guide v1.0.pdf	Download
  SOFTWARELSN-N6_v6.3.1.341.img.encrypt	Download

Excellence for the Australian and New Zealand Market

This listing is tailored for the ANZ region. The IDIS DC‑D2511WER model meets rigorous security standards and is compatible with Australian climate conditions. It is supplied via authorized regional distributors ensuring local warranty servicing, firmware updates, and support. NDAA compliance makes it suitable for government, defence, and enterprise projects in Australia and New Zealand.

Frequently Asked Questions (FAQs) — DC‑D2511WER

Q: Does the DC‑D2511WER support PoE?
A: Yes, the DC‑D2511WER supports PoE (IEEE 802.3af) as its primary powering method.

Q: What is the maximum IR illumination range of the DC‑D2511WER?
A: The DC‑D2511WER offers IR night vision up to 20 m.

Q: Is the DC‑D2511WER vandal-resistant?
A: Yes, the DC‑D2511WER features an IK10-rated housing for maximum durability.

Q: Can I record locally on the DC‑D2511WER?
A: Yes, the DC‑D2511WER supports micro SDHC / SDXC cards for edge storage and local recording.

Q: What video compression formats are supported by the DC‑D2511WER?
A: The DC‑D2511WER supports H.265 (Main Profile), H.264 (High/Main/Base), and MJPEG.

Q: Is the DC‑D2511WER NDAA compliant?
A: Yes, the DC‑D2511WER is NDAA compliant and suitable for use in secure and regulated environments.
