HiLook upto 4x 4MP IP Camera Kit – IPC-T240H-MU Turret Cameras + HL-NVR-104MH-C/4P(B) 4 Channel 4K PoE NVR CCTV Security System Budget CCTV Kit
HiLook upto 4x 4MP IP Camera Kit – IPC-T240H-MU Turret Cameras + HL-NVR-104MH-C/4P(B) 4 Channel 4K PoE NVR CCTV Security System Budget CCTV Kit
Regular price
$223.38 AUD
Regular price
$475.32 AUD
Sale price
$223.38 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The HiLook 4x 4MP IP Camera Kit – IPC-T240H-MU + HL-NVR-104MH-C/4P(B) is a complete PoE CCTV surveillance solution featuring up to four white 4MP turret network cameras and a 4-channel 4K PoE NVR. Designed for homes, offices, retail stores, warehouses, and small business security, this kit delivers clear 4MP video, built-in audio capture, smart motion and VCA event support, 30m infrared night vision, IP67 weather resistance, and efficient H.265+ storage compression.
This professional HiLook IP CCTV kit combines Choose upto 4x white IPC-T240H-MU 4MP fixed turret cameras with the HL-NVR-104MH-C/4P(B) 4 Channel NVR, giving users detailed day/night surveillance, simplified PoE installation, smart playback, and remote access through HiLookVision. The white turret camera finish suits modern residential and commercial interiors and exteriors where a clean, discreet security installation is preferred.
The NVR supports up to 4 IP camera inputs, 40 Mbps incoming bandwidth, H.265+/H.265/H.264+/H.264 video formats, and simultaneous HDMI and VGA output, with HDMI display resolution up to 4K. Each included camera provides 2560 × 1440 maximum resolution, 120 dB WDR, EXIR 2.0 infrared illumination up to 30 metres, IP67 outdoor protection, and Power over Ethernet for streamlined cabling.
What’s Included in the Box
- Choose upto 4x HiLook IPC-T240H-MU White 4MP Fixed Turret Network Cameras
-
1x HiLook HL-NVR-104MH-C/4P(B) 4 Channel 4K PoE NVR
- Documentation / quick start materials where supplied by manufacturer
Note: Hard drive, monitor, network cables, mounting accessories, and optional brackets are not listed as included unless supplied separately.
Main Features
Complete 4 Camera PoE Security Kit
Includes four white 4MP IP turret cameras and a 4-channel PoE NVR, making it suitable for small to medium CCTV installations.
4MP High-Resolution Video
Each IPC-T240H-MU camera captures video at up to 2560 × 1440, delivering detailed footage for entrances, driveways, reception areas, stockrooms, and perimeter coverage.
Clean White Turret Camera Design
The white IPC-T240H-MU turret cameras are suitable for indoor and outdoor installations where a neat, professional, and discreet finish is preferred.
Built-In Microphone
The IPC-T240H-MU supports real-time audio security with a built-in microphone, useful for added situational awareness where audio recording is legally permitted.
30m Infrared Night Vision
EXIR 2.0 infrared technology provides night visibility up to 30 metres, helping maintain coverage in low-light and dark environments.
120 dB Wide Dynamic Range
The cameras feature 120 dB WDR, helping balance bright and dark areas in challenging lighting conditions such as doorways, windows, and vehicle entrances.
H.265+ Efficient Compression
The NVR supports H.265+ compression, reducing storage requirements by up to 75% compared with less efficient compression formats, based on the supplied product information.
4K HDMI Output
The NVR provides HDMI output up to 4K resolution, plus VGA output, allowing simultaneous local monitoring on compatible displays.
Smart Search and Playback
Smart search and smart playback help improve playback efficiency, making it easier to review footage and locate motion-based events.
PoE Plug-and-Play Installation
The NVR includes 4 independent PoE network interfaces, allowing compatible cameras to receive power and data through a single Ethernet cable.
Remote Management with HiLookVision
HiLookVision support enables convenient remote viewing, playback, and network management when the system is configured with compatible network settings.
Detailed Specifications

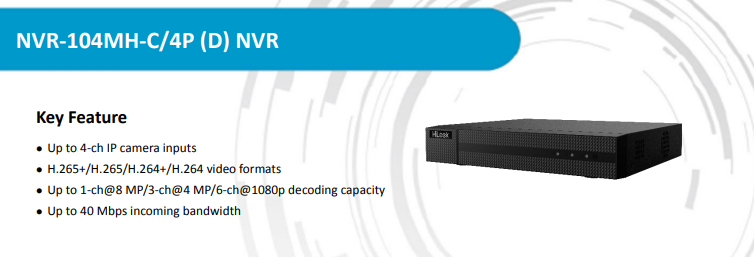

NVR Specifications – HL-NVR-104MH-C/4P(B)
| Specification | Details |
|---|---|
| Model | HL-NVR-104MH-C/4P(B) / NVR-104MH-C/4P |
| IP Video Input | 4 channels |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Video Formats | H.265+, H.265, H.264+, H.264 |
| Decoding Capacity | 1-ch @ 8MP / 3-ch @ 4MP / 6-ch @ 1080p |
| Recording Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 4 channels |
| HDMI Output | Up to 4K: 4096 × 2160 / 30 Hz, 3840 × 2160 / 30 Hz |
| VGA Output | Up to 1920 × 1080 / 60 Hz |
| Video Output Mode | HDMI / VGA simultaneous output |
| Audio Output | 1-ch RCA |
| Two-Way Audio | 1-ch RCA |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726 |
| Network Interface | 1x RJ-45 10/100 Mbps Ethernet |
| PoE Interfaces | 4x RJ-45 10/100 Mbps PoE |
| PoE Standard | IEEE 802.3 af/at |
| PoE Power | ≤ 50 W |
| SATA Interface | 1x SATA |
| HDD Capacity | Up to 8TB |
| USB Interface | 2x USB 2.0 |
| Remote Connections | 32 |
| Motion Detection 2.0 | 1 channel human/vehicle analysis |
| Smart Functions | VCA event support, motion, line crossing, intrusion detection when supported by camera |
| Power Supply | 48 VDC, 1.35 A |
| Consumption | ≤ 10 W without HDD and PoE off |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% |
| Dimensions | 265 × 225 × 48 mm |
| Weight | ≤ 1 kg without HDD |
| Certifications | FCC Part 15 Subpart B, ANSI C63.4-2014; CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:2017 |

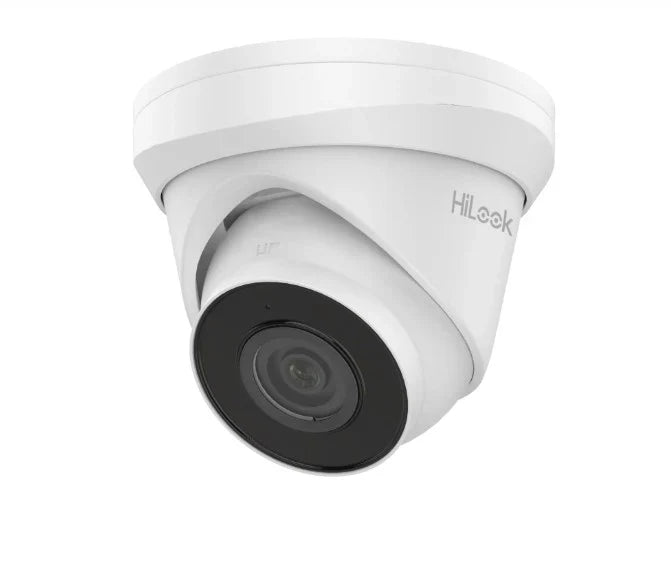

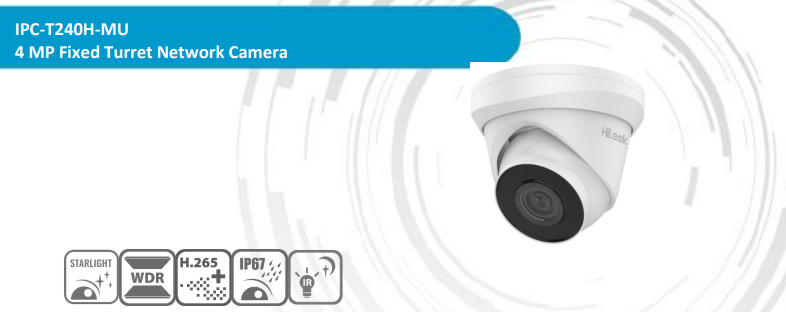

Camera Specifications – IPC-T240H-MU White
| Specification | Details |
|---|---|
| Model | IPC-T240H-MU |
| Camera Type | 4MP Fixed Turret Network Camera |
| Colour | White |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Colour: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR |
| Wide Dynamic Range | 120 dB |
| Day/Night | IR cut filter |
| Lens Options | 2.8 mm supplied model listed; 4 mm option also specified |
| 2.8 mm Field of View | Horizontal 98.0°, vertical 53.1°, diagonal 114.7° |
| 4 mm Field of View | Horizontal 78.7°, vertical 43.1°, diagonal 92.3° |
| Lens Mount | M12 |
| Aperture | F2.0 |
| Focus | Fixed |
| IR Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Main Stream | 20 fps at 2560 × 1440; 25 fps at 2304 × 1296, 1920 × 1080, 1280 × 720 |
| Sub Stream | 25 fps at 640 × 480 / 640 × 360 |
| Video Compression | Main stream: H.265/H.264; sub-stream: H.265/H.264/MJPEG |
| H.265+ / H.264+ | Main stream supported |
| Video Bitrate | 32 Kbps to 8 Mbps |
| Built-In Microphone | Yes |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
| Network Interface | 1x RJ45 10/100 Mbps Ethernet |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| API | Open Network Video Interface, ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users; administrator, operator and user levels |
| Network Storage | NAS, NFS, SMB/CIFS, ANR where supported |
| Local Storage | Built-in microSD card slot, up to 256GB |
| Smart Events | Line crossing detection, intrusion detection |
| Basic Events | Motion detection, video tampering, exception |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable |
| Image Enhancement | BLC, 3D DNR |
| Day/Night Switch | Auto, schedule, day, night |
| Linkage Method | Upload to FTP, notify surveillance centre, send email; memory card upload, trigger recording, trigger capture where supported |
| General Functions | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Angle Adjustment | Pan 0°–360°, tilt 0°–75°, rotate 0°–360° |
| Material | Metal and plastic |
| Camera Dimensions | Ø127.2 mm × 94.6 mm |
| Package Dimensions | 150 × 150 × 141 mm |
| Storage Conditions | -30 °C to 60 °C; humidity 95% or less, non-condensing |
| Operating Conditions | -30 °C to 60 °C; humidity 95% or less, non-condensing |
| Power Supply | 12 VDC ±25% or PoE |
| Power Consumption | 12 VDC max 5 W; PoE max 6.5 W |
| PoE Standard | IEEE 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Protection | IP67 |
| EMC Approval | FCC SDoC, CE-EMC, RCM AS/NZS CISPR 32:2015, IC VoC, KC |
| Safety Approval | UL, CB, CE-LVD, BIS |
| Environmental Approval | CE-RoHS, WEEE, REACH |
Optional Compatible Accessories
- DS-1271ZJ-130-TRL Pendant Mount
- DS-1280ZJ-DM8 Junction Box
- DS-1273ZJ-130-TRL Wall Mount
- DS-1275ZJ-SUS Vertical Pole Mount
- DS-1273ZJ130B-TRL Wall Mount
- DS-1276ZJ-SUS Corner Mount
- DS-1281ZJ-M Inclined Ceiling Mount
Practical Use Scenarios
Home Security
Ideal for monitoring driveways, front doors, side passages, garages, patios, and outdoor areas with clear 4MP footage and night vision.
Small Business CCTV
Suitable for offices, cafés, retail stores, clinics, workshops, warehouses, and reception areas requiring a reliable four-camera surveillance system.
Retail and Stockroom Monitoring
The 4-camera setup can cover customer areas, checkout counters, staff-only areas, storage rooms, and entry/exit points.
Outdoor Surveillance
The white IPC-T240H-MU cameras feature IP67 protection, making them suitable for outdoor installations when installed correctly.
Clean Residential and Commercial Installations
The white turret camera design blends well with ceilings, eaves, soffits, walls, and modern building finishes.
Remote Monitoring
With compatible setup and network access, users can view live video and playback through HiLookVision-supported remote management.
Warranty Information
2-year warranty. Warranty coverage is subject to the terms provided by the supplier, distributor, or manufacturer at the time of purchase. For warranty support, product serial numbers, installation details, and purchase documentation may be required.
Brand Description
HiLook is a value-focused security product range by Hikvision, designed for user-friendly and reliable performance in small to medium-sized surveillance projects. HiLook systems are commonly used for residential, retail, office, and small commercial CCTV installations where dependable video security and simple setup are important.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The HiLook 4x 4MP IP Camera Kit – IPC-T240H-MU White + HL-NVR-104MH-C/4P(B) is well suited to Australian and New Zealand residential and commercial CCTV installations requiring reliable PoE connectivity, clean white camera aesthetics, clear 4MP imaging, smart recording features, and practical remote access.
The supplied camera compliance information includes RCM AS/NZS CISPR 32:2015, supporting suitability for the Australian and New Zealand electrical and EMC compliance environment. The kit also includes camera approvals such as FCC, CE, RoHS, WEEE, REACH, and IP67 protection based on the supplied product data.
NDSS approval is not applicable to CCTV camera and NVR products, as NDSS relates to diabetes-related products and services rather than electronic security systems.
For Australian and New Zealand customers, Globlelink recommends sourcing through authorised brand representatives and approved distribution channels wherever available. Warranty handling should be completed through direct communication with the brand, distributor, or authorised supplier according to the product’s warranty terms.
FAQs
1. What is included in the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B camera kit?
The IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B kit includes four white HiLook IPC-T240H-MU 4MP turret IP cameras and one HL-NVR-104MH-C/4P(B) 4-channel HiLook PoE NVR.
2. Does the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B support PoE?
Yes. The IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B supports Power over Ethernet, allowing each compatible camera to receive power and data through a single Ethernet cable.
3. What resolution does the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B provide?
The IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B system records camera footage at up to 4MP camera resolution, with the IPC-T240H-MU supporting a maximum resolution of 2560 × 1440.
4. Does the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B have night vision?
Yes. The IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B includes cameras with EXIR 2.0 infrared technology and an IR range of up to 30 metres.
5. Is the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B suitable for outdoor installation?
Yes. The cameras in the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B kit are IP67 rated, making them suitable for outdoor security installations when installed correctly.
6. Does the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B include audio recording?
Yes. The IPC-T240H-MU cameras in the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B include built-in microphones for real-time audio security where audio recording is legally permitted.
7. What hard drive capacity does the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B NVR support?
The NVR in the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B supports one SATA hard drive with capacity up to 8TB.
8. Can the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B be viewed remotely?
Yes. The IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B supports HiLookVision remote management when configured with compatible network settings.
9. Does the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B support 4K display output?
Yes. The IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B NVR supports HDMI output up to 4K resolution, along with VGA output.
10. Is the IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B suitable for small business security?
Yes. The IPC-T240H-MU-WHT-4KIT-HL-NVR-104MH-C-4P-B is suitable for small businesses, retail stores, offices, workshops, and residential security applications requiring a white 4-camera PoE CCTV solution.
