HiLook up-to 4x 6MP AI CCTV Kit with 4-Channel 4K PoE NVR and HDD – IPC-T361H-MU-AUS + HL-NVR-104MH-C/4P(B)

Elevate your security infrastructure with the HiLook 6MP AI CCTV Kit, combining the advanced IPC-T361H-MU#AUS turret cameras with the robust HL-NVR-104MH-C/4P(B) 4-channel 4K PoE Network Video Recorder. This comprehensive surveillance solution is tailored for both residential and commercial environments, offering high-resolution imaging, intelligent analytics, and seamless integration.

The IPC-T361H-MU#AUS cameras feature a 6MP CMOS sensor, delivering crystal-clear images with a resolution of 3200 × 1800. Equipped with deep learning-based human and vehicle classification, these cameras minimize false alarms and enhance threat detection accuracy. The built-in dual microphones provide real-time audio monitoring, ensuring comprehensive situational awareness. With 120 dB True WDR technology, the cameras maintain image clarity in challenging lighting conditions, while the IP67-rated housing ensures durability against harsh weather.

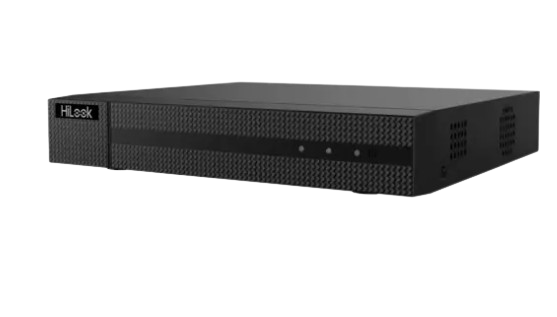

The HL-NVR-104MH-C/4P(B) NVR supports up to four IP camera inputs and offers decoding capabilities of up to 1-ch@8 MP or 4-ch@1080p. With support for H.265+/H.265/H.264+/H.264 video formats, it ensures efficient storage utilization. The built-in PoE ports simplify installation by providing power and data transmission over a single cable.

What’s in the Box

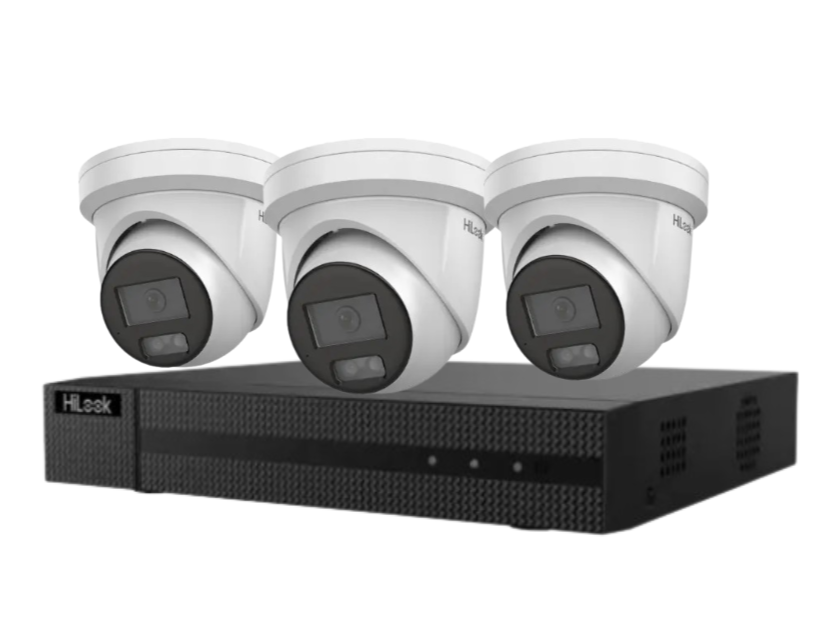

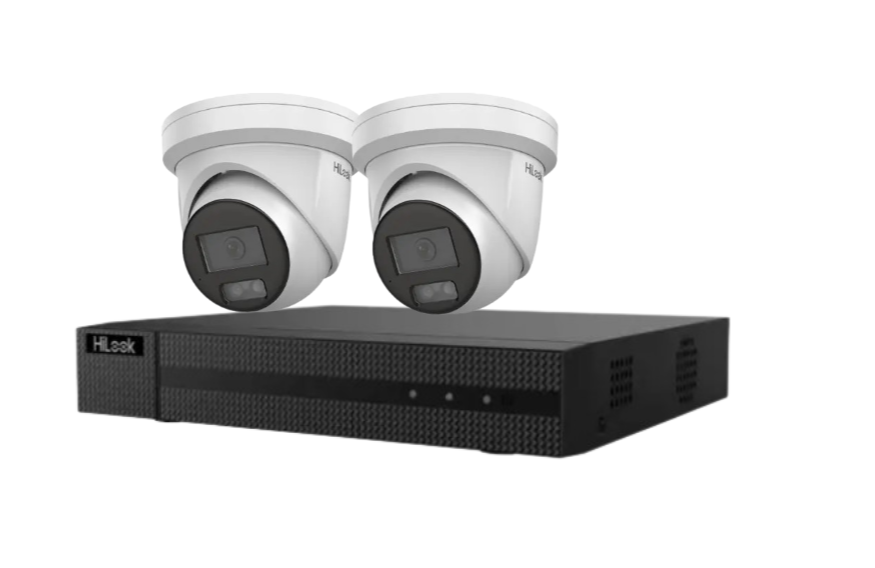

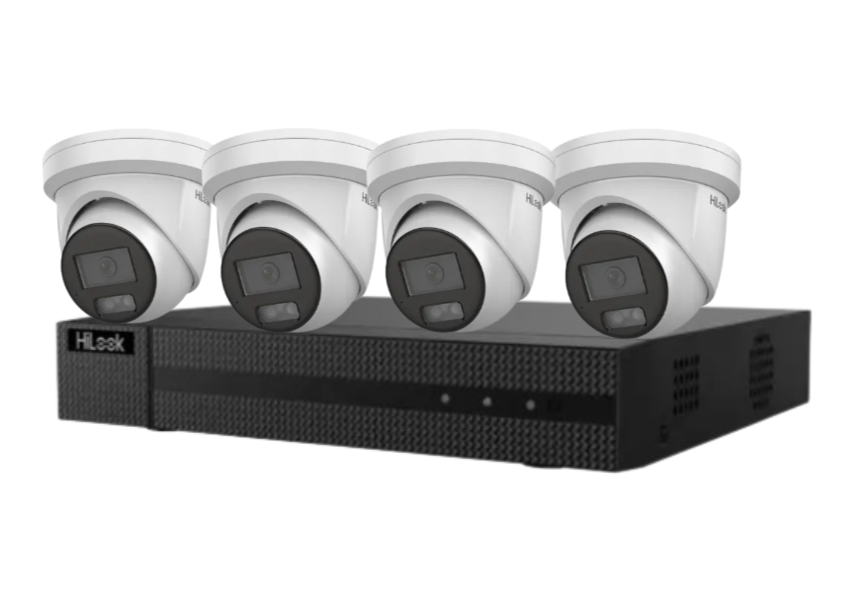

• Up to 4 × HiLook IPC-T361H-MU#AUS 6MP AI Fixed Turret Network Cameras

• 1 × HiLook HL-NVR-104MH-C/4P(B) 4-Channel 4K PoE Network Video Recorder

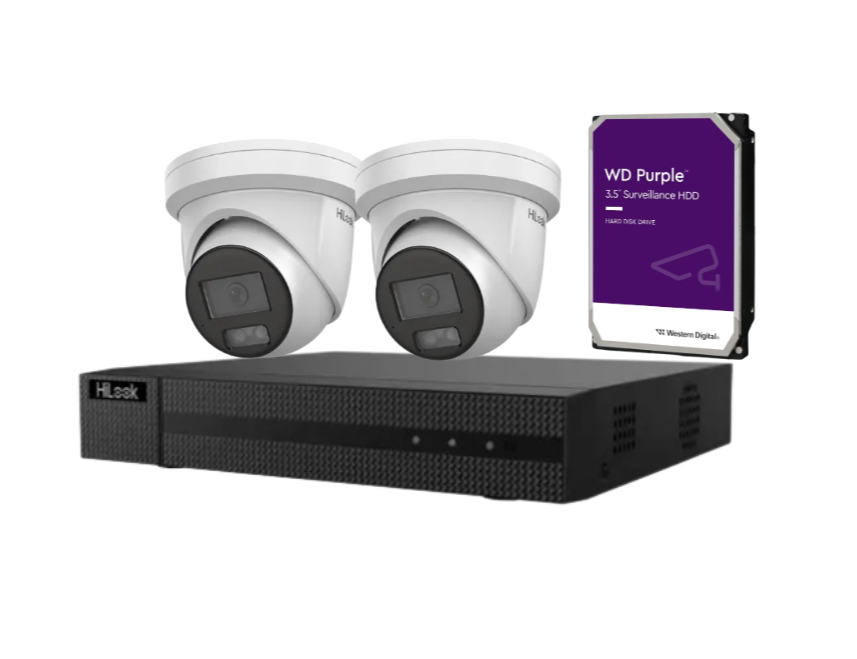

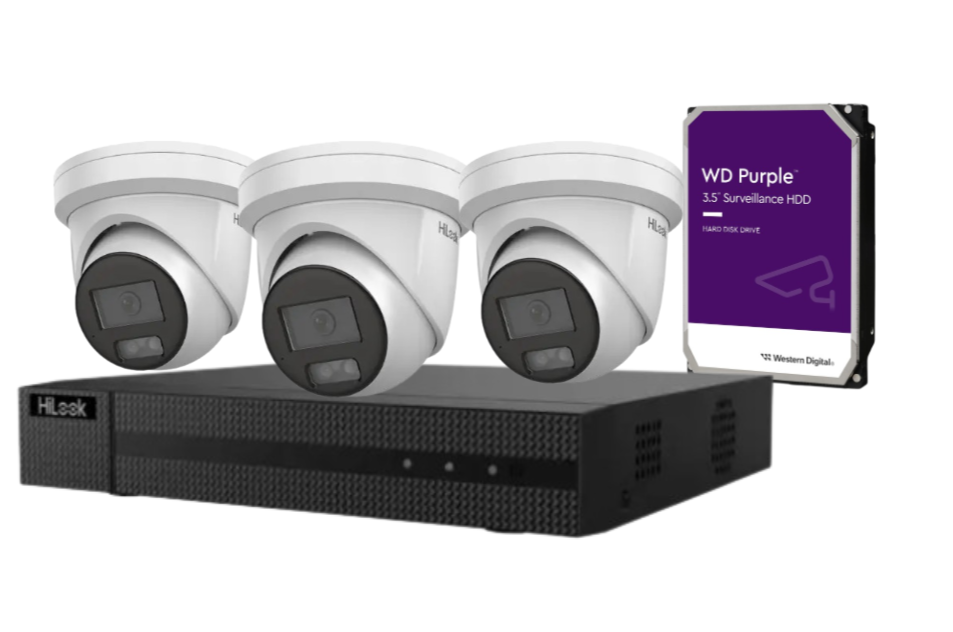

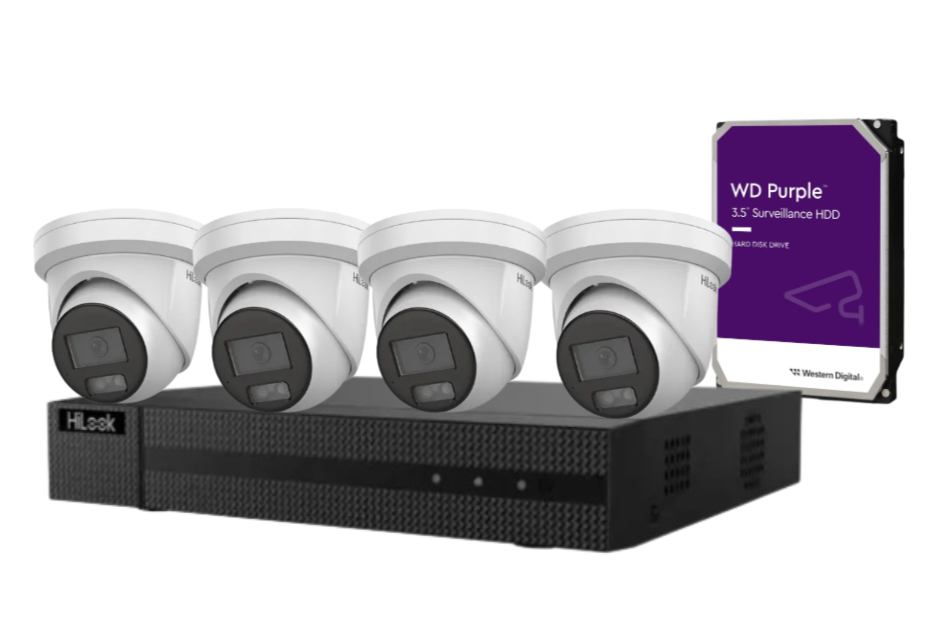

•  Hard Disk Drive (Choose your HDD below)

• Mounting Templates & Screws

• Quick Start Guides


• Allen Keys

• Power Adapter

Main Features

HiLook IPC-T361H-MU#AUS Cameras:

• 6MP (3200 × 1800) CMOS sensor for high-resolution imaging

• Deep learning-based human and vehicle classification

• Built-in dual microphones for real-time audio monitoring

• 120 dB True WDR for clear imaging under varying light conditions

• 30m IR range with Smart IR illumination for night vision

• Available in 2.8mm (105° HFOV) or 4mm (78° HFOV) lens options

• IP67-rated metal housing for weather resistance

• H.265+/H.264+ compression for efficient storage

• Supports microSD/SDHC/SDXC cards up to 512GB

HiLook HL-NVR-104MH-C/4P(B) NVR:

• Supports up to 4 IP camera inputs

• Decoding capacity: 1-ch@8 MP or 4-ch@1080p

• Supports H.265+/H.265/H.264+/H.264 video formats

• Up to 40 Mbps incoming bandwidth

• 4 PoE ports for simplified installation

• 1 SATA interface supporting up to 8TB HDD

• HDMI and VGA outputs supporting up to 4K resolution

• Compact 1U design for space-saving installation

Detailed Specifications

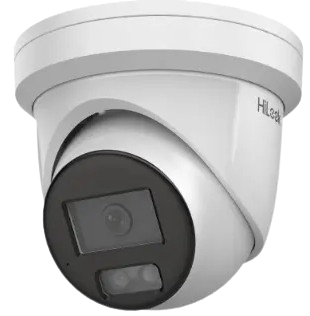

HiLook IPC-T361H-MU#AUS Camera:

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Resolution: 3200 × 1800

• Minimum Illumination: Color: 0.005 Lux @ F1.6; 0 Lux with IR

• Lens Options: 2.8mm or 4mm fixed focal lens

• IR Range: Up to 30m

• WDR: 120 dB

• Audio: Built-in dual microphones

• Ingress Protection: IP67

• Power Supply: 12V DC or PoE (802.3af, Class 3)

• Operating Temperature: -30°C to 60°C

• Dimensions: Ø127.3 × 96.3 mm

• Weight: 515g

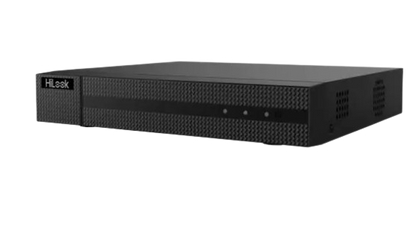

HiLook HL-NVR-104MH-C/4P(B) NVR:

• IP Video Input: 4 channels

• Decoding Capacity: 1-ch@8 MP or 4-ch@1080p

• Video Compression: H.265+/H.265/H.264+/H.264

• Incoming Bandwidth: 40 Mbps

• PoE Ports: 4 × RJ-45 10/100 Mbps

• SATA Interface: 1 × SATA, up to 8TB

• Video Output: HDMI (up to 4K), VGA

• USB Interface: 2 × USB 2.0

• Power Supply: 48V DC

• Power Consumption: ≤ 10 W (without HDD and PoE off)

• Operating Temperature: -10°C to 55°C

• Dimensions: 265 × 225 × 48 mm

• Weight: ≤ 1 kg (without HDD)

Warranty Information

The HiLook 6MP AI CCTV Kit is backed by a 3-year manufacturer’s warranty. All warranty claims are processed through authorized distributors or Hikvision representatives in Australia and New Zealand.

About HiLook

HiLook, a sub-brand of Hikvision, offers high-performance, cost-effective video surveillance solutions tailored for entry-level security needs. Known for quality, ease of use, and seamless integration with Hikvision platforms, HiLook products are trusted by professionals worldwide.

SKU

• IPC-T361H-MU#AUS

• HL-NVR-104MH-C/4P(B)

Practical Use Scenarios

• Residential Security: Monitor entrances, driveways, and backyards with high-resolution video and real-time audio.

• Retail Stores: Enhance loss prevention strategies with intelligent analytics and clear imaging.

• Office Buildings: Secure entry points and common areas with reliable surveillance.

• Warehouses: Ensure safety and security in storage areas with robust night vision capabilities.

• Educational Institutions: Maintain a safe environment by monitoring hallways and campus grounds.

Datasheets & Resources

• HiLook IPC-T361H-MU#AUS Datasheet

• HiLook HL-NVR-104MH-C/4P(B) Datasheet

Excellence for the Australian and New Zealand Market

The HiLook 6MP AI CCTV Kit is fully optimized for deployment across Australia and New Zealand. It meets the RCM standard (AS/NZS CISPR 32:2015), ensuring electromagnetic compatibility compliance. All units are sourced exclusively from authorized Australian distributors and come with manufacturer-direct warranty support. This product is compliant with Australian NDSS standards and environmental safety directives such as RoHS and WEEE, reflecting a commitment to both performance and sustainability.

FAQs – HiLook IPC-T361H-MU#AUS

Q1: Does the IPC-T361H-MU#AUS support audio recording?
A1: Yes, the IPC-T361H-MU#AUS features built-in arrayed dual microphones that deliver high-quality real-time audio, making it ideal for applications requiring both video and audio surveillance.

Q2: Can I use the IPC-T361H-MU#AUS outdoors in extreme weather?
A2: Absolutely. With its IP67-rated weatherproof metal housing, the IPC-T361H-MU#AUS is designed to withstand harsh Australian and New Zealand weather conditions, including rain and dust.

Q3: What storage options does the IPC-T361H-MU#AUS provide?
A3: The IPC-T361H-MU#AUS supports onboard microSD card storage up to 512GB, along with NAS and ANR capabilities for flexible video storage.

Q4: How is the AI detection feature of IPC-T361H-MU#AUS useful in daily applications?
A4: The AI detection feature enables precise classification of humans and vehicles, reducing false alarms from animals or other objects—ideal for both residential and commercial scenarios.
