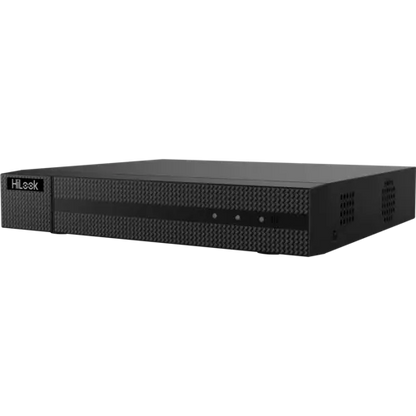

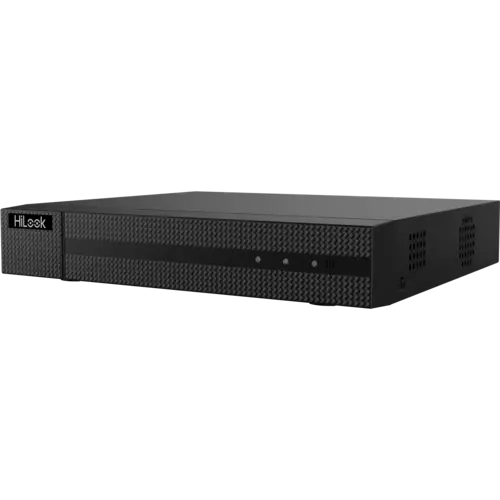

HiLook NVR‑104MH‑C/4P 4‑Channel 4K Mini PoE Network Video Recorder – Compact NVR with H.265+ Compression, 4 IP Inputs, and HDMI/VGA Output

The HiLook NVR‑104MH‑C/4P is a powerful and compact 4‑channel 4K PoE Network Video Recorder built for high-efficiency IP surveillance. Featuring advanced H.265+ video compression, simultaneous 4K HDMI and VGA output, and support for up to 4 PoE IP cameras, this NVR is ideal for small businesses, homes, and retail security setups. Its reliable performance and smart video analytics make it a dependable solution for the Australian and New Zealand security markets.

What’s Included

• 1 × HiLook NVR‑104MH‑C/4P PoE NVR

• 1 × Power Adapter (48 VDC, 1.35 A)

• 1 × Quick Start Guide

• Mounting Accessories

• Warranty Card

Key Features

• 4 PoE IP Camera Inputs: Easy plug-and-play setup with built-in PoE ports.

• Compact Mini 1U Design: Space-efficient form factor ideal for residential or small commercial environments.

• H.265+ Compression: Reduces bandwidth and storage needs by up to 75%.

• Decoding Performance: Supports 1-ch at 8 MP, 3-ch at 4 MP, or 6-ch at 1080p for flexible high-resolution surveillance.

• Simultaneous 4K HDMI & VGA Output: Dual display capability with 4K video clarity.

• Smart Playback Features: Smart search and event playback streamline video review.

• VCA Smart Events: Line crossing, intrusion detection, and motion detection 2.0 on 1 channel.

• HiLookVision Support: Easy-to-use app for remote viewing and management.

Detailed Specifications

Video & Display

• Video Inputs: 4-channel IP input

• Incoming Bandwidth: 40 Mbps

• Outgoing Bandwidth: 80 Mbps

• HDMI Output: 4K (4096×2160/30Hz), 2K, 1080p

• VGA Output: Up to 1080p

• Decoding Capability:

  • 1-ch @ 8 MP

  • 3-ch @ 4 MP

  • 6-ch @ 1080p

• Recording Resolutions: 8 MP down to QCIF

Audio

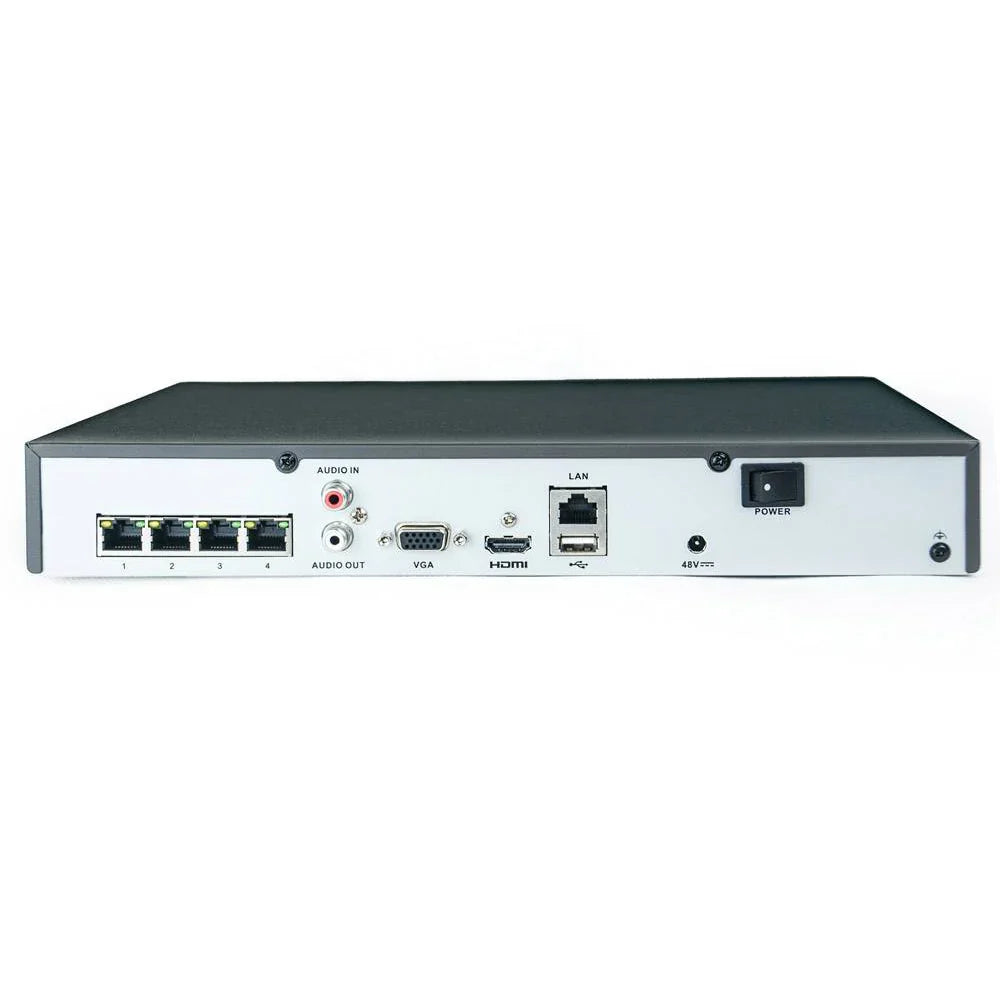

• Audio In/Out: 1-ch RCA input, 1-ch RCA output

• Two-Way Audio: Supported

• Audio Compression: G.711u, G.711a, G.722, G.726

Storage & Interfaces

• SATA Interface: 1 × SATA (Up to 8 TB HDD)

• USB Ports: 2 × USB 2.0

• Alarm In/Out: Not available

Network

• PoE Ports: 4 × RJ-45 (10/100 Mbps), IEEE 802.3 af/at

• LAN Port: 1 × 10/100 Mbps Ethernet interface

• Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, UPnP, HTTP/HTTPS, NFS, iSCSI

• Remote Access: Supports up to 32 simultaneous remote connections

General

• Power Supply: 48 VDC, 1.35 A

• Power Consumption: ≤ 10 W (without HDD and PoE off)

• Operating Temperature: -10 °C to 55 °C

• Humidity: 10% to 90%

• Dimensions: 265 × 225 × 48 mm

• Weight: ≤ 1 kg (without HDD)

• Certifications: FCC, CE

Warranty Information

• Standard Warranty: 1‑Year Manufacturer Warranty

• Warranty Handling: Managed locally through authorized HiLook distributors in Australia and New Zealand

Brand Overview

HiLook is a surveillance solutions brand under Hikvision, known for delivering affordable, reliable, and easy-to-use products for homes and small-to-medium businesses. HiLook combines professional-grade performance with simplicity and excellent value for money.

Practical Use Scenarios

• Home Security Systems: Ideal for homeowners looking to secure entrances, garages, and living areas with 4K clarity.

• Retail & Hospitality: Monitor sales floors, counters, or storage rooms with smart playback and motion alerts.

• Offices & Small Commercial Sites: Keep track of workplace activity using smart motion analytics and remote access via HiLookVision.

• Multi-Site Monitoring: Access your cameras remotely via mobile or desktop with encrypted access protocols.

Datasheets & Resources

Datasheet

Excellence for the Australian and New Zealand Market

The HiLook NVR‑104MH‑C/4P is purpose-ready for the Australian and New Zealand surveillance industry, ensuring full compatibility with local voltage, standards, and network environments. Certified to CE and FCC standards, it is sourced exclusively from authorized HiLook resellers, ensuring genuine hardware, compliant installations, and direct brand warranty support in the region.

FAQs

Q1: What resolution does the HiLook NVR‑104MH‑C/4P support?
A1: The HiLook NVR‑104MH‑C/4P supports resolutions up to 8 MP, including 4 MP and 1080p for versatile surveillance requirements.

Q2: How many IP cameras can I connect to the HiLook NVR‑104MH‑C/4P?
A2: You can connect up to 4 IP cameras using the built-in PoE ports on the HiLook NVR‑104MH‑C/4P.

Q3: Can the HiLook NVR‑104MH‑C/4P output to both HDMI and VGA monitors?
A3: Yes, the HiLook NVR‑104MH‑C/4P provides simultaneous HDMI and VGA video output, supporting resolutions up to 4K.

Q4: Does the HiLook NVR‑104MH‑C/4P support smart features like motion detection?
A4: Absolutely. It supports Motion Detection 2.0, along with smart VCA functions like line crossing and intrusion detection on 1 channel.

Q5: What is the total incoming bandwidth for the HiLook NVR‑104MH‑C/4P?
A5: The NVR supports up to 40 Mbps incoming bandwidth, making it ideal for HD IP camera setups.
