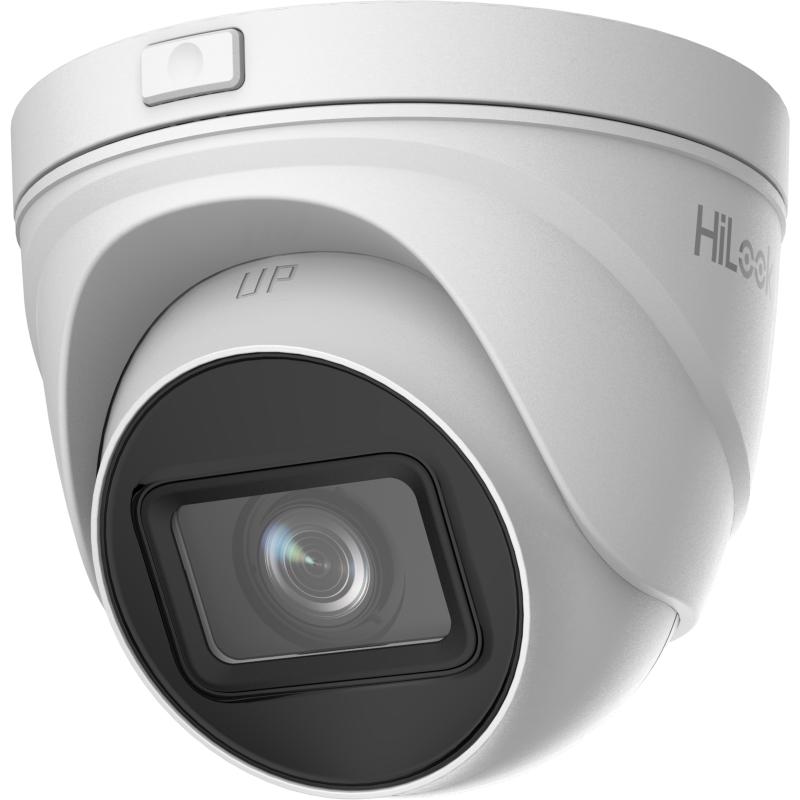

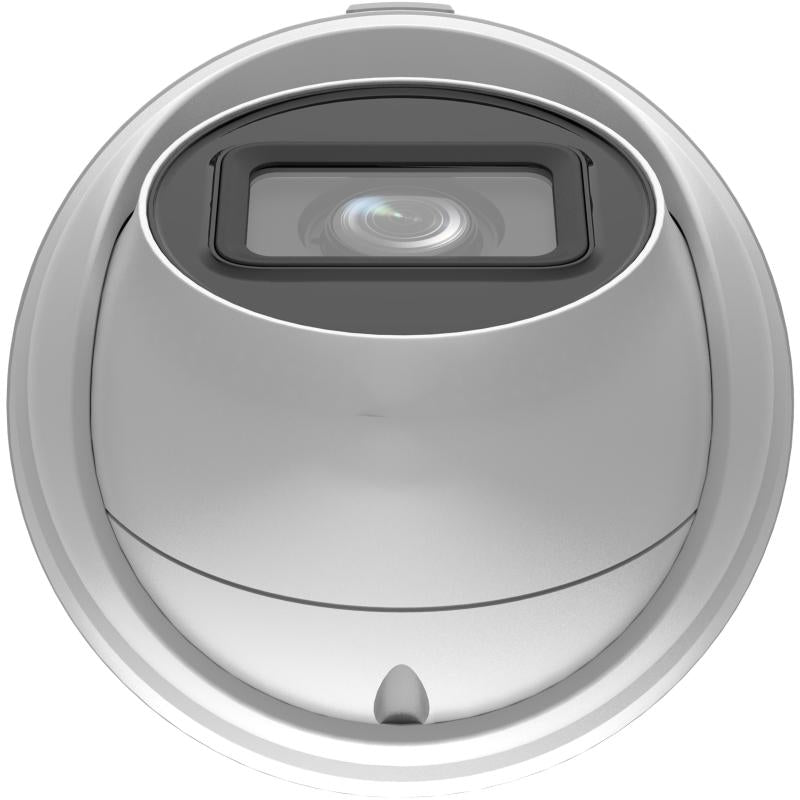

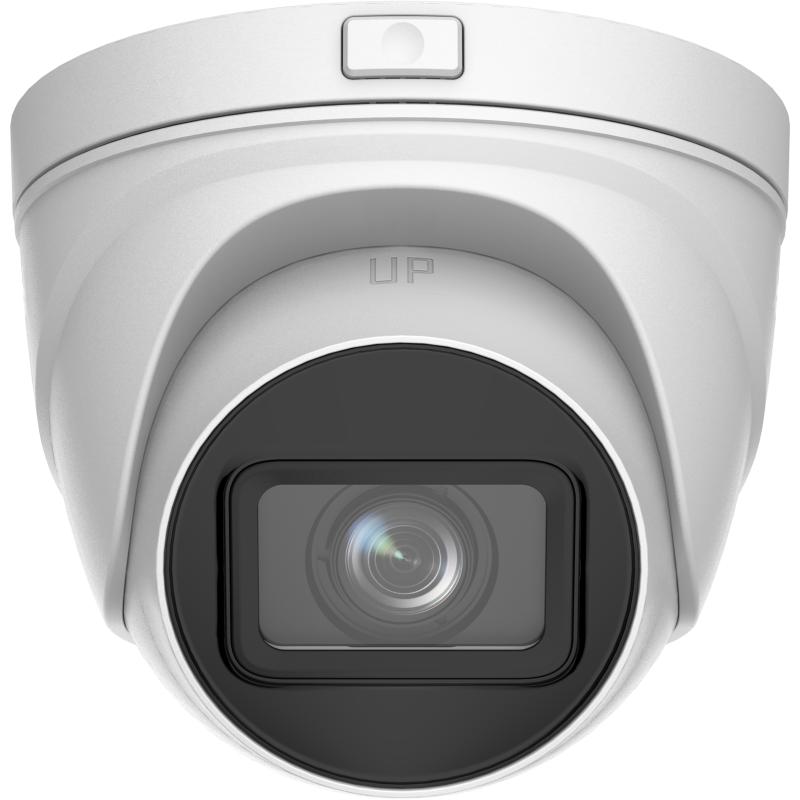

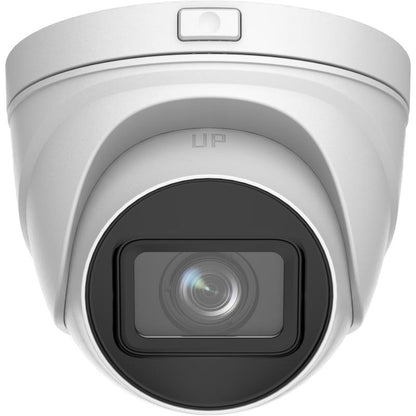

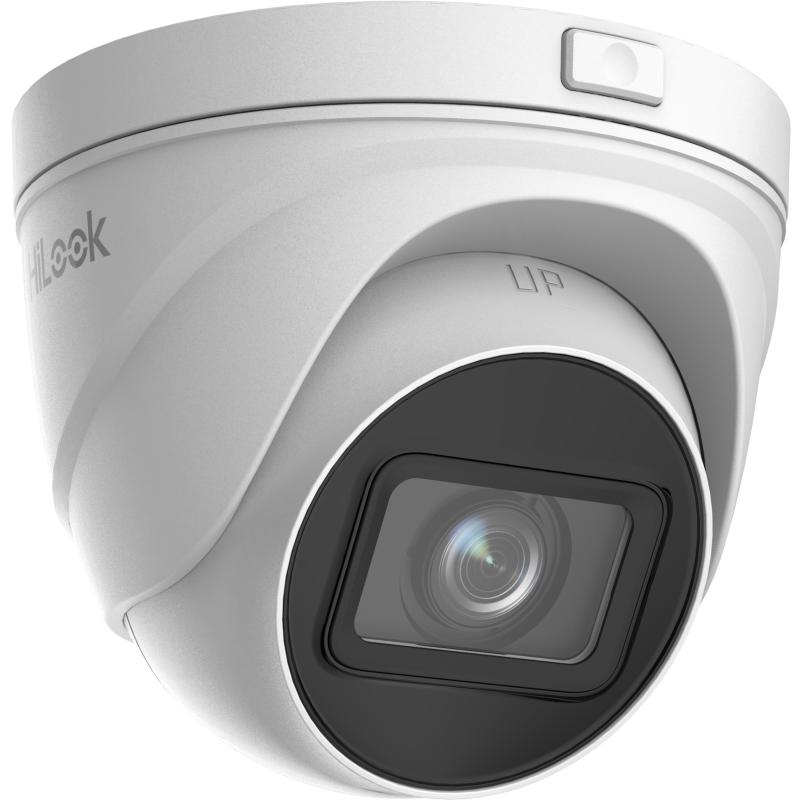

HiLook IPC-T651H-Z 5MP Motorized Varifocal Turret Network Camera

The HiLook IPC-T651H-Z 5MP Motorized Varifocal Turret Network Camera delivers high-definition surveillance with enhanced flexibility and superior imaging. Featuring H.265+ compression technology, 120dB WDR, and an IP67-rated weatherproof design, this camera ensures clear imaging and reliable performance in various lighting and environmental conditions. With a motorized varifocal lens, installation and monitoring are seamless, making it an ideal choice for home, business, and industrial security applications.

Main Features:

• 5MP High-Resolution Imaging – Captures sharp and detailed footage with a 2560 × 1920 resolution.

• Motorized Varifocal Lens (2.8 to 12mm) – Offers adjustable field of view for flexible installation.

• Efficient H.265+ Compression – Reduces bandwidth and storage consumption while maintaining high video quality.

• True 120dB Wide Dynamic Range (WDR) – Provides superior performance in high-contrast lighting conditions.

• IR Night Vision (Up to 30m) – Ensures clear visibility even in complete darkness.

• IP67 Weather Resistance – Designed for both indoor and outdoor applications.

• Built-in MicroSD Storage (Up to 256GB) – Supports local recording without an NVR.

• Secure Network Transmission – Supports multiple security protocols and encrypted data transmission.

Detailed Specifications:

Camera Specifications:

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Max Resolution: 2560 × 1920

• Min. Illumination: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Speed: 1/3 s to 1/100,000 s

• Day & Night Mode: IR cut filter

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens:

• Type: Motorized varifocal lens (2.8 to 12mm)

• FOV: Horizontal 96° to 29°, Vertical 69° to 22°, Diagonal 131° to 37°

• Aperture: F1.6

• IR Night Vision: Up to 30m (850nm wavelength)

Video & Compression:

• Main Stream:

  • 50Hz: 20fps (2560 × 1920), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  • 60Hz: 20fps (2560 × 1920), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360)

  • 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360)

• Compression: H.265+/H.265/H.264+/H.264/MJPEG

• Bit Rate: 32 Kbps to 16 Mbps

Network & Storage:

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, SMTP, IGMP, QoS, IPv6

• Simultaneous Live View: Up to 6 channels

• API: Open Network Video Interface, ISAPI

• User Access: Supports up to 32 users (Administrator, Operator, User)

• Onboard Storage: Supports microSD/SDHC/SDXC up to 256GB

Interface & Connectivity:

• Ethernet: 1 RJ45 10M/100M self-adaptive Ethernet port

• Power:

  • 12V DC ± 25%, max. 9W

  • PoE (802.3af, Class 3), max. 10W

Warranty Information:

• 2-Year Manufacturer Warranty

• Authorized service and support available in Australia & New Zealand

Brand Overview:

HiLook, a sub-brand of Hikvision, specializes in cost-effective, high-performance surveillance solutions. With industry-leading technology and user-friendly design, HiLook products provide reliable security for residential and commercial applications.

Practical Use Scenarios:

• Home Security – Monitor entrances, backyards, and driveways with high-definition video.

• Retail & Commercial Spaces – Ensure customer safety and prevent theft with AI-powered monitoring.

• Office & Industrial Sites – Secure sensitive areas with remote access and motion detection alerts.

• Warehouses & Parking Lots – Utilize motorized zoom for wide-area surveillance.

Excellence for the Australian & New Zealand Market:

• Meets Australian and New Zealand Quality Standards – Certified under RCM, CE-EMC, and CE-RoHS.

• NDSS & Regulatory Compliance – Suitable for professional security installations.

• Optimized for Local Network Compatibility – Seamless integration with Australian/NZ ISPs.

• Sourced from Authorized Distributors – Genuine products with official manufacturer support.

• Warranty and After-Sales Support – Local service centers ensure reliable assistance.

Additional Resources:

• HiLook Product Datasheet

• User Manual

The HiLook IPC-T651H-Z 5MP Motorized Varifocal Turret Network Camera is the perfect solution for versatile, high-quality surveillance, offering superior clarity, night vision, and smart security features for ultimate peace of mind.
