HiLook IPC-T561H-MU 6MP Hi-Color CCTV Kit with 8-Channel PoE NVR and HDD | Up to 8 Cameras | SKU: IPC-T561H-MU-8KIT

Boost your surveillance capabilities with the HiLook IPC-T561H-MU 6MP CCTV Kit, now available with support for up to 8 high-resolution cameras and an 8-channel NVR recorder. Whether you're securing a large home, retail store, warehouse, or office building, this system delivers around-the-clock full-colour video, advanced deep learning analytics, and seamless PoE integration—all backed by superior Hikvision technology.

At the heart of this professional-grade system are the IPC-T561H-MU Hi-Color Fixed Turret Cameras, equipped with F1.0 super-aperture lenses, real-time audio, and intelligent object detection. The included HiLook NVR-108MH-C/8P recorder ensures robust performance with 4K HDMI output, smart playback, and remote access via mobile apps.

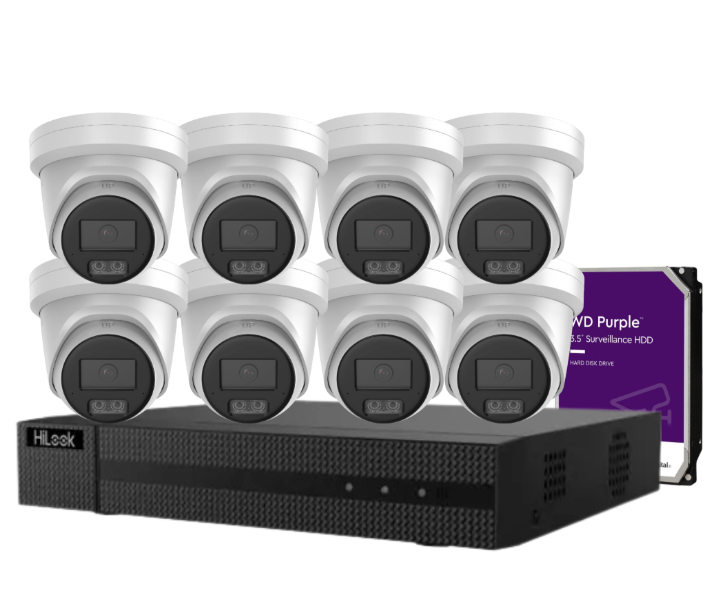

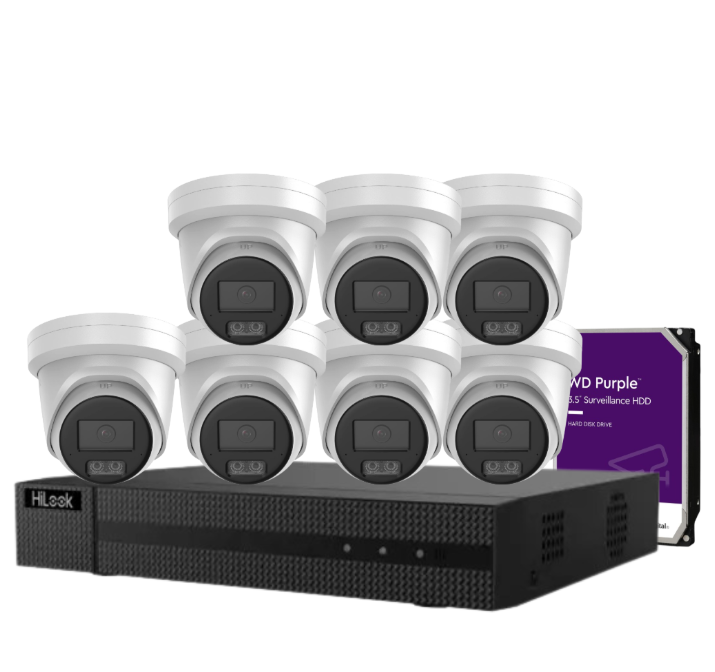

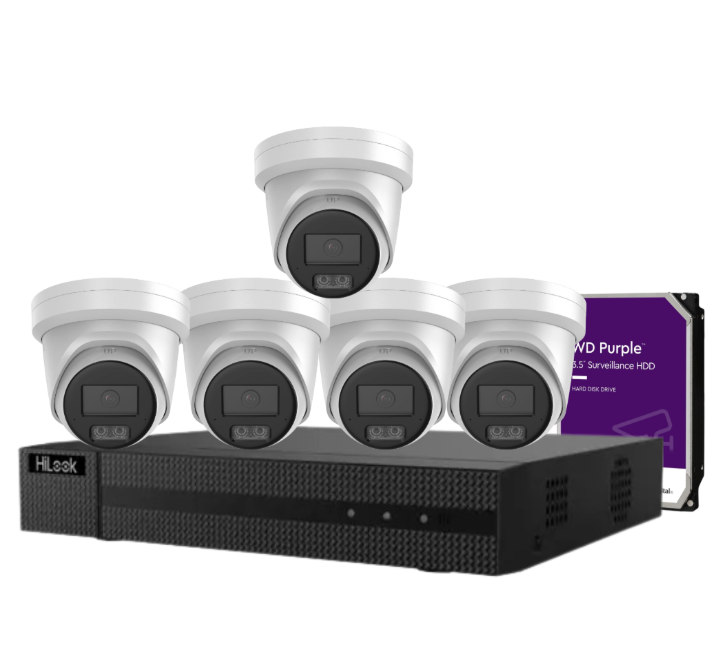

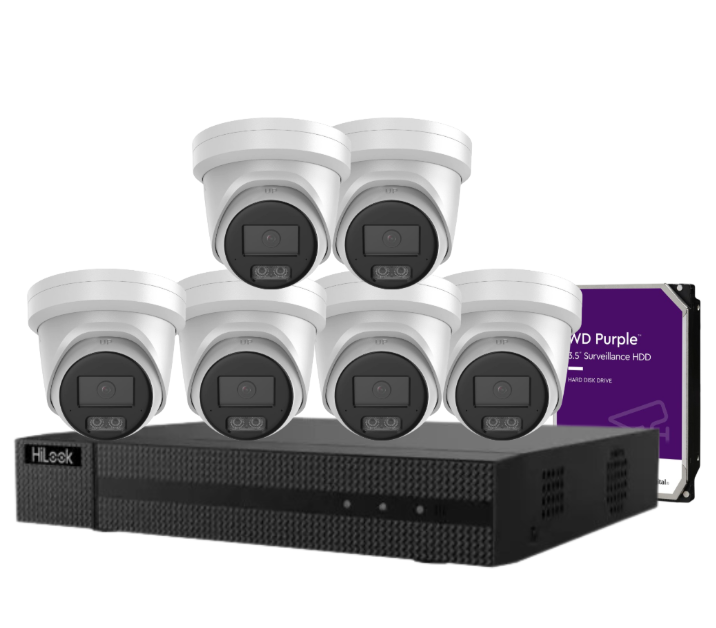

What’s Included in the Box

• Up to 8x HiLook IPC-T561H-MU 6MP Hi-Color Fixed Turret Cameras (2.8mm or 4mm lens)

• 1x HiLook NVR-108MH-C/8P 8-Channel PoE Network Video Recorder

• 1x Surveillance-Grade HDD (Choose your HDD below)

• Mounting accessories (ceiling/wall)

• Power supply and network cables

• Quick start guide & documentation

Main Features

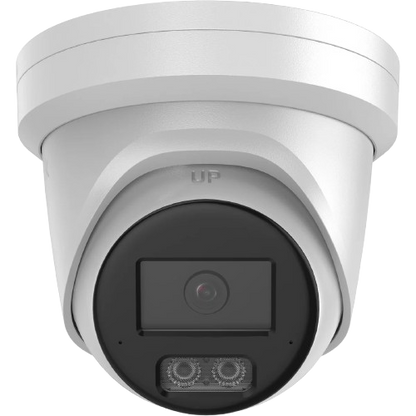

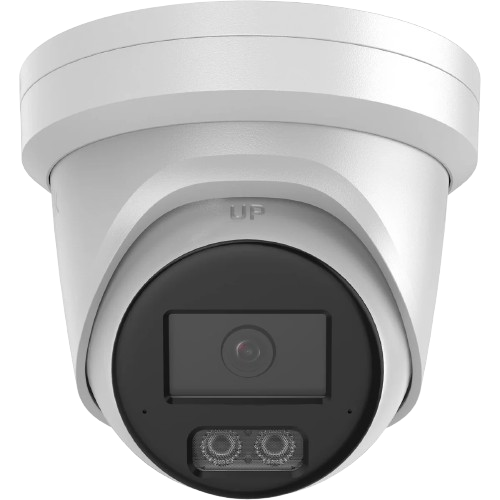

IPC-T561H-MU Camera Highlights

• 6MP Resolution (3200 × 1800) for crystal-clear footage

• Hi-Color Night Vision Technology with F1.0 aperture for full-colour images 24/7

• Dual Microphones Built-in for high-quality real-time audio recording

• Advanced Deep Learning for accurate human and vehicle detection

• Scene-Adaptive 130 dB WDR, 3D DNR, and EIS for optimal image quality

• IP67 Rated for durable outdoor/indoor performance

• Smart Video Events: Motion detection, intrusion, region entry/exit, and face capture

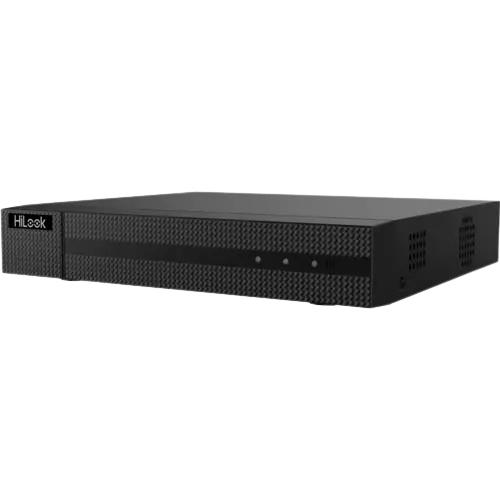

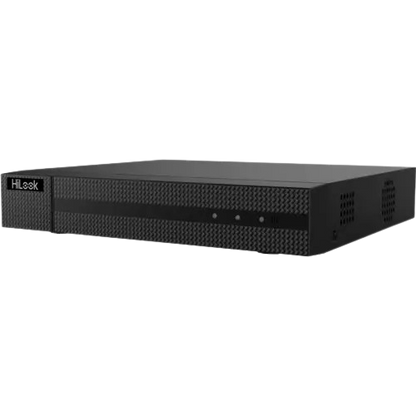

HiLook NVR-108MH-C/8P Recorder Features

• Supports up to 8 IP Camera Inputs

• H.265+/H.265/H.264+/H.264 Compression for efficient bandwidth usage

• 1-ch@8MP / 3-ch@4MP / 6-ch@1080p Decoding Capacity

• HDMI Output Up to 4K Resolution

• PoE Integration: 8 PoE Ports for plug-and-play setup

• Up to 80 Mbps Incoming Bandwidth

• Remote Monitoring via smartphone, tablet, or PC through HiLookVision app

• Smart Playback & Recording features with multiple video analytics

Technical Specifications

IPC-T561H-MU Camera

• Lens Options: 2.8mm (108.8° HFOV) or 4mm (93.3° HFOV)

• Min. Illumination: 0.0005 Lux (Color); 0 Lux with white light

• Audio: Built-in dual microphone (mono audio)

• Storage: microSD up to 512GB

• Video Streams: Triple stream with H.265+/H.264+

• DORI Ranges: Detect up to 109m, Recognise up to 21m (4mm lens)

• Supplement Light Range: Up to 30m

• Power: 12V DC or PoE (IEEE 802.3af)

NVR-108MH-C/8P Recorder

• Video Input: 8 IP channels

• Video Output: HDMI (up to 4K), VGA

• Recording Resolution: Up to 8MP

• Playback: 8-channel synchronous

• PoE Ports: 8 × RJ-45, 10/100 Mbps, up to 120W total power

• Storage Interface: 1 × SATA, supports up to 8TB HDD

• Remote Users: Up to 16

• Security Protocols: HTTPS, TLS, Digest Authentication, IP Filtering

Warranty Information

• 3-Year Manufacturer’s Warranty for cameras and NVR

• Local support through authorized Australian HiLook distributors

• Warranty and service requests handled directly via brand channels

About the Brand – HiLook by Hikvision

HiLook, a division of Hikvision, is designed for cost-effective yet professional surveillance. With trusted Hikvision components, HiLook ensures seamless operation, dependable performance, and exceptional video quality across a wide range of installations.

SKU: IPC-T561H-MU-8KIT

Practical Use Scenarios

• Retail Storefronts monitoring entrances, stock areas, and cash registers

• Large Residential Homes requiring indoor/outdoor coverage with audio

• Offices or Commercial Spaces with facial recognition and motion detection

• Warehouses & Industrial Facilities needing around-the-clock video and audio

• Parking Lots and Driveways with person/vehicle classification and deterrence

Downloadable Resources

• IPC-T561H-MU Camera Datasheet (PDF)

• NVR-108MH-C/8P Recorder Datasheet

Excellence for the Australian and New Zealand Market

This surveillance kit is engineered for reliability and compliance in the Australian and New Zealand environments:

• RCM Certified for AS/NZS regulatory compliance

• Meets strict NDSS and cybersecurity standards

• Supplied via authorized ANZ HiLook/Hikvision partners

• Local technical support and product warranty management

• Designed for high-temperature and coastal weather resilience

FAQs – IPC-T561H-MU-8KIT

Q1: How many cameras can I connect to the IPC-T561H-MU-8KIT?
A1: The kit supports up to 8 HiLook IPC-T561H-MU 6MP cameras, perfect for large premises or multi-zone coverage.

Q2: Is the IPC-T561H-MU-8KIT capable of recording in full colour at night?
A2: Yes, thanks to Hi-Color technology and F1.0 super-aperture lens, the cameras provide vivid 24/7 full-colour imaging, even in low-light conditions.

Q3: Does the IPC-T561H-MU-8KIT support audio?
A3: Absolutely. Each camera includes dual built-in microphones for clear, real-time audio capture.

Q4: Can the IPC-T561H-MU-8KIT be monitored remotely?
A4: Yes, you can monitor your system from anywhere using the HiLookVision app or a web browser.

Q5: What storage options are available with the IPC-T561H-MU-8KIT?
A5: The NVR supports up to 8TB HDD (pre-installed or optional), and each camera can have its own microSD card up to 512GB.

Q6: Are the IPC-T561H-MU cameras in the IPC-T561H-MU-8KIT waterproof?
A6: Yes, they are IP67-rated, ensuring durability in both indoor and outdoor conditions.
