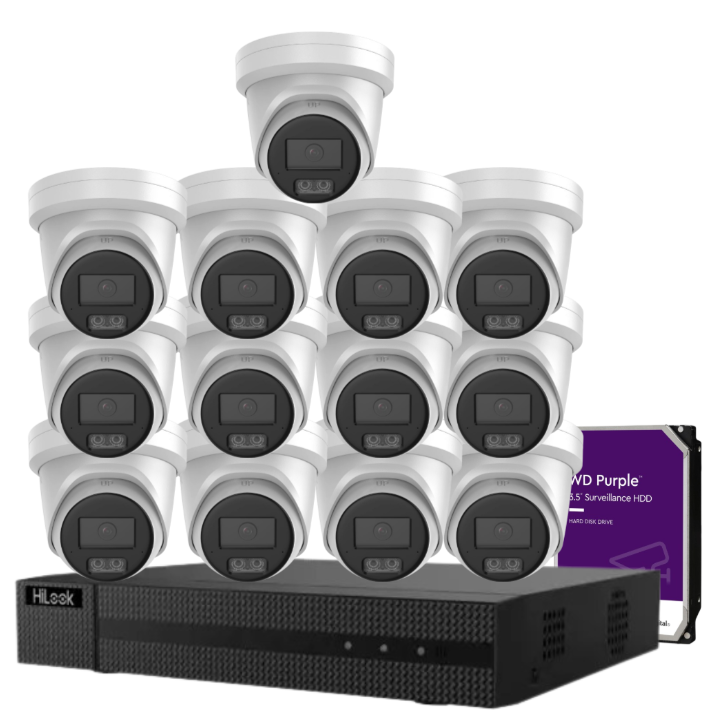

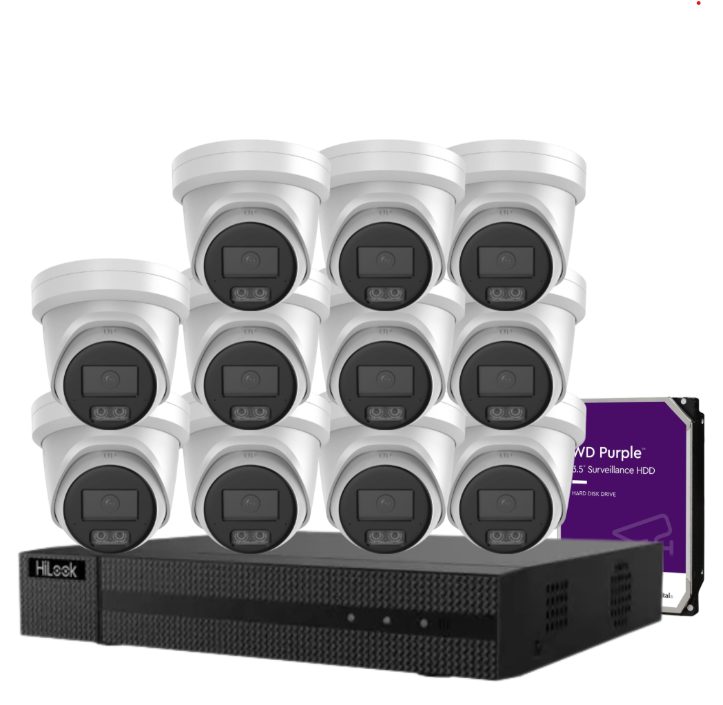

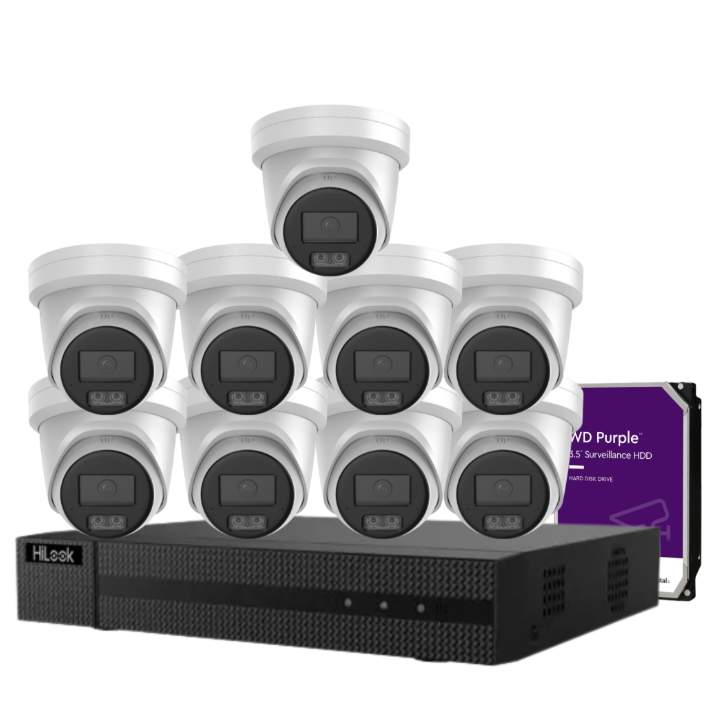

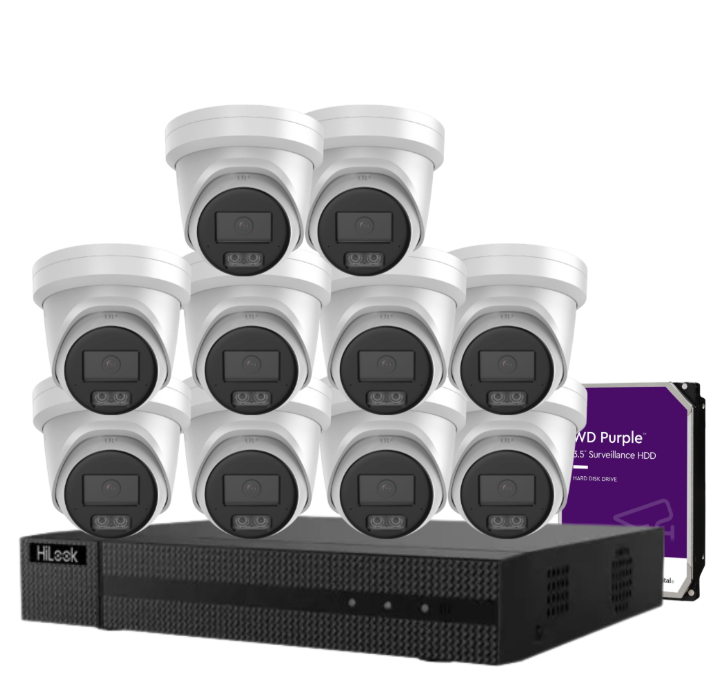

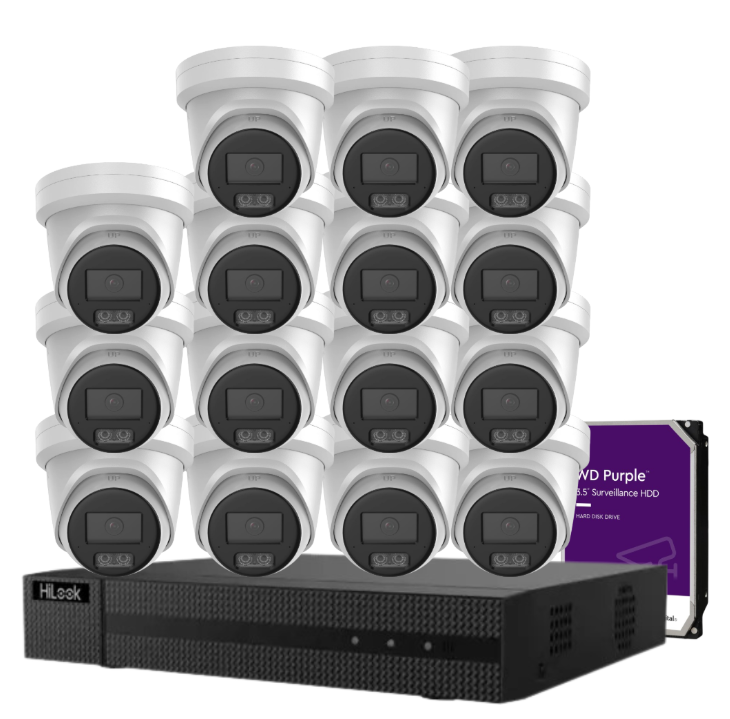

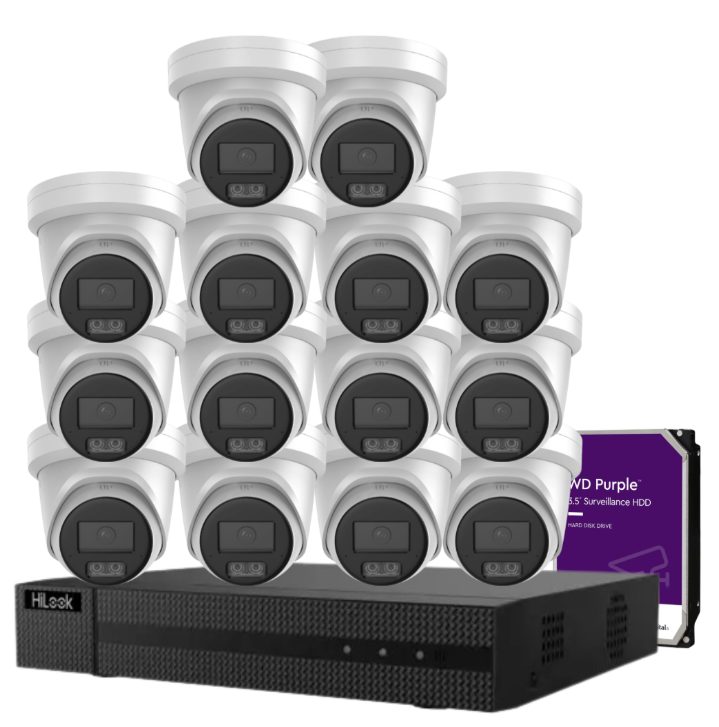

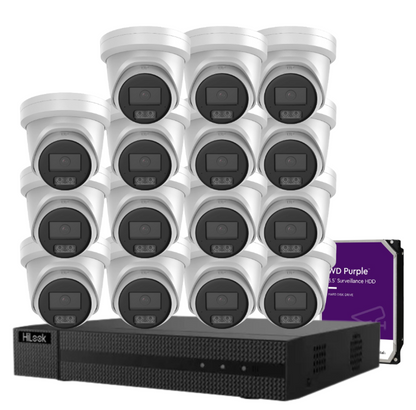

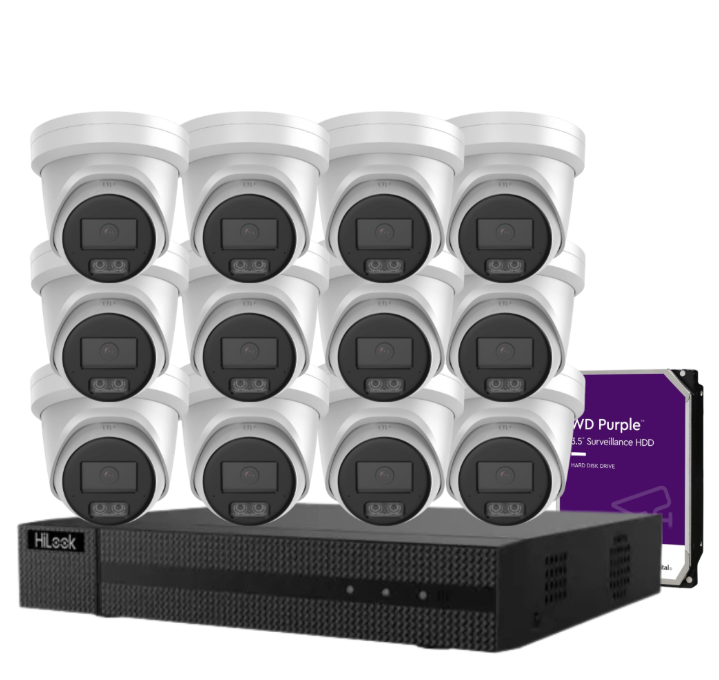

HiLook IPC-T561H-MU 6MP Hi-Color CCTV Kit with 16-Channel PoE NVR + HDD | Supports up to 16 Cameras | SKU: IPC-T561H-MU-16KIT

Take total control of your security with the HiLook IPC-T561H-MU 6MP CCTV Kit, a premium-grade surveillance system built to support up to 16 high-resolution cameras. Combined with the HiLook NVR-216MH-C/16P (D) 16-channel PoE recorder, this powerful kit is ideal for large residential complexes, warehouses, commercial buildings, and enterprise-grade security operations.

The kit features HiLook’s Hi-Color IPC-T561H-MU Turret Cameras—equipped with F1.0 lenses for vivid 24/7 color imaging, smart person and vehicle detection, dual-microphone audio, and IP67 protection. The NVR offers smooth decoding, 4K HDMI output, smart video analytics, and easy plug-and-play PoE installation—ensuring reliable, scalable performance for complex deployments.

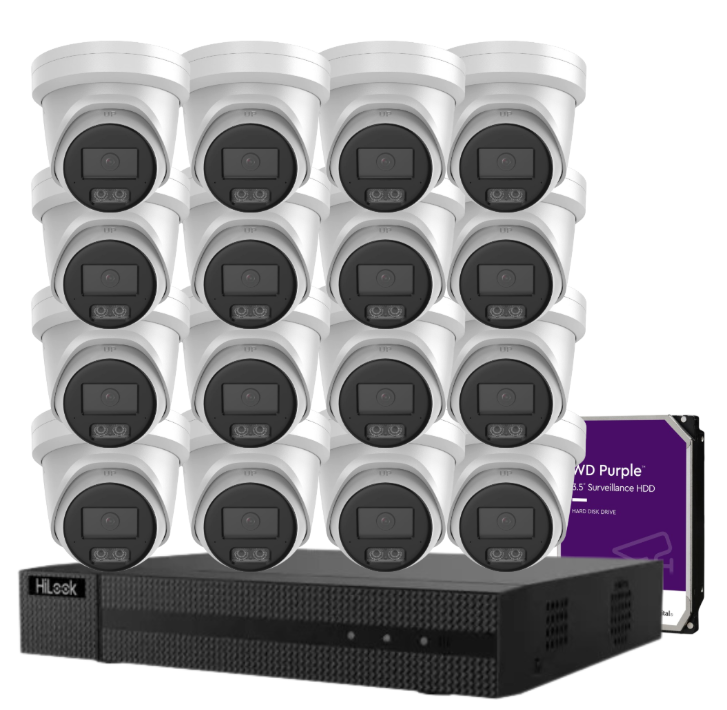

What’s Included in the Box

• Up to 16x HiLook IPC-T561H-MU 6MP Hi-Color Fixed Turret Cameras (2.8mm or 4mm lens options)

• 1x HiLook NVR-216MH-C/16P (D) 16-Channel PoE Network Video Recorder

• 1x Surveillance-Grade HDD (Choose your HDD below)

• 16x PoE-enabled RJ-45 ports for cameras

• Mounting kits and power cords

• User manual and setup guide

Main Features

IPC-T561H-MU Camera Highlights

• 6MP Hi-Resolution (3200×1800) video for ultra-clear surveillance

• Hi-Color Technology with F1.0 aperture for full-colour night imaging

• Built-in dual microphone array for real-time mono audio

• Deep Learning Analytics for accurate human and vehicle detection

• White Light Supplementation with 30m range

• 130dB WDR, EIS, 3D DNR for balanced, high-clarity imaging

• IP67 Weatherproofing for outdoor/indoor applications

• Supports microSD up to 512GB

NVR-216MH-C/16P (D) Recorder Features

• 16 IP Channels, each with PoE power and data

• H.265+/H.264+ compression to reduce bandwidth/storage by up to 75%

• Decoding: 1-ch@8MP, 3-ch@4MP, 6-ch@1080p

• Up to 160 Mbps Incoming Bandwidth

• 4K HDMI and VGA Output for ultra-high-definition display

• 2x SATA Ports, each supporting up to 8TB HDD

• Smart Playback & VCA Support (motion detection, line crossing, intrusion)

• Remote Access via HiLookVision mobile and desktop platforms

Technical Specifications

IPC-T561H-MU 6MP Camera

• Lens: 2.8mm (HFOV 108.8°) or 4mm (HFOV 93.3°)

• Min. Illumination: 0.0005 Lux (Color), 0 Lux with white light

• DORI Ranges (4mm): Detect: 109m, Recognise: 21m, Identify: 10m

• Compression: H.265+/H.264+/MJPEG

• Audio Bitrate: 64Kbps (G.711u/alaw), 16-320Kbps (AAC, MP3, etc.)

• Power: 12VDC or PoE (802.3af), max. 11W

• Construction: All-metal, vandal-resistant housing

• Onboard Storage: microSD up to 512GB

NVR-216MH-C/16P (D)

• Channels: 16 IP video inputs with 16x PoE RJ45 ports

• Decoding: 1x 8MP, 3x 4MP, or 6x 1080p

• Video Output: 1x HDMI (up to 4K), 1x VGA

• Audio: 1x RCA IN, 1x RCA OUT, supports two-way audio

• HDD Support: 2 SATA ports, each up to 8TB

• Network Interface: 1x RJ45 10/100/1000 Mbps

• Remote Users: Up to 32

• Dimensions: 385 × 315 × 52 mm

Warranty Information

• 3-Year Manufacturer Warranty on all cameras and NVR

• Warranty supported by authorized Australian HiLook agents

• All claims managed through local ANZ support channels

About the Brand – HiLook by Hikvision

HiLook by Hikvision offers professional-grade surveillance technology for budget-conscious users. Powered by the global leader in security systems, HiLook products combine advanced analytics, efficient compression, and rugged build quality—ensuring dependable monitoring in any environment.

SKU: IPC-T561H-MU-16KIT

Practical Use Scenarios

• Multi-level Office Buildings with separate zones and entry points

• Commercial Complexes like malls, restaurants, and showrooms

• Warehouses and Industrial Facilities with perimeter surveillance

• Apartment Buildings with lobby, hallway, and exterior monitoring

• Large Residential Properties needing full coverage with audio and smart alerts

Downloadable Resources

• HiLook IPC-T561H-MU Camera Datasheet (PDF)

• HiLook NVR-216MH-C/16P (D) Datasheet (PDF)

Excellence for the Australian and New Zealand Market

This HiLook surveillance system is tailored for high-performance use in Australia and New Zealand:

• RCM-Certified to meet AS/NZS standards

• Complies with NDSS and data security regulations

• Supplied through authorized Hikvision ANZ partners

• Warranty support available locally in Australia and New Zealand

• Designed to withstand harsh weather with IP67-rated outdoor cameras

FAQs – IPC-T561H-MU-16KIT

Q1: How many cameras does the IPC-T561H-MU-16KIT support?
A1: The kit supports up to 16x HiLook IPC-T561H-MU cameras, each powered directly via PoE.

Q2: Can I record and view in color at night with the IPC-T561H-MU-16KIT?
A2: Yes, each camera features Hi-Color night vision with white light and a F1.0 aperture lens for 24/7 full-colour recording.

Q3: Does the IPC-T561H-MU-16KIT support real-time audio?
A3: Yes, every IPC-T561H-MU camera is equipped with dual microphones for mono audio capture.

Q4: Is the IPC-T561H-MU-16KIT easy to install?
A4: Absolutely. The NVR offers 16x PoE ports for plug-and-play camera connection—no external power needed.

Q5: What’s the total storage capacity for the IPC-T561H-MU-16KIT?
A5: The NVR supports up to 16TB across two SATA drives, plus each camera can store video locally with a microSD card up to 512GB.

Q6: Is the IPC-T561H-MU-16KIT suitable for outdoor use?
A6: Yes, the cameras are IP67 rated, offering dust-tight and water-resistant protection for any outdoor environment.
