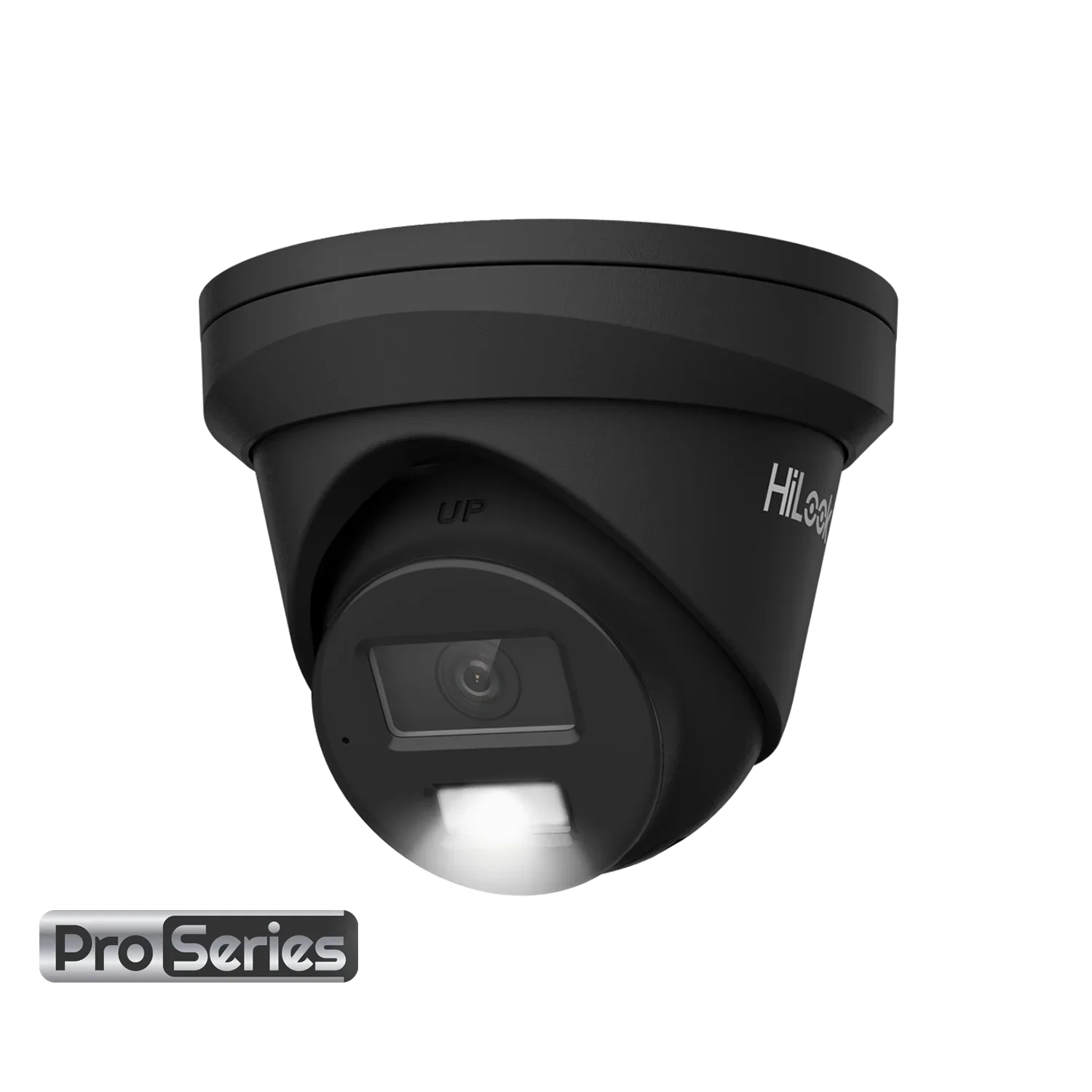

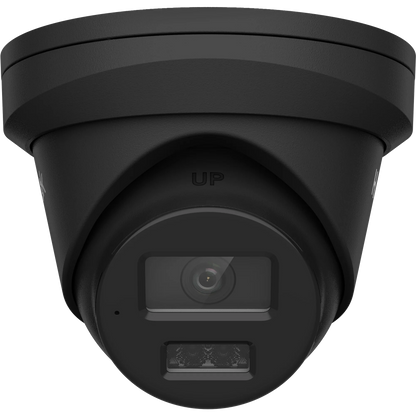

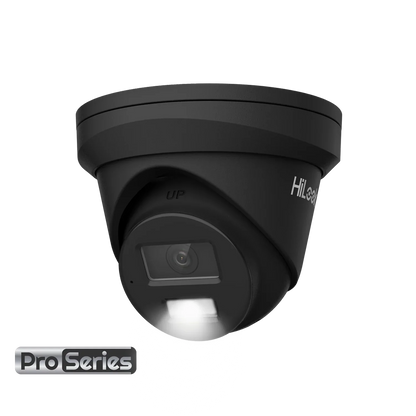

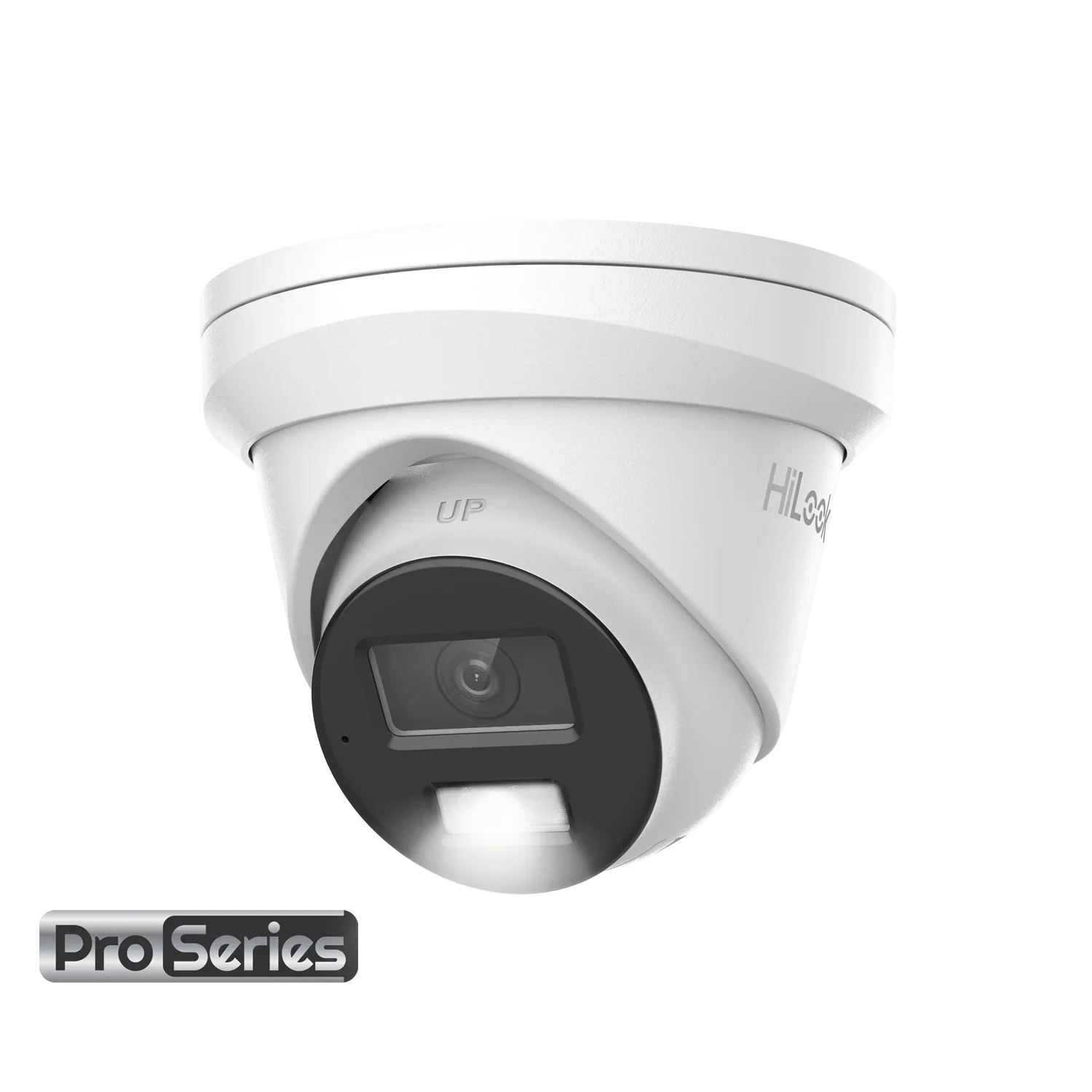

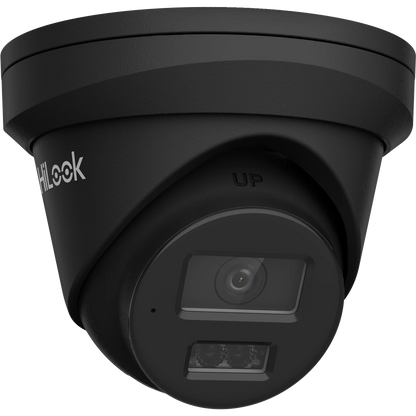

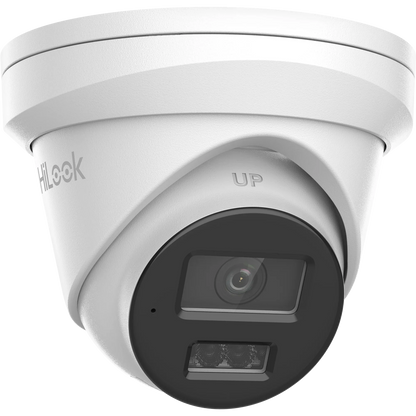

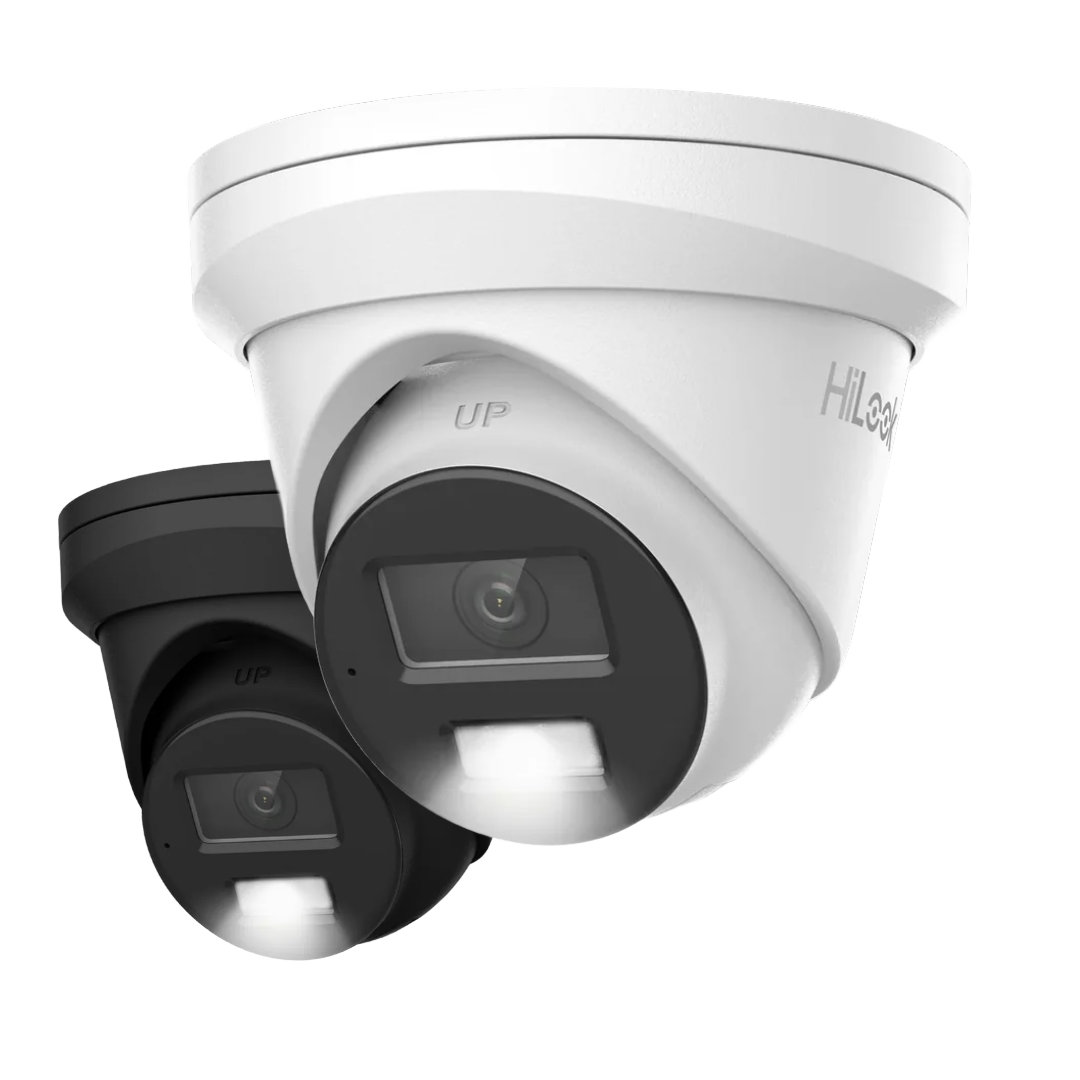

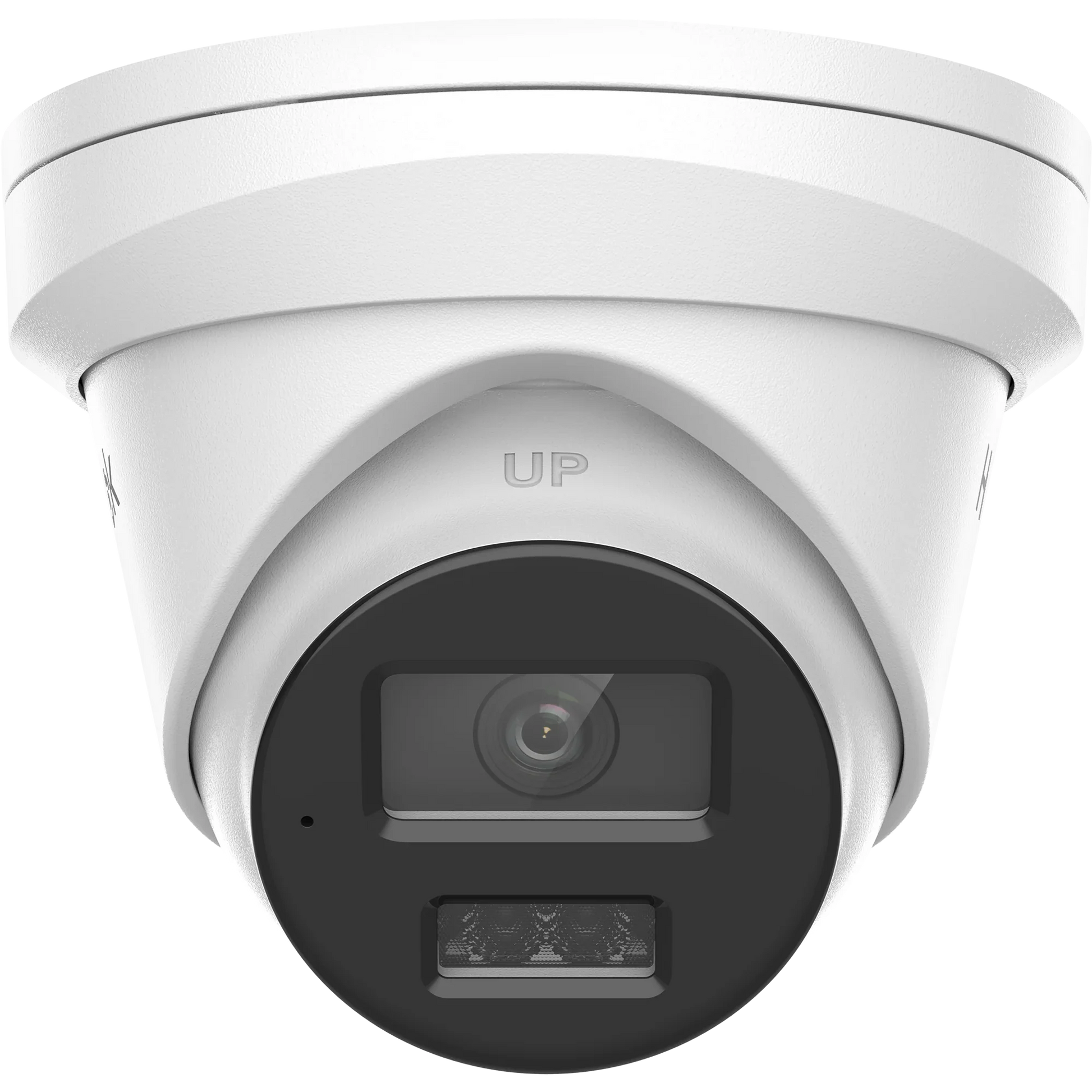

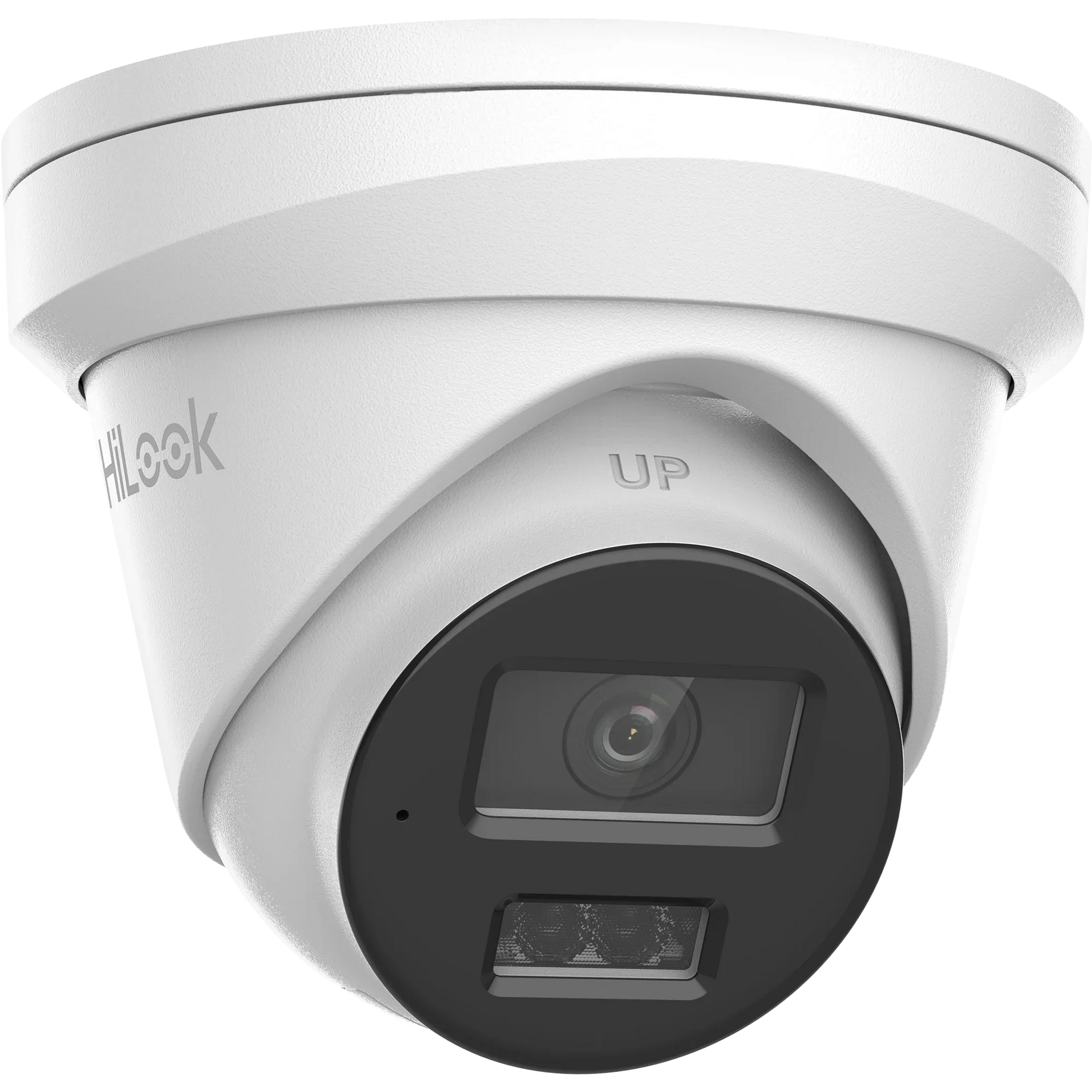

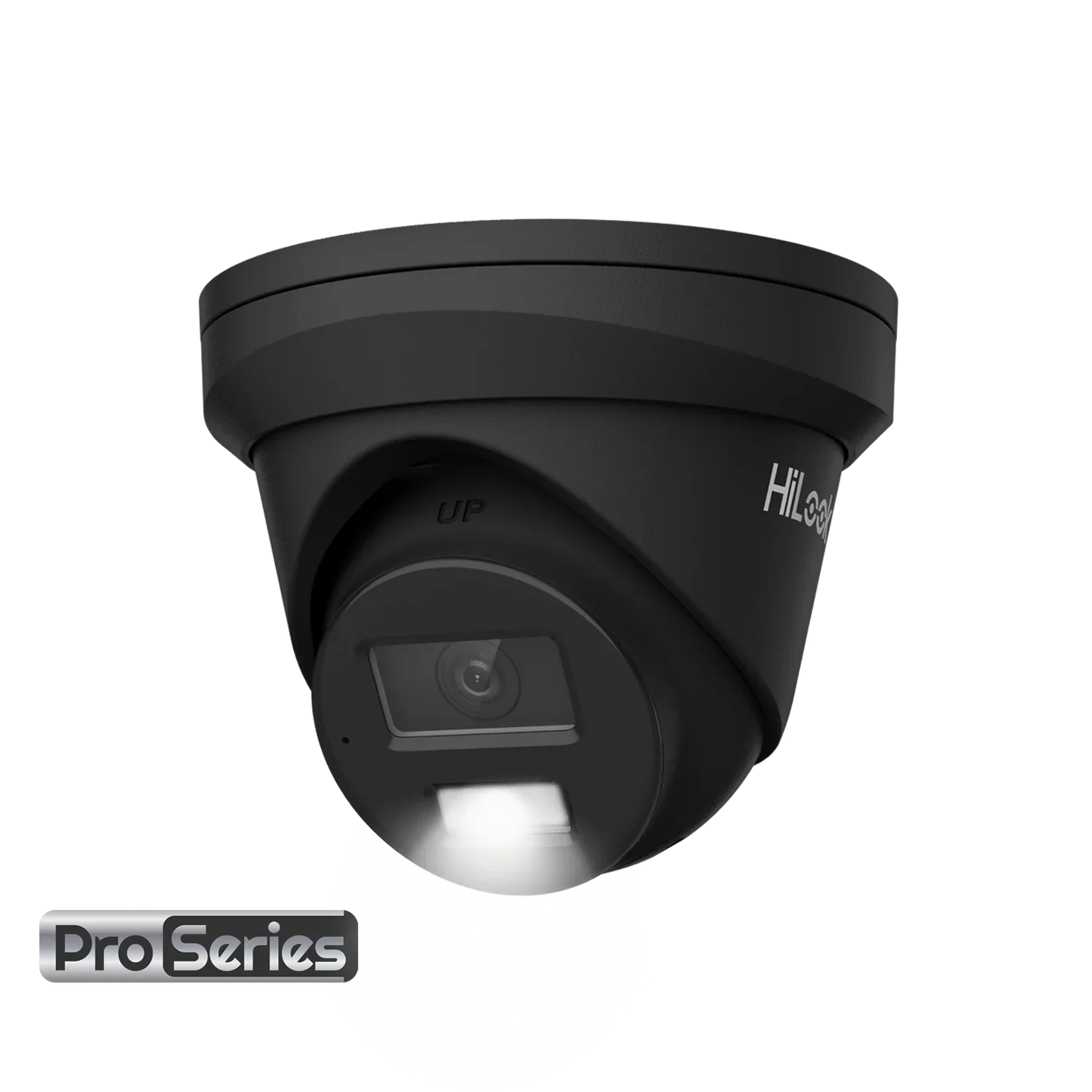

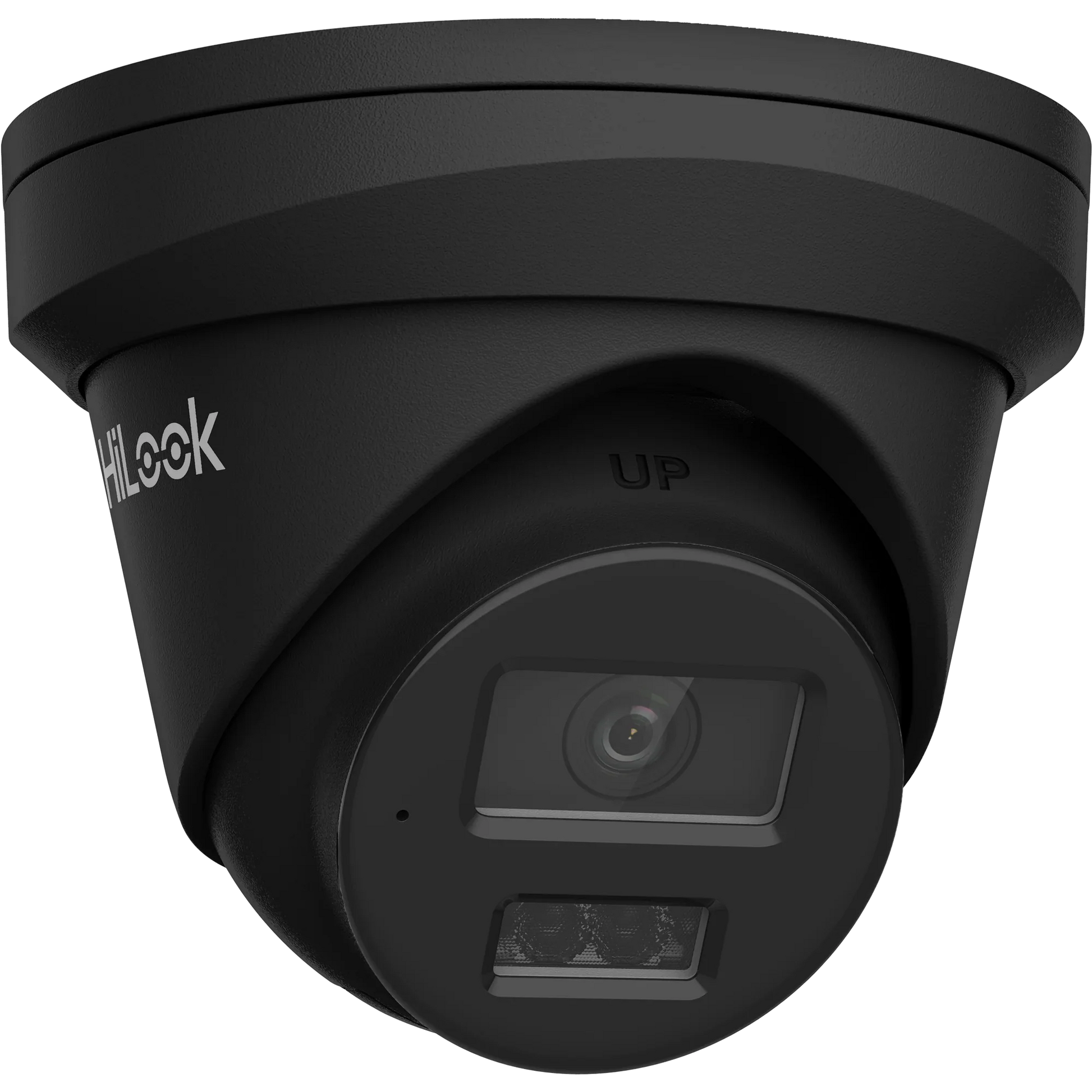

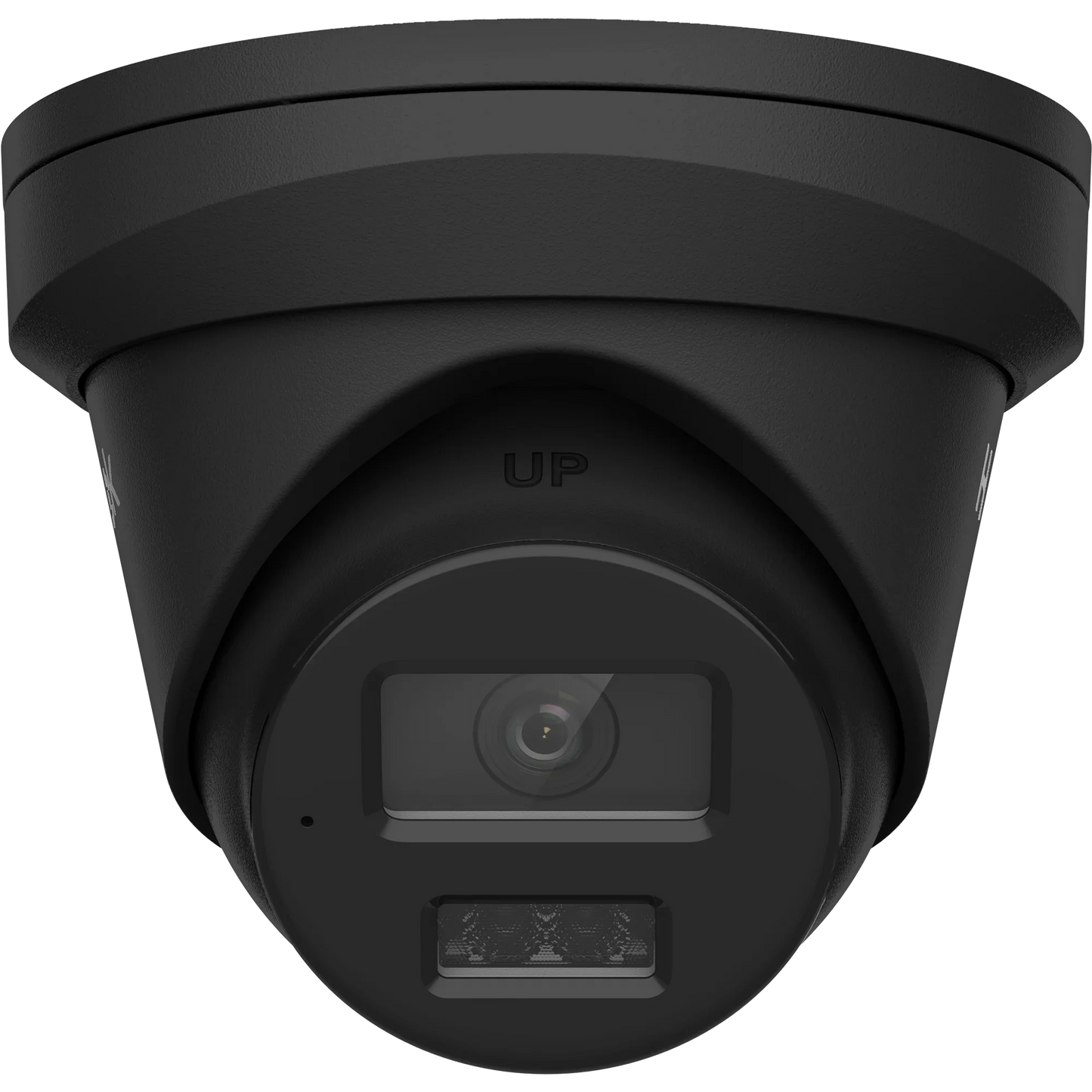

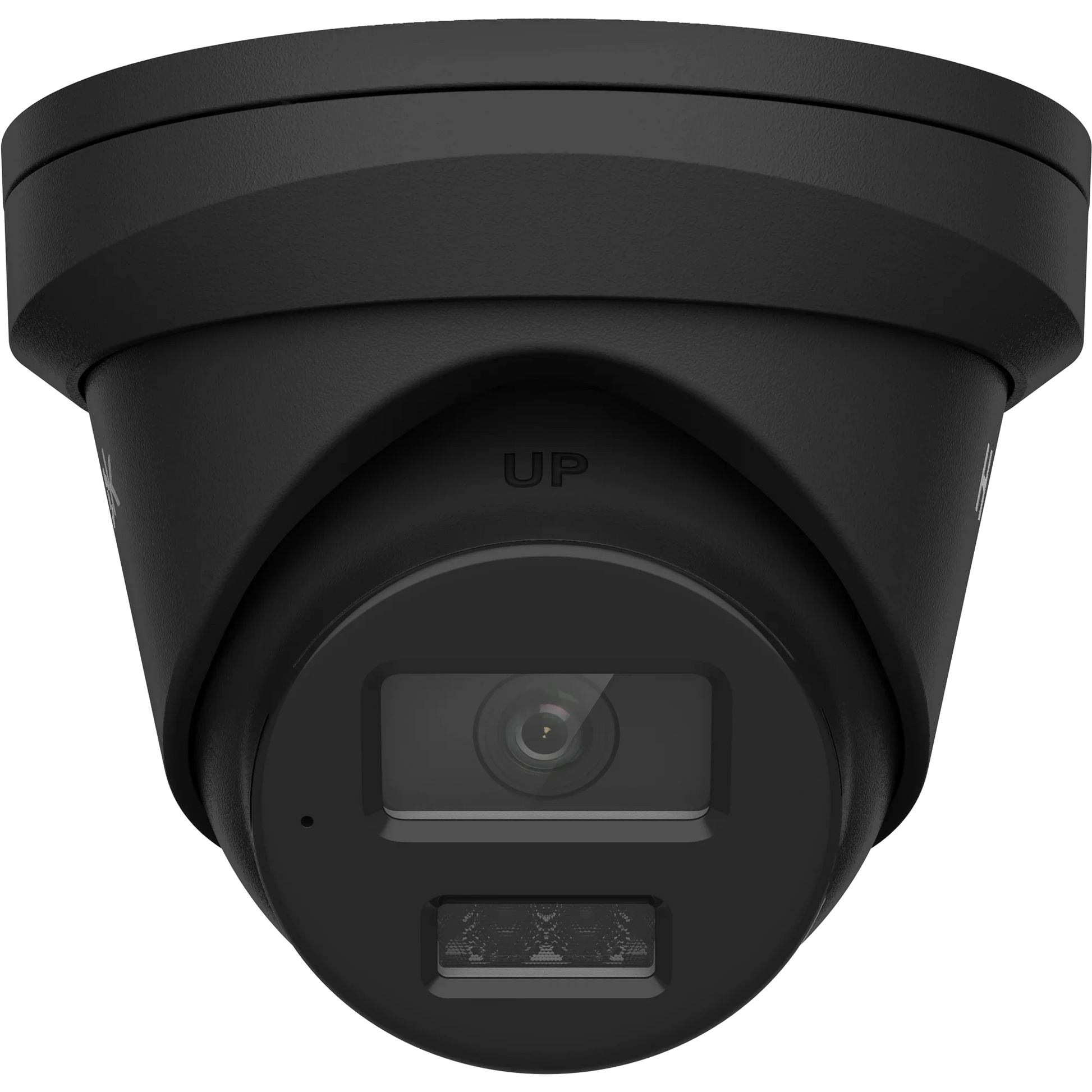

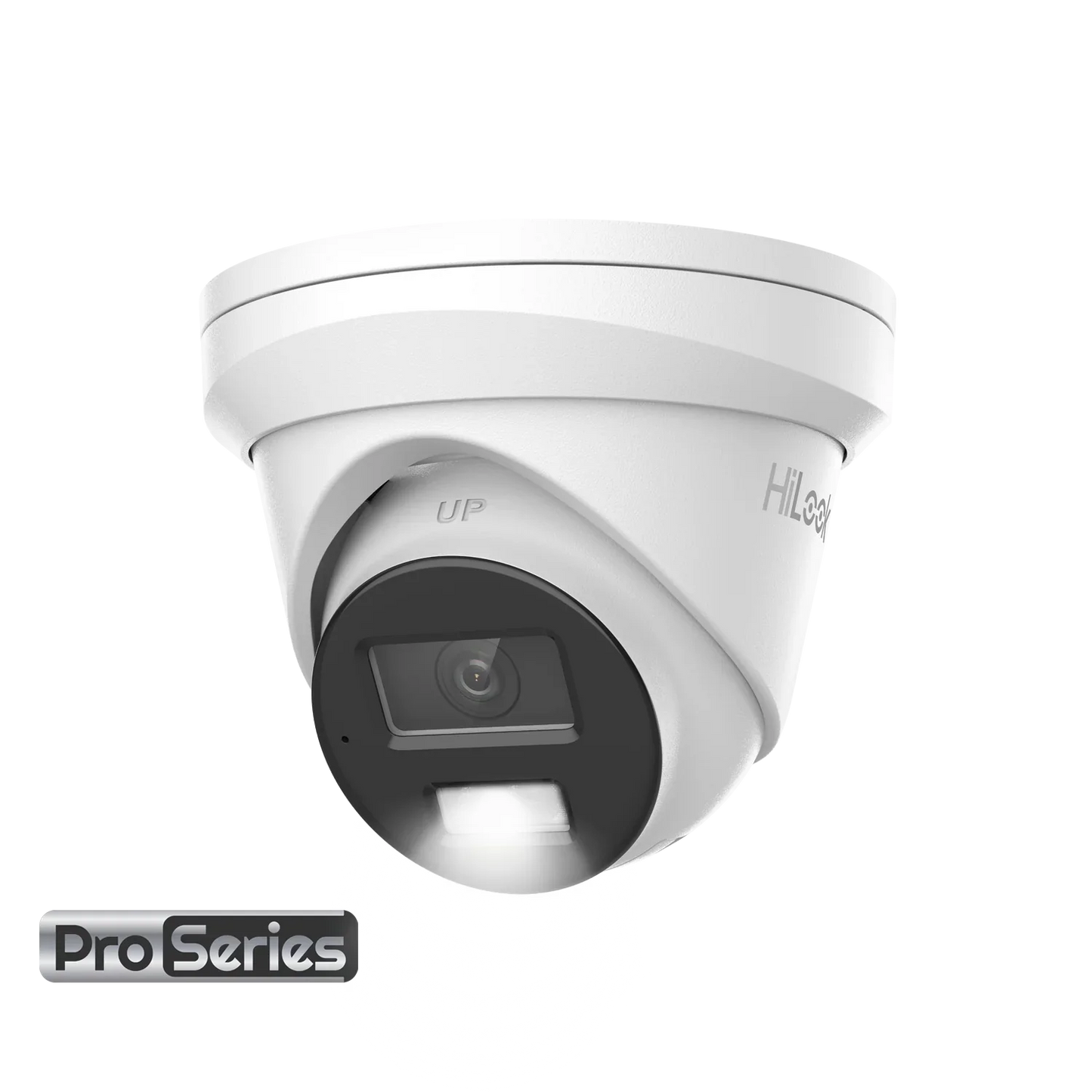

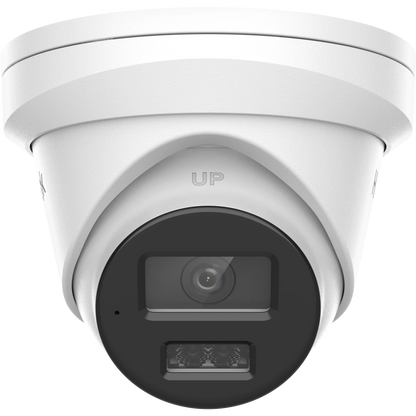

HiLook IPC‑T383H‑MU 8MP Intelligent Fixed Turret Network Camera Pro Series – Ultra‑HD, Smart Detection, Built-in microphone

High‑performance HiLook IPC‑T383H‑MU 8 MP intelligent turret network camera with human & vehicle detection, Smart Hybrid Light, built‑in microphone, IP67 weather resistance and advanced H.265+ compression. ideal for business & home surveillance in Australia & NZ.

Product Overview

The HiLook IPC‑T383H‑MU 8 MP Intelligent Fixed Turret Network Camera delivers crystal‑clear Ultra HD surveillance with intelligent analytics, robust weatherproofing (IP67) and flexible installation options. With advanced human and vehicle detection, Smart Hybrid Light color imaging on event, built‑in audio, and efficient H.265+ compression, this network camera is ideal for commercial, retail, warehouse, and high‑security home applications.

What’s Included

• 1 × HiLook IPC‑T383H‑MU 8 MP Turret Network Camera

• Quick Start Guide

• Mounting Screws & Anchors

• Warranty Card

Key Features

• 8 MP Ultra HD Imaging: Sharp 3840 × 2160 resolution for detailed monitoring.

• Smart Human & Vehicle Detection: Reduces false alarms and enhances event relevance.

• Smart Hybrid Light: Guarantees colour imaging when motion events occur.

• Built‑in Microphone: Real‑time audio monitoring for enhanced security insight.

• Weatherproof IP67 Rating: Durable protection against dust and rain for outdoor use.

• Efficient H.265+ Encoding: Lower bandwidth and storage usage compared with legacy codecs.

• Wide Dynamic Range (WDR): 120 dB to manage challenging lighting conditions.

• Flexible Field of View: Optional 2.8 mm or 4 mm lens choices.

Detailed Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination: Colour 0.001 Lux @ (F1.2), B/W 0 Lux (IR on)

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

Lens & Viewing

• Lens Options: 2.8 mm (119.6° HFOV), 4 mm (96.8° HFOV)

• Aperture: F1.2

• DORI (2.8 mm): D:76 m / O:30 m / R:15 m / I:7 m

• DORI (4 mm): D:115 m / O:45 m / R:23 m / I:11 m

Illumination

• IR & White Light up to 30 m

• IR Wavelength: 850 nm

Video & Compression

• Main Stream up to 12.5 fps at 8 MP

• H.265+/H.265/H.264+/H.264, MJPEG support

• ROI support (1 region)

Audio

• Mono audio with noise filtering

• Multiple audio codecs including G.711, AAC‑LC

Network & Security

• TCP/IP, DHCP, DNS, RTSP, IPv6, FTP, SMTP

• Open API with ONVIF Profile S/T/G

• Up to 32 user accounts

Image Enhancements

• 3D DNR, BLC, HLC, Privacy Mask (4 programmable areas)

Interfaces & Power

• 1 × RJ45 10/100 Mbps Ethernet

• Built‑in Microphone

• Power: 12 VDC or PoE (802.3af)

Environmental

• Operating Temp: ‑30 °C to 60 °C

• Humidity: ≤95% (non‑condensing)

• IP67 Weather Resistance

Approvals

• CE‑EMC, RCM AS/NZS CISPR32, CB/CE‑LVD, RoHS, WEEE, REACH

Dimensions & Weight

• Ø127.3 mm × 95.9 mm

• Weight: Approx. 600 g (camera), 909 g (with packaging)

Warranty Information

Standard Manufacturer Warranty: 36 months from date of purchase, covering defects in materials and workmanship.
Warranty Support: Service handled by authorised brand representatives in Australia & New Zealand with direct escalation to manufacturer as required.

Brand Overview – HiLook

HiLook is a trusted global brand delivering reliable, feature‑rich, and cost‑effective video surveillance solutions. Designed for security professionals and everyday users alike, HiLook products balance ease of use with advanced analytics and robust hardware, making them ideal for commercial and residential environments.

SKU

IPC‑T383H‑MU

Practical Use Scenarios

• Business Premises: Retail stores, offices, and warehouses requiring high‑resolution incident capture.

• Entry & Access Points: Monitor doors, gates, and vehicle access with intelligent detection.

• Outdoor Perimeters: Weather‑resistant housing protects against rain, dust & temperature extremes.

• Residential Security: Clear imaging and audio for driveways, yards & porches.

Datasheets & Resources

• IPC-T383H-MU_datasheet

  UD28967B-D_Network+Camera_UserManual_5.7.20_20241014



Excellence for the Australian and New Zealand Market

This HiLook IPC‑T383H‑MU camera is fully compliant with Australian and New Zealand quality and EMC standards (RCM AS/NZS CISPR32) and backed by local authorised support. Designed for conditions common across ANZ — from hot summer days to wet weather — it ensures reliable performance and easy serviceability. Warranty support and technical assistance are handled in‑region for fast response.

FAQs

Q1: What installation environments is the HiLook IPC‑T383H‑MU suitable for?
A1: The HiLook IPC‑T383H‑MU is suitable for outdoor and indoor installations, including business entry points, perimeter surveillance, and residential security areas thanks to its IP67 weather resistance and wide operating temperature range.

Q2: Does the HiLook IPC‑T383H‑MU support intelligent detection features?
A2: Yes, the HiLook IPC‑T383H‑MU supports advanced intelligent detection including human and vehicle detection, line crossing and intrusion alerts to reduce false alarms.

Q3: Can the HiLook IPC‑T383H‑MU be powered over Ethernet (PoE)?
A3: Yes, the HiLook IPC‑T383H‑MU supports PoE (IEEE 802.3af) for simplified installation with a single network cable providing both data and power.

Q4: What video compression technology does the HiLook IPC‑T383H‑MU use?
A4: The HiLook IPC‑T383H‑MU uses efficient H.265+ compression technology to reduce bandwidth and storage use while maintaining high‑quality video.

Q5: Is the HiLook IPC‑T383H‑MU compatible with HiLookVision and third‑party NVRs?
A5: Yes, the HiLook IPC‑T383H‑MU is compatible with the HiLookVision platform and supports open standards like ONVIF, allowing integration with many third‑party NVR systems.
