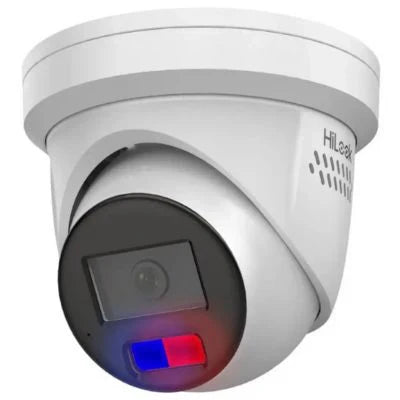

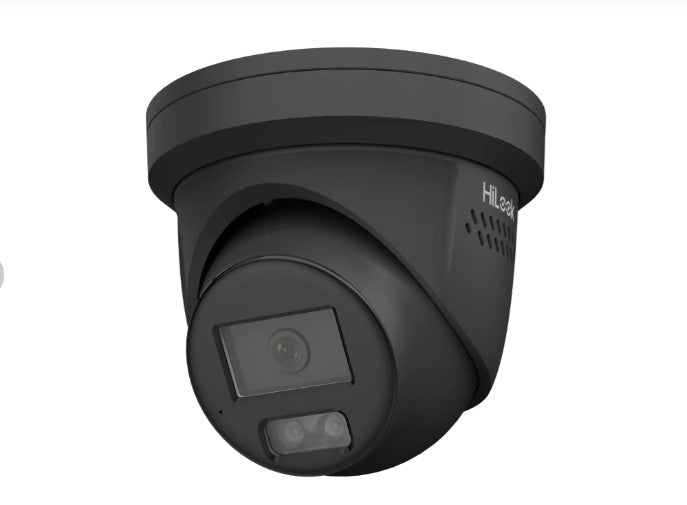

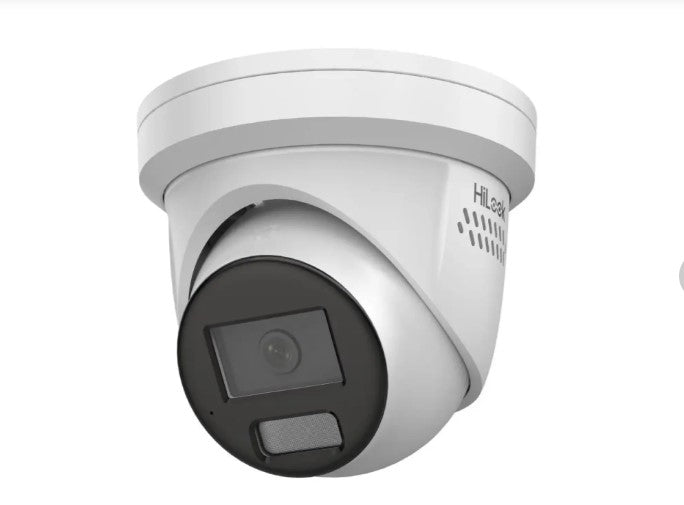

Hilook IPC-T269H-MU/SL(2.8mm)(HIK AUS) 6 MP All-in-One Fixed Turret Network CCTV IP Camera

The HiLook IPC-T269H-MU/SL is a professional-grade 6 MP fixed turret network camera designed to provide high-quality surveillance in various environments. Packed with advanced features such as H.265+ compression, intelligent detection, and active deterrence, this camera ensures superior performance, reliability, and efficiency. Its rugged build and IP67 rating make it ideal for both indoor and outdoor applications.

Key Features

Superior Imaging and Video Quality

• 6 MP Resolution: Delivers crystal-clear video for detailed surveillance.
• 120 dB True WDR: Provides clear imaging even in challenging lighting conditions with strong backlight.
• 24/7 Colorful Imaging: Ensures vibrant and detailed visuals, day and night.
• Smart Dual-Light Supplement: Automatically switches between IR and white light for optimal night vision up to 30 meters.

Compression and Storage

• H.265+/H.264+ Compression: Saves bandwidth and storage without compromising image quality.
• Flexible Streams: Main, sub, and third streams for customized bandwidth and resolution settings.

Intelligent Detection and Alerts

• Deep Learning Technology: Accurately detects and classifies human and vehicle targets to reduce false alarms.
• Active Deterrence: Built-in red and blue strobe lights and an audio alarm to ward off intruders.
• Smart Events: Supports line-crossing detection and motion detection.

Two-Way Audio Communication

• Built-in microphone and speaker enable real-time communication with visitors or intruders.

Rugged and Reliable Design

• IP67 Rating: Protects against water and dust, suitable for harsh environments.
• Wide Operating Temperature Range: Functions between -30°C to 60°C (-22°F to 140°F).

Network and Connectivity

• PoE Support: Simplifies installation by combining data and power over a single cable.
• Protocols and Compatibility: Supports major networking protocols, making it compatible with HiLook NVRs and third-party systems.

Technical Specifications

Camera and Lens

• Sensor: 1/2.4" Progressive Scan CMOS.
• Lens Options: 2.8 mm (FOV: Horizontal 105.1°) or 4 mm (FOV: Horizontal 83.9°).
• Illuminator Range: IR and white light up to 30 meters.

Video and Audio

• Resolution: Max 3200 × 1800 @ 30 fps.
• Audio Formats: G.711, AAC, MP3, and more.
• Noise Filtering: Ensures clear audio input/output.

Interface and Storage

• Network Port: 1 RJ45 10M/100M Ethernet.
• Onboard Storage: MicroSD slot supporting up to 256 GB.
• Alarm Ports: 1 input and 1 output.

Power and Build

• Power Supply: 12 VDC or PoE (802.3af).
• Power Consumption: Max 9.7 W.
• Material: Metal body for enhanced durability.

Certifications and Approvals

• Safety: UL, CB, CE-LVD.
• Environment: CE-RoHS, WEEE, REACH compliant.
• EMC Standards: FCC, CE-EMC, RCM certified.

Ideal Applications

• Residential: Secure homes with reliable monitoring and alerts.
• Commercial: Protect offices, retail spaces, and parking lots.
• Industrial: Monitor warehouses, construction sites, and other outdoor spaces.

What’s in the Box?

• 1x HiLook IPC-T269H-MU/SL 6 MP Fixed Turret Network Camera.
• 1x Installation hardware and screws.
• 1x User manual.

Warranty

• Backed by a 2-Year Manufacturer Warranty and lifetime technical support.

The HiLook IPC-T269H-MU/SL is a top-tier surveillance solution that combines cutting-edge features, robust build quality, and intelligent analytics to meet all your security needs. Whether for residential, commercial, or industrial use, this camera delivers reliability and peace of mind.

Data sheet
