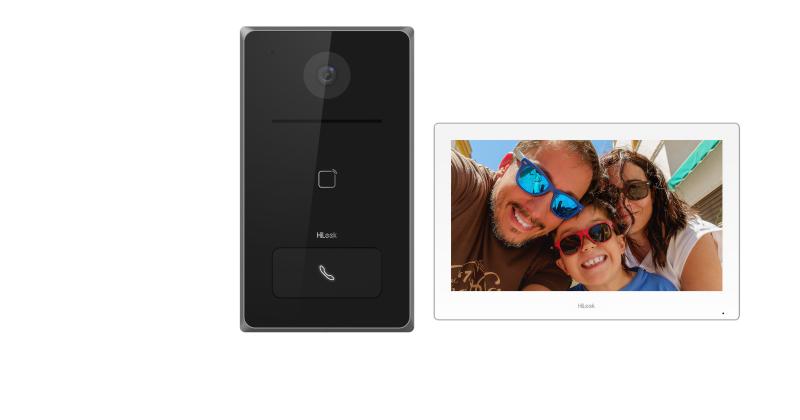

HiLook HA-KIT-IP2 IP Video Intercom Kit

The HiLook HA-KIT-IP2 IP Video Intercom Kit is a high-performance intercom system designed for secure and seamless communication. Featuring a 2MP HD camera, True WDR, night vision, and two-way audio communication, this system ensures clear and reliable interaction at all times. With Hik-Connect APP mobile control, users can conveniently manage access remotely. The system supports PoE power supply, making installation simple and efficient.

This complete kit includes everything needed for a full setup: a door station, an indoor station, two power supply units, a 32GB TF card, and a power adapter. Its robust IP65-rated design ensures durability in various weather conditions, while the flush or surface mounting options provide installation flexibility. Ideal for residential and commercial applications, the HiLook HA-KIT-IP2 enhances both security and accessibility.

What's Included in the Box:

• 1x Door Station

• 1x Indoor Station

• 2x Power Supply Units (PSU)

• 1x 32GB TF Card

• 1x Power Adapter

Main Features:

• Remote Access via Hik-Connect APP – Monitor and control access conveniently from your smartphone.

• High-Definition 2MP Camera – Delivers clear video for enhanced security.

• True WDR & IR Night Vision – Ensures visibility in both bright and low-light conditions.

• Two-Way Audio Communication – Built-in microphone and speaker for seamless intercom functionality.

• Standard PoE Power Supply – Simplifies installation with power and data over a single cable.

• Durable & Weatherproof Design (IP65 Rated) – Suitable for various outdoor environments.

• Flexible Mounting Options – Supports both surface and flush mounting.

• Wide Field of View – 129° Horizontal & 75° Vertical coverage for comprehensive monitoring.

• Secure Access Control – Supports motion detection, alarm inputs, and lock control.

• Expandable Storage – Supports TF cards up to 128GB (for indoor station).

Detailed Specifications:

Door Station:

• Camera: 2MP HD camera

• Night Vision: IR supplement mode (2.5m range)

• Field of View: 129° (H) / 75° (V)

• Video Compression: H.264

• Network: TCP/IP, SIP, RTSP, Wi-Fi (2.4GHz, IEEE802.11b/g/n)

• Audio Input/Output: Built-in omnidirectional microphone and loudspeaker

• Audio Features: Noise suppression & echo cancellation

• Alarm Inputs: 4

• Power Supply: PoE (IEEE802.3af) or 12VDC

• Operating Temperature: -40°C to 53°C

• Protection Level: IP65 (Weatherproof)

• Mounting: Surface or flush mounting

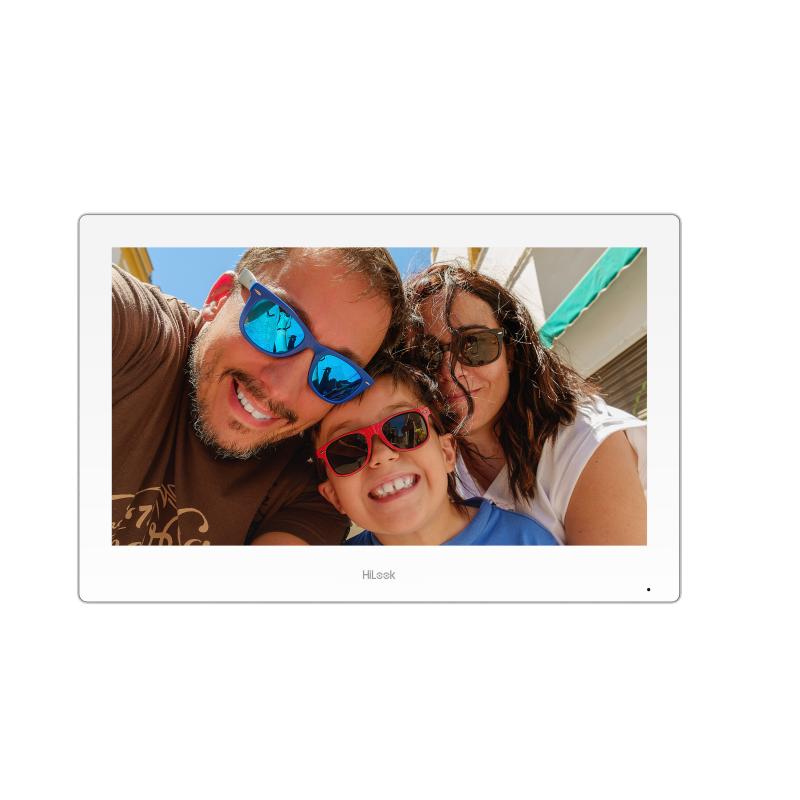

Indoor Station:

• Display: 7-inch TFT touchscreen (1024x600 resolution)

• Operation: Capacitive touch screen

• Audio Input/Output: Built-in microphone and loudspeaker

• Network: TCP/IP, SIP, RTSP, Wi-Fi (2.4GHz, IEEE802.11b/g/n)

• Alarm Inputs: 8 channels

• Relay Outputs: 2

• Storage: Supports TF card up to 128GB

• Power Consumption: ≤ 5W

• Operating Temperature: -10°C to 50°C

Datasheet

Warranty Information:

• 2-Year Warranty – Ensuring reliability and peace of mind.

Brand Overview:
HiLook, a sub-brand of Hikvision, specializes in high-quality yet cost-effective surveillance and security solutions. With advanced technology and seamless integration capabilities, HiLook products are trusted worldwide for residential and commercial security applications.

Practical Use Scenarios:

• Residential Homes – Enhance security with remote access control and video monitoring.

• Apartments & Multi-Dwelling Units – Convenient communication between residents and visitors.

• Office Buildings & Businesses – Secure entry points and enable seamless visitor management.

• Retail Stores – Monitor and control access to restricted areas.

• Warehouses & Industrial Facilities – Improve security and employee access management.

Excellence for the Australian and New Zealand Market:

• Fully compliant with Australian security and quality standards.

• Optimized for NDSS approval and other relevant certifications.

• Designed for seamless operation within Australian and New Zealand network environments.

• Sourced exclusively from authorized brand representatives.

• Warranty support handled directly through local brand service centers for hassle-free assistance.

Frequently Asked Questions (FAQs):

Q: Can I access the intercom system remotely?
A: Yes, the HiLook HA-KIT-IP2 supports remote access via the Hik-Connect APP, allowing users to monitor and communicate from anywhere.

Q: Is this system compatible with smart home integrations?
A: The system operates on TCP/IP and SIP protocols, making it compatible with various third-party security and smart home solutions.

Q: Does the door station have night vision?
A: Yes, it features low illumination IR night vision with a 2.5m range for clear visibility in dark environments.

Q: What type of mounting options are available?
A: The door station supports both surface and flush mounting, allowing for flexible installation.

Q: Is this system weatherproof?
A: Yes, the door station has an IP65 rating, ensuring durability against dust, rain, and harsh weather conditions.

Q: What is the storage capacity of the system?
A: The indoor station supports TF cards up to 128GB, while the kit includes a 32GB TF card for initial setup.

Q: How does the power supply work?
A: The system supports PoE (Power over Ethernet) and 12VDC power supply options for easy installation.

Q: What warranty is provided?
A: The HiLook HA-KIT-IP2 comes with a 2-year warranty, ensuring long-term reliability.
