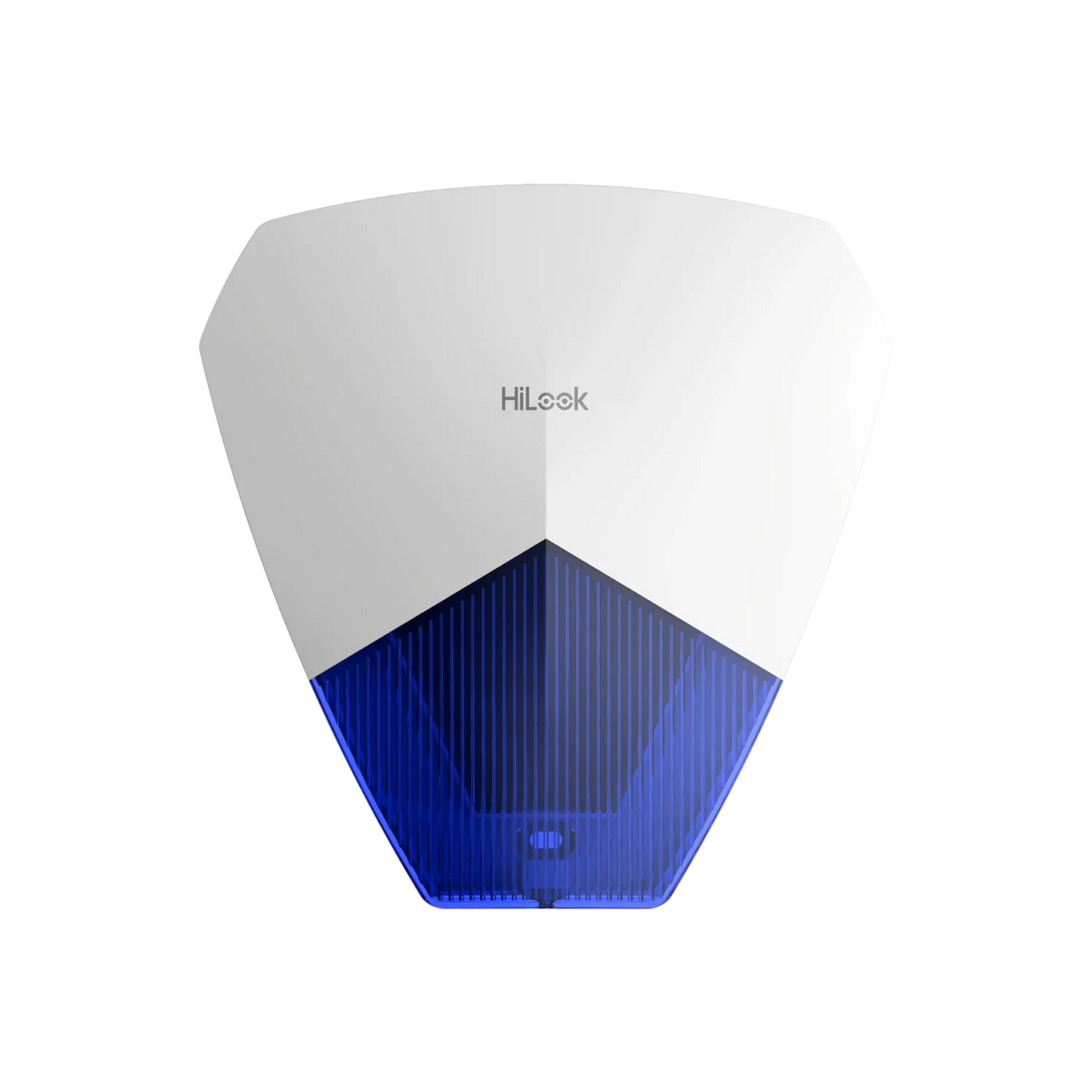

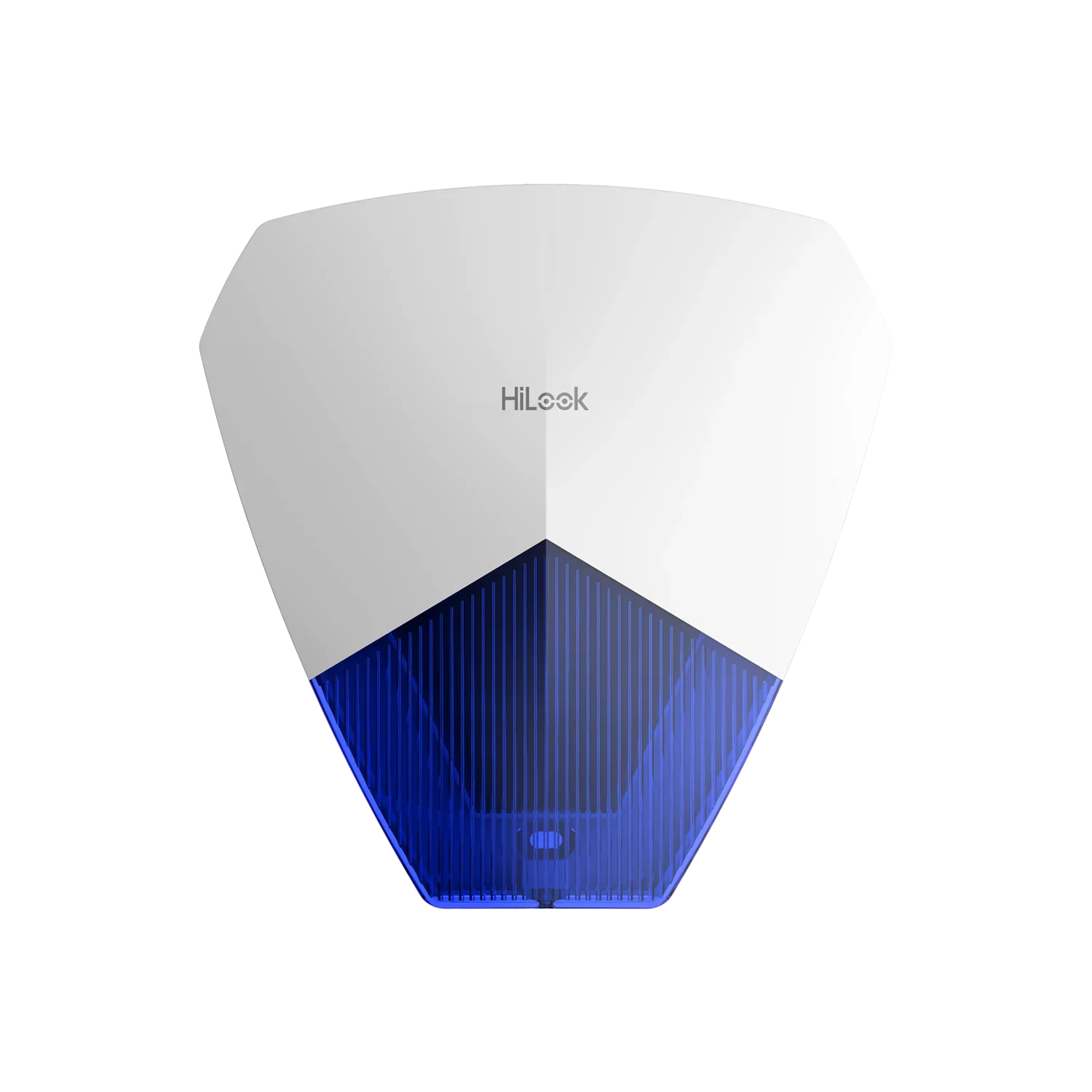

HiLook HA‑ALARM‑SIREN1 Wired Sounder 105 dB IP54 Alarm Sounder with Independent LED Flash — 12 V DC

HiLook HA‑ALARM‑SIREN1 Wired Sounder 105 dB IP54 Alarm Sounder with Independent LED Flash — 12 V DC

$23.46 AUD
$30.60 AUD $23.46 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The HA‑ALARM‑SIREN1 is a high-performance wired sounder from HiLook (by Hikvision), engineered for reliable audible and visual alerting in both indoor and outdoor security environments. Operating on the 12 V DC output from an alarm control panel, it delivers a powerful 105 dB sound pressure at 30 cm, and features a configurable LED flash. With an IP54 protection rating, rugged PC+ABS shell, and wide operating temperature/humidity range, this sounder is built to perform in demanding conditions.

What’s Included in the Box

Item Description
1 × HA‑ALARM‑SIREN1 Wired Sounder unit Blue shell with built‑in sounder and LED flash unit
Installation screws & mounting hardware For surface mounting (walls, semi‑exposed areas)
Wiring terminals / connector For DC input from control panel
Quick‑start / user / tech spec leaflet Including wiring diagram & safety instructions

Main Features

  • Loud Audible Alert – 105 dB at 30 cm to ensure alarms are heard clearly over ambient noise.

  • Independent LED Flash – Visual warning via LED flash; sound and flash indications configurable separately.

  • IP54 Protection Rating – Dust protected and safe against water splashes; suitable for indoor or external installation under shelter.

  • Robust Build – PC+ABS shell, weighs ~185 g.

  • Wide Electrical Tolerance – Accepts 8‑16 V DC supply (12 V typical); low quiescent current consumption.

Detailed Specifications

Specification Value
Model HA‑ALARM‑SIREN1
Sound Pressure Level 105 dB measured at 30 cm
Power Supply 8‑16 V DC (typical 12 V)
Current Consumption ≤ 70 mA (alarm), ~45 mA quiescent at 12 V
Operating Temperature −20 °C to +60 °C
Operating Humidity 10 % to 90 % RH (non‑condensing)
Ingress Protection (IP) Rating IP54
Dimensions (W × H × D) 140 × 134 × 33 mm
Weight ≈ 185 g
Shell Material PC + ABS (durable, impact resistant)
Color Blue

Warranty Information

Manufacturer warranty: 12 months standard; some retailers may offer extended warranty or support (check specific seller policy).

Brand Description

HiLook, a sub‑brand of Hikvision, delivers cost‑effective, reliable intrusion and surveillance solutions. Designed to meet stringent security requirements while maintaining excellent value, HiLook products are backed by Hikvision’s global R&D, quality assurance, and support networks.

SKU / Product Code

HA‑ALARM‑SIREN1

Practical Use Scenarios

Scenario Benefit / Why It’s Suitable
Residential perimeter alert Alerts neighbours & household; strong sound output helps wake occupants & alert passers‑by.
Commercial premises / small business Provides both visual & audible deterrent; LED flash helps in noisy environments.
Outdoor semi‑exposed installations (e.g. garage, shed) IP54 protects against dust and water splashes; durable material for weather exposure.
Alarm system upgrades or retrofits Compatible with standard 12 V alarm panels; low quiescent draw helps battery backup longevity.

Datasheets / Downloadable Resources

product datasheet

Excellence for the Australian and New Zealand Market

  • Meets Australian and New Zealand environmental and safety standards relevant to intrusion alarm sounders and outdoor electrical components.

  • Supplied by authorized HiLook / Hikvision distributors in AU/NZ, ensuring genuine product quality, correct regional firmware/resources, and reliable support.

  • Warranty claims handled via local service channels (AU/NZ) — no need to deal with overseas intermediaries.

  • Designed for local climate conditions: wide temperature & humidity tolerance; shell material and IP54 rating suit AU/NZ outdoor installations.

FAQs

  1. What voltage does the HA‑ALARM‑SIREN1 require?
    SKU HA‑ALARM‑SIREN1: It requires 8‑16 V DC input (typical 12 V DC) from the control panel.

  2. Is the LED flash tied to the sound, or can they operate separately?
    SKU HA‑ALARM‑SIREN1: The sounder and LED flash indication can be configured to operate independently.

  3. Can I install this sounder outdoors?
    SKU HA‑ALARM‑SIREN1: Yes; it is IP54 rated which protects against dust ingress and water splashes. Best placed under some shelter for optimal longevity.

  4. What is the operating ambient temperature range?
    SKU HA‑ALARM‑SIREN1: From −20 °C up to +60 °C.

  5. How loud is 105 dB at 30 cm in practical terms?
    SKU HA‑ALARM‑SIREN1: This level is equivalent to a loud motorcycle or car horn; sufficient to attract attention and deter intruders. For louder open areas you may consider multiple units or harsher sounders.
