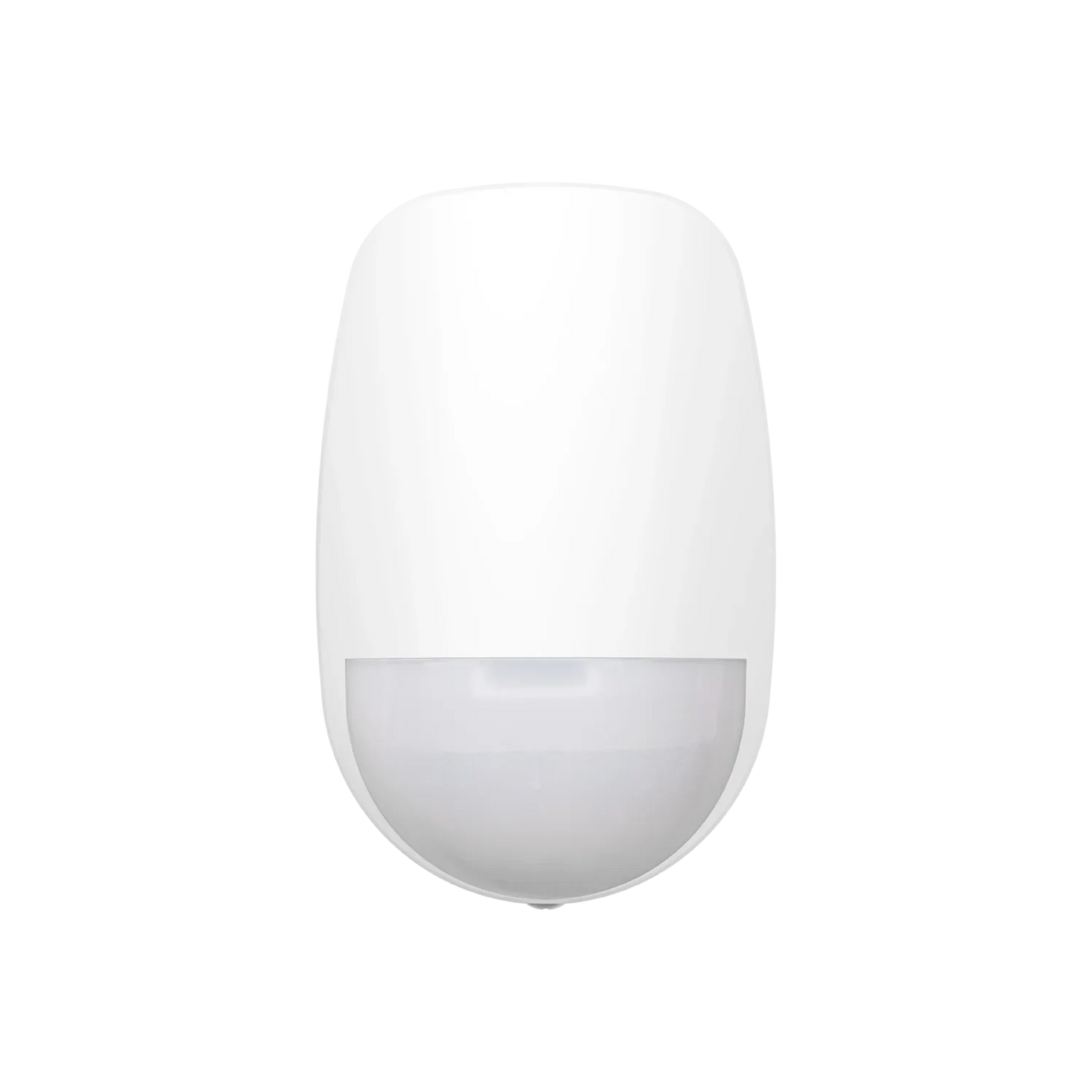

HiLook HA‑ALARM‑PIR2 Wired Dual-Tech PIR & Microwave Motion Detector – 12m, 30kg Pet Immunity, 24GHz Microwave

HiLook HA‑ALARM‑PIR2 Wired Dual-Tech PIR & Microwave Motion Detector – 12m, 30kg Pet Immunity, 24GHz Microwave

$37.74 AUD
$49.98 AUD $37.74 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The HA‑ALARM‑PIR2 is a next-generation dual-technology wired motion detector combining passive infrared (PIR) and advanced 24GHz K-band microwave technology. Designed for enhanced detection accuracy and environmental resilience, it delivers false-alarm immunity, pet tolerance up to 30kg, and sealed optics to maintain long-term performance.

Ideal for professional-grade security systems, this detector supports 3D Fresnel lens technology, digital temperature compensation, and automatic sensitivity control. With 52 detection zones, full creep-zone protection, and selectable EOL resistors, it integrates seamlessly into most modern alarm systems. The HA‑ALARM‑PIR2 is certified to EN Grade 2 and includes RCM compliance for use in Australia and New Zealand.

What’s Included in the Box

  • 1 × HiLook HA‑ALARM‑PIR2 Dual-Tech Wired Motion Detector

  • 1 × Terminal block for alarm and tamper wiring

  • 1 × Installation guide

  • Brackets sold separately (wall/ceiling/universal mount options available)

Main Features

Feature Description
Dual-Technology Detection Combines Passive Infrared and 24GHz Microwave for highly accurate movement detection
12m Range, 85.9° Coverage Covers medium to large indoor spaces with full area protection
30kg Pet Immunity Detects intruders while ignoring pets, reducing false alarms
3D Fresnel Lens with 52 Detection Zones Delivers detailed motion mapping with no blind spots, including creep-zone
Sealed Optics Prevents interference from insects and internal reflections
Digital Temperature Compensation Maintains consistent performance in fluctuating room temperatures
Selectable EOL Resistors Integrates with most alarm panels with multiple resistor options
IFT Technology Prevents false alarms from electromagnetic interference
Wall or Ceiling Mount Options Compatible with optional universal, wall, or ceiling brackets
RCM, CE, FCC, EN Grade 2 Certified Compliance with global and AU/NZ regional standards

Detailed Specifications

Category Specification
Detection Method PIR + 24GHz Microwave
Detection Range 12 meters
Detection Angle 85.9°
Detection Zones 52 zones (includes creep-zone)
Detectable Speed 0.3 to 2 m/s
Pet Immunity Up to 30kg
Sensitivity Settings Auto / Pet
White Light Immunity 6500 lux
Microwave Frequency 24.15–24.25GHz
Tamper Protection Front cover tamper
Alarm Output Normally Closed (NC)
LED Indicators Green (PIR), Orange (Microwave), Blue (Alarm)
Power Supply 9–16 VDC (Typical: 12 VDC)
Power Consumption Max: 17mA @12VDC
Operating Temperature ‑10°C to +55°C
Storage Temperature ‑20°C to +60°C
Humidity Tolerance 10% to 90% (non-condensing)
Mounting Height 1.8 to 2.4 meters
Mounting Options Wall standard (ceiling and universal brackets optional)
Dimensions 65.7 × 103.8 × 45.5 mm
Weight 99g
Certifications EN Grade 2, CE, FCC, CB, CCC, IC, RCM

Warranty Information

  • 3-year manufacturer warranty against defects in materials or workmanship

  • Warranty support available through authorized HiLook distribution partners in AU/NZ

Brand Description

HiLook, developed by Hikvision, offers reliable and cost-effective security solutions tailored for installers, small businesses, and residential environments. HiLook’s product line—including cameras, recorders, and alarm detectors—delivers ease of use, modern designs, and robust performance backed by a trusted global manufacturer.

Practical Use Scenarios

  • Home Security: Install in living areas, hallways, or garages with pets up to 30kg

  • Retail Spaces: Highly accurate detection in offices, stores, or customer-facing areas without false alarms from environmental changes

  • Industrial Sites: Suitable for cleaner indoor industrial areas where electrical interference may be present

  • Professional Alarm Installations: A perfect fit for premium wired systems needing certified, tamper-resistant sensors with multiple mounting options

Datasheets / Downloadable Resources

Excellence for the Australian and New Zealand Market

  • RCM Certified: Compliant with local electrical safety and communication regulations

  • Designed to operate in typical AU/NZ indoor climate conditions (‑10°C to +55°C)

  • Selectable EOL resistors support compatibility with widely used Australian alarm systems

  • Sold exclusively through authorized ANZ distributors to ensure genuine warranty and firmware support

  • Fast access to replacement parts, accessories, and technical documentation locally

SKU

SKU: HA‑ALARM‑PIR2

FAQs

Q1: What is the main advantage of using a dual-tech detector like the HA‑ALARM‑PIR2?
A1: Dual-tech detectors use both PIR and microwave technologies to verify movement, significantly reducing false alarms from temperature changes, light, or environmental shifts.
(Product Code: HA‑ALARM‑PIR2)

Q2: Does the HA‑ALARM‑PIR2 support pet immunity?
A2: Yes, it supports pet immunity for animals up to 30kg, making it ideal for homes with medium-sized pets.
(Product Code: HA‑ALARM‑PIR2)

Q3: Can this detector be ceiling mounted?
A3: Yes, with an optional ceiling mount bracket. Standard installation is wall-mounted at 1.8 to 2.4 meters.
(Product Code: HA‑ALARM‑PIR2)

Q4: Is the HA‑ALARM‑PIR2 compatible with most wired alarm systems?
A4: Yes, it includes selectable EOL resistors and standard normally closed outputs, making it compatible with most control panels.
(Product Code: HA‑ALARM‑PIR2)

Q5: What type of certifications does the HA‑ALARM‑PIR2 have?
A5: It is EN Grade 2 certified and also carries CE, FCC, CB, CCC, IC, and RCM certifications for AU/NZ use.
(Product Code: HA‑ALARM‑PIR2)

View full details
