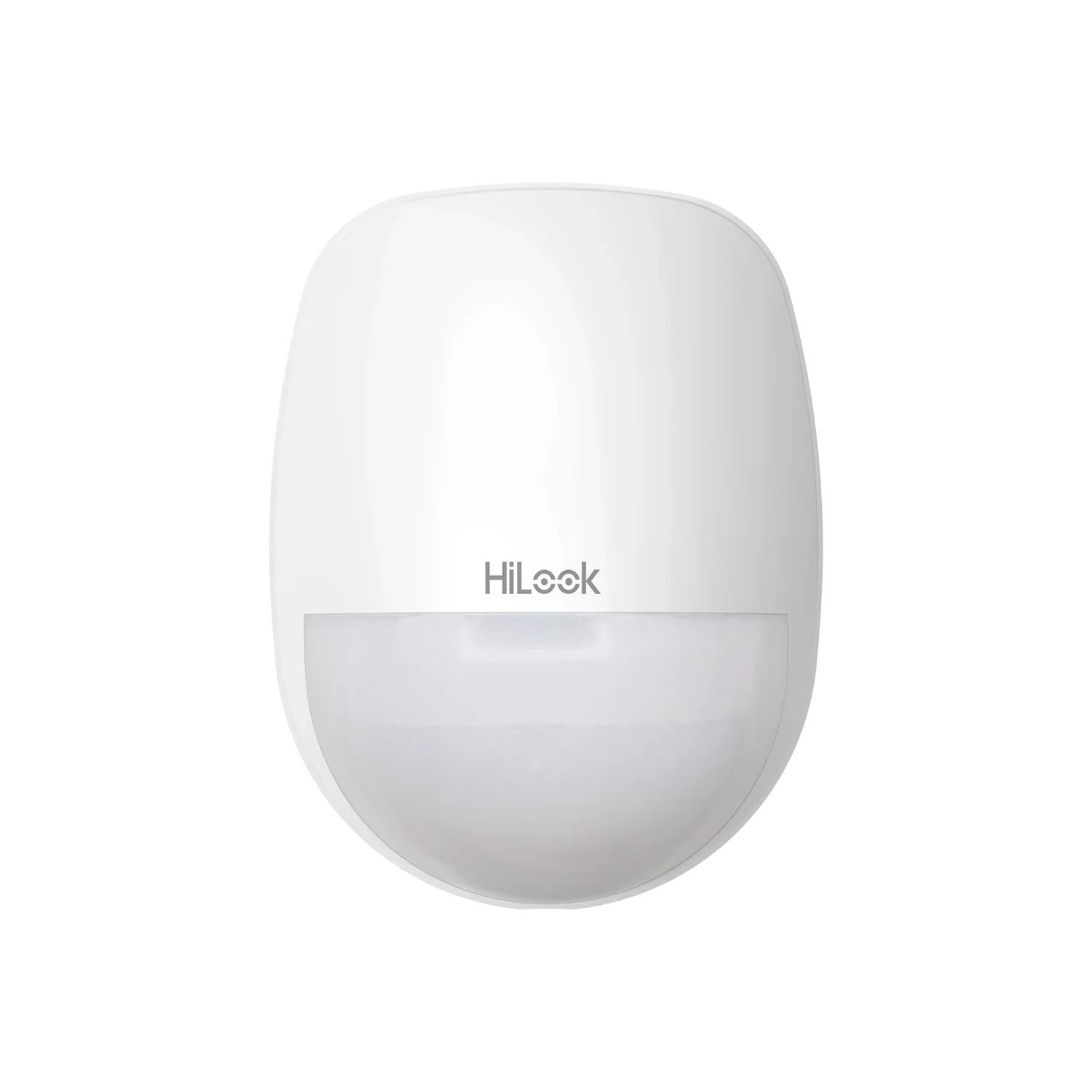

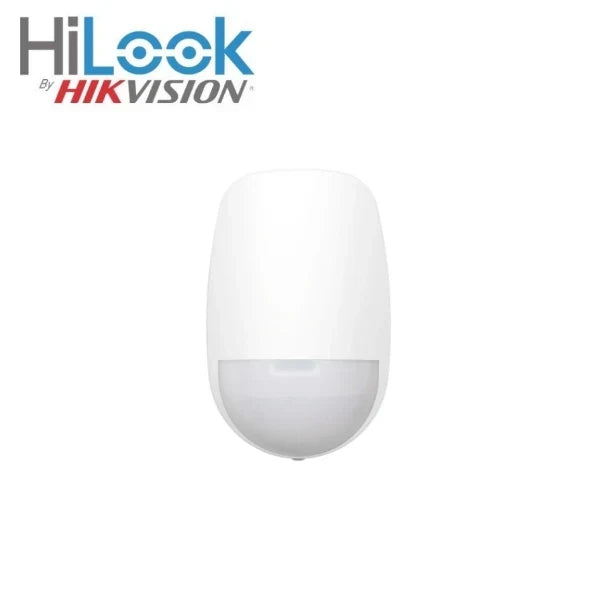

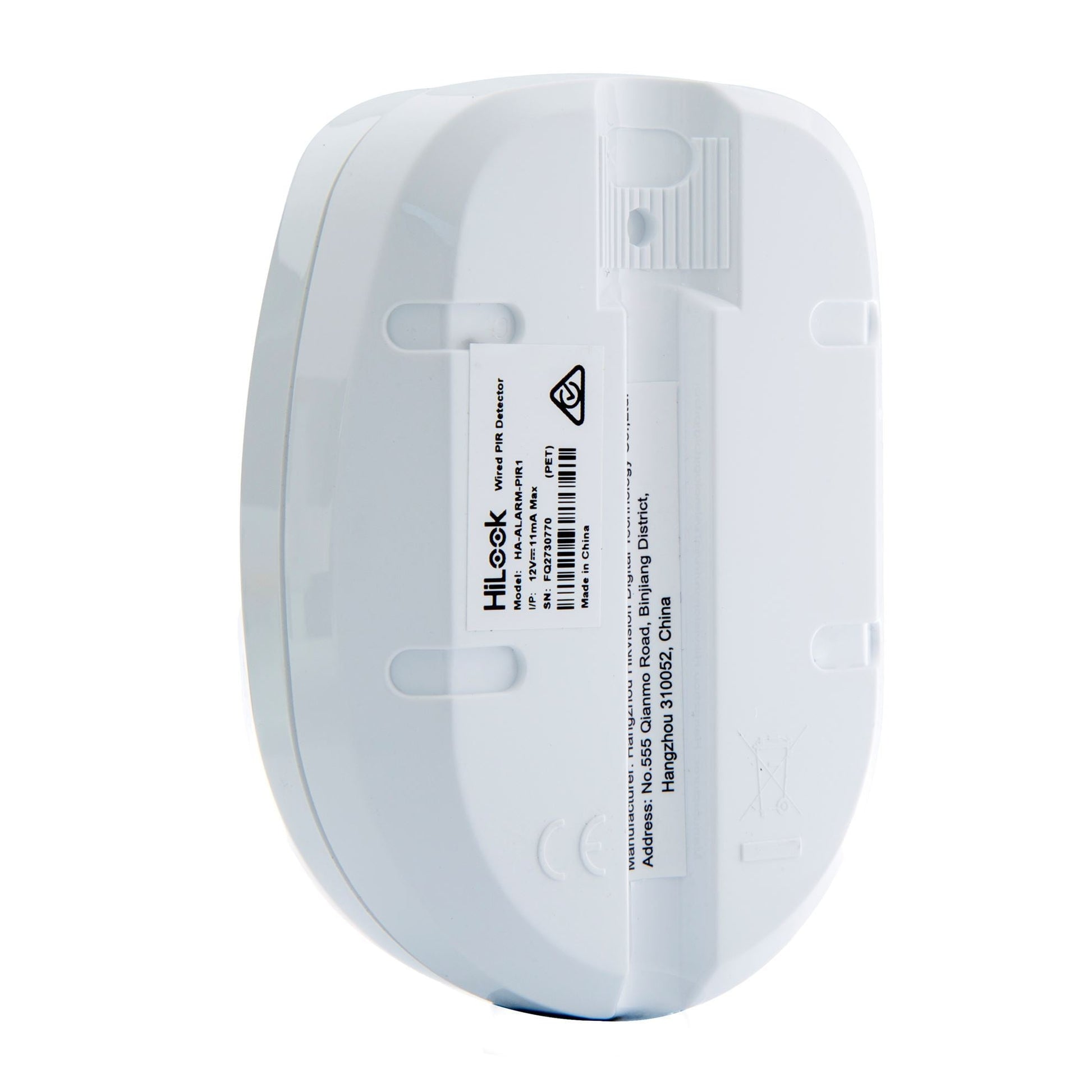

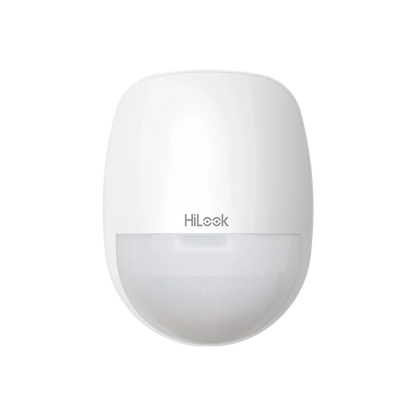

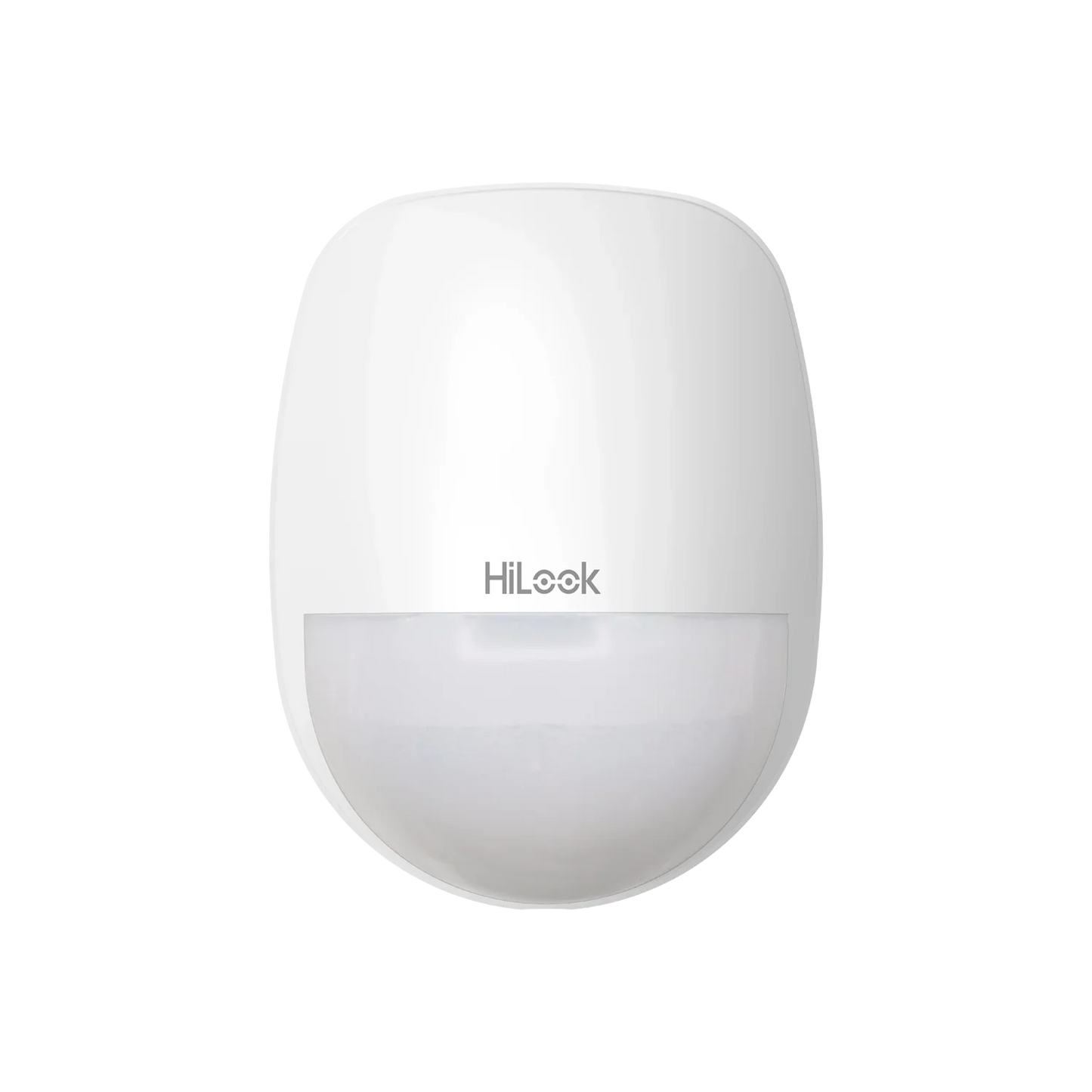

HiLook HA‑ALARM‑PIR1 Wired Indoor PIR Motion Detector – 18m Coverage, 3D Optics, Selectable EOL Resistors

HiLook HA‑ALARM‑PIR1 Wired Indoor PIR Motion Detector – 18m Coverage, 3D Optics, Selectable EOL Resistors

$19.38 AUD
$29.58 AUD $19.38 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The HA‑ALARM‑PIR1 is a high‑performance wired PIR motion detector from HiLook, designed to deliver reliable volumetric intrusion detection with advanced optics, environmental adaptability, and installation flexibility. With an 18‑meter detection range and a modern, compact design, it is the ideal indoor security solution for residential, commercial, and light industrial applications.

This model incorporates 3D optics, digital temperature compensation, and creep-zone protection to maximize detection accuracy while minimizing false alarms. The selectable End-of-Line (EOL) resistors make it compatible with a wide range of alarm control panels.

What’s Included in the Box

  • 1 × HiLook HA‑ALARM‑PIR1 Wired PIR Detector

  • 1 × Installation manual

  • 1 × Tamper and wiring terminal block

  • Optional mounting bracket (sold separately)

Main Features

Feature Description
18m Detection Range Ideal for small to large rooms with volumetric coverage
Digital Temperature Compensation Maintains accuracy when ambient temperature is close to human body temperature
3D Optics with Creep-Zone Protection Ensures precise detection and eliminates blind spots directly below the sensor
Automatic Sensitivity Adjustment Self-tunes to maintain optimal performance in dynamic environments
Selectable EOL Resistors Compatible with most major alarm panels (1K, 2K2, 4K7, 5K6, 8K2 options)
Pet Immunity Options Adjustable for pets up to 15kg (High: 5kg, Auto: 10kg, Low: 15kg)
Anti-Insect Design Prevents false alarms caused by bugs or airflow near the sensor
Wall or Ceiling Mounting Installable at 1.8–2.4 meters with optional ceiling mount bracket
Wide Voltage Range with Reverse Polarity Protection Operates from 9 to 16V DC for flexible integration
IFT Interference Filtering Technology Minimizes false alarms due to electrical or magnetic disturbances

Detailed Specifications

Category Specification
Detection Range Up to 18 meters
Detection Angle 85.9°
Velocity Range 0.3–2 m/s
Sensitivity Levels High / Auto / Low
Pet Immunity Up to 15kg (adjustable)
White Light Filter 6500 lux
Alarm Indicator Blue LED
Tamper Protection Front cover tamper
Power Supply 12VDC typical (9–16VDC range)
Power Consumption Max 12mA
Operating Temperature ‑10 °C to 55 °C
Storage Temperature ‑20 °C to 60 °C
Operating Humidity 10% to 90% (non-condensing)
Installation Height 1.8 to 2.4 meters
Material PC + ABS housing
Dimensions (W × H × D) 65.4mm × 86.8mm × 45.5mm
Weight 68g

Warranty Information

  • Backed by a 2‑year manufacturer’s warranty

  • Covers manufacturing defects under normal use conditions

  • Complies with local consumer protection laws in Australia and New Zealand

Brand Description

HiLook, a sub‑brand of Hikvision, offers cost‑effective and professional surveillance and alarm products tailored for small businesses, residential users, and security installers. Built with quality and reliability in mind, HiLook products maintain compatibility with industry standards while offering easy setup and strong performance.

Practical Use Scenarios

  • Residential Security: Detects movement in living rooms, hallways, garages, or stairwells without triggering false alarms from pets under 15kg

  • Retail Stores & Offices: Perfect for after-hours protection in enclosed areas

  • Warehouses: Wide coverage makes it effective in open-plan layouts

  • Integration with Alarm Panels: Compatible with HiLook and most Hikvision or third-party wired alarm control panels

Datasheets / Downloadable Resources

Excellence for the Australian and New Zealand Market

  • Designed for performance within ‑10°C to +55°C, suitable for AU/NZ climates

  • Selectable EOL resistor values allow seamless integration with most Australian alarm systems

  • Sold and supported through authorized HiLook distributors in Australia and New Zealand

  • Meets regional safety and operational standards

  • Full product support and warranty fulfillment handled locally

SKU

SKU: HA‑ALARM‑PIR1

FAQs

Q1: What makes the HA‑ALARM‑PIR1 different from standard motion sensors?
A1: HA‑ALARM‑PIR1 includes advanced 3D optics, digital temperature compensation, pet immunity, and selectable EOL resistors for broader compatibility and performance.
(Product Code: HA‑ALARM‑PIR1)

Q2: Is the HA‑ALARM‑PIR1 compatible with other alarm brands?
A2: Yes, it features selectable alarm and tamper resistor values to support most wired alarm panels on the market.
(Product Code: HA‑ALARM‑PIR1)

Q3: Can this PIR be mounted on the ceiling?
A3: Yes, ceiling mount is supported with an optional bracket. Wall mounting is the standard installation method.
(Product Code: HA‑ALARM‑PIR1)

Q4: Does the HA‑ALARM‑PIR1 support pet immunity?
A4: Yes, it offers adjustable pet immunity settings for pets up to 15kg.
(Product Code: HA‑ALARM‑PIR1)

Q5: What voltage does the HA‑ALARM‑PIR1 require?
A5: It operates within a 9–16V DC range, with 12V DC as the typical input.
(Product Code: HA‑ALARM‑PIR1)
