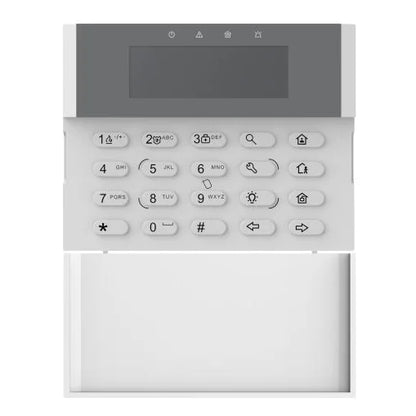

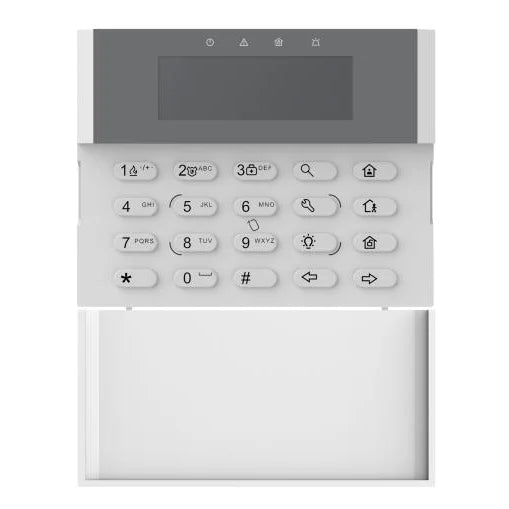

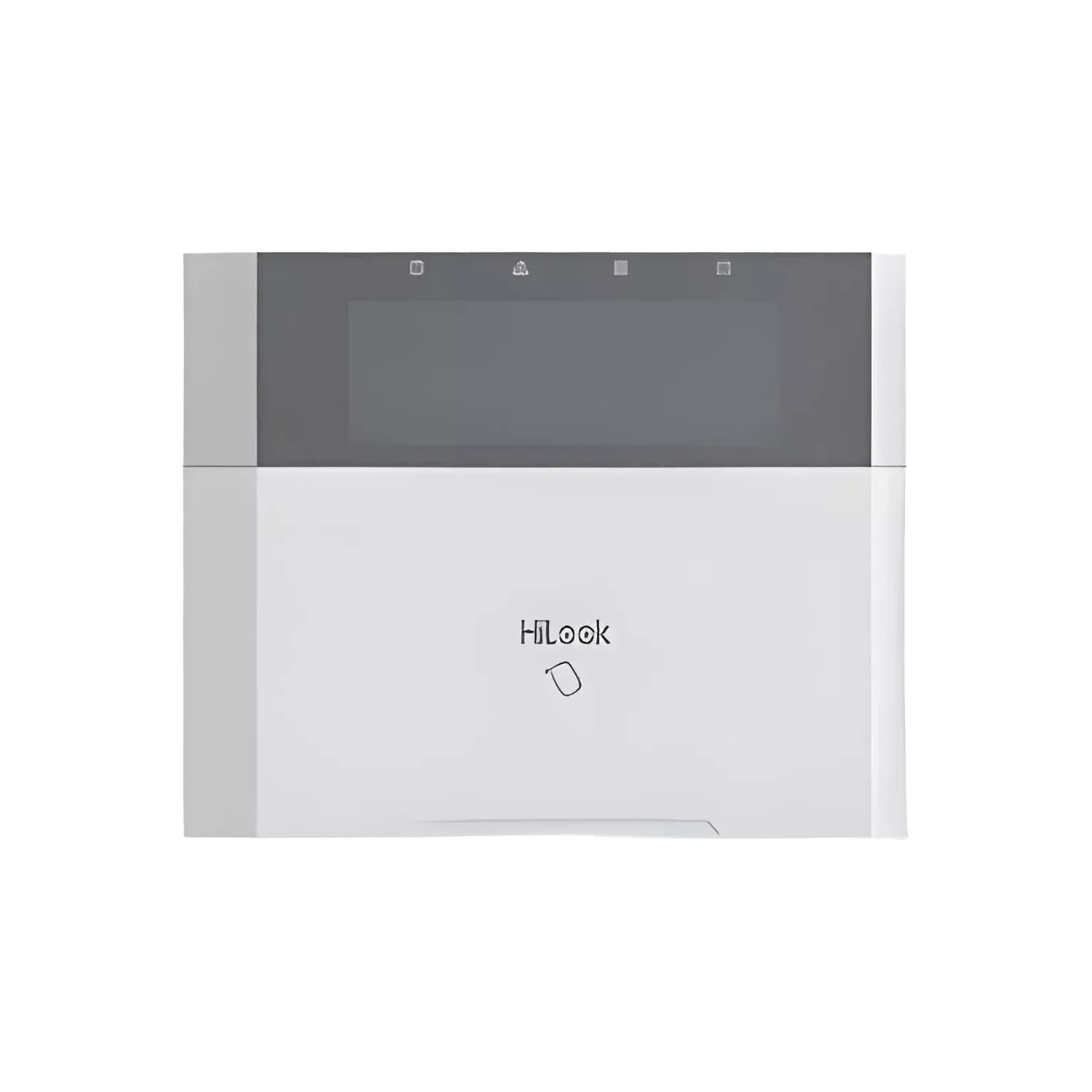

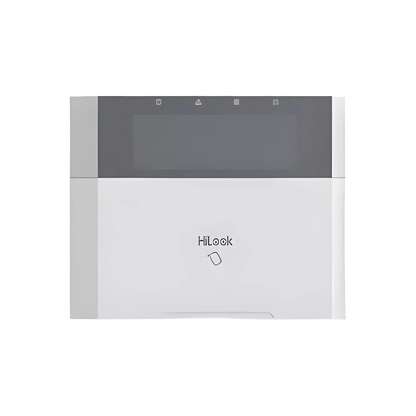

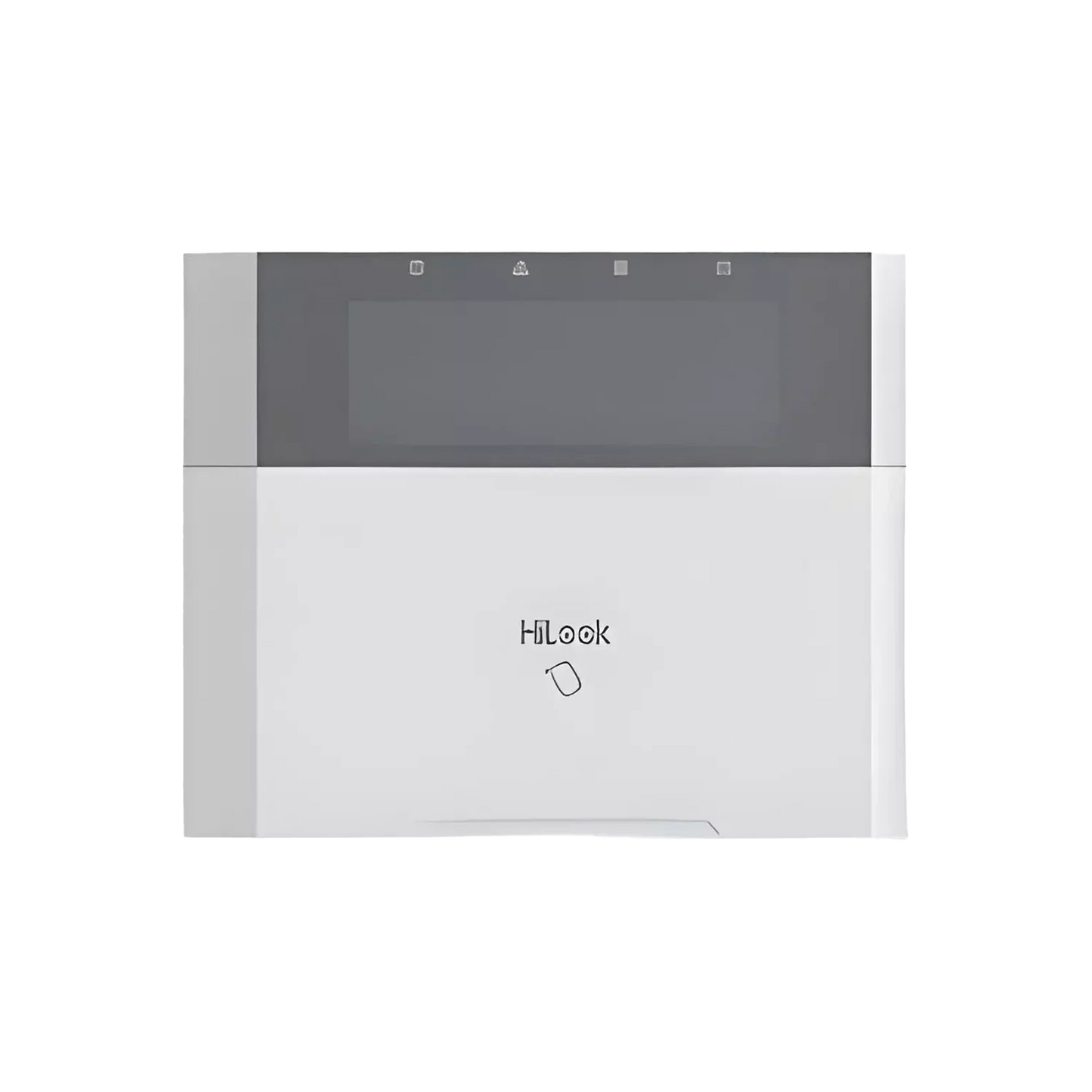

HiLook HA‑ALARM‑KP‑WB Wired Keypad with LCD, Tag Reader & Wireless Transceiver — AX Series for Hilook alarm

HiLook HA‑ALARM‑KP‑WB Wired Keypad with LCD, Tag Reader & Wireless Transceiver — AX Series for Hilook alarm

$118.32 AUD
$138.72 AUD $118.32 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The HiLook HA‑ALARM‑KP‑WB is a feature‑rich wired keypad designed for the AX Hybrid Pro control panels (DS‑PHA48‑EP, DS‑PHA64‑LP). Equipped with an LCD screen, built‑in 433 MHz wireless transceiver, and integrated tag reader, it allows fast and secure arming and disarming using tag or keyfob credentials. It also supports one‑touch arming, various emergency alarm keys (Fire, Medical, Panic), and provides onboard inputs and outputs for flexible alarm system integration.

What’s Included in the Box

Item Description
1 × HA‑ALARM‑KP‑WB Wired Keypad unit Includes LCD, wireless transceiver, and tag reader
Mounting hardware Screws, back‑plate etc. for wall installation
Wiring terminals / connectors For required power, RS‑485 / Bus wiring and alarm inputs/outputs
User / installation manual Instructions for wiring, operation, tamper settings

Main Features

  • LCD Screen Display – Shows time, system status, company name/phone number optionally.

  • One‑Touch Arm – Arm system without a password if configured.

  • Emergency Keys – Dedicated Fire, Panic, Medical alarm keys for urgent situations.

  • Built‑In Tag Reader & Wireless Transceiver (433 MHz) – Works with tags or keyfobs (up to 64) for arming/disarming.

  • Onboard Alarm I/O – 2 alarm inputs and 1 alarm output for local peripheral integration.

  • Tamper Protection – Back‑cover tamper switch to detect unauthorized opening.

  • Indicators & Backlight – Multiple LED indicators (Power, Armed, Fault, Alarm) and backlight for buttons.

Detailed Specifications

Specification Value
Model HA‑ALARM‑KP‑WB
Compatible Panels AX Hybrid Pro panels (DS‑PHA48‑EP, DS‑PHA64‑LP)
Power Supply 10.2‑14.4 V DC (typical 12 V DC)
Current Consumption Max ~150 mA at 12 V; Quiescent ~72 mA at 12 V
Wireless Frequency 433 MHz
Maximum Keyfobs / Tags Up to 64 user keyfobs/tags
Alarm Inputs 2 onboard alarm inputs
Alarm Output 1 onboard alarm output
Communication / Bus RS‑485 / “Speed‑X” bus ‑ TTL serial port also available
Hardware Features Built‑in tag reader, buzzer, tamper‑switch in back cover
Display / Buttons Numeric keys (0‑9, *, #), plus 8 function keys (Query, Away Arm, Stay Arm, Disarm, Alarm Output, Project, Left, Right)
Indicators Power (Green); Faults (Orange / flashing); Armed (Blue); Alarm (Red); Button backlight (White)
Dimensions (W × H × D) ~150 × 115 × 28 mm
Operating Temperature ‑10 °C to +55 °C
Operating Humidity 10 % to 90 % non‑condensing
Colour White

Warranty Information

Manufacturer warranty: 3 years. Covers defects in materials and workmanship under normal usage. Requires purchase from authorized supplier for warranty validity.

Datasheet

Brand Description

HiLook, part of the Hikvision family, offers versatile, reliable security system components designed to meet both residential and commercial needs. Products are supported by established technical infrastructure and designed for durability and ease of installation.

SKU / Product Code

HA‑ALARM‑KP‑WB

Practical Use Scenarios

Scenario Benefit / Why It’s Suitable
Home installations Allows family members to use tags or keyfobs for arming/disarming without remembering PINs; emergency keys for rapid response.
Small business / offices Staff can use tags; displays helps show system status; uses alarm inputs for local devices.
Multi‑user environments Supports up to 64 tags/keyfobs; can manage access without issuing full keypad credentials.
Alarm system upgrades Adds wireless & tag‑reader functionality; expands input/output options; integrates with AX Hybrid Pro panels.

Excellence for the Australian and New Zealand Market

  • Supplied via authorized HiLook / Hikvision distributors in Australia & New Zealand, ensuring genuine parts and support.

  • Warranty handled locally for faster service and less hassle.

  • Designed to withstand typical AU/NZ environmental conditions (‑10 °C to +55 °C, humidity up to ~90 %).

  • Power range and communication interfaces compatible with local safety & electrical installation standards.

FAQs

  1. What voltage does the HA‑ALARM‑KP‑WB require?
    SKU HA‑ALARM‑KP‑WB: It requires 10.2‑14.4 V DC (typically 12 V DC).

  2. How many tags or keyfobs can it support?
    SKU HA‑ALARM‑KP‑WB: Up to 64 keyfobs/tags can be used for arming/disarming.

  3. Does it have emergency alarm keys?
    SKU HA‑ALARM‑KP‑WB: Yes — Fire, Panic, and Medical emergency keys are built in.

  4. What happens if someone tampers with the device?
    SKU HA‑ALARM‑KP‑WB: It includes a back‑cover tamper switch that triggers an alert if opened improperly.

  5. Can the keypad display system status or company/phone number?
    SKU HA‑ALARM‑KP‑WB: Yes — it supports display of time, company name or phone number, and system status on the LCD screen.
