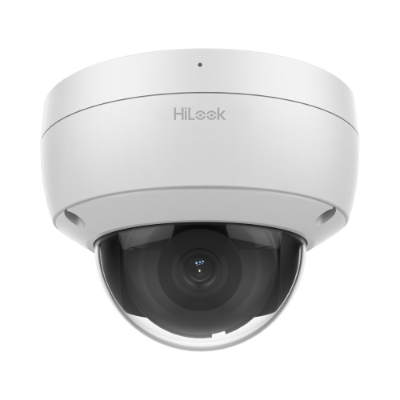

HiLook 8MP Outdoor Dome CCTV IP Camera IPC-D281H-MU

The HiLook IPC-D281H-MU is an 8MP fixed turret network camera designed for high-quality outdoor surveillance. This camera offers excellent imaging capabilities with a 2.8mm fixed lens, optimized by advanced features such as 120dB True WDR technology, which ensures clear visuals even in challenging lighting conditions. Built for durability, it boasts IP67 weatherproof and IK10 vandal-resistant ratings, making it ideal for outdoor applications.

Key Features:

• 8MP Resolution: Delivers sharp and detailed 3840 x 2160 resolution video for enhanced clarity.
• 120dB True WDR: Provides clear images in environments with high-contrast lighting, reducing glare and shadows.
• H.265+ Compression: Efficient video compression saves storage space and bandwidth without sacrificing quality.
• IR Night Vision: Equipped with IR LEDs for night vision up to 30 meters, ensuring round-the-clock security.
• Built-in Microphone: Enables real-time audio recording for enhanced situational awareness.
• IntelliSense Technology: Smart detection with deep learning for human and vehicle classification, reducing false alarms.
• Power over Ethernet (PoE): Simplifies installation by transmitting power and data through a single cable.

Specifications:

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Lens: 2.8mm fixed focal lens, providing a horizontal FOV of 107°, vertical FOV of 57°, and diagonal FOV of 128°
• IR Range: Up to 30 meters with 850nm wavelength IR LEDs
• Shutter Speed: 1/3s to 1/100,000s
• Video Compression: H.265/H.264/H.265+/H.264+/MJPEG
• Day/Night Mode: Automatic IR cut filter for seamless switching between day and night
• Audio Compression: G.711, G.722, MP3, AAC support with environmental noise filtering
• On-board Storage: Supports microSD/SDHC/SDXC cards up to 256GB
• Network Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, SNMP, and more

Build & Durability:

• Housing: Aluminum alloy body with a plastic bubble cover for the lens.
• Protection: Rated IP67 for water and dust resistance and IK10 for vandal protection.
• Operating Conditions: Temperature range from -30°C to 60°C, making it suitable for extreme weather environments.

Video & Audio Capabilities:

• Max Resolution: 3840 × 2160 @ 20 fps for crisp and smooth video playback.
• Audio: Includes a built-in microphone for real-time audio, supported by multiple compression formats (G.711, MP3, AAC, etc.).
• Multi-Stream: Supports three simultaneous video streams for flexible viewing and recording setups.

Installation & Management:

• Power: Can be powered via 12 VDC or PoE (802.3af), simplifying installation with fewer cables.
• Management Software: Compatible with HiLookVision, Hik-Connect, iVMS-4200, and Hik-Central for easy remote monitoring and system management on both PC and mobile devices.
• Security Features: Provides multi-level user access, HTTPS encryption, IP address filtering, and security audit logs for added protection.

What’s in the Box:

• HiLook 8MP Outdoor Dome Camera (IPC-D281H-MU)
• Installation screws and mounting hardware
• Quick Start Guide
• Waterproof connector
• Junction box (optional)

Datasheet:

Datasheet

Warranty:

Comes with a 3-year warranty, offering reliable support and peace of mind for users.

Ideal Uses:

Perfect for outdoor security in residential properties, small businesses, parking lots, and low-light environments where clear imaging and durability are paramount. The IntelliSense technology enhances detection accuracy, reducing false alarms and focusing on critical events.
