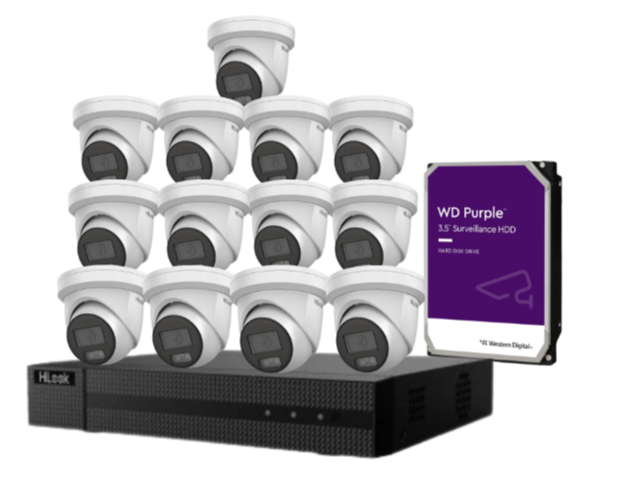

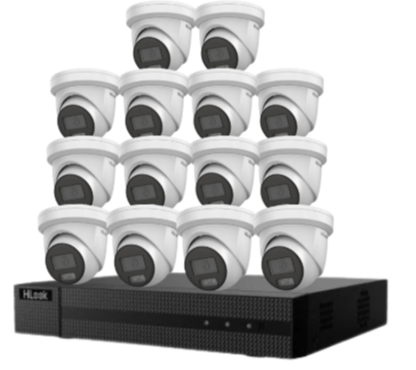

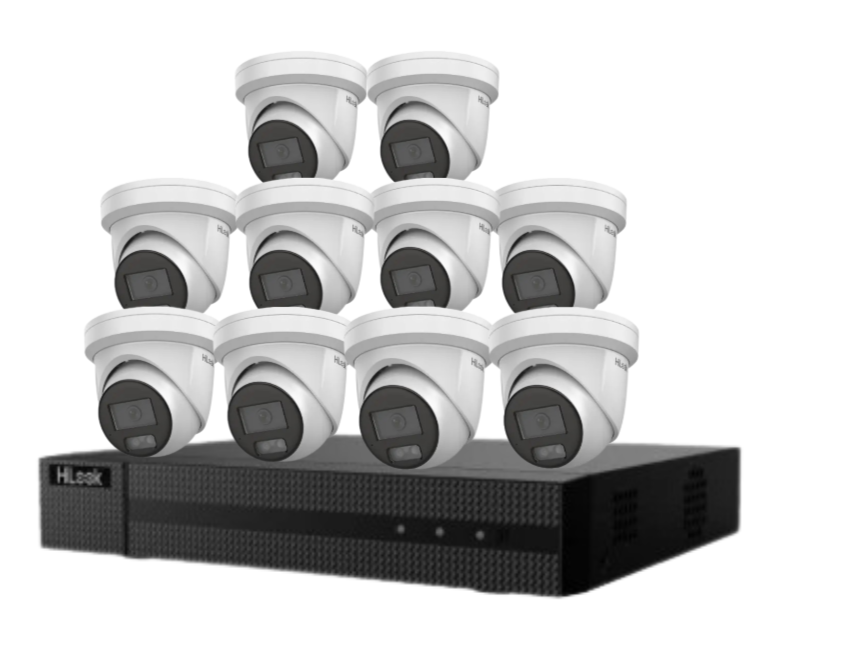

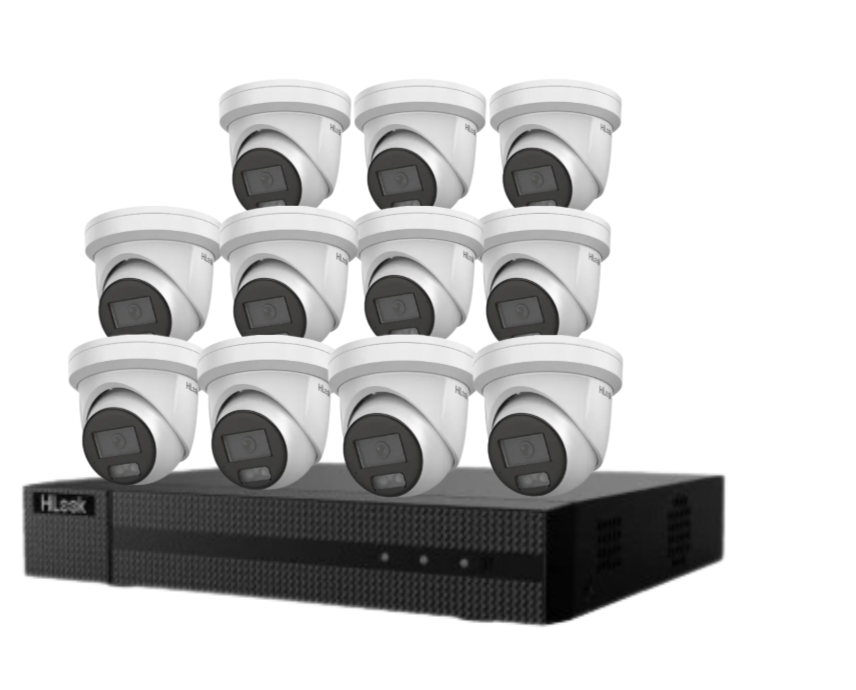

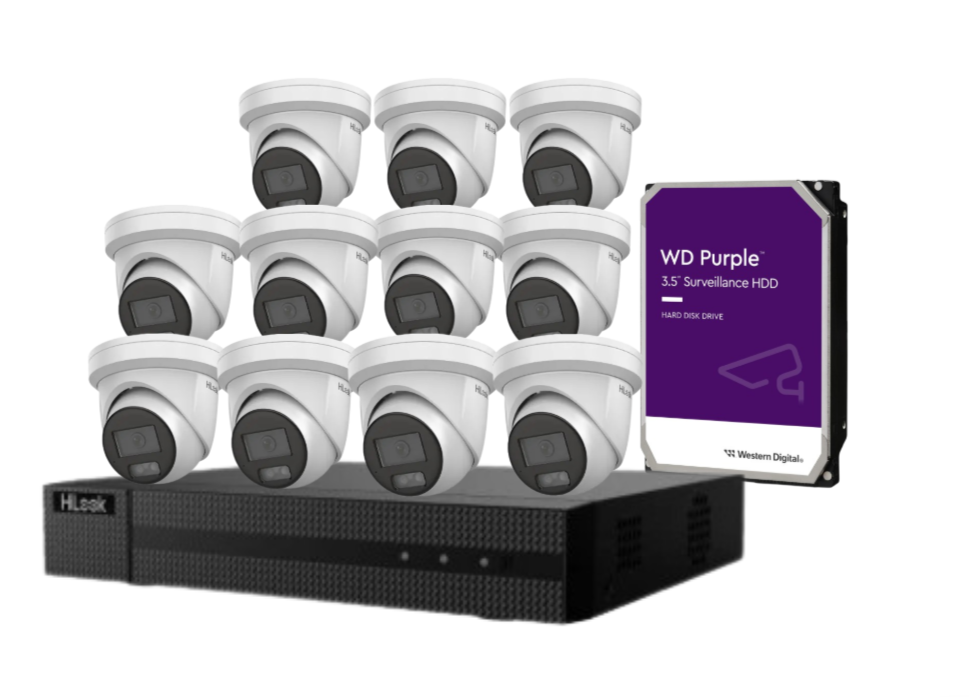

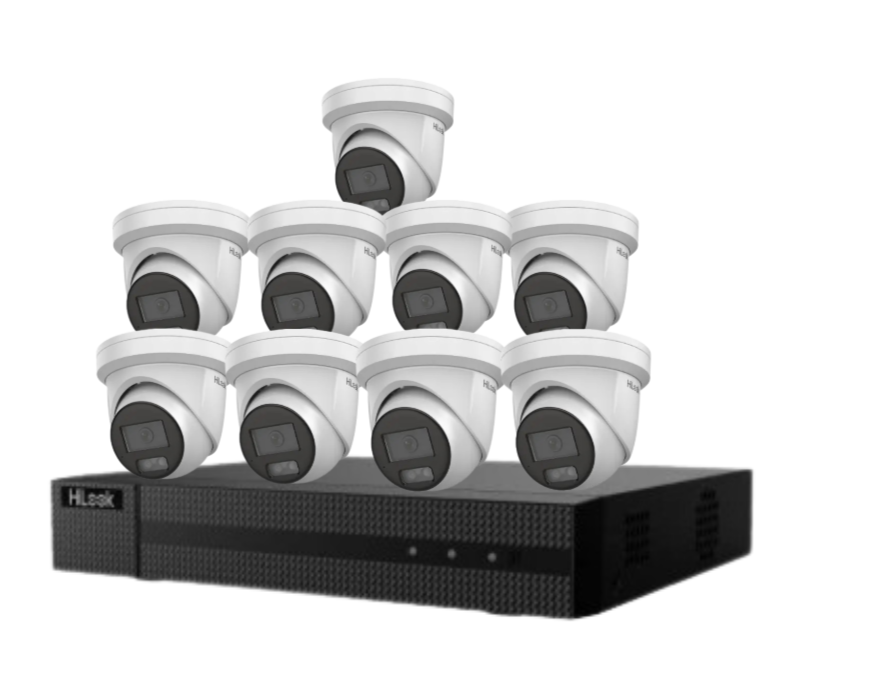

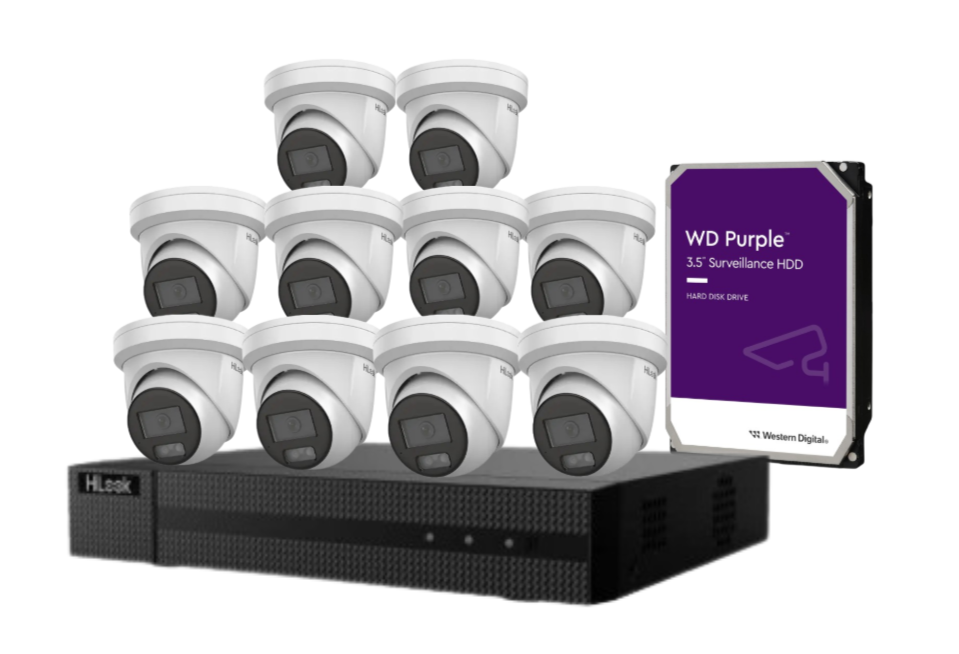

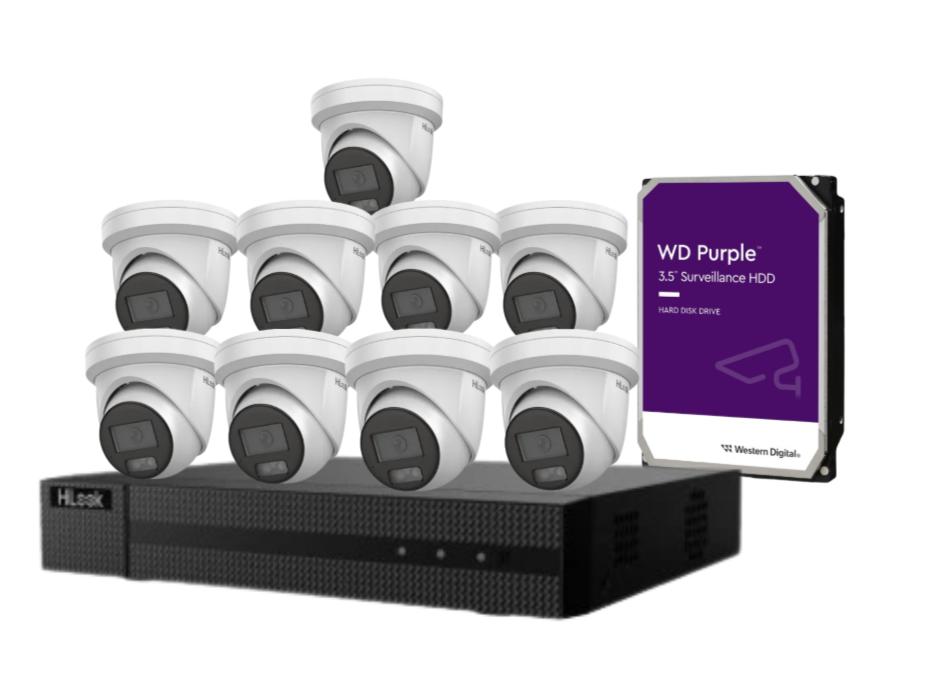

HiLook 16-Channel 6MP AI CCTV Kit with PoE NVR, HDD & Dual-Mic Turret Cameras – IPC-T361H-MU#AUS | Complete Surveillance System for Commercial & Residential Use

Empower your security infrastructure with the HiLook 16-Channel CCTV Kit, a professional-grade surveillance package featuring the powerful IPC-T361H-MU#AUS 6MP AI Fixed Turret Cameras and a robust HiLook NVR-216MH-C-16P PoE Network Video Recorder. Designed for scalability and high performance, this complete solution supports up to 16 cameras with synchronized high-resolution video and real-time audio capabilities.

The IPC-T361H-MU#AUS camera is engineered with advanced AI features like human and vehicle detection, dual built-in microphones for real-time audio monitoring, and 120 dB True WDR for clear imaging under challenging lighting. Paired with the HiLook 16ch C-Series NVR, which supports up to 8MP video input and includes 16 PoE ports, this kit offers a plug-and-play setup ideal for large homes, warehouses, retail stores, schools, and office buildings.

Designed for the modern Australian and New Zealand market, this system ensures compliance, longevity, and superior performance in all weather conditions.

What’s Included in the Box:

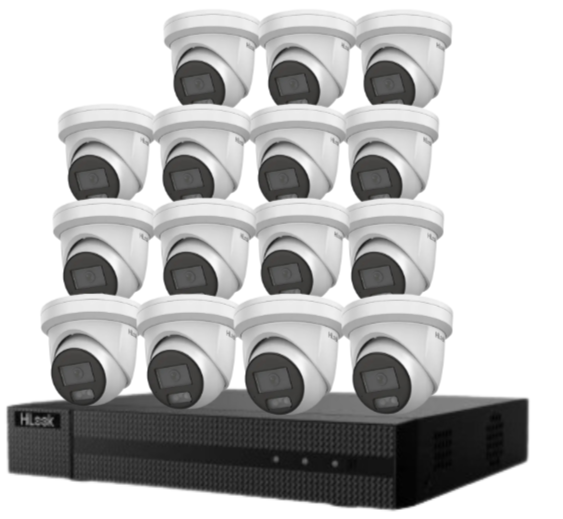

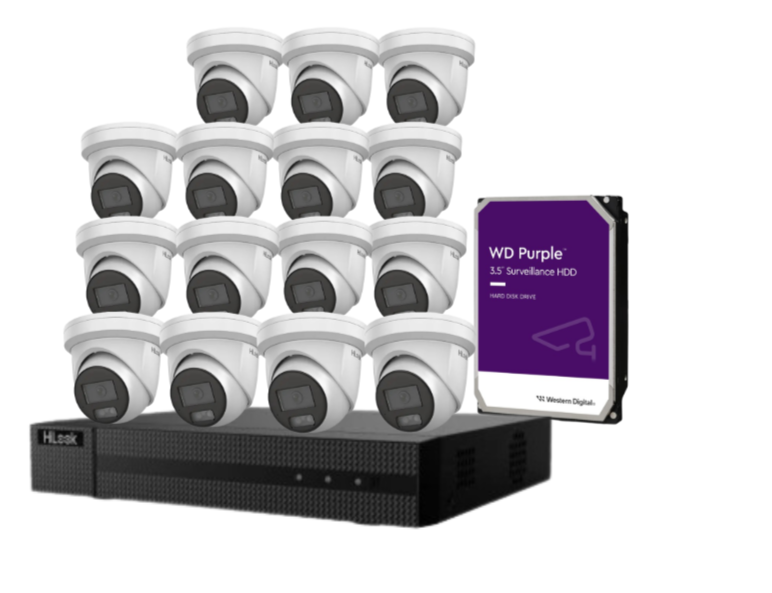

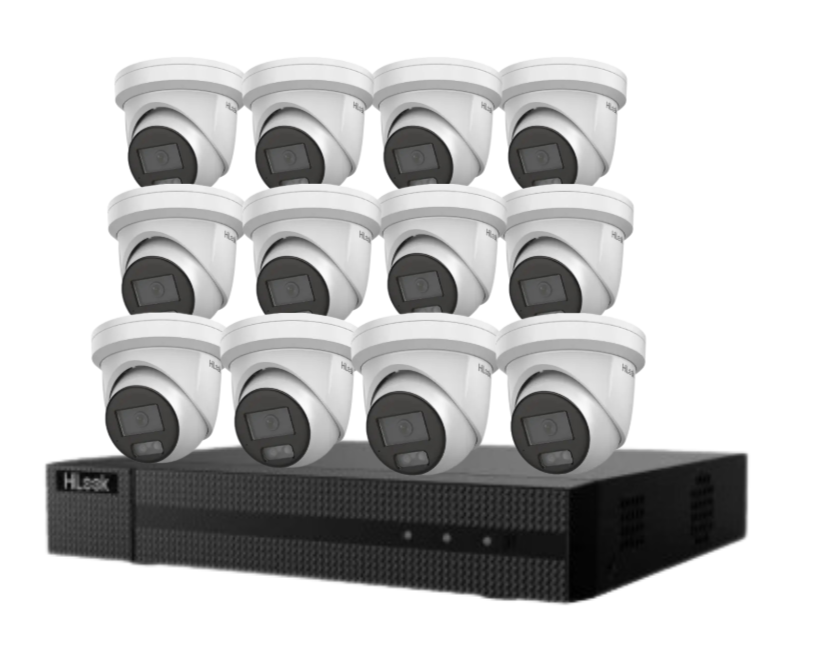

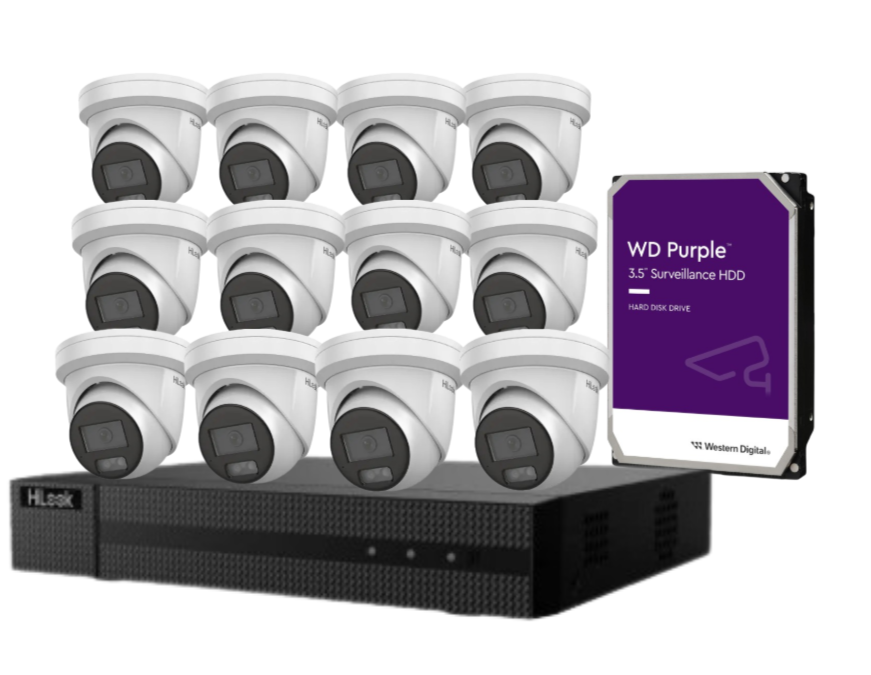

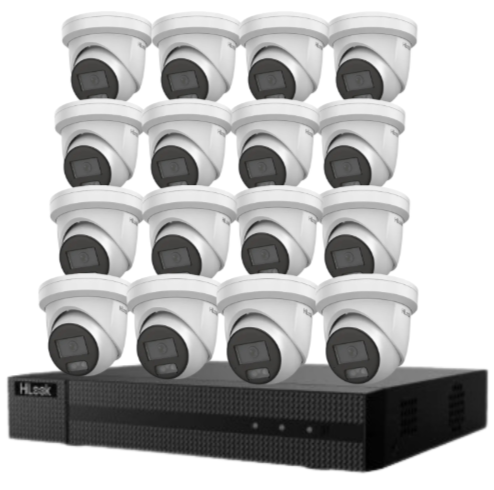

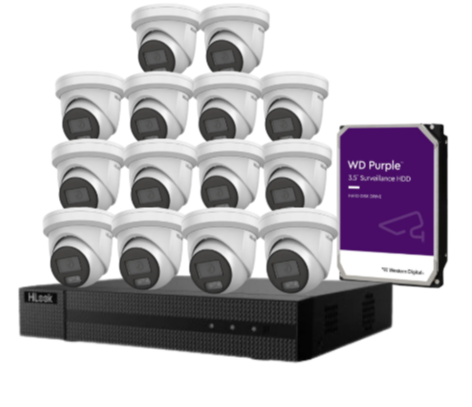

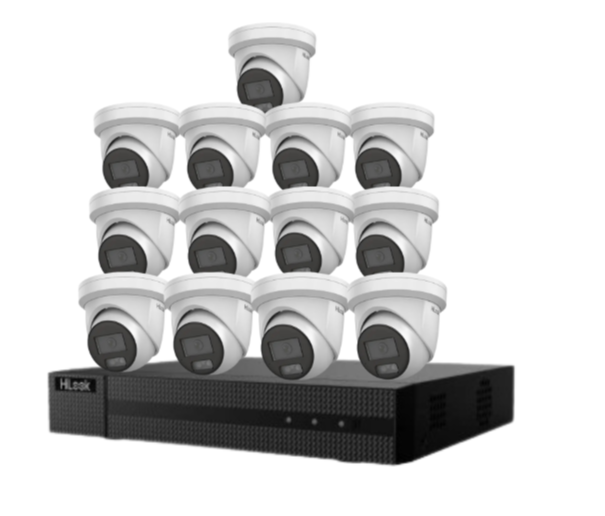

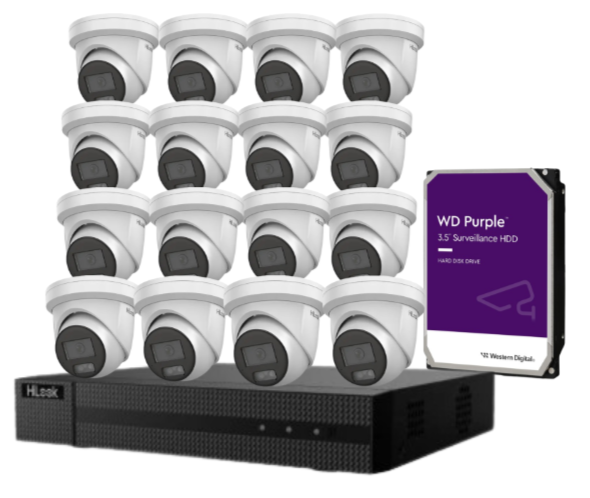

• Up to 16 × HiLook IPC-T361H-MU#AUS 6MP AI Fixed Turret Cameras

• 1 × HiLook NVR-216MH-C-16P 16 Channel PoE Network Video Recorder

• Hard disk drive (Choose your own HDD below)

• Mounting Templates & Screws


• Allen Keys

• Quick Start Guides for Cameras & NVR

• Power Supply Cables & Accessories

Main Features:

• High-Performance Imaging: 6MP CMOS sensor (3200×1800) for ultra-sharp footage

• AI-Powered Detection: Intelligent human/vehicle classification reduces false alerts

• Built-in Audio: Dual-microphone array delivers crystal-clear real-time audio

• Wide Dynamic Range: 120 dB True WDR handles high contrast lighting

• Night Vision: IR range up to 30m with Smart IR for detailed night imaging

• Wide Angle Views: Choose from 2.8mm (105°) or 4mm (78°) lens options

• Weather-Ready: IP67-rated metal housing for durability in outdoor use

• Efficient Video Compression: H.265+/H.264+ formats minimize storage use

• Multi-Stream Output: Optimized video delivery across platforms

• Plug & Play with PoE: Easy setup using Power over Ethernet connections

NVR Key Specifications – HiLook NVR-216MH-C-16P:

• Input: 16 IP camera channels, up to 8MP each

• Output: HDMI (4K@30Hz), VGA (1080p), RCA audio output

• Decoding Capability: 8MP/6MP/4MP/1080p with support for H.265+/H.264+

• PoE Ports: 16 × PoE interfaces (IEEE 802.3af/at)

• Bandwidth: 160 Mbps incoming, 80 Mbps outgoing

• Storage: 2 × SATA interfaces (supports 6TB each)

• Playback: 8-channel synchronous playback

• Form Factor: 1U compact design

Detailed Camera Specifications (IPC-T361H-MU#AUS):

• Sensor: 1/2.4" Progressive Scan CMOS

• Lens: 2.8mm or 4mm, F1.6 fixed focal

• Low Light Sensitivity: 0.005 Lux (Color), 0 Lux with IR

• IR Distance: Up to 30 meters

• Audio Codecs: G.711, AAC-LC, MP3, etc.

• Power Supply: 12V DC or PoE (802.3af, Max 9.5W)

• Dimensions: Ø127.3 × 96.3 mm

• Weight: 515g

• Certifications: CE, RCM, IP67, RoHS

Warranty Information:
All components in the HiLook 16-camera CCTV Kit are backed by the manufacturer’s warranty:

• Cameras: 3-Year Warranty

• NVR: 2-Year Warranty
  Warranty claims can be handled via authorized HiLook or Hikvision representatives in Australia and New Zealand.

About HiLook:
HiLook by Hikvision offers reliable, cost-effective security solutions tailored for entry-level applications. With seamless integration across Hikvision platforms, HiLook products are widely recognized for their quality, versatility, and user-friendly operation.

SKU:
IPC-T361H-MU#AUS-KIT-16CH

Practical Use Scenarios:

• Large Residential Homes: Cover driveways, backyards, and entrances with real-time alerts and audio.

• Retail Stores & Malls: Monitor foot traffic, detect suspicious behavior, and prevent theft.

• Corporate Offices: Secure entry points and common areas with HD audio/video recording.

• Warehouses & Industrial Zones: Durable outdoor coverage with IP67 weatherproof rating.

• Educational Facilities: Keep hallways, courtyards, and gates under watchful AI-enhanced surveillance.

Datasheets & Downloads:

• [Download IPC-T361H-MU#AUS Camera Datasheet (PDF)]

• [Download NVR-216MH-C-16P NVR Datasheet (PDF)]

Excellence for the Australian and New Zealand Market

The HiLook 16-Channel CCTV Kit is purpose-built for deployment in Australia and New Zealand, meeting RCM compliance (AS/NZS CISPR 32:2015) and other local standards. All equipment is sourced from authorized Australian distributors, ensuring product authenticity, reliability, and access to local support. This system aligns with NDSS, RoHS, and WEEE environmental and safety certifications, reflecting both performance excellence and sustainability. Warranty claims are efficiently handled within the region, minimizing downtime.

FAQs – HiLook IPC-T361H-MU#AUS-KIT-16CH

Q1: Can the IPC-T361H-MU#AUS-KIT-16CH record both audio and video?
A1: Yes, each IPC-T361H-MU#AUS camera features built-in dual microphones for synchronized audio and video recording.

Q2: Is the IPC-T361H-MU#AUS-KIT-16CH suitable for outdoor use in Australian weather?
A2: Absolutely. With its IP67-rated cameras, the IPC-T361H-MU#AUS-KIT-16CH is designed to withstand dust, rain, and extreme temperatures.

Q3: What storage options are included in the IPC-T361H-MU#AUS-KIT-16CH?
A3: The kit includes a pre-installed HDD (customizable capacity) and supports up to 12TB of storage across two drives via the NVR-216MH-C-16P.

Q4: How does the AI detection work in the IPC-T361H-MU#AUS-KIT-16CH?
A4: Each camera in the IPC-T361H-MU#AUS-KIT-16CH uses deep learning to identify and differentiate humans and vehicles, reducing false alarms.

Q5: Can the IPC-T361H-MU#AUS-KIT-16CH be monitored remotely?
A5: Yes, the NVR supports remote viewing via Hik-Connect, iVMS-4200, and web browsers, allowing real-time monitoring from anywhere.
