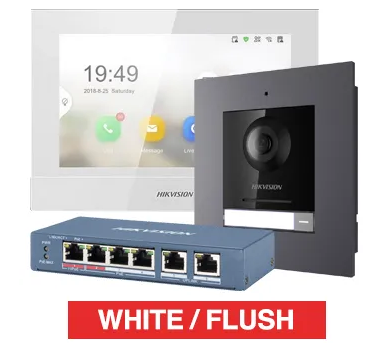

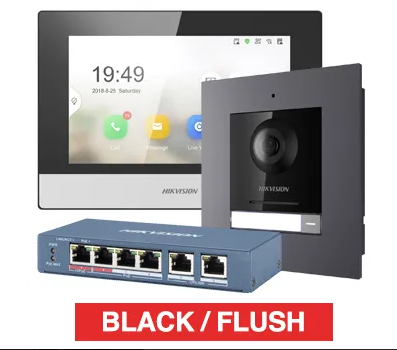

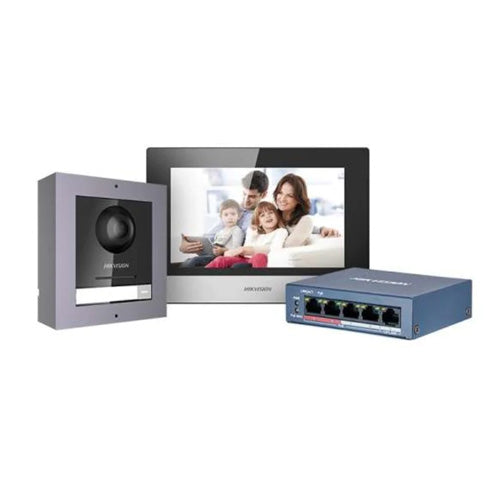

HIKVISION IP Intercom Kit Includes (1x DS-KH6320-WTE1 7" room station, 1x DS-KD8003-IME1 door station module, 1x DS-KD-ACF1/PLASTIC flush mount backbox/frame & 1x DS-3E0106HP-E POE switch)

Enhance your security and communication with the HIKVISION IP Intercom Kit. This advanced kit includes:

• 1 x DS-KH6320-WTE1 7" Room Station
• 1 x DS-KD8003-IME1 Door Station Module
• 1 x DS-KD-ACF1/PLASTIC Flush Mount Backbox/Frame
• 1 x DS-3E0106HP-E PoE Switch

Key Features:

New UI V2.0:

• User-friendly design for an intuitive experience.

7-inch Colorful Touch Screen:

• High-resolution display (1024 × 600) for clear visuals and easy navigation.

Standard PoE:

• Simplifies installation with Power over Ethernet support.

Message and Picture Storage:

• Stores messages and captures pictures in the TF card for easy access and retrieval.

Remote Unlocking:

• Unlock doors remotely via client software or mobile client for added convenience.

Live Video Viewing:

• View live videos from door stations and linked cameras for real-time monitoring.

Wireless Network Support:

• Connects to your network wirelessly for a seamless setup.

Typical Applications:

• Residential buildings
• Commercial properties
• Office complexes

Approvals and Certifications:

• CE-EMC: EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011 +A1:2014
• CE-LVD: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• CE-RED: EN 201 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 300 328 V2.1.1, EN 62311:2008
• CB: IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
• FCC: 47 CFR Part 15, Subpart B
• CTICK(EMC): AS/NZS CISPR 32:2015
• C-TICK(RF): AS/NZS 4268:2017
• UL: UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07
• IC: ICES-003: Issue 6, RSS-247 Issue 2, February 2017, RSS-Gen Issue 5, April 2018
• ROHS: 2011/65/EU
• REACH: Regulation (EC) No 1907/2006
• WEEE: 2012/19/EU

Specifications:

System Parameters:

• Memory: 128 MB
• Flash: 32 MB
• Operating System: Embedded Linux

Display Parameters:

• Screen: 7-inch colorful TFT
• Resolution: 1024 × 600
• Operation Method: Capacitive touch screen

Audio Parameters:

• Input: Built-in omnidirectional microphone
• Output: Built-in loudspeaker
• Compression Standard: G.711 U
• Compression Rate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation

Network Parameters:

• Wired Network: 10/100 Mbps self-adaptive
• Wireless Network: Wi-Fi 802.11 b/g/n
• Protocol: TCP/IP, SIP, RTSP
• Interface: 1 RJ-45 10/100 Mbps self-adaptive

General:

• Power Supply: IEEE802.3af, standard PoE; 12 VDC/1 A
• Power Consumption: ≤ 6 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimensions: 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Weight: 683 g (with packaging), 355 g (without packaging)

The HIKVISION IP Intercom Kit offers a robust and user-friendly solution for secure and efficient communication in any setting.

Datasheets

Datasheet

Warranty

We offer 3 Years warranty
