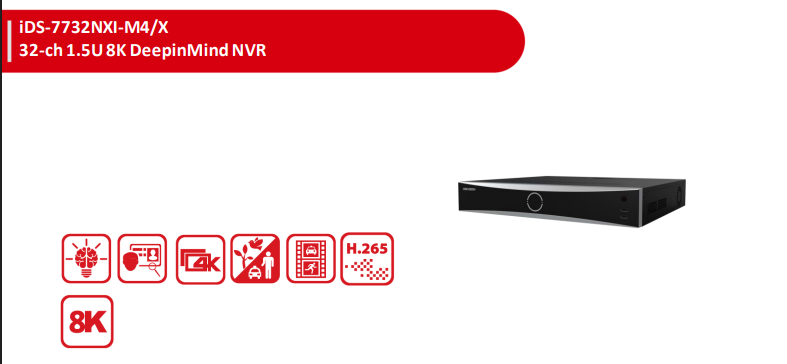

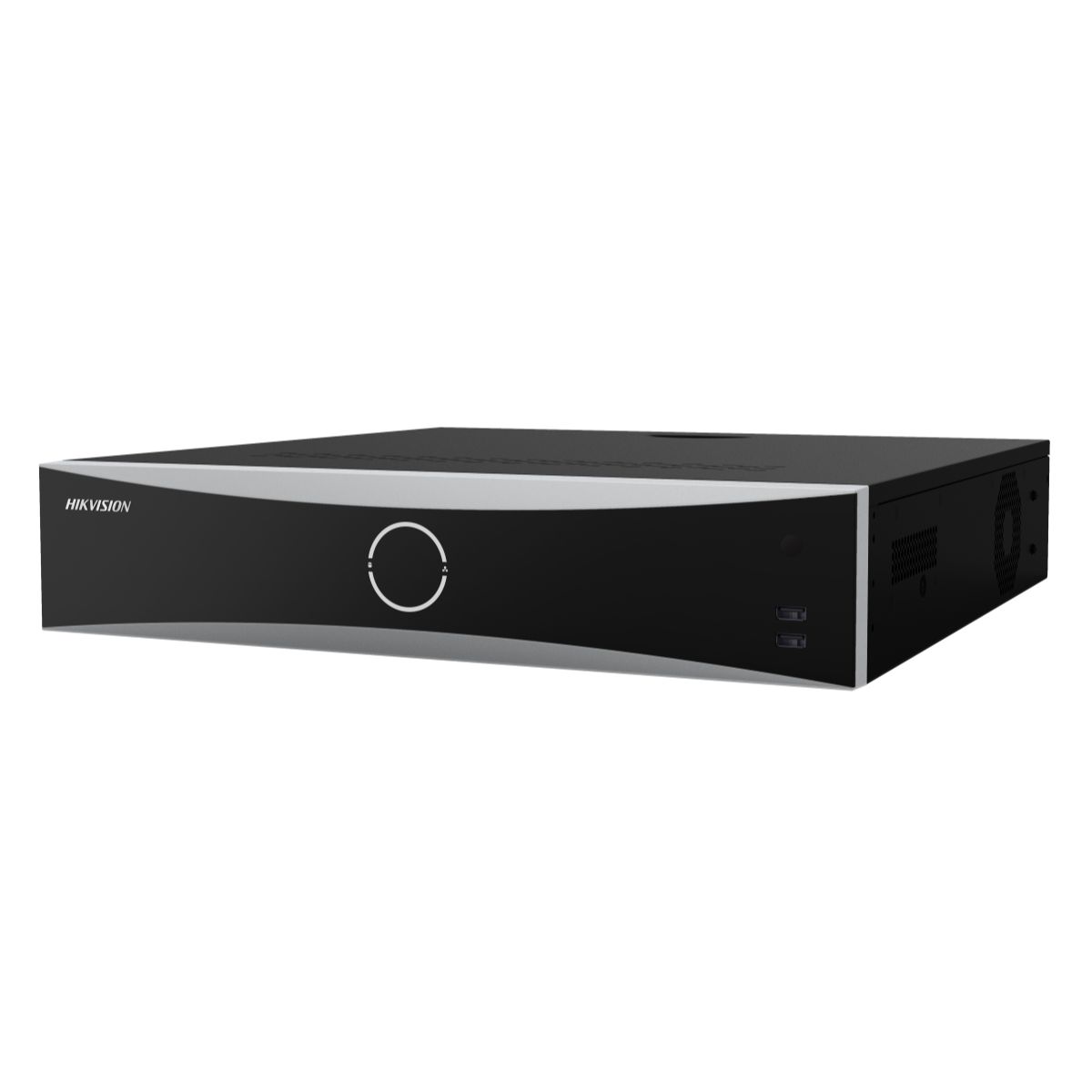

Hikvision iDS-7732NXI-M4/X 32-Channel 8K DeepinMind AI Network Video Recorder (NVR)

The Hikvision iDS-7732NXI-M4/X is a powerful enterprise-grade 32-channel DeepinMind Network Video Recorder engineered for advanced AI surveillance environments. Featuring deep learning-powered facial recognition, perimeter protection, video structuralization, AcuSearch technology, ANPR compatibility, and support for up to 32MP IP cameras, this intelligent NVR provides exceptional security monitoring and forensic search capabilities. With dual HDMI outputs supporting up to 8K resolution, 320 Mbps incoming bandwidth, four SATA storage bays, and support for up to 32 cameras, the iDS-7732NXI-M4/X is ideal for large-scale commercial, government, transport, education, healthcare, retail, and industrial security deployments.

Built with Hikvision's advanced DeepinMind technology, the recorder delivers highly accurate video analytics, faster incident investigations, intelligent event detection, and improved operational efficiency. Its support for H.265+ compression significantly reduces storage requirements while maintaining outstanding video quality.

What's Included in the Box

• 1 × Hikvision iDS-7732NXI-M4/X DeepinMind NVR
• 1 × Power Cable
• 1 × Quick Start Guide
• Rack Mounting Accessories
• Installation Documentation

Hard drives sold separately unless otherwise specified.

Main Features

Advanced Deep Learning AI Analytics

• DeepinMind AI-powered surveillance platform
• Up to 24 channels of perimeter protection
• Up to 16 channels facial recognition for live video streams
• Up to 32 channels facial recognition from face pictures
• Up to 12 channels video structuralization
• AcuSearch intelligent target retrieval
• Motion Detection 2.0 support
• People counting integration
• ANPR (Automatic Number Plate Recognition) support
• Vehicle and license plate attribute recognition

High-Performance Video Processing

• Supports up to 32 IP cameras
• Camera resolutions up to 32MP
• Up to 320 Mbps incoming bandwidth
• Up to 400 Mbps outgoing bandwidth
• H.265+, H.265, H.264+, H.264 video compression
• Dual-stream recording for bandwidth optimisation

8K Ultra HD Video Output

• HDMI 1 output up to 8K (7680 × 4320)
• HDMI 2 output up to 4K resolution
• Independent dual HDMI outputs
• Simultaneous HDMI and VGA operation
• VGA output up to 1080p

Powerful Decoding Performance

• 2-channel decoding at 32MP
• 2-channel decoding at 24MP
• 4-channel decoding at 16MP
• 8-channel decoding at 8MP
• 16-channel decoding at 4MP
• 32-channel decoding at 1080p

Enterprise Storage Capabilities

• 4 × SATA HDD interfaces
• Up to 16TB per HDD
• Maximum storage capacity up to 64TB
• 1 × eSATA expansion interface
• 16-channel synchronous playback

Security & Reliability

• Stream encryption via TLS
• Playback and download double verification
• Secure HTTPS web access
• Dual Gigabit Ethernet ports
• Hik-Connect remote access support
• DDNS support for remote management

Detailed Specifications

Model

• Product Code: iDS-7732NXI-M4/X
• Device Type: DeepinMind AI Network Video Recorder

Video Inputs

• IP Camera Inputs: 32 Channels
• Maximum Camera Resolution: 32MP
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 400 Mbps

AI Functions

Facial Recognition

• Live Stream Recognition: Up to 16 Channels
• Face Picture Recognition: Up to 32 Channels
• Face Libraries: Up to 16
• List Library Capacity: 100,000 Faces
• Stranger Library Capacity: 10,000 Faces
• Face Capture Storage: Up to 5,000,000 Images

Perimeter Protection

• Up to 24 Channels at 2MP
• Up to 16 Channels at 4MP
• Up to 8 Channels at 8MP

Video Structuralization

• Up to 12 Channels at 2MP
• Up to 8 Channels at 4MP
• Up to 4 Channels at 8MP

Video Outputs

HDMI 1

• 8K (7680 × 4320) @ 30Hz
• 4K (3840 × 2160) @ 60Hz

HDMI 2

• 4K (3840 × 2160) @ 60Hz

VGA

• 1920 × 1080 @ 60Hz

Audio

• Audio Output: 1 × RCA
• Two-Way Audio: 1 × RCA

Storage

• SATA Bays: 4
• eSATA Ports: 1
• Maximum HDD Capacity: 16TB per Drive

Networking

• Ethernet Ports: 2 × Gigabit RJ45
• Remote Connections: Up to 128 Users

Supported Protocols

• TCP/IP
• DHCP
• IPv4 / IPv6
• DNS
• DDNS
• RTSP
• NTP
• SMTP
• SNMP
• NFS
• iSCSI
• ISUP
• UPnP
• HTTP / HTTPS
• ONVIF

Interfaces

• 2 × USB 2.0 (Front)
• 1 × USB 3.0 (Rear)
• 1 × RS-232
• 1 × RS-485
• 16 Alarm Inputs
• 4 Alarm Outputs
• 1 × CVBS Output

Environmental

• Operating Temperature: -10°C to 55°C
• Operating Humidity: 10% to 90%

Physical Specifications

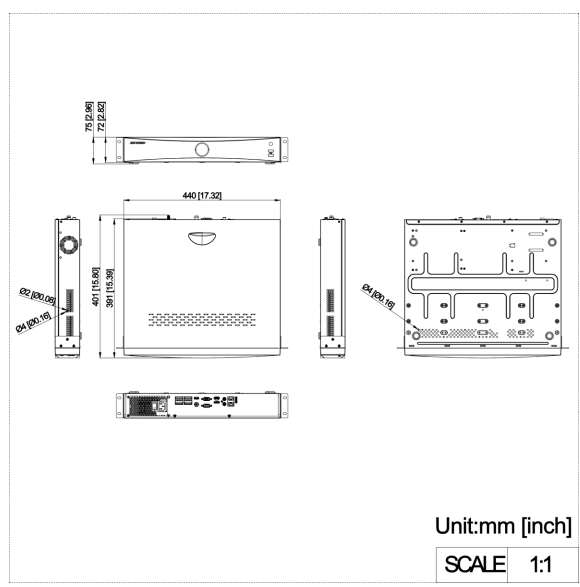

• Dimensions: 445 × 400 × 71 mm
• Weight: ≤ 5 kg (Without HDD)

Power

• Input Voltage: 100–240VAC
• Frequency: 50–60Hz
• Power Consumption: ≤ 50W (Without HDD)

Certifications

• RCM
• CE
• FCC
• IC
• CB
• KC
• UL
• RoHS
• REACH
• WEEE
• UKCA
• BIS
• LOA

Warranty Information

• Manufacturer: Hikvision
• Warranty Coverage: 3-year Manufacturer Warranty
• Warranty claims and support are handled in accordance with Hikvision's warranty policies.
• Contact the product supplier or Hikvision support for warranty assistance.

About Hikvision

Hikvision is one of the world's leading providers of video surveillance products and AI-powered security solutions. The company develops advanced CCTV cameras, NVRs, AI analytics platforms, access control systems, and integrated security technologies used across commercial, industrial, government, healthcare, education, retail, and critical infrastructure sectors worldwide.

SKU

SKU: IDS-7732NXI-M4-X

Practical Use Scenarios

Commercial Facilities

Ideal for shopping centres, office buildings, corporate campuses, and retail chains requiring advanced facial recognition and perimeter protection.

Industrial Sites

Provides intelligent monitoring for warehouses, logistics centres, manufacturing facilities, and distribution hubs.

Government & Critical Infrastructure

Suitable for airports, transport hubs, utilities, councils, and public infrastructure requiring enterprise-grade AI surveillance.

Education & Healthcare

Supports schools, universities, hospitals, and healthcare campuses with advanced security analytics and incident investigation capabilities.

Large Multi-Site Security Operations

Centralised monitoring with support for 32 IP cameras and advanced AI event management.

Datasheets & Resources

• Product Datasheet

Excellence for the Australian and New Zealand Market

The Hikvision iDS-7732NXI-M4/X has been designed to meet the demanding surveillance requirements of commercial and enterprise environments throughout Australia and New Zealand. With RCM certification, support for advanced cybersecurity features including TLS encryption, and compatibility with modern IP surveillance infrastructure, it is well suited for local compliance and operational requirements.

Products supplied through authorised distribution channels ensure genuine hardware, firmware integrity, access to manufacturer support resources, and eligibility for warranty services. The recorder's enterprise-grade storage capabilities, AI analytics, and support for high-resolution cameras make it an excellent solution for Australian and New Zealand businesses seeking reliable long-term surveillance performance.

FAQs

What is the maximum number of cameras supported by the Hikvision iDS-7732NXI-M4/X?

The Hikvision iDS-7732NXI-M4/X supports up to 32 IP cameras with resolutions up to 32MP.

Does the Hikvision iDS-7732NXI-M4/X support facial recognition?

Yes. The Hikvision iDS-7732NXI-M4/X supports up to 16-channel facial recognition for live video streams and up to 32-channel facial recognition using face picture comparison.

What AI analytics are available on the Hikvision iDS-7732NXI-M4/X?

The Hikvision iDS-7732NXI-M4/X supports facial recognition, perimeter protection, video structuralization, AcuSearch, ANPR integration, people counting, and advanced video content analytics.

Does the Hikvision iDS-7732NXI-M4/X support 8K video output?

Yes. HDMI 1 on the Hikvision iDS-7732NXI-M4/X supports up to 8K resolution at 30Hz.

How much storage can the Hikvision iDS-7732NXI-M4/X support?

The Hikvision iDS-7732NXI-M4/X includes four SATA bays supporting up to 16TB per HDD, allowing a maximum installed storage capacity of up to 64TB.

Is the Hikvision iDS-7732NXI-M4/X suitable for ANPR applications?

Yes. The Hikvision iDS-7732NXI-M4/X supports ANPR-enabled cameras and can identify vehicle attributes, plate numbers, plate colours, and vehicle types.

Does the Hikvision iDS-7732NXI-M4/X support remote access?

Yes. The Hikvision iDS-7732NXI-M4/X supports Hik-Connect, DDNS, HTTPS access, and remote monitoring for authorised users.

What compression formats are supported by the Hikvision iDS-7732NXI-M4/X?

The Hikvision iDS-7732NXI-M4/X supports H.265+, H.265, H.264+, and H.264 video compression formats.

Can the Hikvision iDS-7732NXI-M4/X be used in enterprise security environments?

Absolutely. The Hikvision iDS-7732NXI-M4/X is specifically designed for enterprise, government, industrial, retail, healthcare, and critical infrastructure surveillance deployments.

Does the Hikvision iDS-7732NXI-M4/X support dual network interfaces?

Yes. The Hikvision iDS-7732NXI-M4/X includes dual Gigabit Ethernet ports for enhanced network performance and redundancy.
