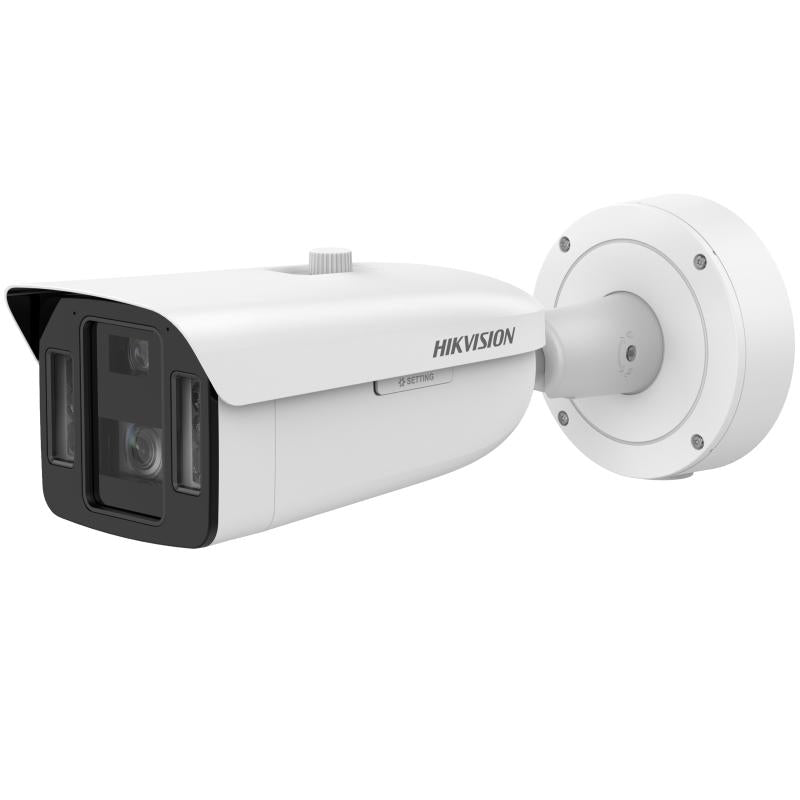

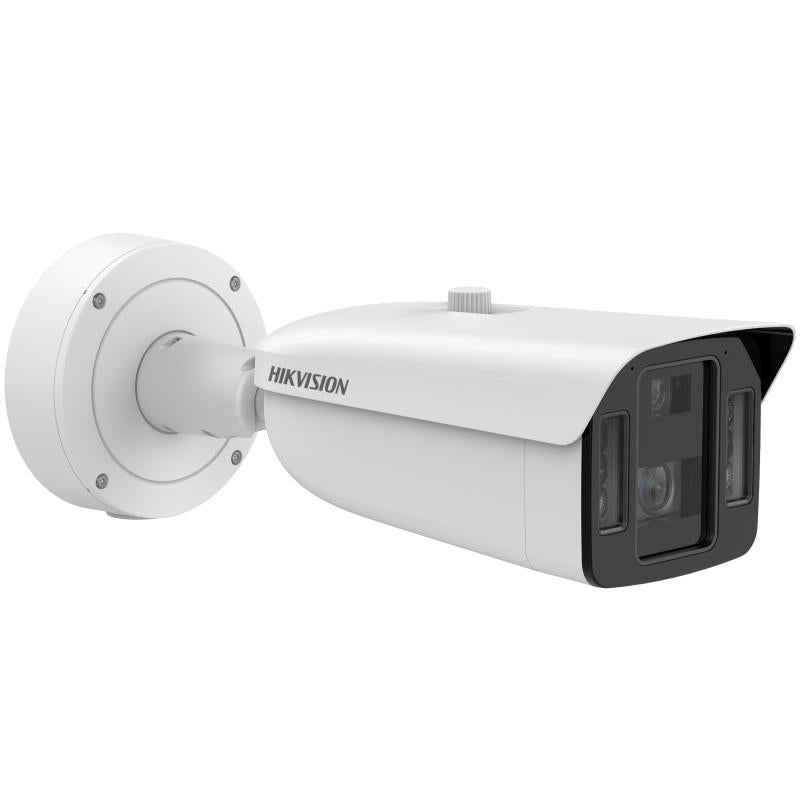

Hikvision iDS-2CD8A46G0-XZ(H)S(Y) - 4MP DeepinView Multi-Sensor Bullet CCTV Camera ColorVu

Overview: Experience unparalleled security with the Hikvision iDS-2CD8A46G0-XZ(H)S(Y) 4MP DeepinView Multi-Sensor Bullet Camera. Engineered for versatility and reliability, this camera integrates cutting-edge technology with robust construction, ensuring high-quality surveillance for any environment.

Key Specifications:

• Image Sensor:

  • Dual-channel design with 1/1.8" Progressive Scan CMOS for enhanced detail capture.
  • Max. Resolution: Channel 1: 2688 × 1520, Channel 2: 2560 × 1440.

• Illumination:

  • Min. Illumination:
    • Channel 1: Color: 0.0005 Lux, B/W: 0.0001 Lux.
    • Channel 2: Color: 0.0003 Lux, B/W: 0.0001 Lux.
  • Supplement Light: Hybrid (IR and White Light) with ranges of up to 100 m (Channel 1) and 30 m (Channel 2).

• Video Performance:

  • 50/60 fps at various resolutions (e.g., 2688 × 1520, 2560 × 1440).
  • H.265+ compression technology to optimize bandwidth and storage efficiency.
  • Multiple streams (5 in total) to cater to diverse application requirements.

• Wide Dynamic Range: 140 dB WDR for clear imaging in challenging lighting conditions.

• Environmental Protection:

  • IP67 rating (water and dust resistant).
  • IK10 rating (vandal-proof).

Advanced Features:

• Face Capture and Recognition:

  • Advanced algorithms provide precise face detection and high-quality capture, with the ability to adjust exposure dynamically for optimal results.

• Perimeter Protection:

  • Features embedded deep learning algorithms for reliable line crossing and intrusion detection, minimizing false alarms triggered by non-threatening movements.

• Multi-Target Recognition:

  • Simultaneous detection of human bodies, vehicles, and facial features within designated areas.

• Road Traffic and Vehicle Detection:

  • Efficient license plate capture and recognition with a high accuracy rate of ≥98%, including support for motorcycles.

Applications: Ideal for both indoor and outdoor settings such as:

• Retail and commercial environments.
• Public spaces for safety monitoring.
• Critical infrastructure sites requiring robust surveillance.

Warranty:

• The iDS-2CD8A46G0-XZ(H)S(Y) comes with a 3-year comprehensive warranty, providing peace of mind regarding its reliability and performance. Warranty details are subject to the terms set by the manufacturer.

Installation and Compatibility:

• Power Supply: Options for 12 VDC, 24 VAC, and PoE (IEEE 802.3at).
• Compatible with Hikvision's iVMS-4200 and Hik-Connect applications for easy access and management.

Dimensions & Weight:

• Camera Dimensions: Ø 140 mm × 410.1 mm (Ø 5.5" × 16.1").
• Weight: Approx. 2.2 kg (4.85 lb); with package weight approximately 3.38 kg (7.45 lb).

Operating Conditions:

• Start-up and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F).
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F), with humidity levels of 95% or less (non-condensing).

Conclusion: The Hikvision iDS-2CD8A46G0-XZ(H)S(Y) 4MP DeepinView Multi-Sensor Bullet Camera is a top-tier security solution that combines advanced imaging technology with robust features. Perfect for various applications, it ensures high-quality surveillance while meeting rigorous environmental and operational standards.
