Deploy high-accuracy ANPR/LPR for vehicles and motorcycles with the Hikvision iDS-2CD7A46G2/P-IZHS(Y) 4MP DeepinView motorised varifocal bullet camera (non-5G). Designed for checkpoints, car parks, campuses, industrial sites, and roadway monitoring, it combines 4MP imaging, DarkFighter 2.0 low-light performance, 150 dB WDR, and deep-learning plate capture/recognition to deliver reliable reads day and night—while using H.265+ compression to reduce bandwidth and storage.
Product Description
The iDS-2CD7A46G2/P-IZHS(Y) is built for demanding traffic and perimeter applications, with on-board deep learning that helps filter false alarms (e.g., leaves, lights, animals) and supports vehicle attribution recognition alongside license plate recognition. It supports up to 5 streams for flexible live view and recording profiles and high frame-rate options for fast-moving targets in monitoring mode.
For harsh environments, the camera is engineered with IP67 weather resistance and IK10 vandal resistance, plus optional corrosion protection variants depending on model configuration.
Note: This listing is for the non-5G model family (no 5G modem). Wired Ethernet connectivity is supported.
What’s Included in the Box
-

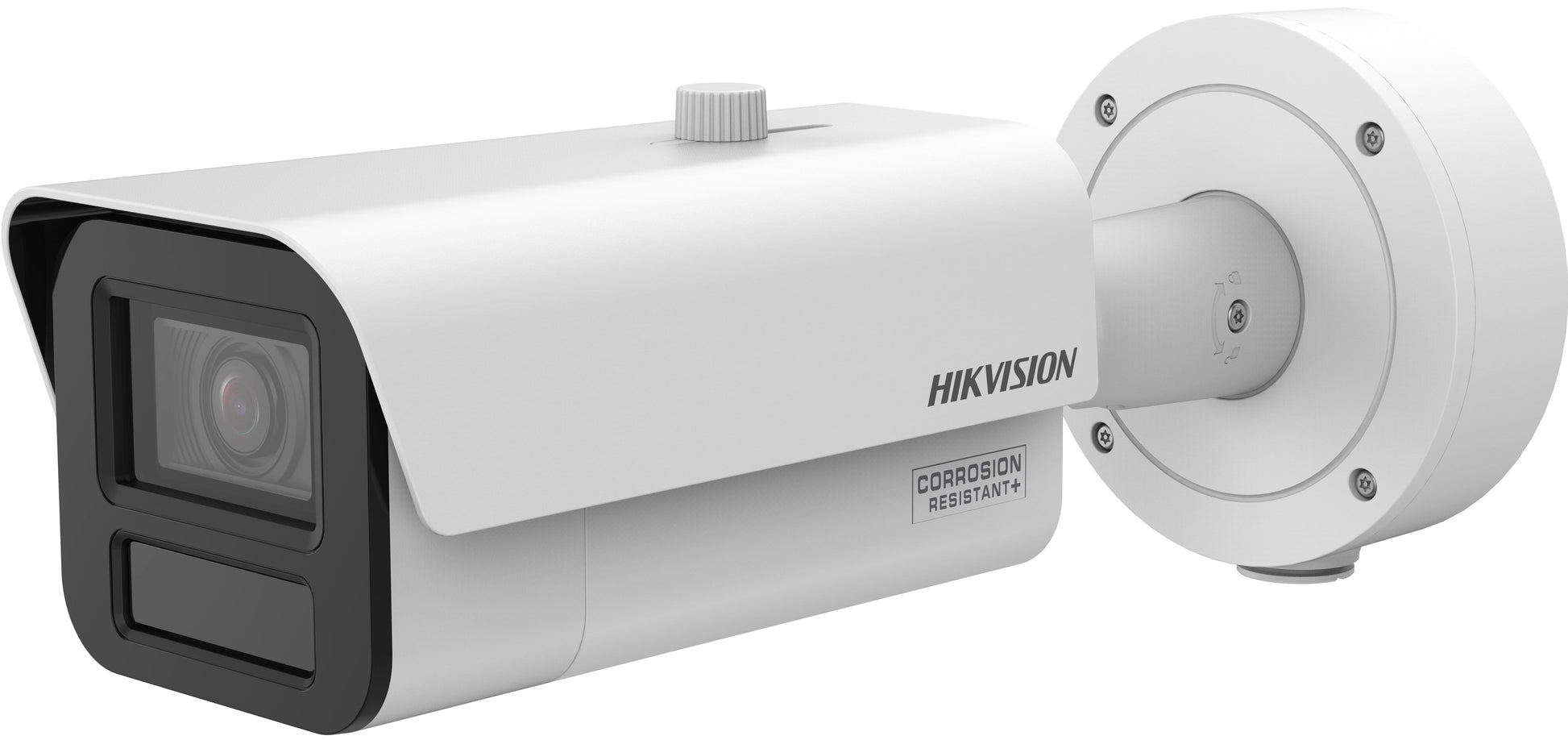

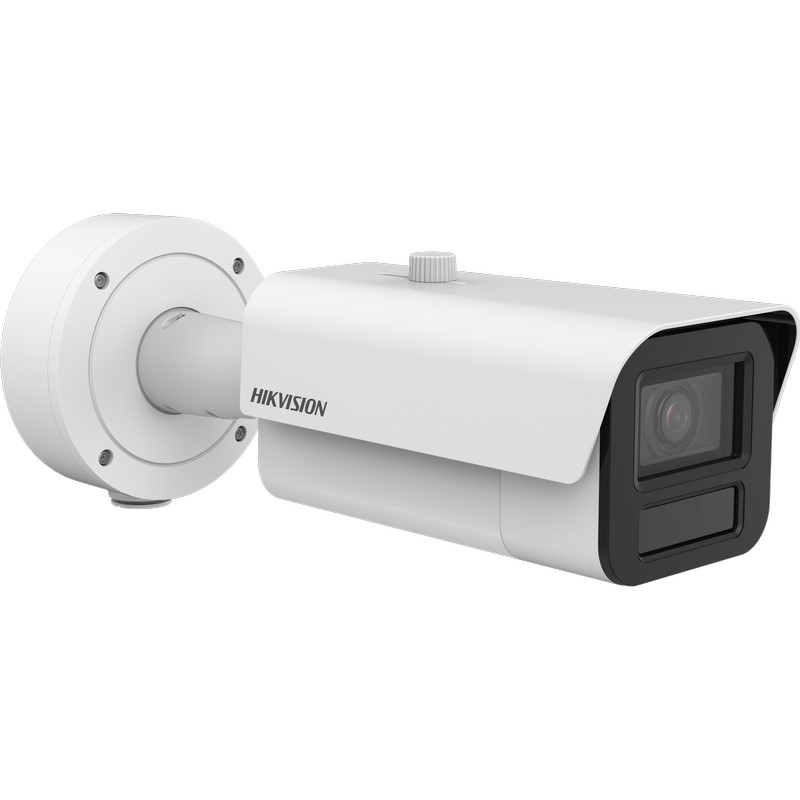

1 × Hikvision iDS-2CD7A46G2/P-IZHS(Y) ANPR Bullet Camera, 2.8-12mm lens
Main Features
-
4MP high-quality imaging (up to 2688 × 1520)
-
DarkFighter 2.0 low-light performance for clearer night capture
-
150 dB WDR for strong backlight conditions
-
Deep-learning ANPR/LPR for vehicles and motorcycles (checkpoint scenario)
-
H.265+ compression to reduce bandwidth and storage
-
Up to 5 streams for multi-purpose monitoring and recording
-
Rugged housing: IP67 weatherproof and IK10 vandal resistant
Detailed Specifications
Camera & Imaging
-
Image Sensor: 1/1.8" Progressive Scan CMOS
-
Max Resolution: 2688 × 1520 (4MP)
-
Min Illumination: Color 0.0005 Lux; B/W 0.0001 Lux; 0 Lux with IR
-
Shutter: 1 s to 1/100,000 s
-
Day/Night: IR cut filter with blue glass module
-
WDR: 150 dB
Lens Options (Model Dependent)
-
Motorised varifocal options:
-
2.8–12mm
-
8–32mm
-
6–132mm
(Lens selection determines field of view and IR range.)
-
Video & Compression
-
Compression: H.265+/H.265/H.264+/H.264 (stream dependent)
-
Multi-streaming: Up to 5 streams
-
Bit Rate: 32 Kbps to 8 Mbps
-
ROI: 4 fixed regions per stream
Protection
-
IP Rating: IP67
-
Vandal Resistance: IK10
-
Optional Anti-Corrosion: NEMA 4X (-Y models)
Warranty Information
3 year Manufacturer warranty applies. Warranty duration and terms depend on authorised supply channel.
Brand Description – Hikvision
Hikvision develops professional security and video surveillance solutions with a security-by-design philosophy. The company integrates terminal, data, application, and network security technologies throughout the product lifecycle in accordance with applicable laws and standards.
SKU / Product Code
-
iDS-2CD7A46G2/P-IZHS(Y) (Non-5G Variant)
Practical Use Scenarios
-
Checkpoint ANPR with boom gate integration
-
Commercial car park vehicle monitoring
-
Campus and industrial site vehicle access control
-
Perimeter protection with reduced false alarms
-
High-contrast environments with headlights or reflective plates
-
Multi-lane entry and exit monitoring
Datasheets & Resources
Excellence for the Australian and New Zealand Market
This DeepinView ANPR camera is suitable for professional surveillance deployments across Australia and New Zealand, including commercial, industrial, and infrastructure environments. With advanced compression, multi-stream support, and intelligent event detection, it integrates efficiently with enterprise NVRs and VMS platforms commonly used across ANZ installations.
For compliance, cybersecurity policy alignment, and sector-specific procurement requirements, sourcing through authorised distribution channels is recommended. Proper system design and installation ensure optimal ANPR accuracy and regulatory compliance.
FAQs
Q1: Does the Hikvision iDS-2CD7A46G2/P-IZHS(Y) support ANPR for motorcycles as well as cars?
Yes, the Hikvision iDS-2CD7A46G2/P-IZHS(Y) supports license plate recognition for vehicles and motorcycles in checkpoint scenarios.
Q2: What resolution does the Hikvision iDS-2CD7A46G2/P-IZHS(Y) provide for plate capture?
The Hikvision iDS-2CD7A46G2/P-IZHS(Y) provides up to 4MP resolution (2688 × 1520).
Q3: Is the Hikvision iDS-2CD7A46G2/P-IZHS(Y) suitable for night-time plate recognition?
Yes, the Hikvision iDS-2CD7A46G2/P-IZHS(Y) uses DarkFighter 2.0 technology and IR illumination to improve low-light capture performance.
Q4: How does 150 dB WDR benefit the Hikvision iDS-2CD7A46G2/P-IZHS(Y)?
The 150 dB WDR enables the Hikvision iDS-2CD7A46G2/P-IZHS(Y) to maintain clear imaging in strong backlight conditions such as headlights and reflective license plates.
Q5: Does the Hikvision iDS-2CD7A46G2/P-IZHS(Y) support multi-stream recording?
Yes, the Hikvision iDS-2CD7A46G2/P-IZHS(Y) supports up to 5 configurable video streams for flexible monitoring and recording.
Q6: Is the Hikvision iDS-2CD7A46G2/P-IZHS(Y) weatherproof and vandal resistant?
Yes, the Hikvision iDS-2CD7A46G2/P-IZHS(Y) is rated IP67 for weather resistance and IK10 for vandal resistance.
Q7: Is the Hikvision iDS-2CD7A46G2/P-IZHS(Y) a 5G-enabled camera?
No, this listing is for the non-5G Hikvision iDS-2CD7A46G2/P-IZHS(Y) model family. Cellular-enabled variants are available under separate model numbers.
