Hikvision HIK-PDC10AM-HW Outdoor Directional PIR Anti-Mask Curtain Detector with EOLR, Slim, IP65

The Hikvision HIK-PDC10AM-HW is a high-performance outdoor curtain PIR detector designed for reliable perimeter protection. Featuring advanced motion detection, tamper protection, and RF supervision, it provides robust security in both residential and commercial settings. With its slim design and IP65 weather-resistant build, it is perfect for outdoor applications along walls, windows, or door frames.

Key Features

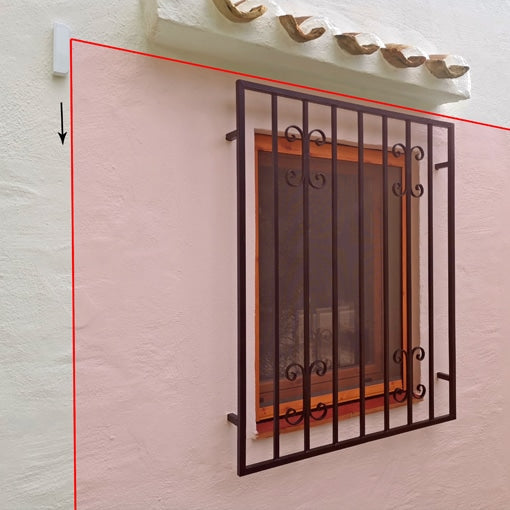

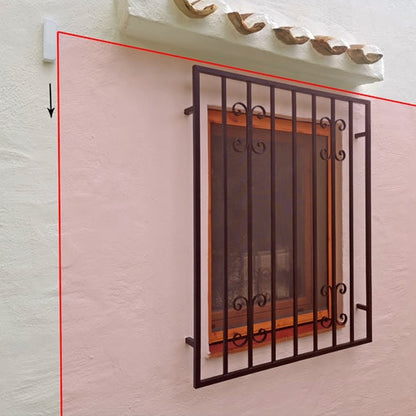

• Precise Motion Detection: Detects motion using Passive Infrared (PIR) technology with a solid curtain coverage of up to 10m long by 5m high.
• Pet Immunity: Supports wall-mounted pet immunity for animals up to 12kg, reducing false alarms.
• Active IR Anti-Masking: Prevents tampering by detecting attempts to block or mask the sensor.
• Slim Design: Ideal for window frame installations without obstructing views or aesthetics.
• Weather Resistance: Rated IP65 for reliable outdoor performance in extreme weather conditions.
• Selectable EoL Resistors: Allows alarm and tamper-proof wiring to be customized to specific requirements.
• Directional Detection: Supports enhanced detection for movement in specific directions.
• Automatic Sensitivity Adjustment: Ensures optimal performance in varying conditions.

Specifications

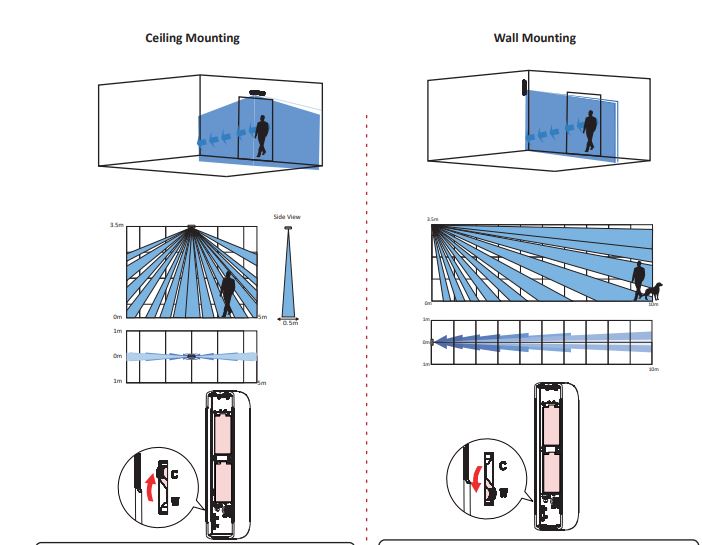

• Detection Range:

  • Wall Mount: 10m
  • Ceiling Mount: 6m

• Detection Angle: 5°

• Detection Zones: 32

• Detectable Speed: 0.2–3m/s

• White Light Filter: 6500lux

• Digital Temperature Compensation: Included

• Creep Zone Protection: Included

• Tamper Protection: Front and rear

• Electrical Characteristics:

  • Power Supply: 9–16 VDC (Typical 12 VDC)
  • Power Consumption: 22mA max

• Environmental Ratings:

  • Operating Temperature: -25°C to 60°C (-13°F to 140°F)
  • Operating Humidity: 10%–90%
  • IP Rating: IP65

• Physical Dimensions:

  • Size: 29.2mm × 134.4mm × 39.5mm
  • Weight: 77.5g

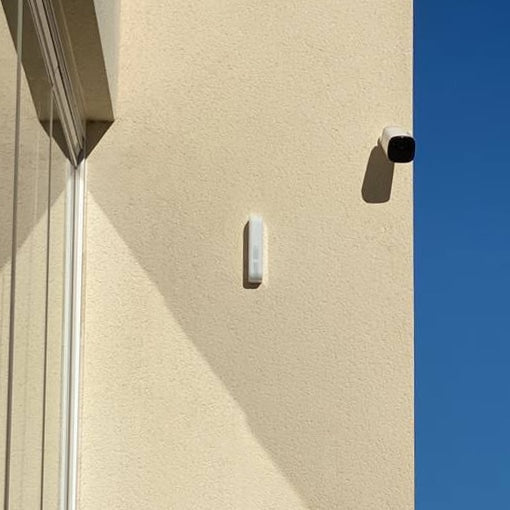

• Mounting Options: Wall or ceiling mounting at a height of 2–4m.

Applications

• Perimeter protection for walls, windows, or doors in outdoor and indoor environments.
• Ideal for residential, commercial, or industrial sites requiring robust security.

Included in the Box

• Hikvision HIK-PDC10AM-HW Detector
• L-shaped mounting bracket
• Installation manual

Warranty

• Comes with a standard 3-year manufacturer’s warranty for peace of mind.

The Hikvision HIK-PDC10AM-HW is a versatile and dependable choice for safeguarding your property with its advanced features and durable design.
