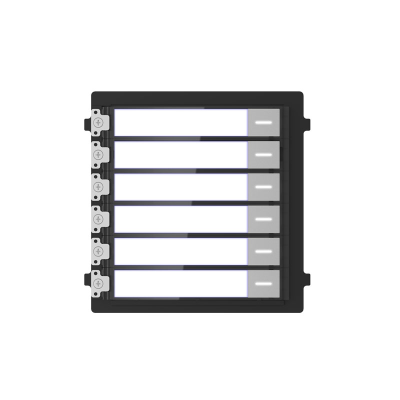

Hikvision HIK-KD-KK 2nd Gen. Intercom Door Station Nametag Module 6 Button IP65 waterproof 12VDC

Hikvision HIK-KD-KK 2nd Gen. Intercom Door Station Nametag Module 6 Button IP65 waterproof 12VDC

$80.58 AUD
$91.80 AUD $80.58 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Introducing the Hikvision HIK-KD-KK, a cutting-edge 6-button video intercom nametag module designed for effortless communication in residential spaces. With one-touch dialing, connect with residents seamlessly. The module boasts backlight compensation for clear visuals, and its expandable design ensures easy integration. Powered by the robust HIK-KD8003-IME1, this IP65-rated device features an embedded MCU processor, 2 module-connecting interfaces, and consumes less than 2W. Operating in temperatures from -40 to 60 degrees Celsius, its compact dimensions of 98.21 x 100.21 x 33.7mm make it a versatile and reliable choice for enhanced residential security and communication. Stay connected with HIK-KD-KK—where simplicity meets innovation.



Features

  • Dial the resident at one-touch
  • Backlight compensation
  • Easy to expand
  • Powered by HIK-KD8003-IME1
  • IP65 rating

Specifications

  • Processor: embedded MCU processor
  • Module-connecting interfaces: 2 (1 input, 1 output)
  • Power consumption: less than 2W
  • Operating temperature: -40 to 60 degrees celsius
  • Dimensions: 98.21 x 100.21 x 33.7mm

Datasheets

Datasheet



DS-KD-KK System Parameters:

Parameter Details
Processor Embedded MCU Processor
Operation Method Physical Button

Interfaces:

Interface Type Quantity
Module-connecting (Input/Output) 2 (1 Input, 1 Output)
Debug 1

General:

Physical Features Details
Physical Buttons 6
DIP Switch 8
Power Supply Powered by DS-KD8003-IME1
Power Consumption ≤2 W
Working Temperature -40°C to +60°C (-40°F to 140°F)
Working Humidity 10% to 95%
IP Protection Level IP65
Installation Flush Mounting, Surface Mounting

Dimensions:

Dimensions (L × W × H) 98.21 mm × 100.21 mm × 33.7 mm
(3.87" × 3.95" × 1.33"
