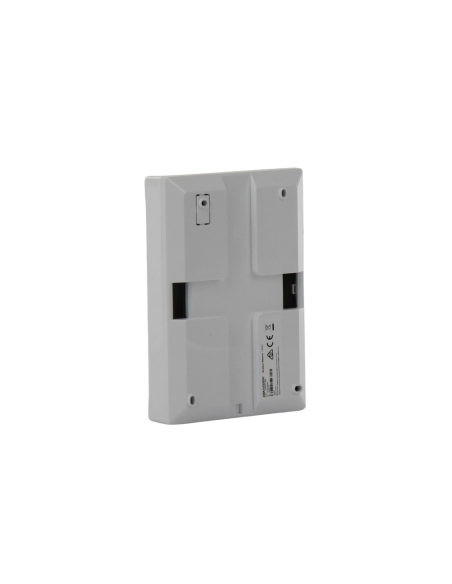

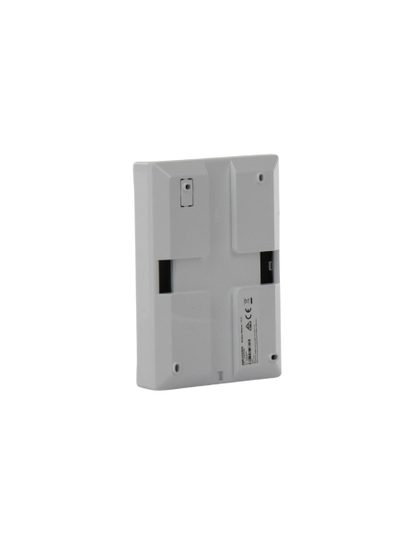

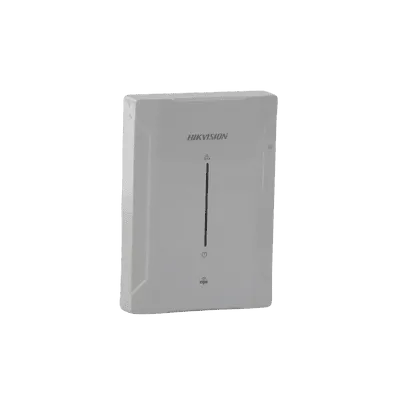

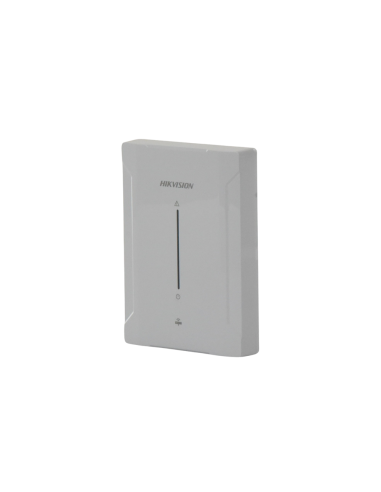

Hikvision DS-PM1-RT-HWB Tri-X 433MHz Wireless Receiver – AX Hybrid Pro Compatible, Supports 32 Detectors & 12 Sounders

The Hikvision DS-PM1-RT-HWB is a 433MHz Tri-X wireless receiver designed to seamlessly integrate with AX Hybrid Pro intrusion control panels, extending their wireless communication capability. With a communication range of up to 1300 meters and compatibility with up to 32 wireless detectors, this receiver provides scalable, secure connectivity for residential, commercial, and industrial environments.

Designed to support Tri-X protocol, the DS-PM1-RT-HWB offers advanced wireless security via frequency hopping and 128-bit AES encryption, ensuring fast and secure signal transmission between the control panel and wireless peripherals.

What’s Included in the Box

Main Features

• 433MHz Tri-X Wireless Protocol: Compatible with all Hikvision Tri-X detectors

• Extends Wireless Capability: Enables wireless device pairing with AX Hybrid Pro panels

• Long-Range Transmission: Wireless range up to 1300 metres (open space)

• Device Capacity: Supports up to 32 wireless detectors

• Sounder Compatibility: Connects with up to 4 indoor and 8 outdoor wireless sounders

• Advanced Security: Frequency hopping and 128-bit AES encryption for interference-free transmission

• LED Status Indicators: Visual indicators for power, pairing, alarms, and faults

• Simple Bus Connection: Connects via Speed-X bus interface

• Low Power Consumption: Efficient operation with wide input voltage range

Detailed Specifications

Warranty Information

• Warranty Coverage: Backed by Hikvision’s standard limited warranty

• Service & Support: Technical support, warranty claims, and firmware updates handled via authorized Hikvision service centers

Brand Description

Hikvision is a globally recognized leader in security and surveillance technology. Their commitment to high-performance hardware, innovative protocols like Tri-X, and seamless product integration has positioned them as a top choice for intrusion detection systems across both residential and commercial markets.

SKU

DS-PM1-RT-HWB

Practical Use Scenarios

• Home Security Systems: Expand coverage to remote zones with Tri-X motion and door sensors

• Retail Environments: Integrate additional detectors and wireless sounders for multi-zone protection

• Warehouses and Industrial Sites: Reduce wiring complexity while maintaining long-range signal coverage

• Offices and Commercial Buildings: Enhance intrusion systems with fast wireless communication and multiple output zones

Datasheets & Downloadable Resources

• Data sheet

Excellence for the Australian and New Zealand Market

• Certified Components: Built to meet regional compliance and performance standards

• Optimised Frequency Use: 433 MHz operation suitable for ANZ wireless spectrum requirements

• Authorized Distribution: Supplied through certified Hikvision distributors in Australia and New Zealand

• Reliable Local Warranty: Warranty servicing and replacements handled locally for faster turnaround

• Enhanced Integration: Fully compatible with locally deployed AX Hybrid Pro control systems

FAQs (DS-PM1-RT-HWB)

Q: What control panels is DS-PM1-RT-HWB compatible with?
A: This receiver is designed to work with AX Hybrid Pro control panels via the Speed-X bus.

Q: How many detectors can I connect to DS-PM1-RT-HWB?
A: You can connect up to 32 Tri-X wireless detectors to the DS-PM1-RT-HWB.

Q: What wireless frequency does the DS-PM1-RT-HWB operate on?
A: The device operates at 433 MHz using Hikvision’s Tri-X protocol.

Q: Is DS-PM1-RT-HWB suitable for outdoor installation?
A: No, this receiver is intended for indoor use only.

Q: Can I use DS-PM1-RT-HWB to connect wireless sounders?
A: Yes, it supports up to 4 wireless indoor sounders and 8 wireless outdoor sounders.

Q: What kind of security does the wireless communication offer?
A: The DS-PM1-RT-HWB uses 128-bit AES encryption with frequency hopping to ensure secure, interference-free wireless communication.
