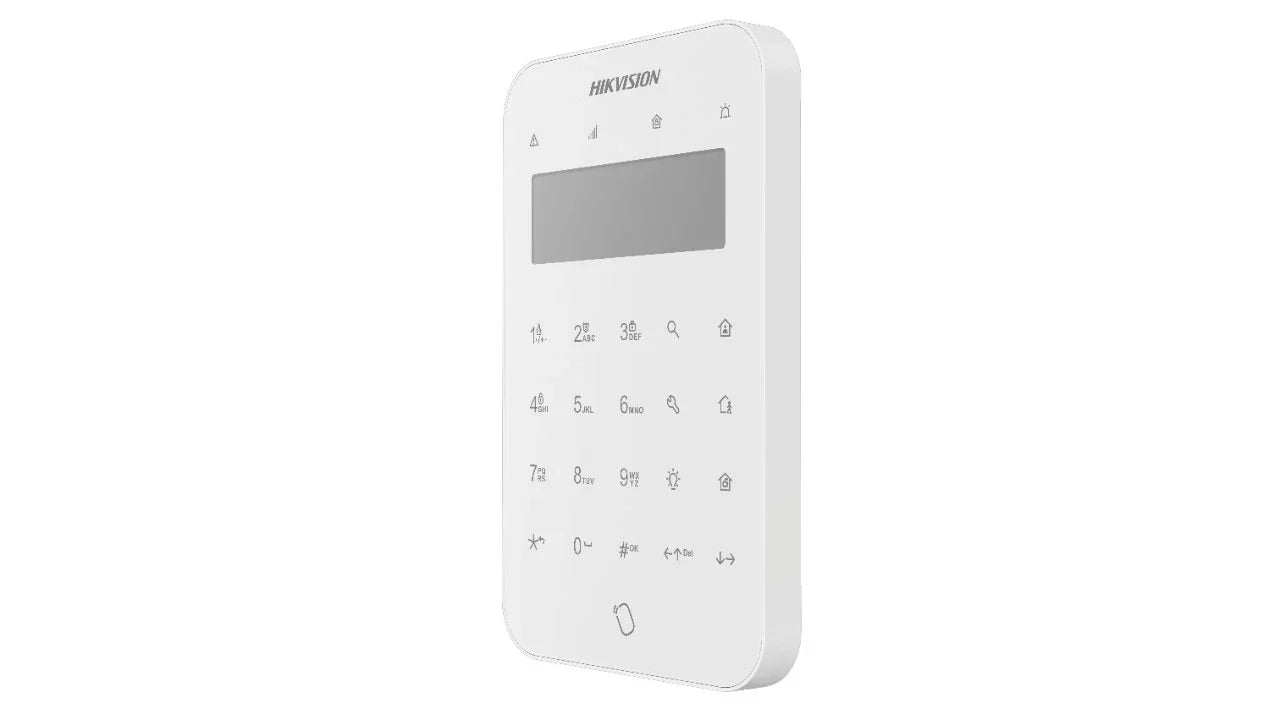

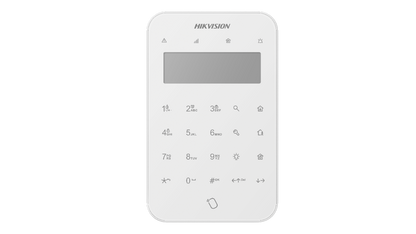

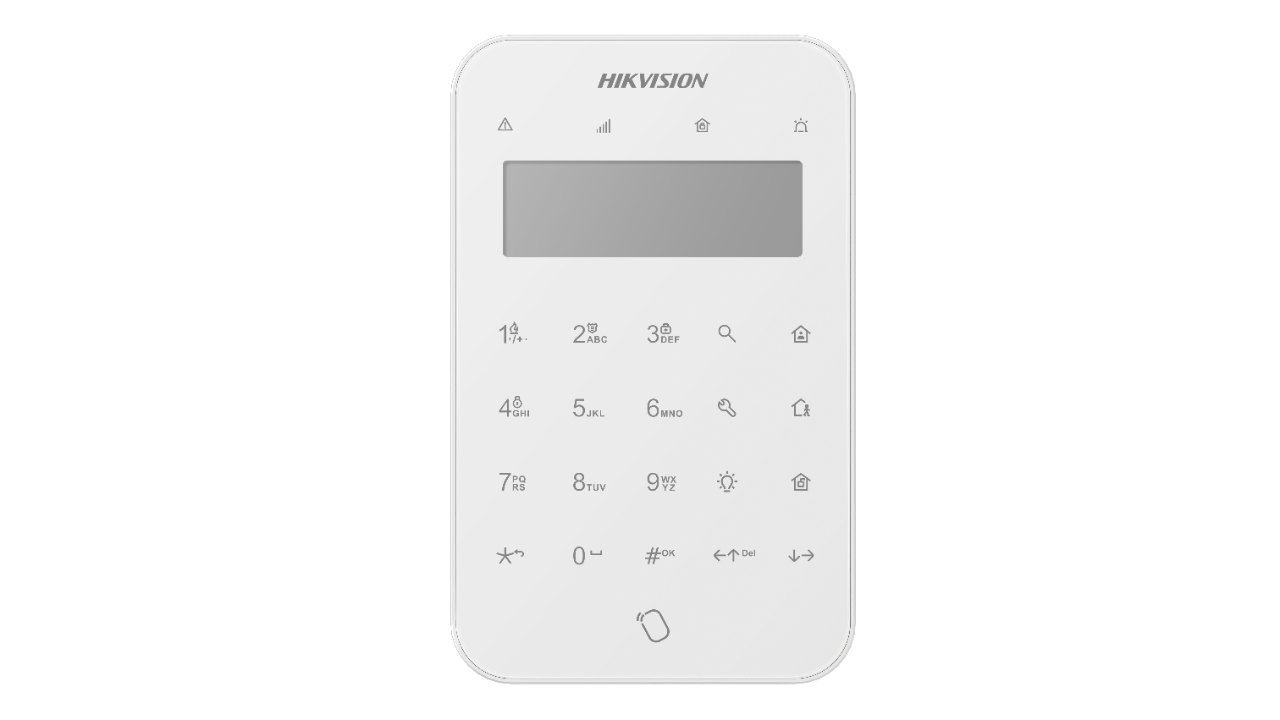

HIKVISION DS‑PK1‑LT‑WB Wireless Keypad with LCD Screen – 433 MHz Tri-X Touch Control Panel with Tag Reader & Panic Functions For AX Pro

The HIKVISION DS‑PK1‑LT‑WB is a state-of-the-art wireless security keypad designed for seamless system control and enhanced user interaction. Operating on secure Tri-X 433 MHz two-way RF communication, this device features a full-touch backlit keypad and a large LCD screen for intuitive operation. Integrated with emergency buttons (fire, medical, and panic), tag reader, and LED indicators, the DS‑PK1‑LT‑WB supports system arming/disarming, silent alarms, and output control. Ideal for residential and commercial use, it can be wall-mounted and remotely configured via the HIKVISION app, offering advanced convenience, security, and responsiveness.

What’s Included in the Box

• DS‑PK1‑LT‑WB wireless touch keypad

• 4 × CR123 batteries (pre-installed)

• Wall-mounting kit

• Quick setup guide

Main Features

• 433 MHz Tri-X two-way RF communication for secure, responsive control

• LCD screen with LED status indicators for intuitive user feedback

• Full touch keypad – illuminated with LED backlight for night-time use

• Supports arming modes – away/stay, disarming, and silent alerts

• Emergency alarms – one-touch activation for fire, medical, and panic situations

• Integrated tag reader – supports quick arming/disarming via proximity tags

• System configuration – all options accessible directly through the screen

• Remote configuration support – via HIKVISION app

• Durable build – tamper-proof with front and rear protection

Detailed Specifications

Warranty Information

• Standard warranty: 2 years from date of purchase

• HIKVISION Australia and New Zealand offer full regional warranty support for this model

Datasheet

Brand Description – HIKVISION

HIKVISION leads the global security market with intelligent, reliable, and intuitive safety solutions. From sensors and control panels to video surveillance, their products deliver unmatched performance in residential, commercial, and government installations.

Practical Use Scenarios

• Residential security systems – centralized control with quick access to emergency buttons

• Office buildings and reception areas – allows secure arm/disarm by authorized personnel

• Retail stores – silent alarm triggers and output control for connected automation

• Healthcare or elderly care – integrates with medical alerts for fast emergency response

Excellence for the Australian and New Zealand Market

• Designed to suit ANZ building layouts and wireless communication standards

• Stocked and supported by local, authorized HIKVISION distributors for fast fulfillment

• Frequency-hopping technology ensures reliable performance in dense RF areas

• Fully compatible with HIKVISION’s Australian app and alarm ecosystems

• Warranty, servicing, and support handled locally for peace of mind

FAQs

Q: What communication range does DS‑PK1‑LT‑WB support?
A: The DS‑PK1‑LT‑WB supports up to 800 m transmission range in open space using 433 MHz Tri-X RF technology.

Q: Can DS‑PK1‑LT‑WB be mounted on a wall?
A: Yes, the DS‑PK1‑LT‑WB is designed for wall mounting and includes installation accessories.

Q: Does DS‑PK1‑LT‑WB support remote configuration?
A: Yes, the DS‑PK1‑LT‑WB can be fully configured remotely via the HIKVISION mobile app.

Q: What emergency functions are built into DS‑PK1‑LT‑WB?
A: The DS‑PK1‑LT‑WB includes one-touch buttons for fire, panic, and medical alerts.

Q: How long do the batteries last in DS‑PK1‑LT‑WB?
A: The unit uses four CR123 batteries and offers a battery life of up to 2 years in standby mode.

Q: Is there a tag reader in DS‑PK1‑LT‑WB?
A: Yes, the DS‑PK1‑LT‑WB features a built-in tag reader for fast arming/disarming via proximity tags
