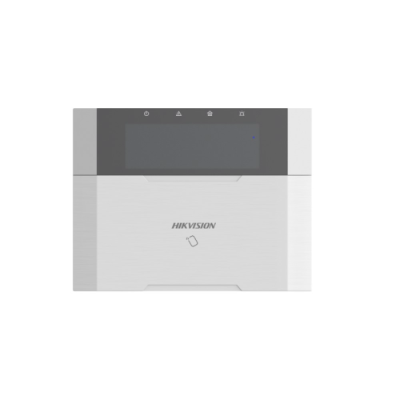

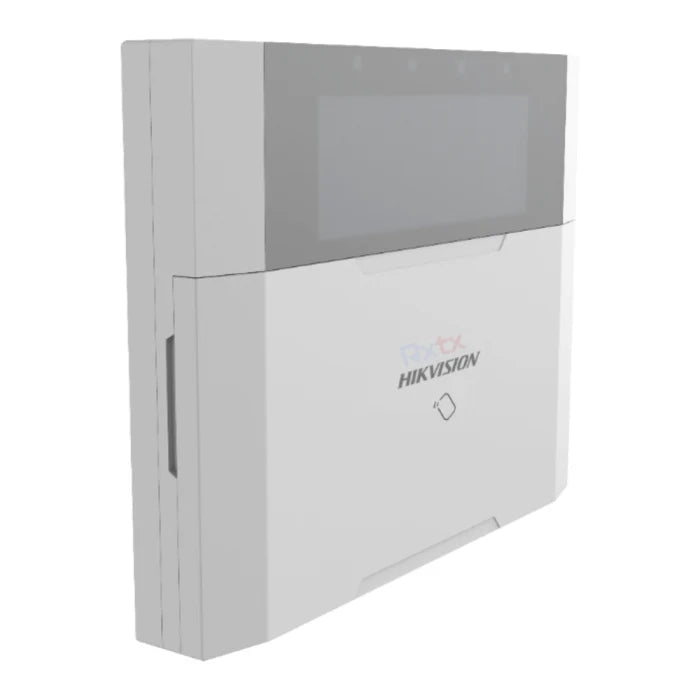

Hikvision DS-PK1-LRT-HWB Wired LCD Keypad with Built-In Tag Reader and Wireless Transceiver – AX Hybrid Pro Compatible

Hikvision DS-PK1-LRT-HWB Wired LCD Keypad with Built-In Tag Reader and Wireless Transceiver – AX Hybrid Pro Compatible

$117.30 AUD
$132.60 AUD $117.30 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Hikvision DS-PK1-LRT-HWB is a high-performance wired keypad specifically designed for the AX Hybrid Pro intrusion control panels (DS-PHA48-EP, DS-PHA64-LP). Equipped with an integrated tag reader, wireless transceiver, and LCD screen, this keypad delivers intuitive control and simplified operation in commercial, industrial, and residential security systems.

These keypads support one-touch arming without a password, along with built-in fire, panic, and medical emergency keys. With support for up to 64 keyfobs, two alarm inputs, and one alarm output, it offers reliable performance and streamlined integration with broader security networks.

Available in two frequency options:

  • DS-PK1-LRT-HWB (433 MHz)

What’s Included in the Box

Item Description
1 × Wired Keypad DS-PK1-LRT-HWB
Mounting Kit Screws and anchors
Quick Start Guide For setup and basic configuration
User Manual Full feature guide and technical reference

Main Features

  • Clear LCD Display for user-friendly interface and menu navigation

  • Built-In Wireless Transceiver for direct communication with compatible wireless devices

  • Integrated Tag Reader for secure tag-based arming/disarming

  • One-Touch Arming: Enables quick arming without requiring a password

  • Emergency Keys: Fire, Panic, and Medical alarm buttons

  • Company Branding Support: Display company name and phone number

  • Local Alarm Integration: 2 onboard alarm inputs and 1 onboard output

  • Supports 64 Keyfobs for multi-user access

  • Tamper Protection: Back cover tamper switch to prevent unauthorized removal

Detailed Specifications

Specification DS-PK1-LRT-HWE DS-PK1-LRT-HWB
Wireless Frequency 868 MHz 433 MHz
Power Supply DC 12V DC 12V
Quiescent Consumption 0.984W (82mA) 0.972W (81mA)
Max Power Consumption 1.32W (110mA) 1.33W (111mA)
Display LCD screen LCD screen

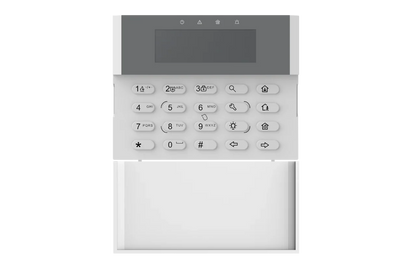

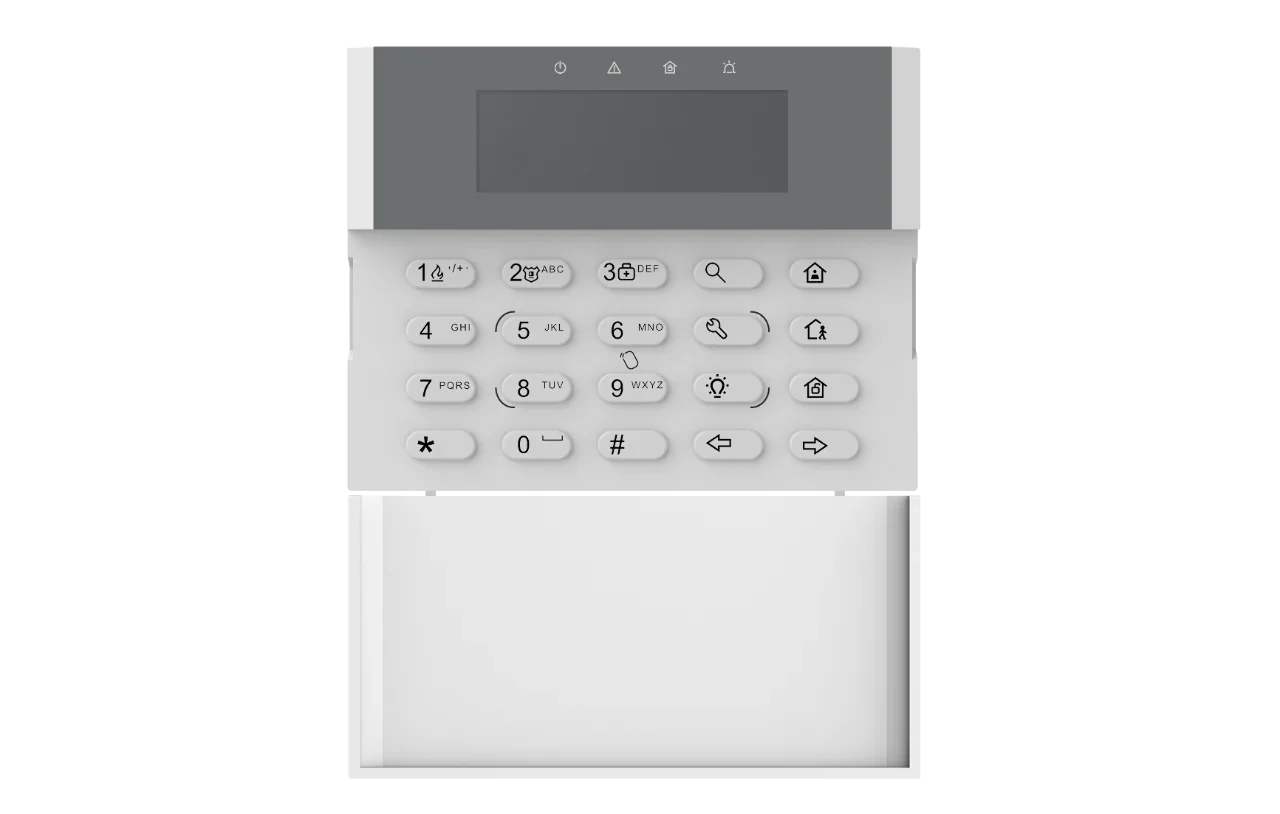

Keypad Layout Numeric keys 0-9, *, # Numeric keys 0-9, *, #
Indicators Power (Green), Fault (Orange), Armed (Blue), Alarm (Red), White backlight Same
Function Keys 8 keys: Query, Away Arm, Stay Arm, Disarm, Alarm Output, Project, Left, Right Same
Alarm Inputs 2 onboard inputs 2 onboard inputs
Alarm Outputs 1 onboard output 1 onboard output
RS-485 Port 1 1
Serial Port 1 TTL serial port 1 TTL serial port
Tag Reader Built-in Built-in
Tamper Switch Back cover tamper detection Back cover tamper detection
Keyfob Support Up to 64 Up to 64
Dimensions (W × H × D) 150 mm × 115 mm × 28 mm Same
Operating Temperature -10°C to 55°C Same
Operating Humidity 10% to 90% (non-condensing) Same
Color White White
Material Plastic Plastic

Warranty Information

  • Warranty Period: Standard manufacturer warranty applies

  • Support: Product setup and firmware updates available via Hikvision’s technical service platforms

  • Repair & Replacement: Covered under authorized distributor conditions in Australia and New Zealand

Brand Description

Hikvision is a world-renowned provider of innovative security and surveillance technologies, offering a wide range of intrusion systems, video solutions, and smart control devices. Their AX Hybrid Pro ecosystem ensures seamless integration, reliability, and performance across diverse use environments.

SKU

DS-PK1-LRT-HWB

Practical Use Scenarios

  • Retail and Office Spaces: Use keyfobs and tags to allow secure, role-based access to staff with real-time LCD feedback

  • Residential Installations: Arm/disarm systems quickly using tags or keyfobs with support for panic/emergency buttons

  • Warehouses and Factories: Integrate with local alarm loops and outputs while providing zone control from a centralized keypad

  • Commercial Buildings: Display company name and phone number on-screen to maintain branding and quick reference

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

  • Standards Compliant: Engineered to comply with applicable regional electrical and safety standards

  • Local Network Compatibility: Optimized for ANZ infrastructure, including supported RF frequencies

  • Region-Specific Availability: Distributed exclusively via authorized ANZ Hikvision partners

  • Warranty Handling: Repairs, replacements, and service handled locally through certified channels

  • Optimised Deployment: Specifically designed to pair with DS-PHA48-EP and DS-PHA64-LP control panels in regional installations

FAQs (DS-PK1-LRT-HWE / DS-PK1-LRT-HWB)

Q: What panels are compatible with the DS-PK1-LRT-HWE / DS-PK1-LRT-HWB?
A: These keypads are designed for use with AX Hybrid Pro control panels, including DS-PHA48-EP and DS-PHA64-LP.

Q: Can I use keyfobs and tags with the DS-PK1-LRT-HWE / DS-PK1-LRT-HWB?
A: Yes, both models support up to 64 keyfobs and include a built-in tag reader for quick arming/disarming.

Q: What’s the difference between DS-PK1-LRT-HWE and DS-PK1-LRT-HWB?
A: The only difference is the wireless frequency — the HWE model operates at 868 MHz, while the HWB model uses 433 MHz.

Q: Does the keypad support emergency functions?
A: Yes, there are dedicated buttons for fire, panic, and medical emergency alarms.

Q: Can I display company branding on the keypad?
A: Yes, the LCD screen allows the display of company name, phone number, and current time.

Q: What kind of tamper protection is included in DS-PK1-LRT-HWE / DS-PK1-LRT-HWB?
A: A back-cover tamper switch triggers an alert if the device is removed or opened without authorization.
