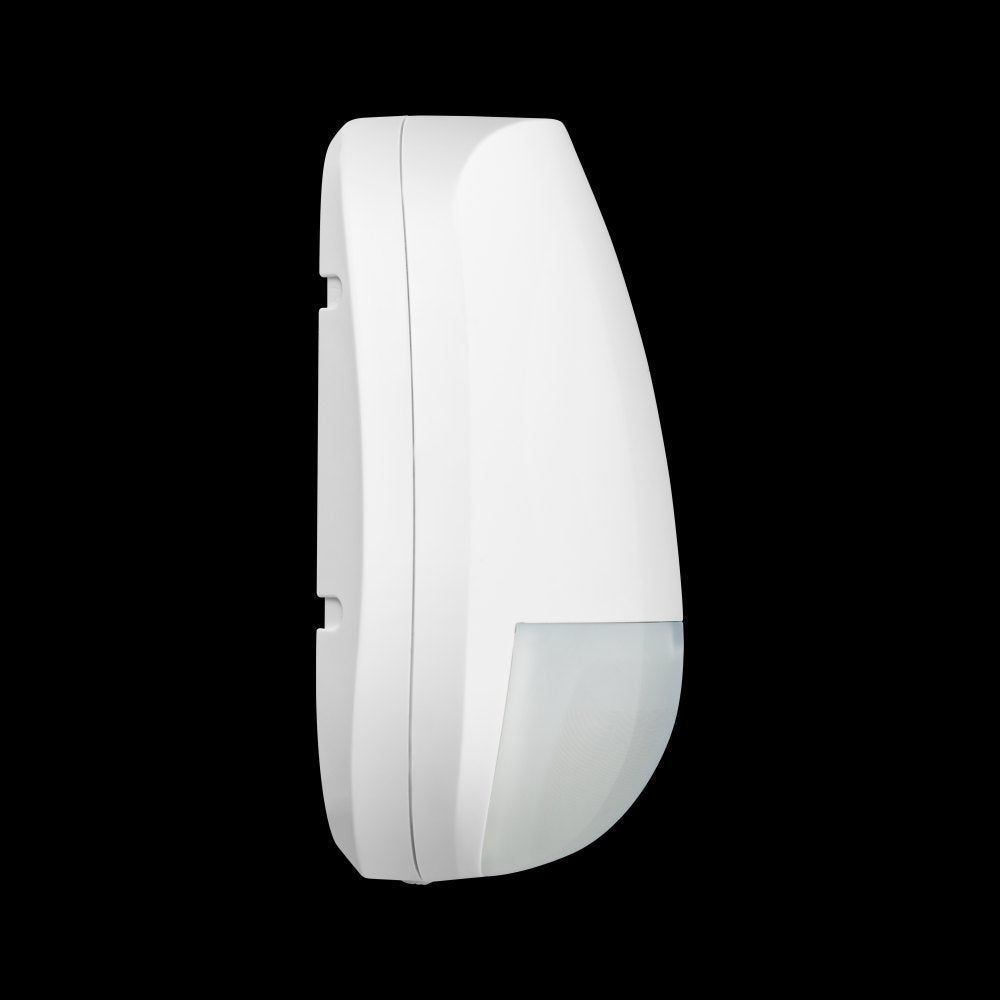

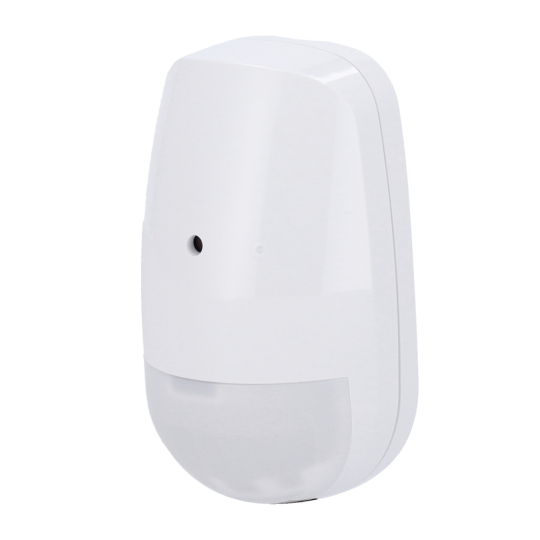

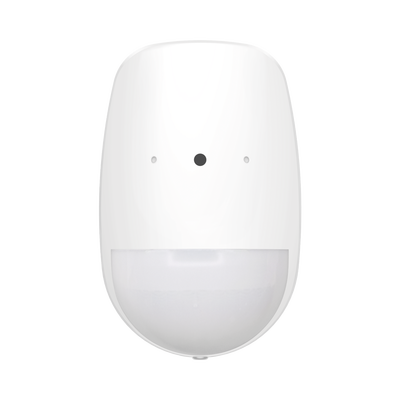

HIKVISION DS‑PDPG12P‑EG2‑WB Wireless PIR + Glass Break Detector – 12 m Indoor PIR & 8 m Acoustic Glass-Break Sensor with 30 kg Pet Immunity for Ax Pro

The HIKVISION DS‑PDPG12P‑EG2‑WB is a dual-technology wireless intrusion detector combining Passive Infrared (PIR) and acoustic glass-break sensing. Designed for indoor settings, this detector offers a 12 m PIR range (85.9° coverage) along with an 8 m radius for glass-break detection at 120° coverage. With pet immunity up to 30 kg, 3D optics supporting creep-zone protection, tamper alerts, and fully remote configuration via app, it provides comprehensive security. Powered by two replaceable CR123A batteries, it delivers up to 4 years of service in standby conditions and employs Tri‑X two‑way RF (433 MHz) communication secured with AES‑128 encryption and frequency hopping for robust transmission.

What’s Included in the Box

• DS‑PDPG12P‑EG2‑WB wireless PIR + glass-break detector

• 2 × CR123A lithium batteries

• Mounting hardware and screws

• Installation manual

Main Features

• Dual detection modes – PIR and acoustic glass-break sensors for full protection

• 12 m PIR coverage at 85.9° and 8 m glass-break detection at 120°

• Pet immunity up to 30 kg—reducing false alarms from pets

• PIR sensitivity modes – Auto, High, and Pet

• 3D optics with creep-zone support for optimal detection without blind spots

• Glass compatibility – detects breakage on float, laminated, wired, and more glass types

• Selectable glass-break sensitivity – customized detection distances (2, 4, 6, or 8 m)

• Remote app configuration via HIKVISION app

• Tri‑X two‑way RF transmission at 433 MHz with AES‑128 encryption and frequency hopping

• Up to 1 km transmission range (free space)

• Up to 4 years standby battery life with easy replaceable CR123A batteries

• Tamper protection – front and rear

• LED indicators – Green for PIR, Red for glass-break, Blue for alarm

Detailed Specifications

Warranty Information

• Manufacturer’s warranty: 2 years from date of purchase

• Fully supported in Australia and New Zealand through official HIKVISION channels

Datasheet

Brand Description – HIKVISION

HIKVISION is a recognized global authority in security systems, offering advanced surveillance and alarm products. Their devices incorporate cutting-edge AI, seamless connectivity, and reliable performance for both residential and commercial applications.

Practical Use Scenarios

• Home security: Protects living rooms or study spaces with seamless glass-break detection and pet-friendly motion sensing

• Office environments: Monitors internal windows, glass partitions, and main access points without false alerts from pets

• Retail settings: Secures display cases and front windows with combined PIR and acoustic detection

• Libraries or museums: Discreet detection of glass breakage and motion in sensitive areas without interruption

Excellence for the Australian and New Zealand Market

• Conforms to regional wireless regulations and security standards

• Sourced and supported by authorized HIKVISION Australia/New Zealand distributors

• Frequency-hopping technology ensures reliable operation amid dense RF noise typical in ANZ urban settings

• Local warranty and technical service directly through HIKVISION’s regional support teams

• Ideal for common drywall and glass-rich indoor architectures in ANZ properties

FAQs

Q: What types of glass does DS‑PDPG12P‑EG2‑WB detect?
A: The DS‑PDPG12P‑EG2‑WB detects breakage in various glass types—float, plate, tampered, wired, laminated, leaded, and double-glazing—while offering adjustable sensitivity (2–8 m range).

Q: What is the pet immunity limit of DS‑PDPG12P‑EG2‑WB?
A: Featuring pet immunity up to 30 kg, the DS‑PDPG12P‑EG2‑WB minimizes false alarms from common household pets.

Q: How long does the battery last in DS‑PDPG12P‑EG2‑WB?
A: Powered by two CR123A batteries, the DS‑PDPG12P‑EG2‑WB provides up to 4 years of standby operation under typical conditions.

Q: Can I configure DS‑PDPG12P‑EG2‑WB remotely?
A: Yes, the DS‑PDPG12P‑EG2‑WB allows full remote configuration via the HIKVISION mobile app including sensitivity and detection mode adjustments.

Q: What secure communication does DS‑PDPG12P‑EG2‑WB offer?
A: The DS‑PDPG12P‑EG2‑WB uses Tri‑X wireless with AES‑128 encryption and frequency hopping for secure, stable two-way communication up to 1 km line-of-sight.

Q: Does DS‑PDPG12P‑EG2‑WB provide tamper alerts?
A: Yes, the DS‑PDPG12P‑EG2‑WB has both front and rear tamper detection to alert on mounting interference.

Q: What mounting options are available for DS‑PDPG12P‑EG2‑WB?
A: This detector mounts to walls by default. Optional ceiling/wall mount brackets (DS‑PDB‑IN‑Wall or Ceiling) are available for versatile placement.
