Hikvision DS-PDMC-EG2-WB Ax pro Wireless Opening Detector Magnetic Contact Reed Switch – Slim, Two‑Way RF, 5-Year Battery Life

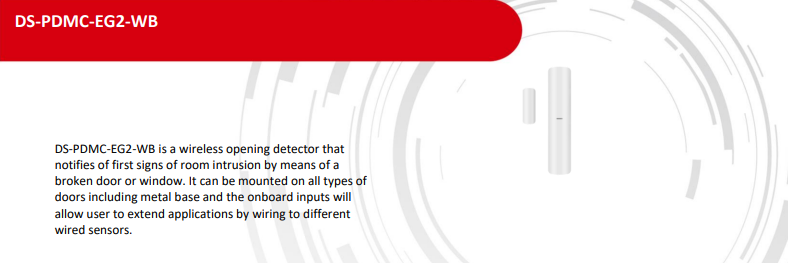

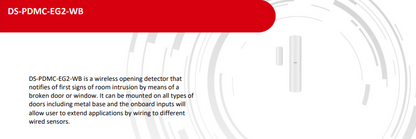

The Hikvision DS-PDMC-EG2-WB is a premium wireless opening detector designed to detect the first signs of intrusion—such as a broken door or window—with precision and speed. Featuring a sleek, slim-line design and advanced two-way RF communication, this detector delivers reliable performance across various door types, including metallic bases. It supports wired sensor connections through onboard inputs, enabling expanded detection capabilities in complex security systems.

✅ What’s Included in the Box

• 1 × DS‑PDMC‑EG2‑WB Wireless Opening Detector

• 1 × CR123A 3V Battery (pre-installed)

• 1 × Installation Guide and Quick Start Sheet

✨ Main Features

• Slim and Discreet Design: Only 22.5 × 103 × 23.2 mm and 59 g for seamless integration into any door or window frame.

• Versatile App Configuration: Fully configurable from your mobile device, simplifying setup and management.

• Robust Enrollment Options: Supports power-up, remote ID, and QR-code scanning for simple network inclusion.

• Interference‑Resistant Transmission: Utilises frequency‑hopping and AES‑128 encryption for secure, dependable communications at 433 MHz.

• Extended Battery Life: Operates up to 5 years on everyday standby, powered by a single CR123A battery.

• Tamper Protection: Built-in front and rear tamper sensors guard against unauthorized removal.

• Wired Sensor Compatibility: Features Normally Closed (NC), Normally Open (NO), and impulse-count alarm inputs for system integration.

⚙️ Detailed Specifications

🛡️ Warranty Information

Hikvision products are covered by a standard 2-year manufacturer’s warranty. Extended warranty options may be available through authorised commercial partners.

🏢 Brand Description

Hikvision Digital Technology Co., Ltd., headquartered in Hangzhou, China, is a global leader in security products across video surveillance, access control, and intrusion detection. Known for rigorously tested systems, Hikvision delivers high-quality performance and reliability to customers worldwide.

💡 Practical Use Scenarios

• Main Entry Points: Ideal for front/back doors made of wood, metal, or composite materials.

• Windows & Sliding Doors: Effective on all types of window frames, including those near metallic surfaces.

• Extended Detection: Perfect for installations with additional wired magnetic, vibration, or contact sensors.

• Apartment & Office Units: Compact design allows installation within wall cavities without being intrusive.

📎 Downloads & Resources

• Technical Datasheet

🇦🇺 Excellence for the Australian and New Zealand Market

This product complies with Australian and New Zealand standards and is sourced from authorised Hikvision representatives. Warranty service is conducted directly via Hikvision’s regional offices, ensuring full after-sales support. Packaging and documentation are tailored to local regulatory requirements, including appropriate safety certifications.

❓ Frequently Asked Questions (FAQs)

Q: What is the expected battery lifespan of the DS-PDMC-EG2-WB?
A: The DS-PDMC-EG2-WB detector operates for up to 5 years in standby mode using a single CR123A battery.

Q: Does the DS-PDMC-EG2-WB support wired sensors?
A: Yes, the DS-PDMC-EG2-WB includes NC, NO, and impulse-count inputs for connecting additional wired sensors.

Q: Is the DS-PDMC-EG2-WB tamper‑proof?
A: Absolutely—DS-PDMC-EG2-WB features both front and rear tamper protection.

Q: What range does the DS-PDMC-EG2-WB cover?
A: Offers a robust 1.2 km free-space transmission range at 433 MHz with AES‑128 encryption and frequency hopping.

Q: Is remote configuration available for DS-PDMC-EG2-WB?
A: Yes, DS-PDMC-EG2-WB can be fully configured through Hik‑Connect or the relevant mobile app.

Q: Which mounting surfaces are compatible with DS-PDMC-EG2-WB?
A: Designed to work with all door/window types, including those with metal baseplates, thanks to its slim design.

Q: How do I enroll the DS-PDMC-EG2-WB into a system?
A: Enrollment is easy via power-up trigger, remote ID command, or QR code scanning—options supported by DS-PDMC-EG2-WB.

Q: What are the tamper options included with DS-PDMC-EG2-WB?
A: The DS-PDMC-EG2-WB offers both front and rear cover tamper detection to alert of unauthorized access.
