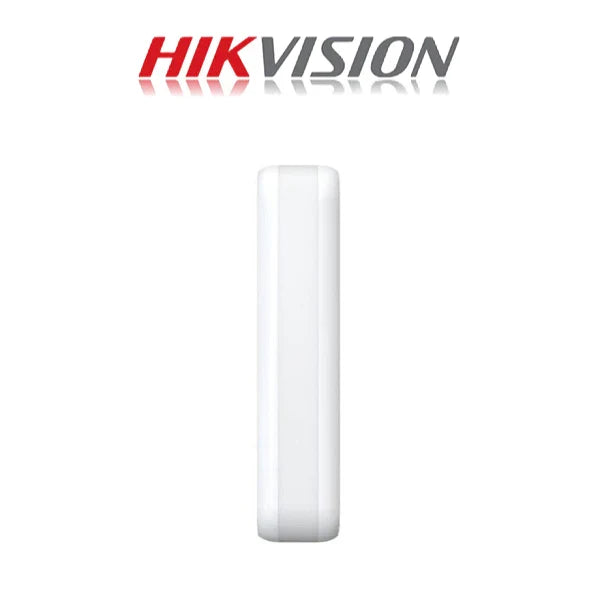

HIKVISION DS‑PDC10DM‑EG2‑WB Wireless Dual‑Tech AM Curtain Detector – Slim IP65 Outdoor/Indoor Motion Sensor with Anti-Masking & Directional Detection for AX Pro

The HIKVISION DS‑PDC10DM‑EG2‑WB is a high-performance wireless curtain detector engineered for both indoor and outdoor use. Its sleek, slim profile makes it perfect for seamless window-frame installations, while IP65-rated weather resistance ensures reliable operation under harsh environmental conditions. This dual-tech detector integrates passive infrared (PIR) and microwave technology, providing precise detection with advanced features such as active IR anti-masking and directional detection support. Ideal for residential, commercial, and perimeter security applications.

What’s Included in the Box

• DS‑PDC10DM‑EG2‑WB wireless curtain detector

• L‑shaped mounting bracket (suitable for wall or ceiling installation)

• CR123A × 2 lithium batteries

• Quick Start Guide

Main Features

• Slim, discreet design – fits elegantly within window frames or along walls

• Dual‑tech detection – combines PIR + 24 GHz microwave for reduced false alarms

• Active anti‑masking – detects tampering or blocking attempts

• Directional detection – configurable to focus detection on specific zones

• Tri‑X two‑way RF wireless – robust 433 MHz communication with AES‑128 encryption

• Frequency‑hopping – enhances signal reliability and anti‑jamming capability

• IP65 weatherproofing – suitable for exposed environments

• Pet immunity (up to 12 kg) – adjustable sensitivity and auto pet mode

• Multiple enrollment methods – set up via power-up, remote ID, or QR code

• Durable battery life – approximately 5 years under typical daily usage

Detailed Specifications

Warranty Information

• Standard warranty: 2 years from date of purchase

• For warranty support in Australia and New Zealand, please contact HIKVISION Australia directly.

Datasheet

Brand Description – HIKVISION

HIKVISION is a global leader in video surveillance and security equipment, offering innovative and reliable solutions. Their product ecosystem is known for quality, security, and long-term performance, trusted worldwide by professionals and homeowners alike.

Practical Use Scenarios

• Perimeter security for homes: Ideal for window or balcony installations to detect unauthorized entry.

• Retail storefront protection: Curtain detection for display windows and entry points with pet immunity.

• Outdoor corridor monitoring: IP65 rating withstands weather exposure; batteries ensure long-term maintenance-free operation.

• Industrial facilities: Directional detection helps monitor specific access points without constant false alarms.

Excellence for the Australian and New Zealand Market

• Conforms to Australian environmental standards and expands support for outdoor-rated IP65 conditions.

• Ships exclusively from authorized HIKVISION partners, ensuring genuine parts and valid warranties.

• Warranty support and service handled via HIKVISION Australia, with direct communication and regional assistance.

• Ideal for local installation conditions, from humid coastal areas to extreme inland temperatures.

FAQs

Q: What is the battery life of DS‑PDC10DM‑EG2‑WB?
A: The DS‑PDC10DM‑EG2‑WB curtain detector uses two CR123A batteries, delivering approximately 5 years of operation under typical usage (about 20 activations per day).

Q: Does DS‑PDC10DM‑EG2‑WB support pet immunity?
A: Yes, the DS‑PDC10DM‑EG2‑WB sensor includes pet immunity up to 12 kg in wall-mounted mode, helping reduce false alarms caused by small pets.

Q: Is the DS‑PDC10DM‑EG2‑WB suitable for outdoor installation?
A: Absolutely. The DS‑PDC10DM‑EG2‑WB has a robust IP65 rating, making it fully weatherproof and ideal for outdoor usage.

Q: Can DS‑PDC10DM‑EG2‑WB prevent tampering or masking?
A: Yes, the DS‑PDC10DM‑EG2‑WB features active IR anti‑masking, as well as front and rear tamper detection, to alert against obstruction or sabotage.

Q: What wireless range does DS‑PDC10DM‑EG2‑WB offer?
A: The DS‑PDC10DM‑EG2‑WB supports up to 1 km line-of-sight transmission using encrypted AES‑128 Tri‑X RF, ideal for reliable and secure communication.

Q: Which mounting orientation is supported by DS‑PDC10DM‑EG2‑WB?
A: The DS‑PDC10DM‑EG2‑WB can be installed on either walls or ceilings using the included L-bracket, with a detection range of 10 m (wall) or 5 m (ceiling).

Q: How do I enroll the DS‑PDC10DM‑EG2‑WB detector?
A: Enrollment of the DS‑PDC10DM‑EG2‑WB is flexible: via power-up, scanning a QR code, or using remote ID programming.

Q: Does the DS‑PDC10DM‑EG2‑WB offer directional detection?
A: Yes, the DS‑PDC10DM‑EG2‑WB includes adjustable directional detection, letting you focus surveillance to particular areas while ignoring others.
