Hikvision DS-KV8113-WME1 Video Intercom Villa Door Station – 2MP HD Camera, Wi-Fi & PoE, Access Control | Ultra-Durable, IK08 & IP65 Rated

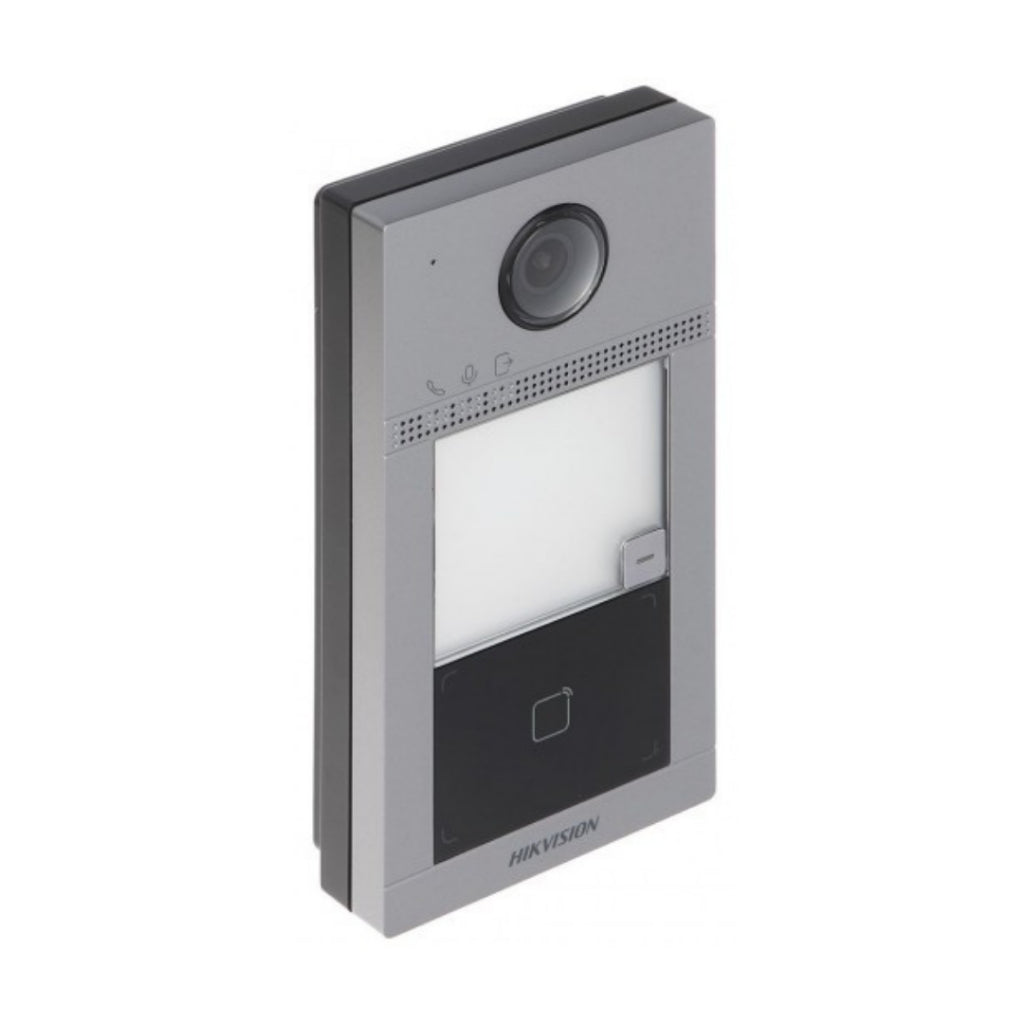

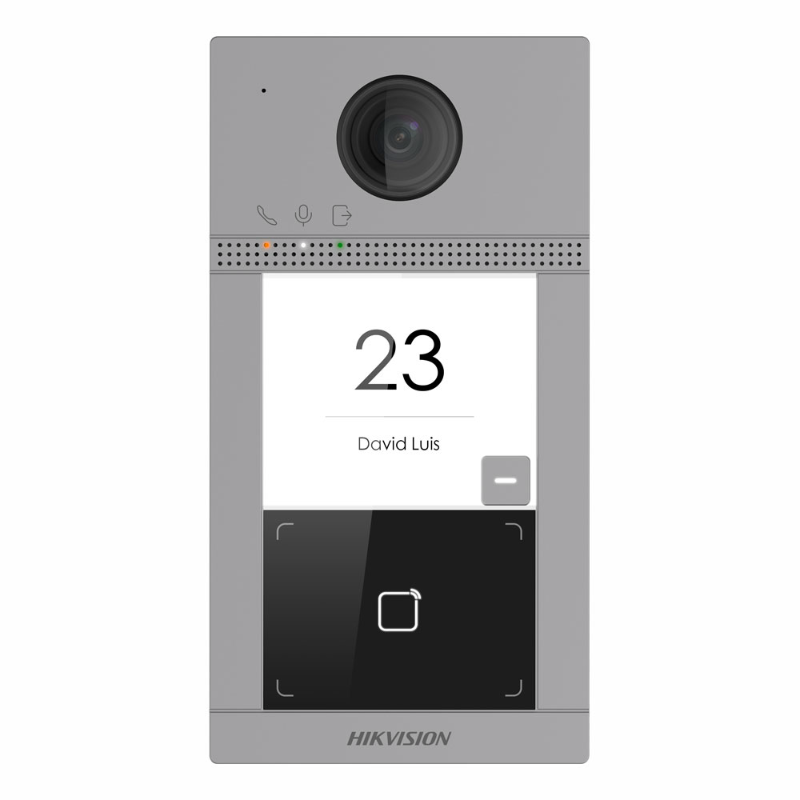

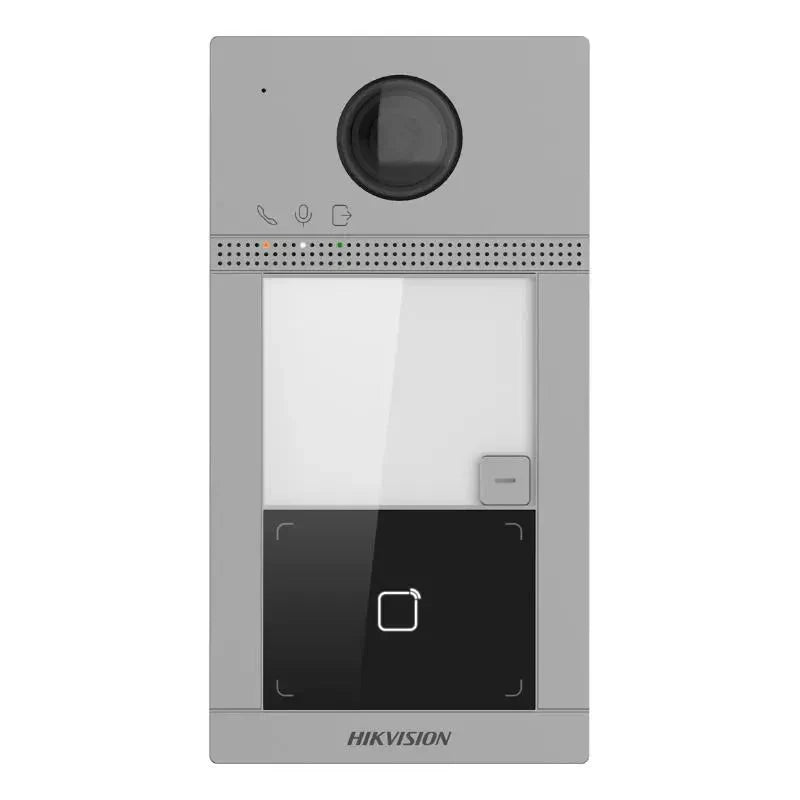

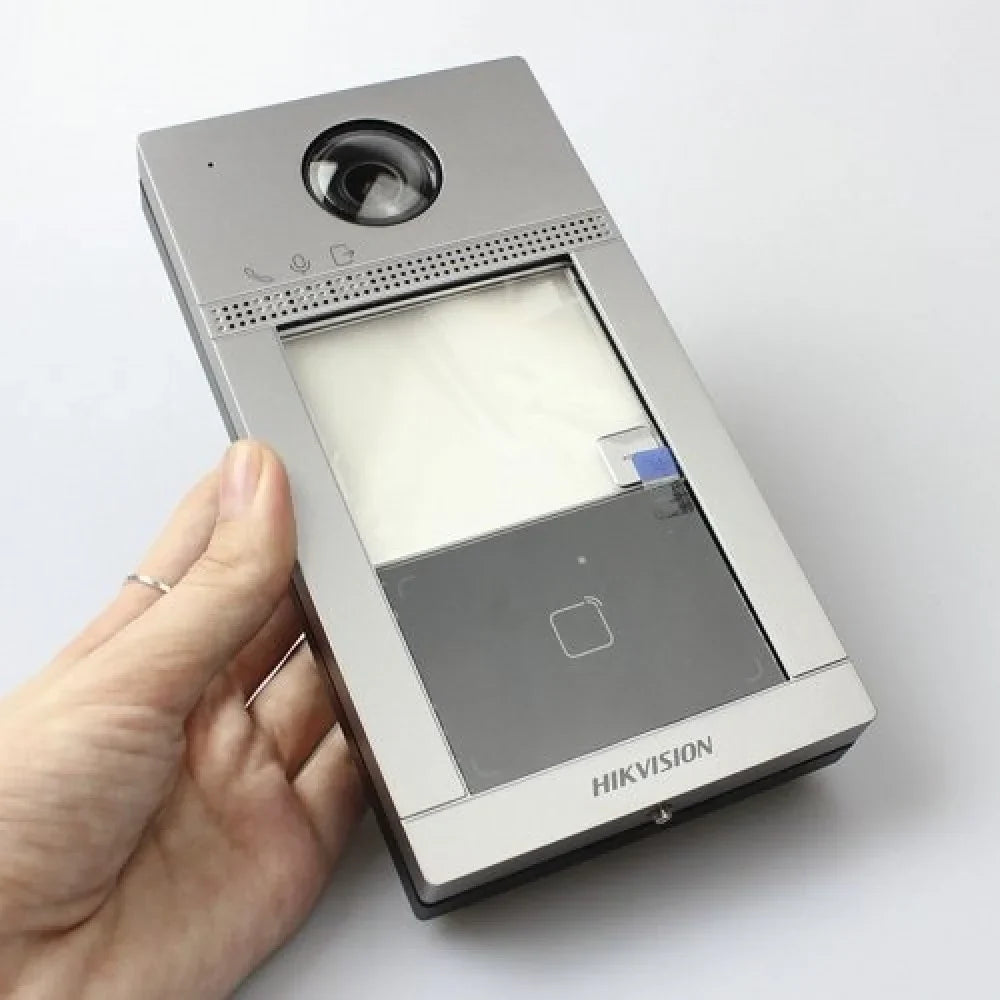

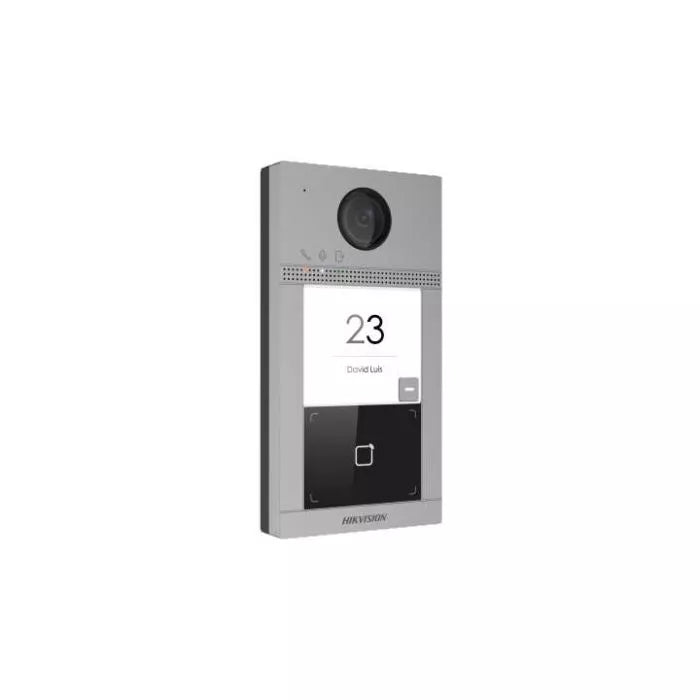

The DS-KV8113-WME1 Video Intercom Villa Door Station is a robust, all-in-one access control and video communication device tailored for modern villas, apartments, and small commercial properties. With a high-definition 2MP camera, wide 129° horizontal viewing angle, and advanced video processing technologies like True WDR, DNR, and BLC, it ensures crystal-clear image quality in all lighting conditions.

Equipped with integrated 2.4 GHz Wi-Fi, standard PoE, and remote web configuration, the unit supports seamless installation and management. It also includes a built-in Mifare card reader, tamper-proof housing, and two-way audio with noise suppression and echo cancellation for enhanced communication clarity and security.

The DS-KV8113-WME1 is a versatile and powerful villa door station built to endure harsh environments with its IP65 and IK08 protection levels, while offering excellent functionality for integrated smart intercom systems.

What's Included in the Box

• 1 × DS-KV8113-WME1 Video Intercom Villa Door Station

• Mounting Accessories (Surface and Flush Options)

• Installation Template & Screws

• User Manual & Quick Start Guide

Main Features

• 2MP HD Camera: Clear video capture with a 129° wide-angle field of view.

• Two-Way Audio: Built-in microphone and speaker with noise and echo reduction.

• True WDR Technology: Enhanced visibility in varying light environments.

• Secure Access Control: Mifare card reader and two relays for lock control.

• Remote Management: Configurable via web interface.

• Wireless & Wired Connectivity: 2.4 GHz Wi-Fi and 10/100 Mbps Ethernet.

• High Durability: Rated IP65 for water resistance and IK08 for vandal resistance.

• Flexible Mounting: Supports both surface and flush installation.

Detailed Specifications

Warranty Information

The DS-KV8113-WME1 comes with a 3-Year Limited Warranty, supported directly through Hikvision’s authorized service partners for streamlined after-sales service and support.

Brand Description

Hikvision, a global leader in video surveillance and smart security solutions, consistently delivers cutting-edge technology and innovation. Known for high durability, smart integration, and reliable performance, Hikvision products are used in residential, industrial, and commercial settings worldwide.

SKU

DS-KV8113-WME1

Practical Use Scenarios

• Luxury Villas & Residences: Ensure security with HD video intercom and card-based access.

• Boutique Hotels & Guesthouses: Combine convenience with guest access management.

• Small Office Entrances: Monitor and control visitor entry with real-time video.

• Gated Communities: Integrate with wider intercom networks for added security.

Datasheets or Downloadable Resources

• DS-KV8113-WME1 Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The DS-KV8113-WME1 is meticulously crafted for the Australian and New Zealand market, meeting all relevant local standards:

• Certified under AS/NZS CISPR 32:2015 for EMC compliance

• Protection standards IP65 and IK08 for outdoor use in varied climates

• Approved certifications including CE, FCC, RCM (C-Tick), and UL

• Sourced exclusively via authorized Hikvision distributors in the region

• Full warranty and support handled directly through local brand channels

FAQs – DS-KV8113-WME1

Q1: Does the DS-KV8113-WME1 support remote configuration?
A1: Yes, the DS-KV8113-WME1 can be configured remotely through a web interface for convenient setup and management. (Product Code: DS-KV8113-WME1)

Q2: Can I use the DS-KV8113-WME1 without wiring?
A2: Yes, it features 2.4 GHz Wi-Fi connectivity in addition to standard Ethernet, making it suitable for wireless installations. (Product Code: DS-KV8113-WME1)

Q3: What kind of access control does it support?
A3: The module includes a built-in Mifare card reader and supports relay control for door unlocking. (Product Code: DS-KV8113-WME1)

Q4: Is the DS-KV8113-WME1 vandal resistant?
A4: Absolutely. It is IK08-rated for impact resistance and has a tamper-proof design. (Product Code: DS-KV8113-WME1)

Q5: What’s the maximum resolution for video streaming?
A5: The main stream supports up to 1920 × 1080p at 30fps. (Product Code: DS-KV8113-WME1)
