Hikvision DS-KIS702Y-P Video Two-Wire Intercom Kit

Name: Hikvision DS-KIS702Y-P Video Two-Wire Intercom Kit
Brand: CCTV Tradie
SKU: DS-KIS702Y-PTW
Price: 463.08 AUD
Availability: InStock

Hikvision DS-KIS702Y-P Video Two-Wire Intercom Kit

$463.08 AUD

~~$712.98 AUD~~ $463.08 AUD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

Introducing the HIKVISION Gen 2 Two-Wire Intercom Kit, designed to enhance security and communication for villas or houses with streamlined functionality and high-performance features:

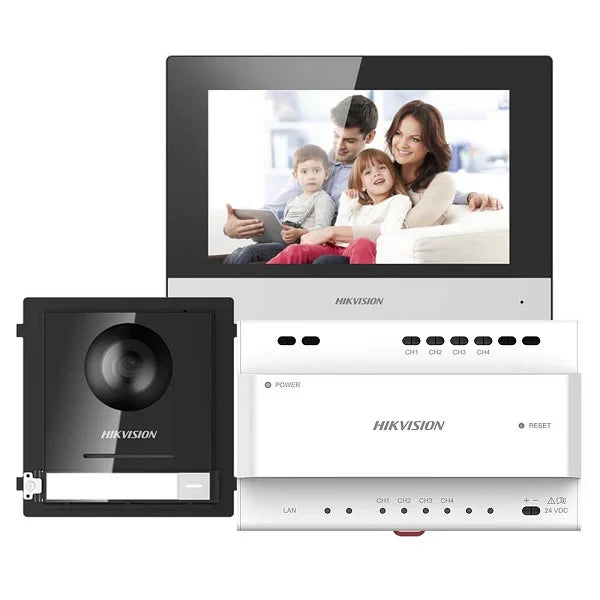

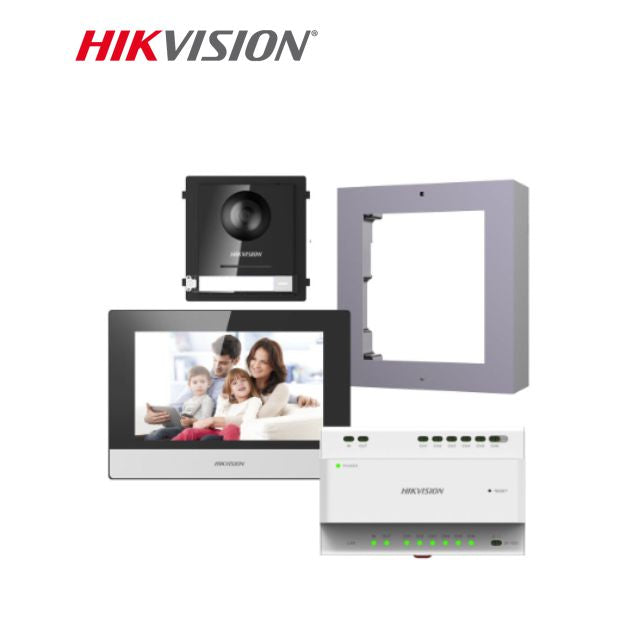

Comprehensive Kit: Includes 1 x DS-KD8003Y-IME2 surface door station, 1 x DS-KH6320Y-WTE2 7" room station, and 1 x KAD704Y-P WiFi adapter with AU compatibility for seamless integration.
Advanced Technology: Utilizes 2-wire digital IP video intercom system with a single call button, ensuring efficient communication and monitoring.

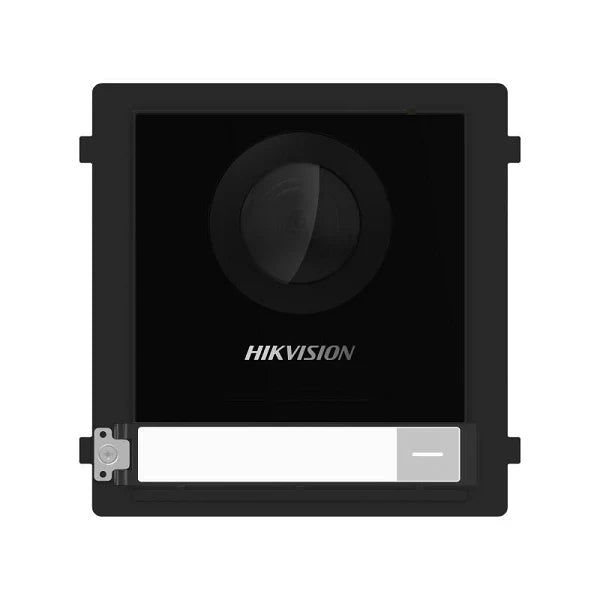

High-Resolution Video: DS-KD8003Y-IME2 door station features a 2MP super definition camera capable of 1920 x 1080 resolution for clear visuals. Supports low-light and IR light supplement modes for enhanced night vision.
Wide Dynamic Range (WDR): True WDR technology in the camera compensates for backlighting, ensuring clear images even in challenging lighting conditions.
Audio Capabilities: Built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation for crisp, full-duplex two-way audio intercom communication.
Storage and Connectivity: Includes a 16GB TF card for local storage. Supports H.264 video compression and G.711 U audio compression for efficient data handling.
Enhanced Security Features: Supports motion detection and alarm inputs (4 inputs including exit buttons and door contacts), along with lock control (2 relays, max 30 VDC, 2 A) for comprehensive access management.
Durable Construction: Designed to withstand extreme temperatures ranging from -40°C to 60°C (-40°F to 140°F), ensuring reliable operation in varying environmental conditions.

The HIKVISION Gen 2 Two-Wire Intercom Kit combines advanced video and audio technology with robust security features, offering an integrated solution for effective communication and enhanced security monitoring in residential settings. Ideal for homeowners seeking a reliable and versatile intercom system that prioritizes clarity, convenience, and durability.

Specification	Door Station	Indoor Station	Video Audio Distributor
Processor	Embedded microcontroller
Operating System	Embedded Linux	Embedded Linux
Operation Mode	One touch key
Camera	2MP super definition
Resolution	Main stream: 1920 × 1080	Display resolution: 1024 × 600
	Sub stream: 720 × 480
Night Vision	Low light and IR light supplement
Backlight Compensation	Supported
Digital Noise Reduction	Supported	Noise suppression and echo cancellation
WDR	True WDR
Field of View	Horizontal 146°, vertical 82°
Video Compression Standard	H.264
Video Stream	Main stream: 1080p@30fps, 720p@30fps
	Sub stream: D1
Motion Detection	Supported
Flash-Avoid Frequency	50 Hz, 60 Hz
Audio Input	Built-in omnidirectional microphone	Built-in omnidirectional microphone
Audio Output	Loudspeaker, 20 cm sound effect > 80 dB	Built-in loudspeaker
Audio Quality	Noise suppression and echo cancellation	Noise suppression and echo cancellation
Audio Compression Standard	G.711 U	G.711 U, G.711 A
Audio Compression Rate	64 Kbps	64 Kbps
Audio Intercom	Full-duplex two-way audio intercom
Debugging Port	1 RS-485	RS-485
Alarm Input	4 (2 exit buttons and 2 door contacts by default)	8 zones alarm input
Lock Control	2 relay, max to 30 VDC, 2 A	2 (30 V Max.)
TAMPER Switch	1
Power Interface	Two-wire
Working Temperature	-40 °C to 60 °C (-40 °F to 140 °F)	-10 °C to 50 °C (14 °F to 122 °F)	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%	10% to 90%	10% to 90%
Dimensions (W × H × D)	100 mm × 98 mm × 42 mm (3.94" × 7.8" × 1.65")	200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
Installation	Wall mounting
Protection Level	IP 65
Power Input	Powered by KAD704Y or KAD706Y series distributor	Powered by KAD704Y or KAD706Y distributor
Network Interface		Two-wire network, Wi-Fi 802.11b/g/n, TCP/IP, SIP, RTSP	1 RJ45
Two-Wire Interface	6 (2 for cascading and 4 for devices)	RS-485	6 (2 for cascading and 4 for devices)
Signal Indicator			6
Power Indicator			1
Reset			1
Power Supply			24 VDC
Power Consumption		≤ 4 W	CH1 to CH3 < 4 W, CH4 < 8 W
