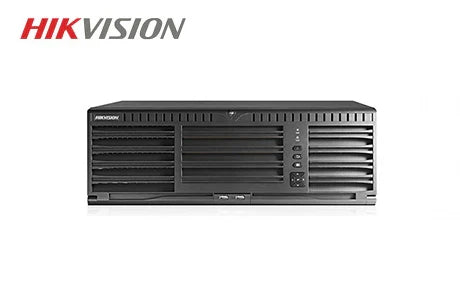

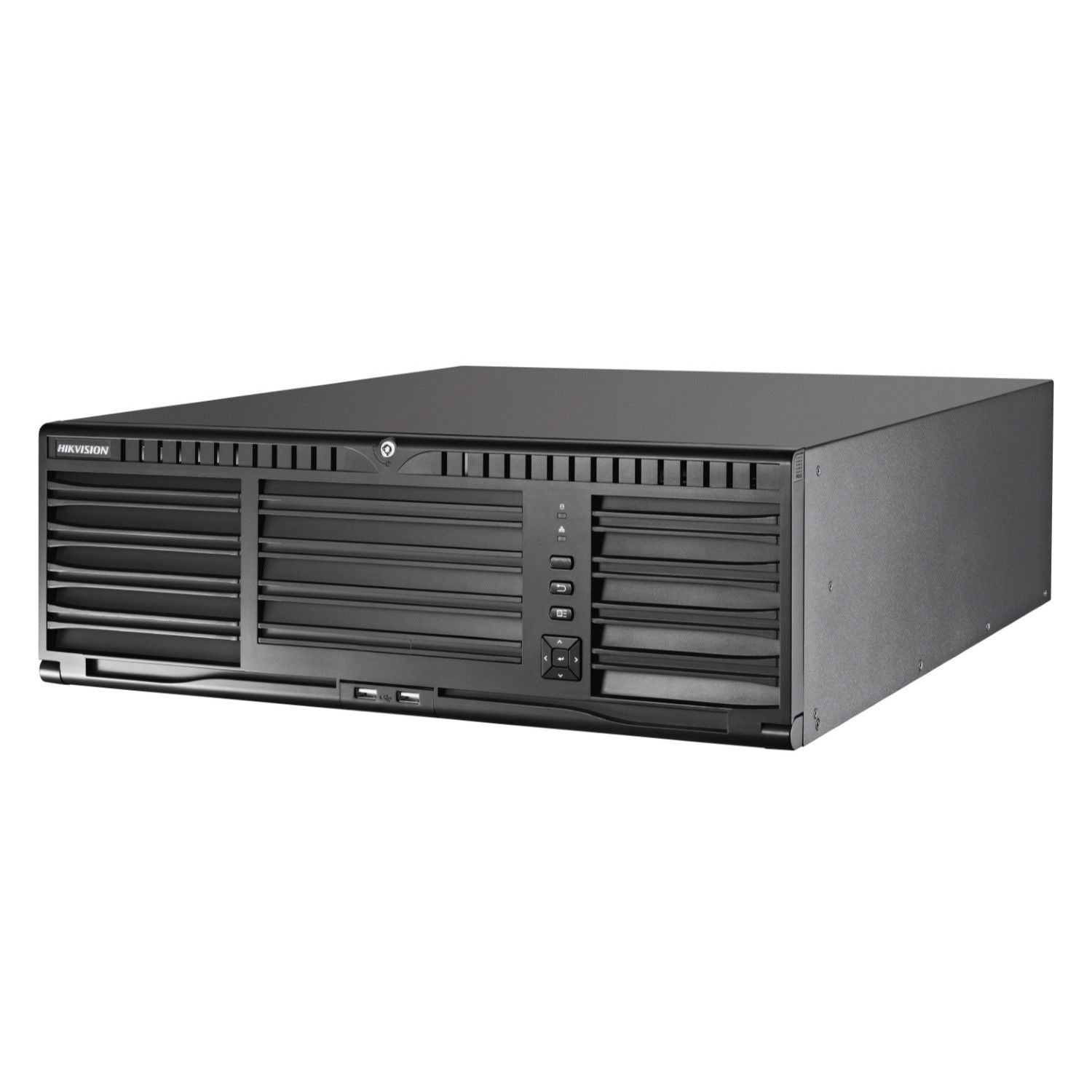

Hikvision DS-96128NI-I16 128-ch 3U 4K Super NVR

Hikvision DS-96128NI-I16 128-ch 3U 4K Super NVR

Enhance your security infrastructure with the Hikvision DS-96128NI-I16, a robust and scalable network video recorder designed for high-performance surveillance. This NVR supports up to 128 IP camera inputs, providing comprehensive coverage for large-scale installations.

Key Features:

• Extensive Camera Support: Connect up to 128 IP cameras, offering unmatched scalability and flexibility for extensive surveillance needs.

• High Bandwidth: With up to 576 Mbps incoming and 512 Mbps outgoing bandwidth, this NVR ensures smooth and reliable video streaming and recording even in data-heavy environments.

• Advanced Video Outputs: Dual HDMI and VGA interfaces support various resolutions, including 4K, allowing for detailed and clear video output across multiple displays.

• 16 HDD Bays: Supports up to 16 HDDs, providing extensive storage capacity for continuous video recording. Each HDD can hold up to 10 TB, making it ideal for long-term storage requirements.

• Special Camera Support: Compatible with specialized cameras, such as people counting, ANPR (automatic number plate recognition), and fisheye cameras, enhancing its versatility.

• Advanced Streaming Technology: Ensures smooth live viewing even under poor network conditions, providing reliable real-time monitoring.

• RAID Support: Features RAID 0, 1, 5, 6, 10, and N+1 hot spare, offering reliable data storage and minimizing the risk of data loss.

Specifications:

• Video and Audio:

  • IP Video Input: 128 channels
  • Incoming Bandwidth: 576 Mbps
  • Outgoing Bandwidth: 512 Mbps
  • HDMI Output: 2 independent outputs supporting 4K resolution
  • VGA Output: 1 channel supporting up to 1080p
  • Audio Output: 1 channel, RCA (2.0 Vp-p, 1 KΩ)
  • Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ)

• Decoding:

  • Formats: H.265, H.265+, H.264, H.264+, MPEG4, MJPEG
  • Recording Resolution: Up to 32 MP
  • Synchronous Playback: Up to 16 channels
  • Decoding Capability: 1-ch@32 MP (30 fps), 5-ch@8 MP (30 fps), 10-ch@4 MP (30 fps), 20-ch@1080p (30 fps), 40-ch@720p (30 fps)

• Network:

  • Network Protocols: IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
  • Network Interfaces: 4 RJ45 10M/100M/1000M self-adaptive Ethernet interfaces

• Storage:

  • HDD Bays: 16 SATA interfaces supporting hot-plug
  • Capacity: Up to 10 TB per HDD
  • Optional: 2 × mini SAS interfaces, 1 × eSATA interface

• Auxiliary Interface:

  • Serial Interfaces: RS-232, RS-485, Keyboard
  • USB Ports: Front Panel: 2 × USB 2.0, Rear Panel: 2 × USB 3.0
  • Alarm In/Out: 16/8
  • Extension Board: Supports four 10M/100M/1000M optical interfaces, eight RS-485 interfaces, 32 alarm inputs, and 16 alarm outputs

• General:

  • Power Supply: 100 to 240 VAC, 50 to 60Hz, 5 A
  • Power Consumption: ≤ 140W
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Humidity: 10% to 90%
  • Dimensions: 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inches)
  • Weight: ≤ 16 kg (35.3 lbs)

Certifications:

• CE, FCC

Ideal For:

The Hikvision DS-96128NI-I16 is perfect for large enterprises, public institutions, and any high-demand environment requiring extensive surveillance coverage with high-resolution video quality and robust data management. Elevate your security system with this high-performance NVR, ensuring comprehensive and reliable monitoring.

Datasheets

Datasheet 1

Warranty

We offer 3 Years warranty
