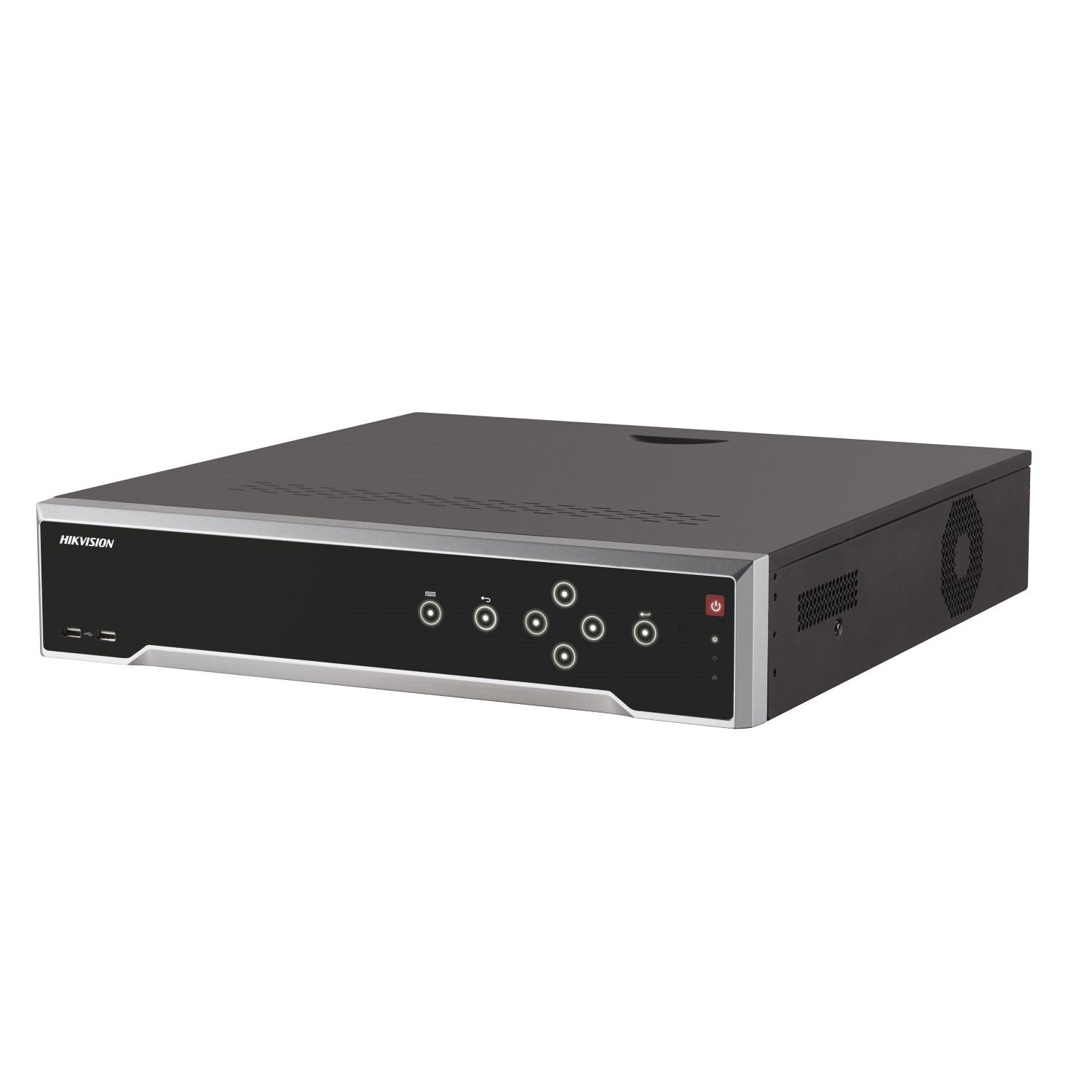

Hikvision DS-7732NI-M4/16P 32-Channel 8K NVR with 16 PoE Ports – H.265+/H.265, 4× SATA, 320 Mbps, Dual HDMI 4K/8K Output, Smart VCA, 16-Ch Playback with HDD

Hikvision DS-7732NI-M4/16P 32-Channel 8K NVR with 16 PoE Ports – H.265+/H.265, 4× SATA, 320 Mbps, Dual HDMI 4K/8K Output, Smart VCA, 16-Ch Playback with HDD

$1,369.86 AUD
$1,632.00 AUD $1,369.86 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Hikvision DS-7732NI-M4/16P is a high-performance 32-channel 8K network video recorder designed for professional surveillance systems. With support for ultra-high-definition video input up to 32 MP, 16 PoE ports, dual HDMI outputs (up to 8K resolution), and advanced smart video content analytics, this NVR offers unmatched flexibility and power. Perfect for large-scale installations, this M Series NVR supports up to 320 Mbps of incoming bandwidth and integrates seamlessly with ONVIF-compliant devices.

📦 What’s Included

  • 1 × Hikvision DS-7732NI-M4/16P 32-Channel 8K NVR

  • Power cable

  • Mounting accessories

  • Quick start guide

  • User manual (digital)

  • (Choose your own HDD below)

🔑 Main Features

  • Supports up to 32 IP Cameras at resolutions up to 32 MP

  • H.265+/H.265/H.264+/H.264 video compression for efficient recording

  • Dual 4K HDMI outputs and 1 VGA output for flexible display configurations

  • 16 × PoE ports (802.3af/at) for easy camera power and data via a single cable

  • Up to 320 Mbps incoming bandwidth for high-performance camera integration

  • Up to 16-ch 1080p synchronous playback, and 4 SATA interfaces for storage

  • Advanced VCA functions: motion detection, line crossing, intrusion, ANPR, people counting

  • POS integration: overlay POS data on live or recorded video for retail analytics

  • Secure streaming over TLS, double authentication for playback/download

🛠 Detailed Specifications

Feature Specification
Video Input 32 channels, up to 32 MP resolution
Decoding Capacity 2 × 32 MP @ 30 fps, 10 × 8 MP @ 30 fps, 20 × 4 MP @ 30 fps
Max Bandwidth 320 Mbps incoming, 400 Mbps outgoing
Display Outputs HDMI1 up to 8K, HDMI2 up to 4K, VGA up to 1080p
PoE Ports 16 ports, up to 200 W total, IEEE 802.3af/at
Storage 4 × SATA (up to 16 TB per disk), 1 × eSATA
Audio 1-ch audio out, 2-way audio via RCA
Alarm I/O 16 × Alarm In, 9 × Alarm Out
Remote Access Up to 128 remote connections
Smart Analytics VCA, heatmap, ANPR, people counting
Network Interface 1 × RJ-45 Gigabit Ethernet port
RAID Support Not supported
USB Ports 2 × USB 2.0 (front), 1 × USB 3.0 (rear)
Power Supply 100–240 VAC, ≤15 W (NVR only)
Chassis Type 1.5U rack-mountable
Operating Temp -10 °C to 55 °C, 10–90% RH

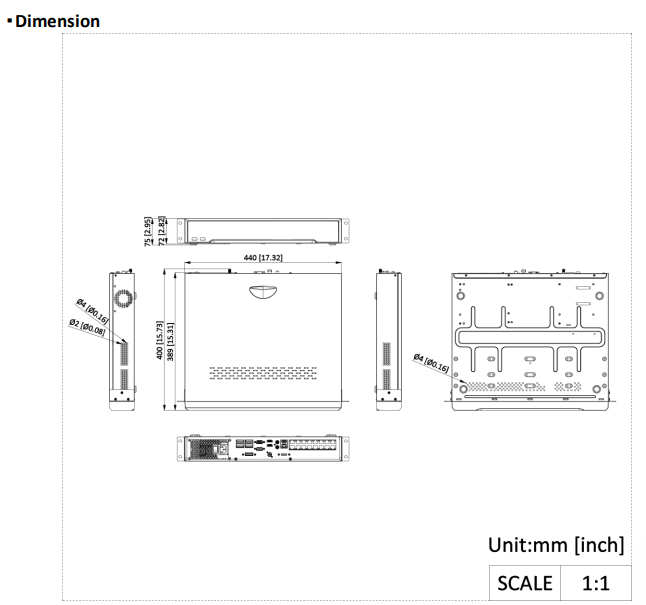

Dimensions 440 × 389 × 72 mm
Weight ≤5 kg (without HDD)

🏢 Brand Overview – Hikvision

Hikvision is the world’s leading provider of innovative video surveillance products and solutions. With industry-leading R&D and a focus on AI-driven smart technologies, Hikvision offers high-quality, scalable security systems trusted worldwide.

✅ Use Case Scenarios

  • Multi-site commercial buildings requiring centralized recording

  • High-security facilities needing 32-channel ultra-HD video coverage

  • Government and municipal surveillance hubs with complex integration needs

  • Retail environments with POS analytics and VCA detection

  • Large-scale warehouses and logistics centers with high camera density

Technical documents

🛡 Warranty Information

  • Standard 3-year limited hardware warranty by Hikvision

  • Product support and RMA handled via authorized Australian and New Zealand Hikvision distributors

  • Firmware updates and documentation available through official support channels

🇦🇺 Excellence for the Australian and New Zealand Market

The DS-7732NI-M4/16P is optimized for use in Australia and New Zealand, meeting all relevant electrical, environmental, and safety compliance standards. It is sourced exclusively through authorized local Hikvision partners to ensure warranty support, firmware compatibility, and genuine component integrity.

❓FAQs

Q: How many cameras does DS-7732NI-M4/16P support?
A: It supports up to 32 IP cameras with resolutions up to 32MP. (SKU: DS-7732NI-M4/16P)

Q: What is the maximum video output resolution of DS-7732NI-M4/16P?
A: HDMI 1 can output up to 8K resolution, and HDMI 2 supports up to 4K. (SKU: DS-7732NI-M4/16P)

Q: Does DS-7732NI-M4/16P support smart analytics?
A: Yes, it includes VCA such as line crossing, intrusion detection, people counting, ANPR, and more. (SKU: DS-7732NI-M4/16P)

Q: Can DS-7732NI-M4/16P be used with non-Hikvision cameras?
A: Yes, it is ONVIF compatible and supports third-party IP cameras. (SKU: DS-7732NI-M4/16P)

Q: What storage options are available on DS-7732NI-M4/16P?
A: It features 4 SATA interfaces and 1 eSATA port, each supporting up to 16 TB HDDs. (SKU: DS-7732NI-M4/16P)
